B1271

DTC B1271 COMBINATION METER ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This DTC is detected when communication between the combination meter and network gateway ECU stops for more 10 seconds.

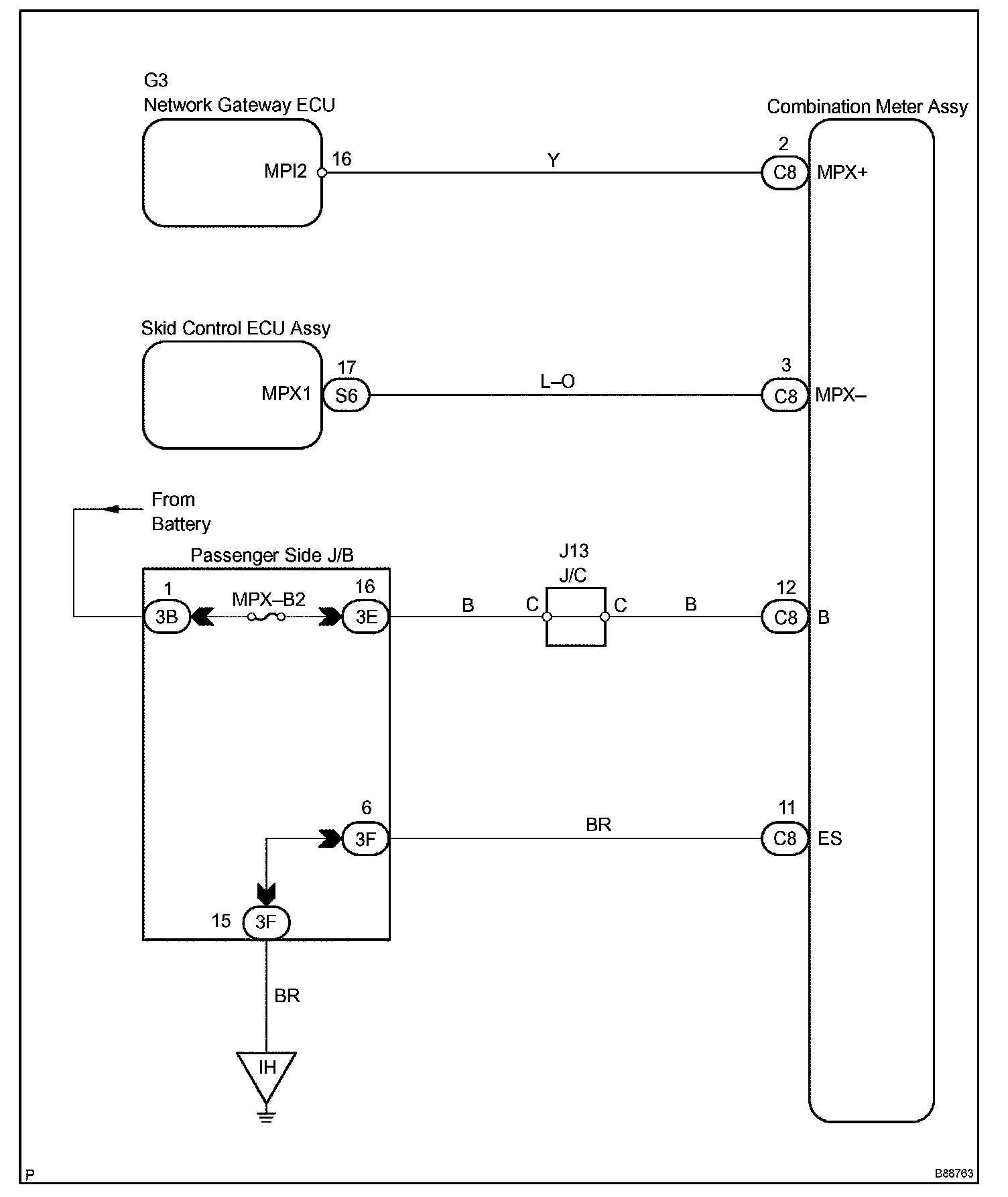

Wiring Diagram:

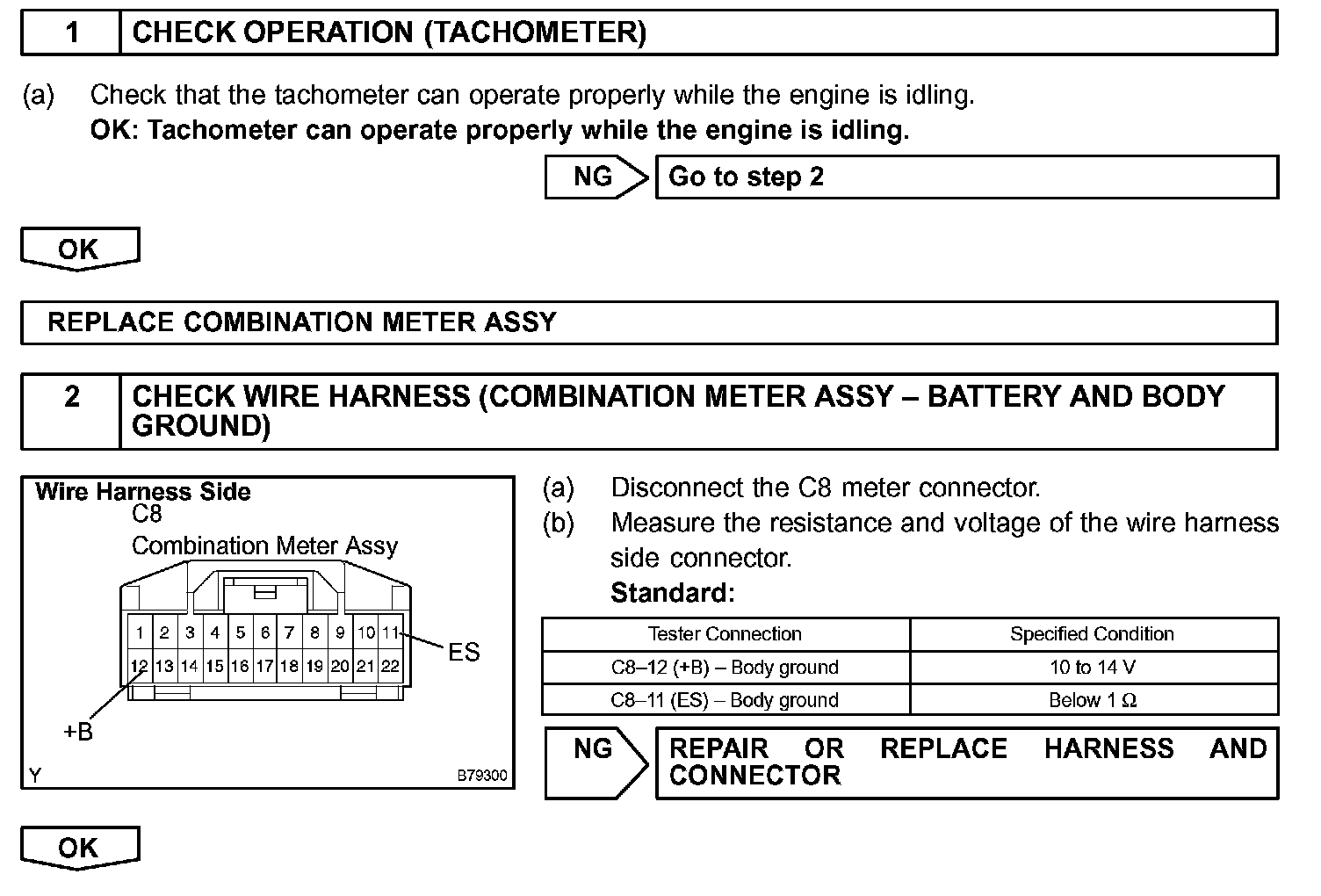

Step 1 - 2:

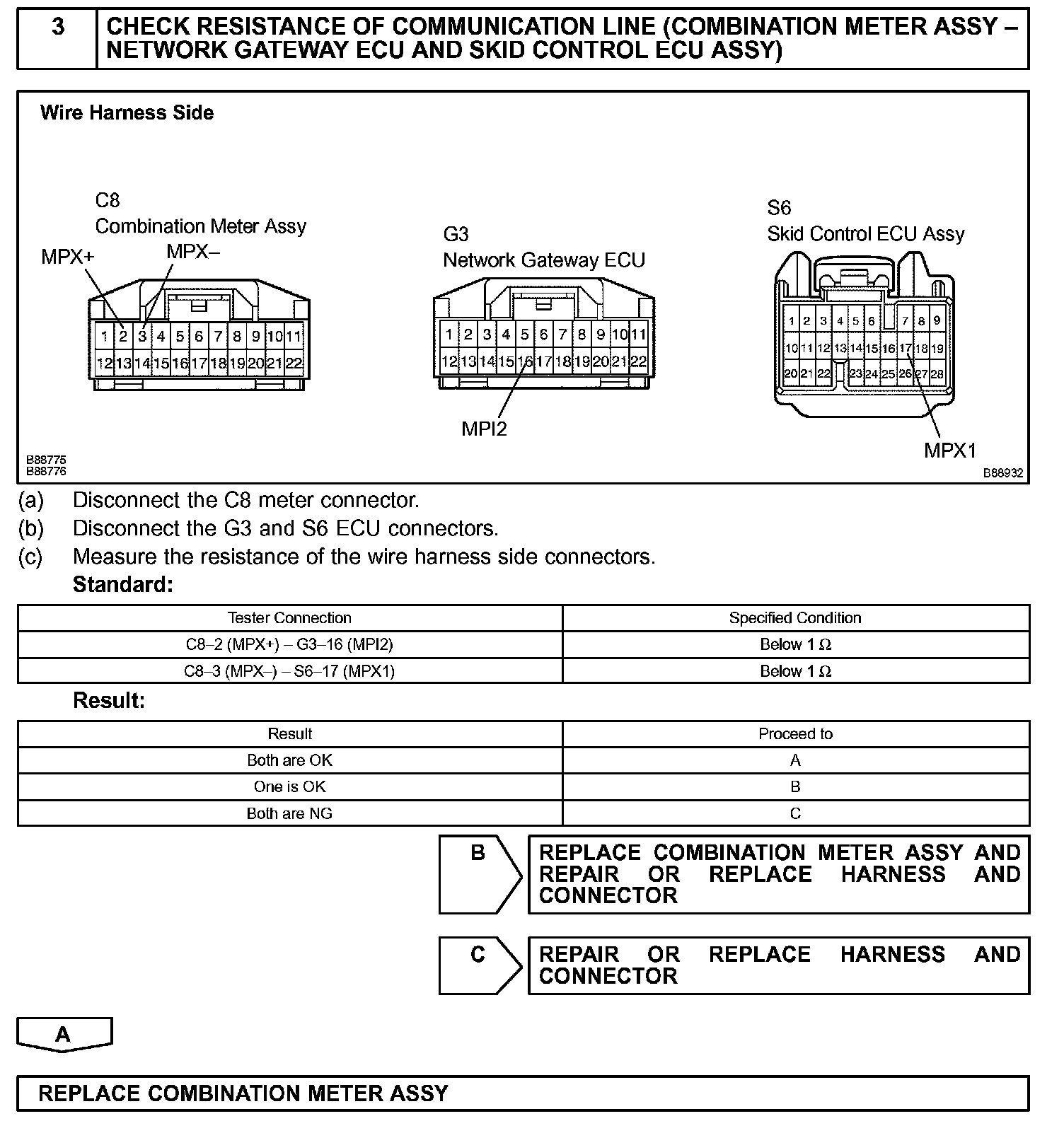

Step 3:

INSPECTION PROCEDURE
