B1263

DTC B1263 LUGGAGE ROOM JUNCTION BLOCK ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

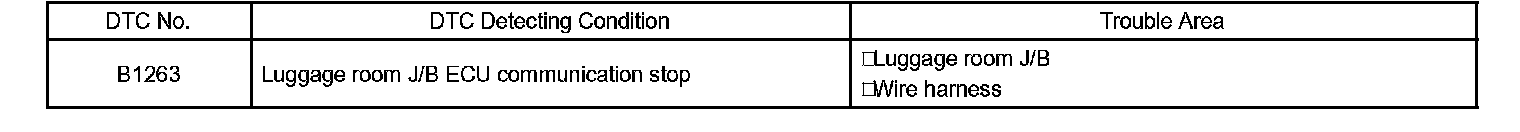

DTC Detecting Condition:

B1263 will be output when the communication between the luggage room J/B ECU and gateway ECU stops for more than 10 seconds.

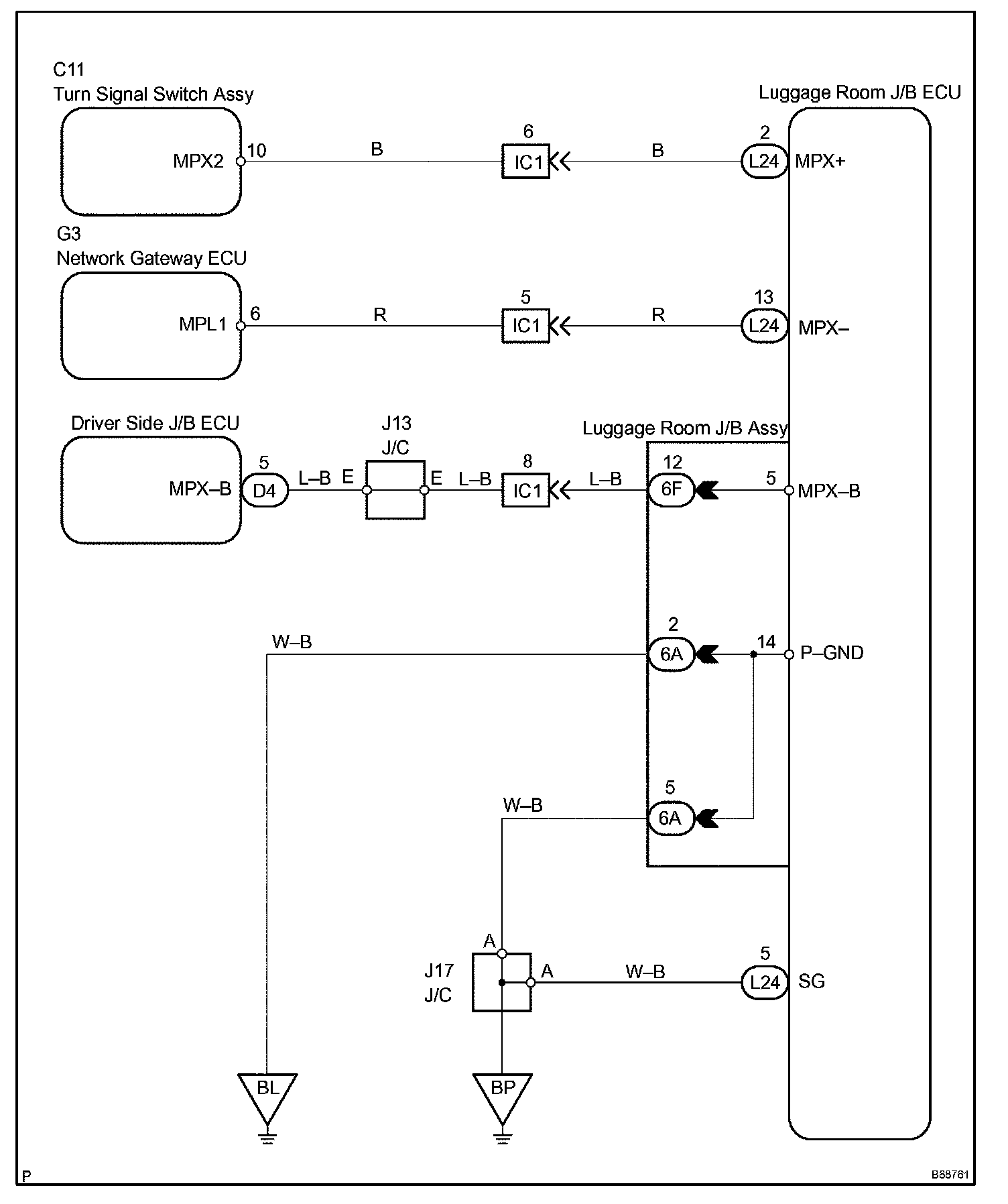

Wiring Diagram:

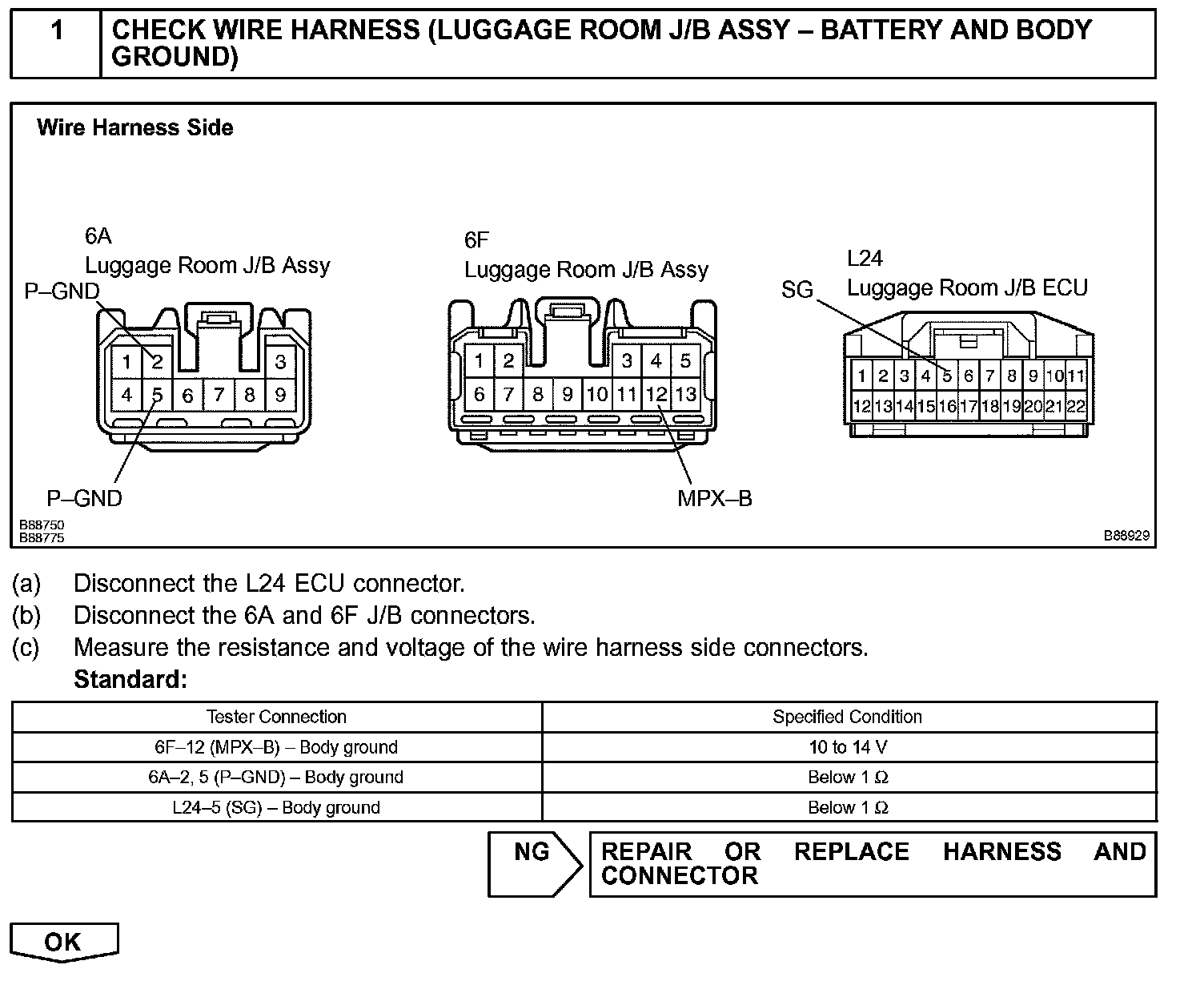

Step 1:

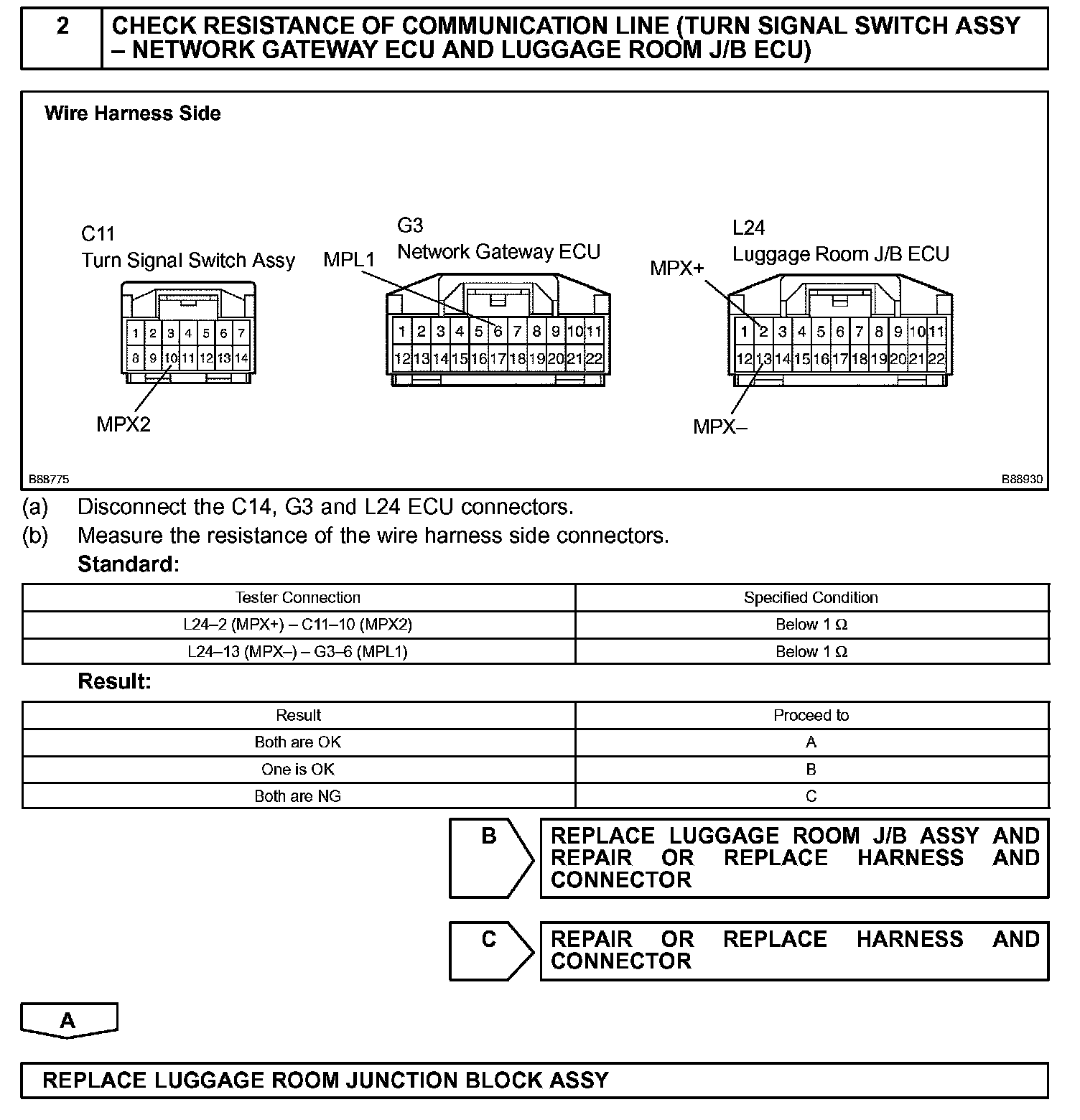

Step 2:

INSPECTION PROCEDURE
