B1262

DTC B1262 A/C ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

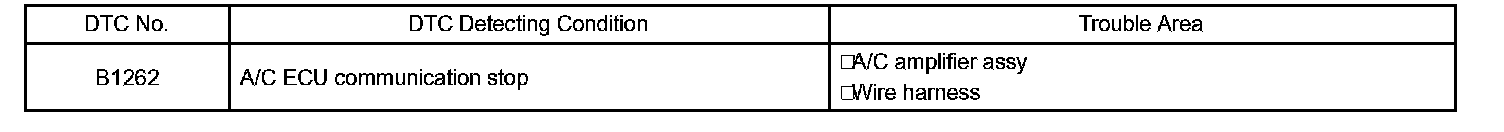

DTC Detecting Condition:

This DTC is detected when communication between the air conditioner amplifier and network gateway ECU stops for more than 10 seconds.

Wiring Diagram:

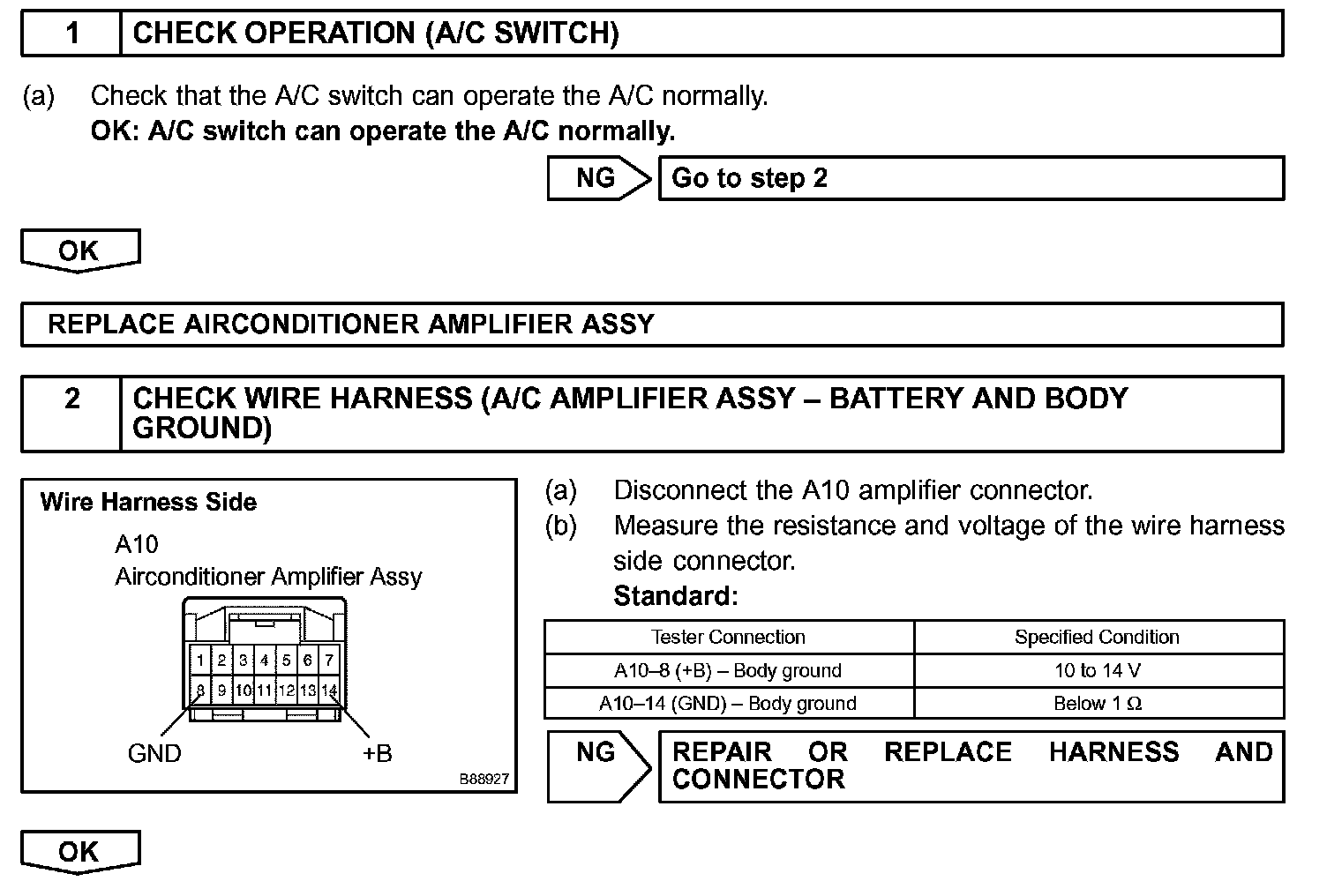

Step 1 - 2:

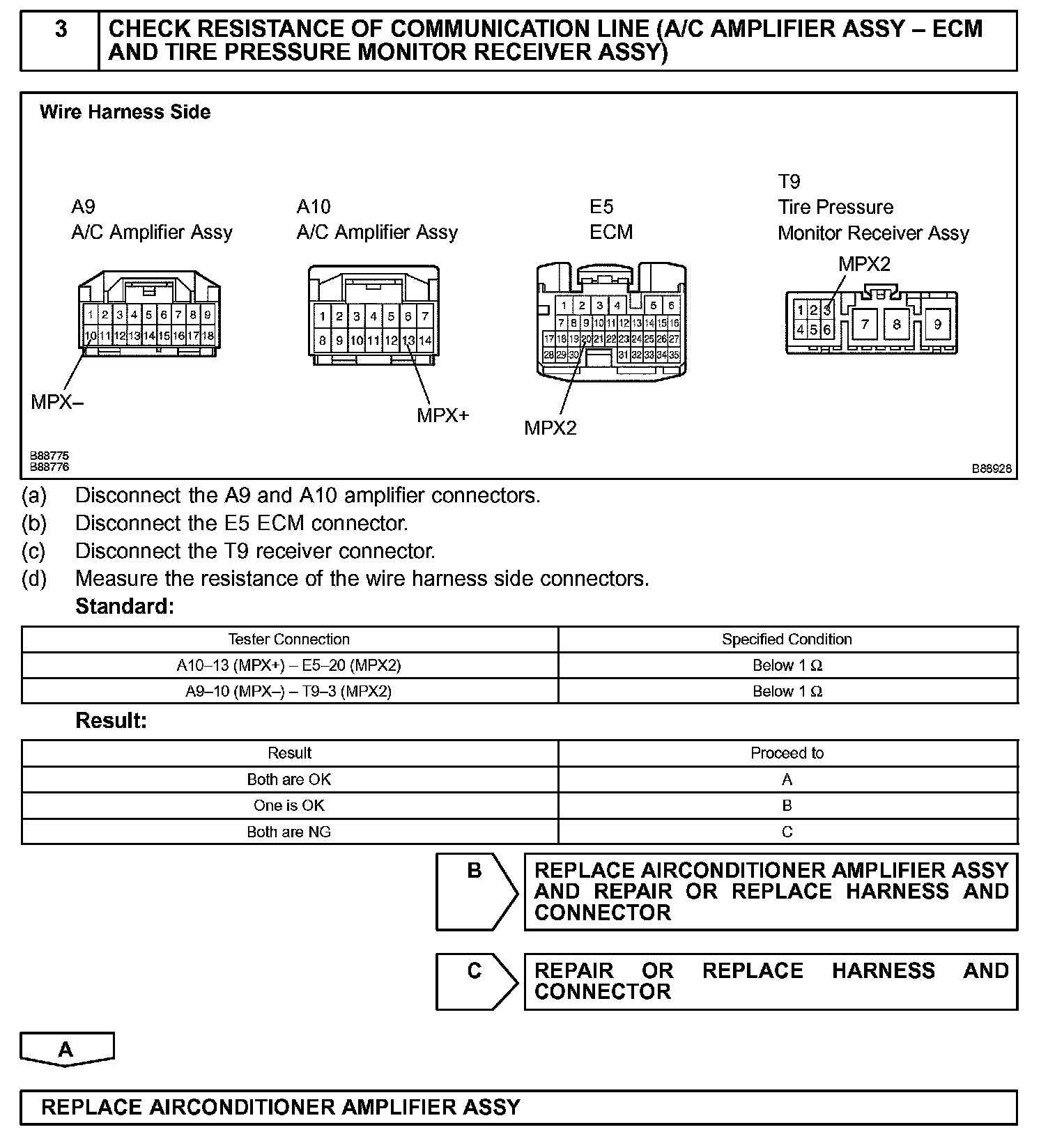

Step 3:

INSPECTION PROCEDURE
