B1231

DTC B1231 JAM PROTECTION LIMIT SWITCH CIRCUIT ON DRIVER DOOR

CIRCUIT DESCRIPTION

DTC Detection Condition:

These DTCs are output when the driver door power window regulator motor circuit is malfunctioning.

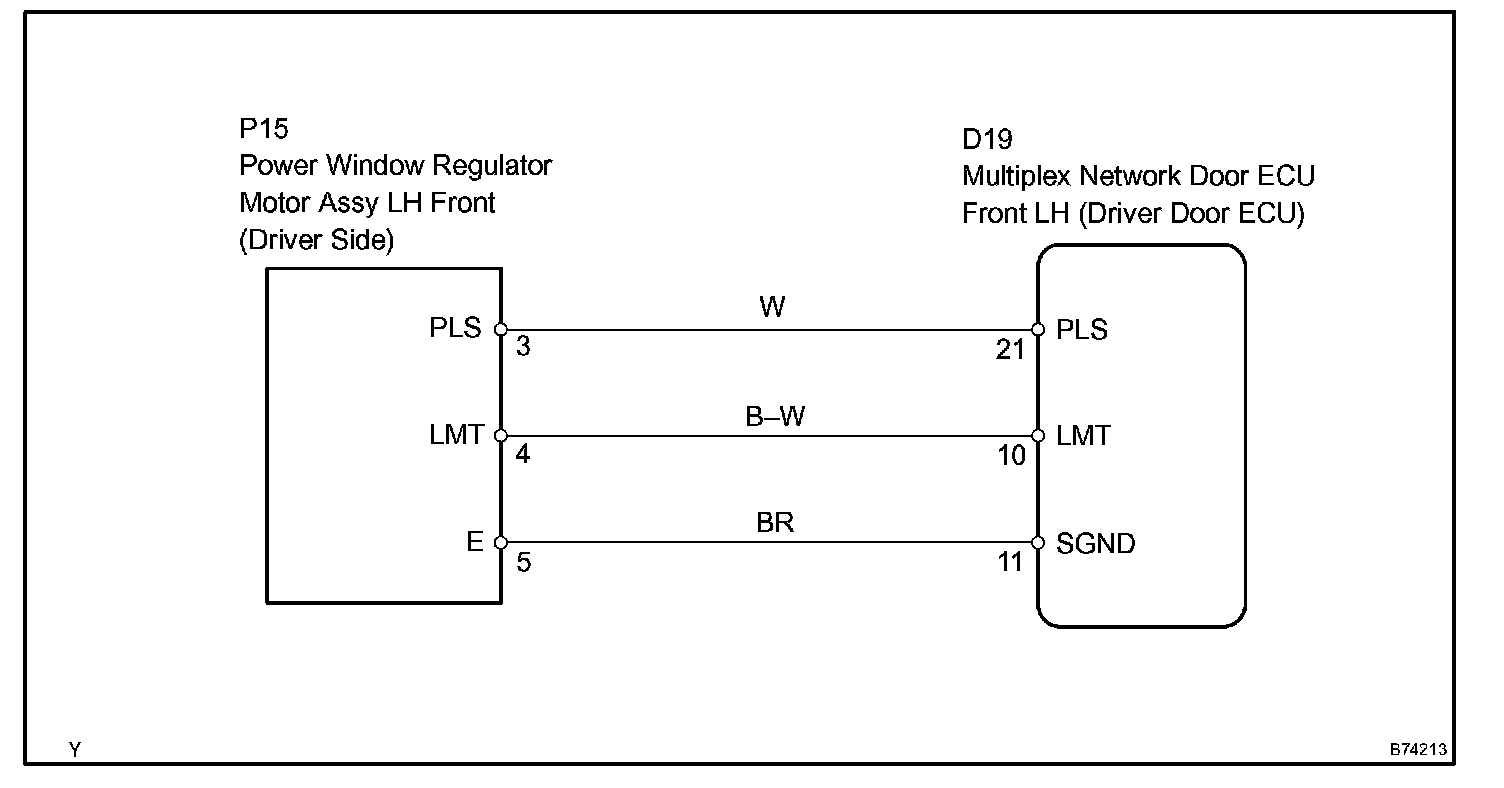

Wiring Diagram:

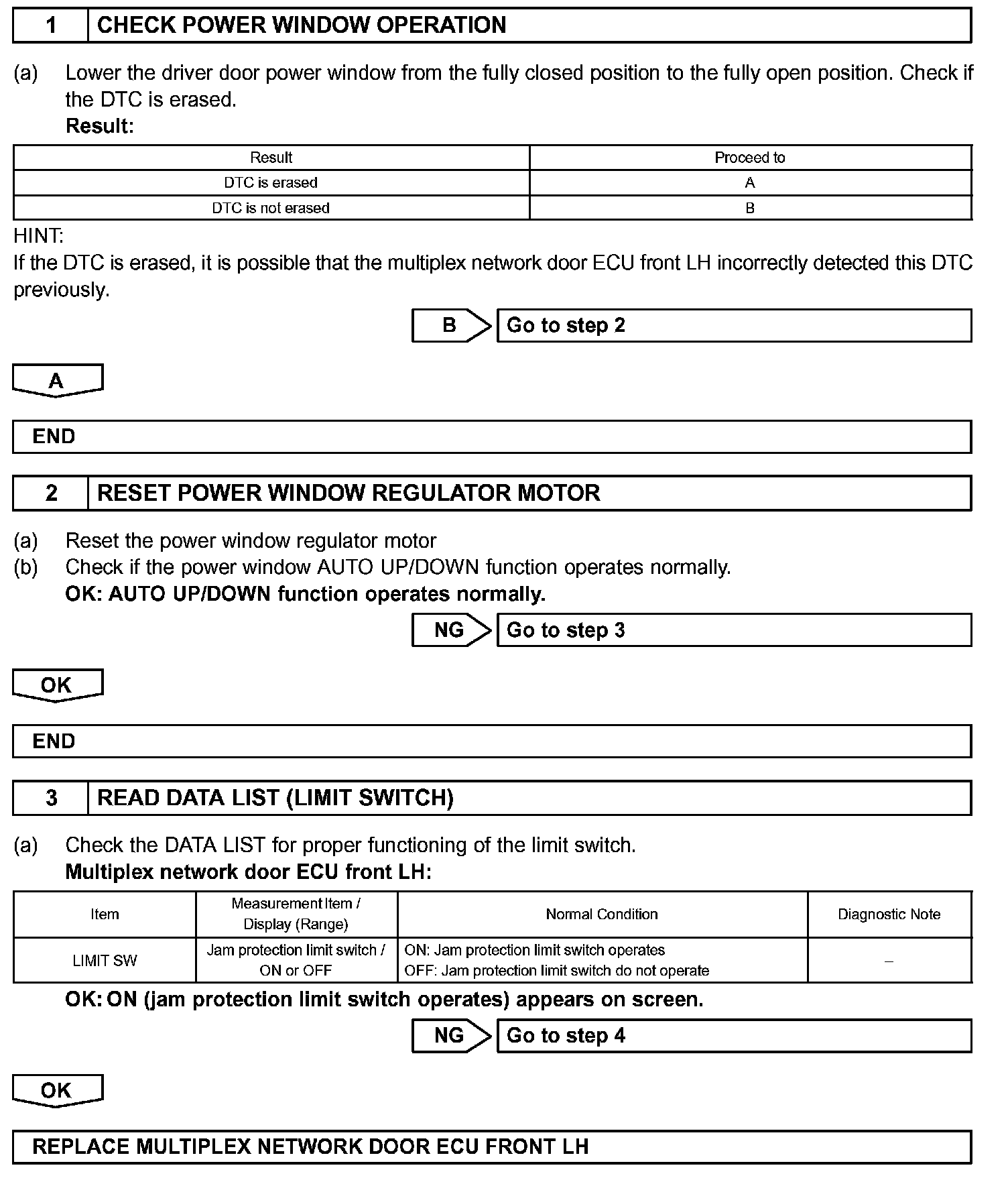

Step 1 - 3:

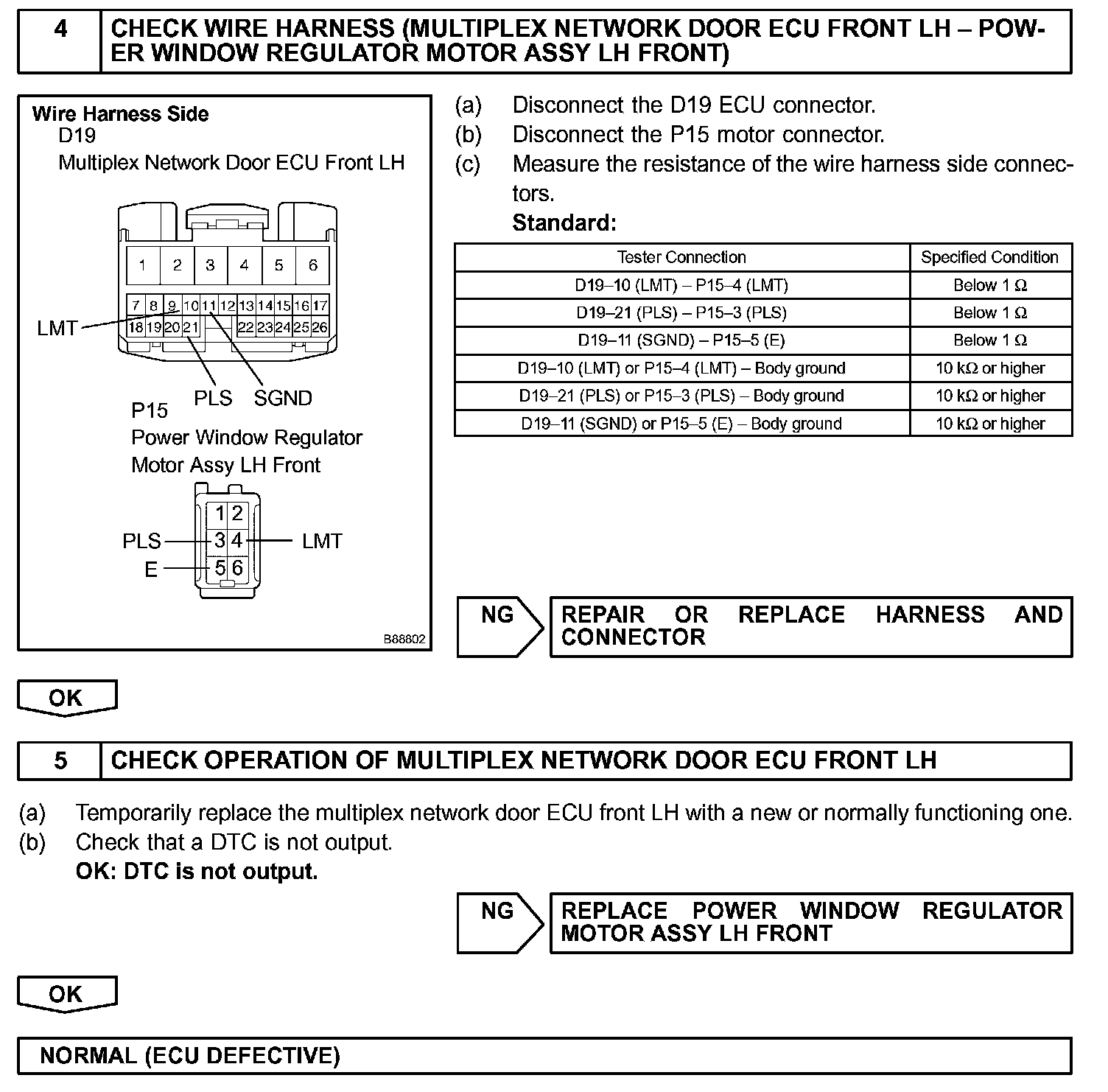

Step 4 - 5:

INSPECTION PROCEDURE
