B1224

DTC B1224 DOOR LOCK SWITCH CIRCUIT ON PASSENGER DOOR

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC will be output when the driver's door unlock switch (for key operation) of the power window regulator master switch is on.

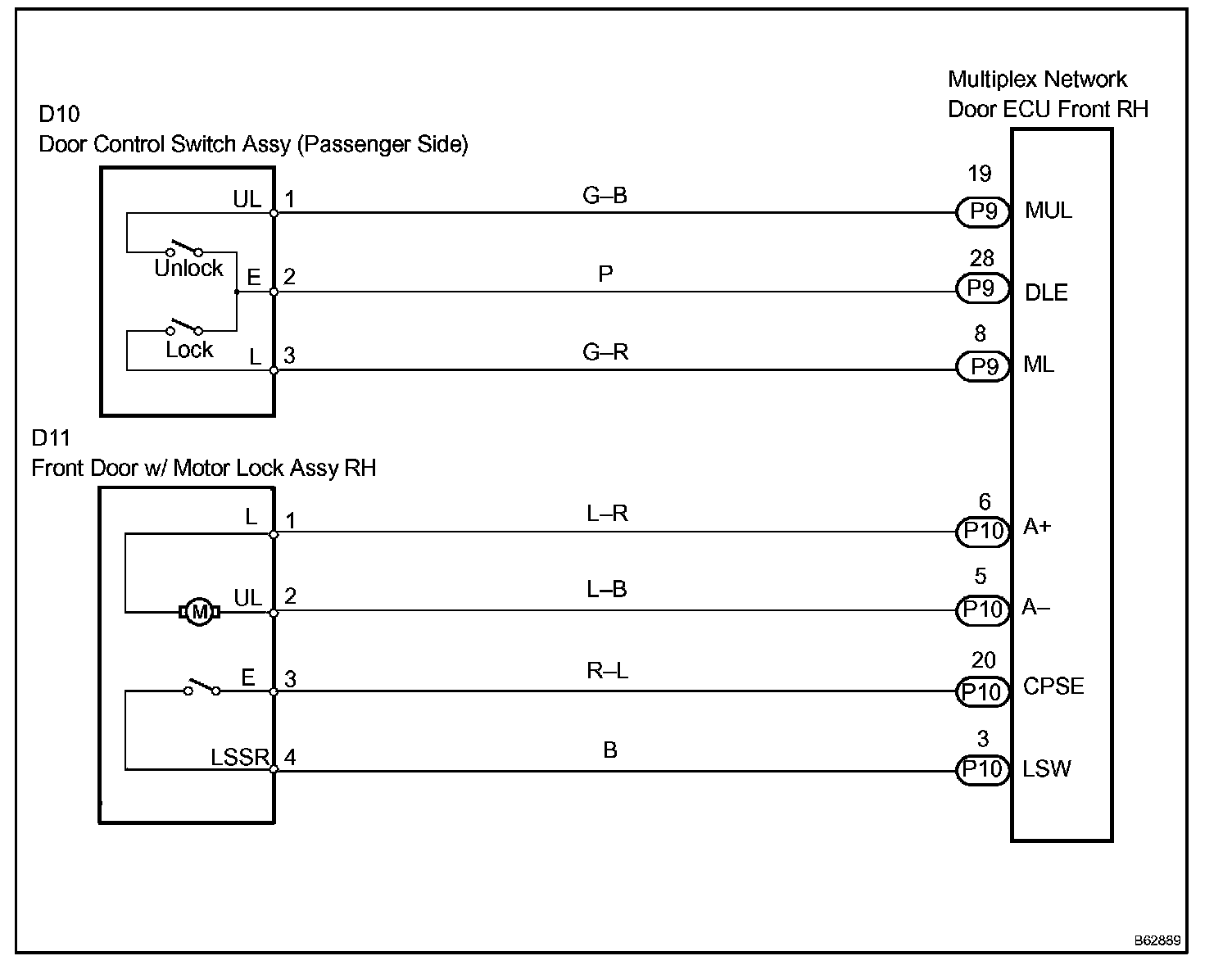

Wiring Diagram:

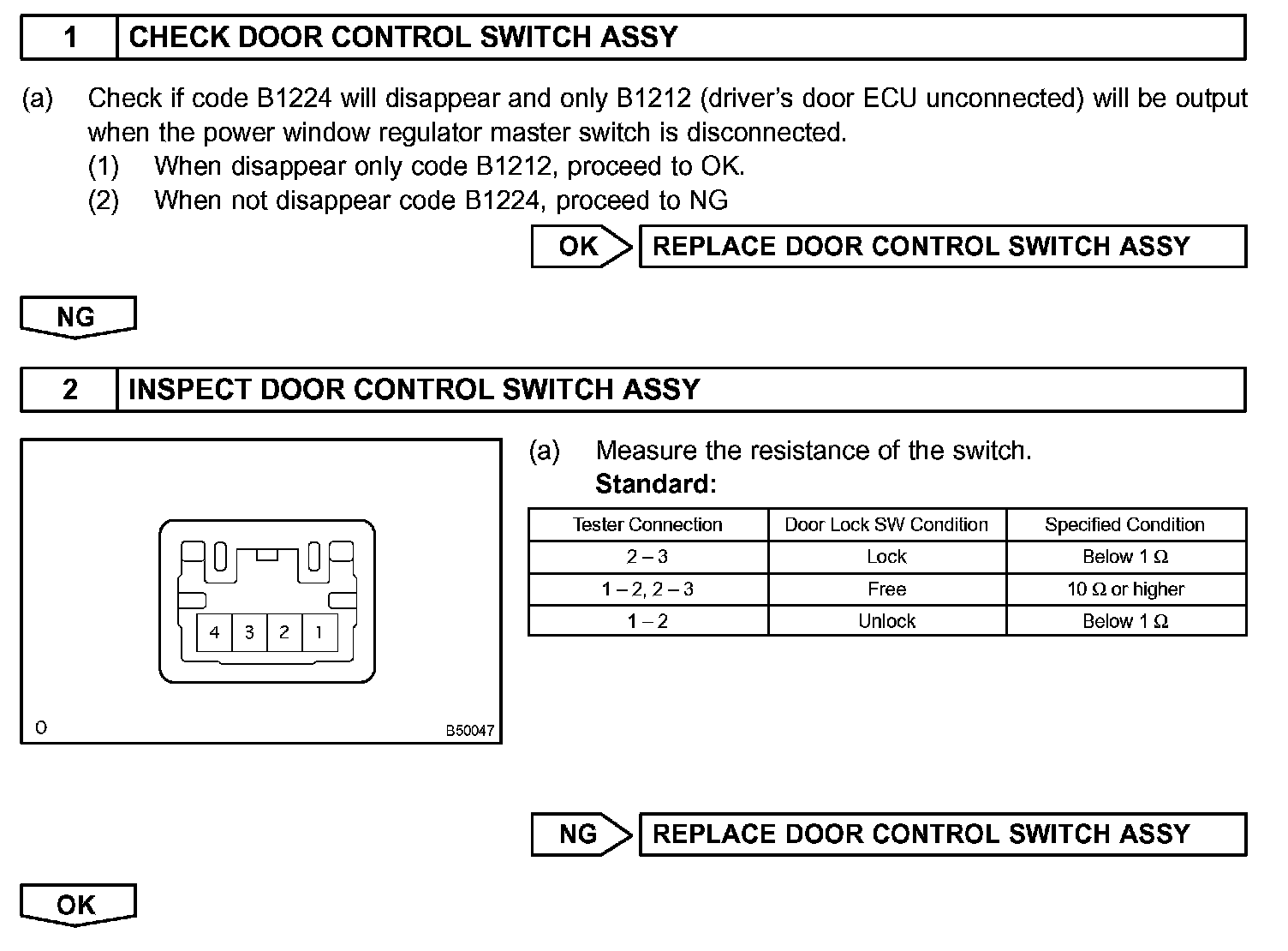

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
