B1223

DTC B1223 POWER WINDOW SWITCH CIRCUIT ON PASSENGER DOOR

CIRCUIT DESCRIPTION

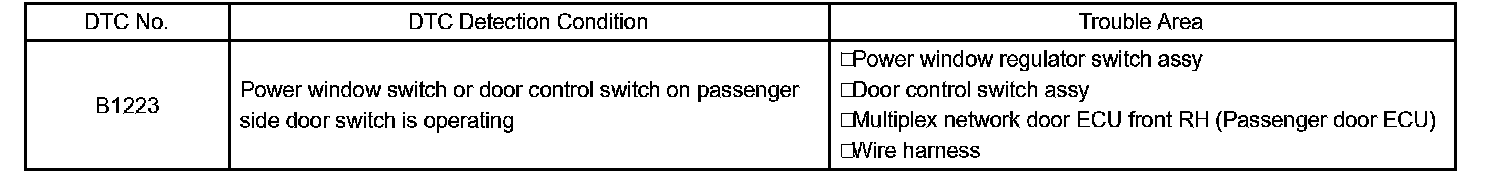

DTC Detection Condition:

This DTC is output when the passenger door power window regulator switch or door control switch is operated.

HINT:
- If this DTC is output when a switch is not operated, one of the switches may be stuck.
- If this DTC is not output when a switch is operated, the switch's contact is defective.

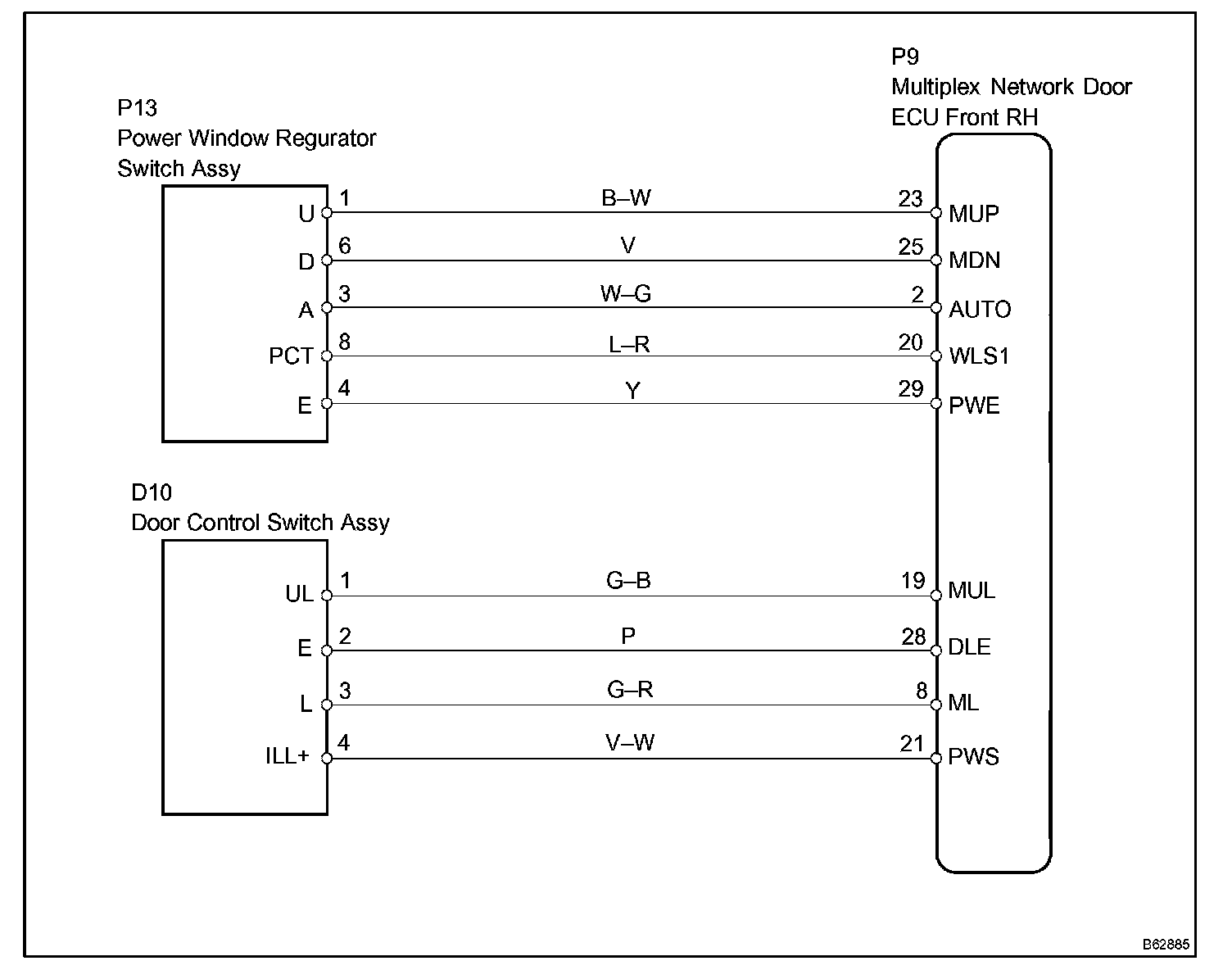

Wiring Diagram:

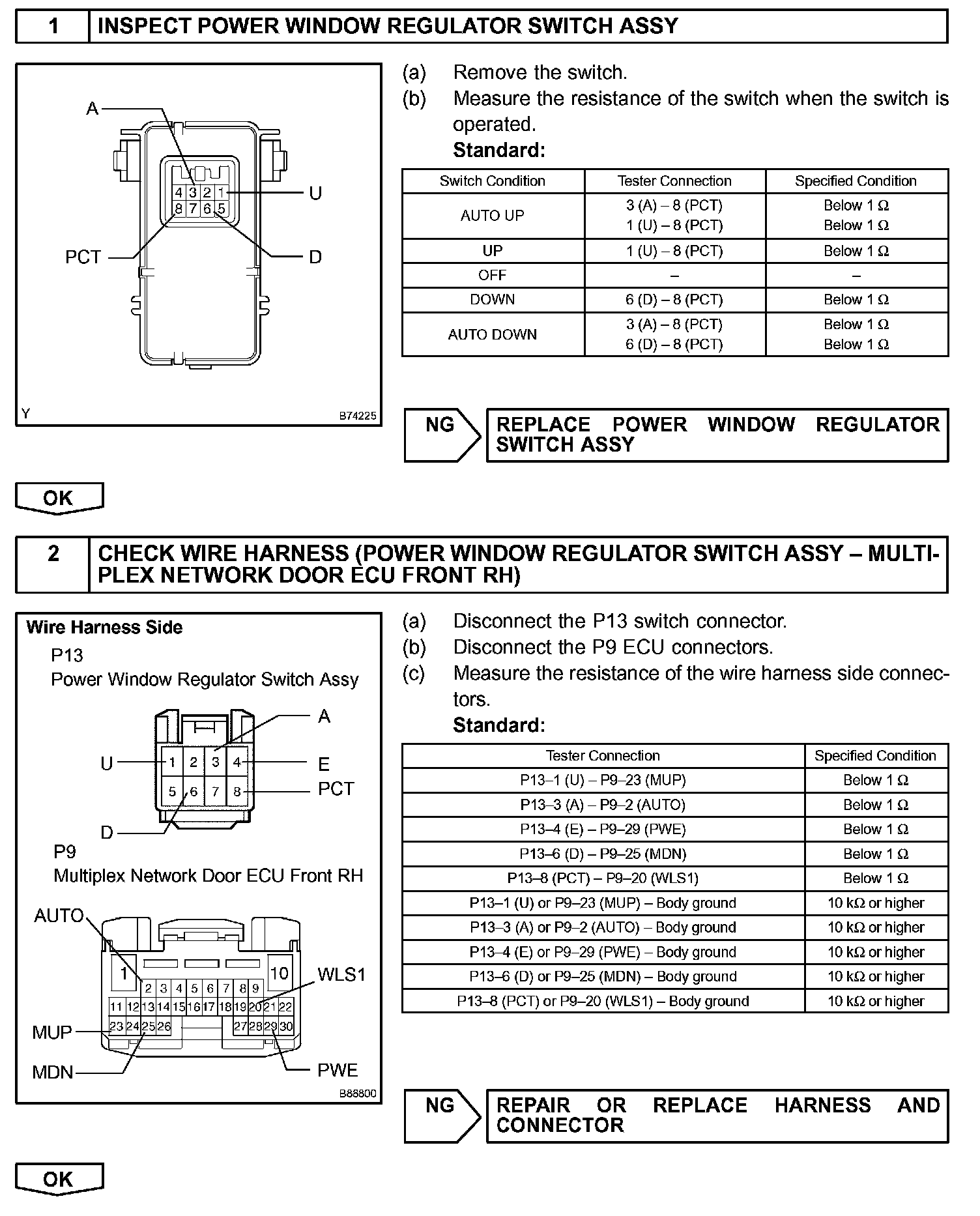

Step 1 - 2:

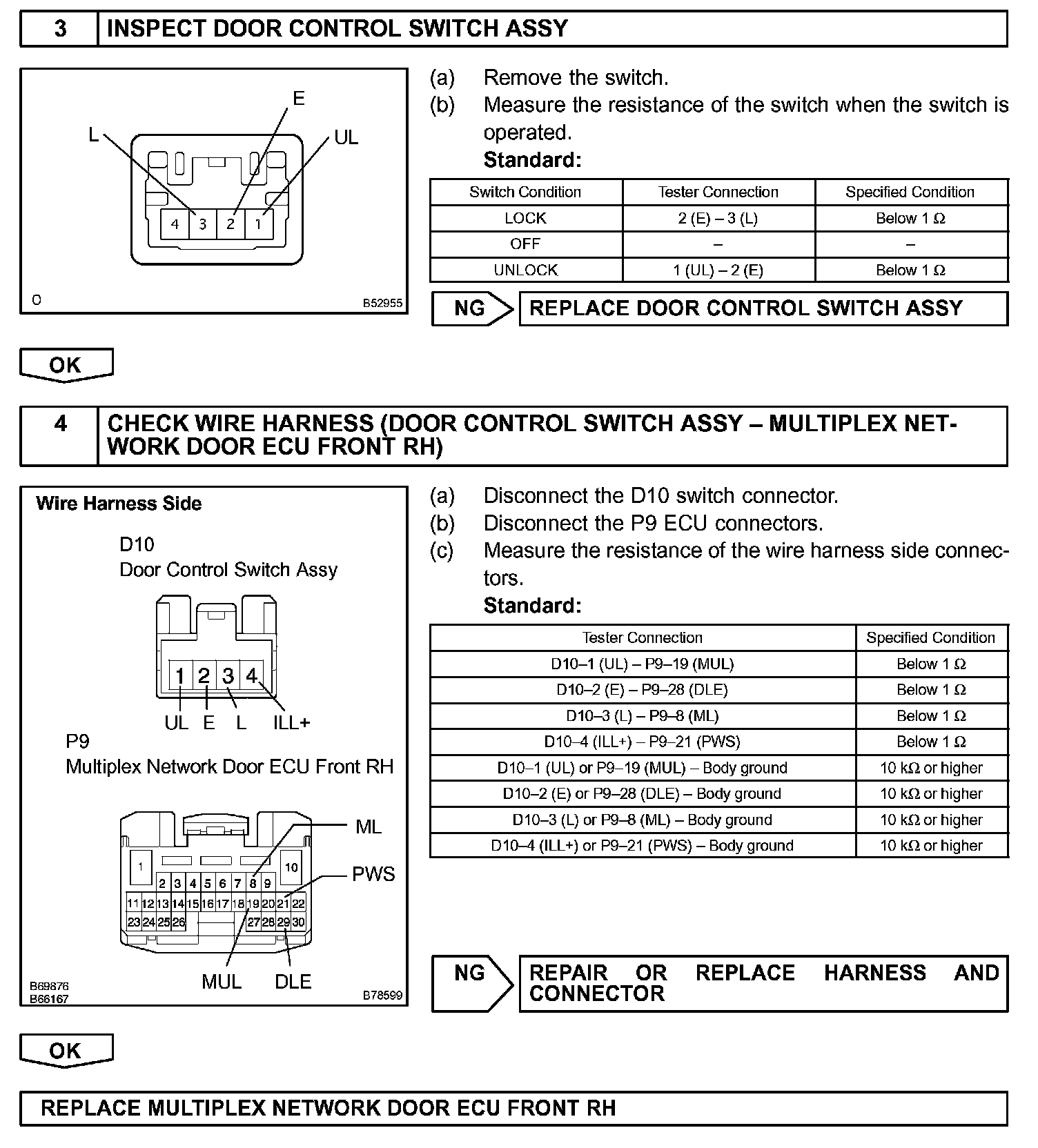

Step 3 - 4:

INSPECTION PROCEDURE
