B0132

DTC B0132 SHORT IN P/T SQUIB (RH) CIRCUIT (TO GROUND)

CIRCUIT DESCRIPTION

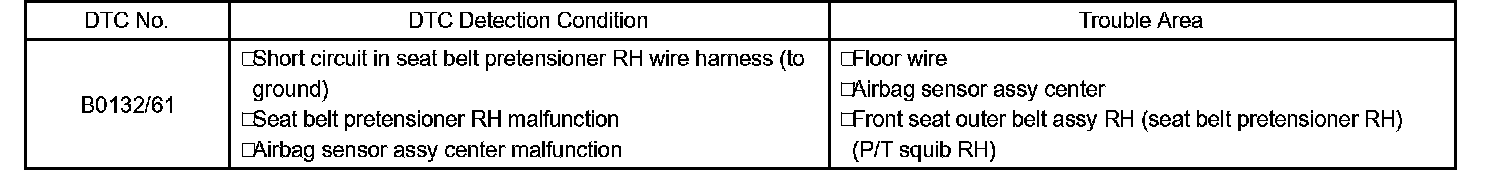

DTC Detection Condition:

The P/T squib (RH) circuit consists of the airbag sensor center and the front seat outer belt RH (seat belt pretensioner RH). It causes the SRS to deploy when the SRS deployment conditions are satisfied.

DTC B0132 is recorded when a ground short is detected in the P/T squib (RH) circuit.

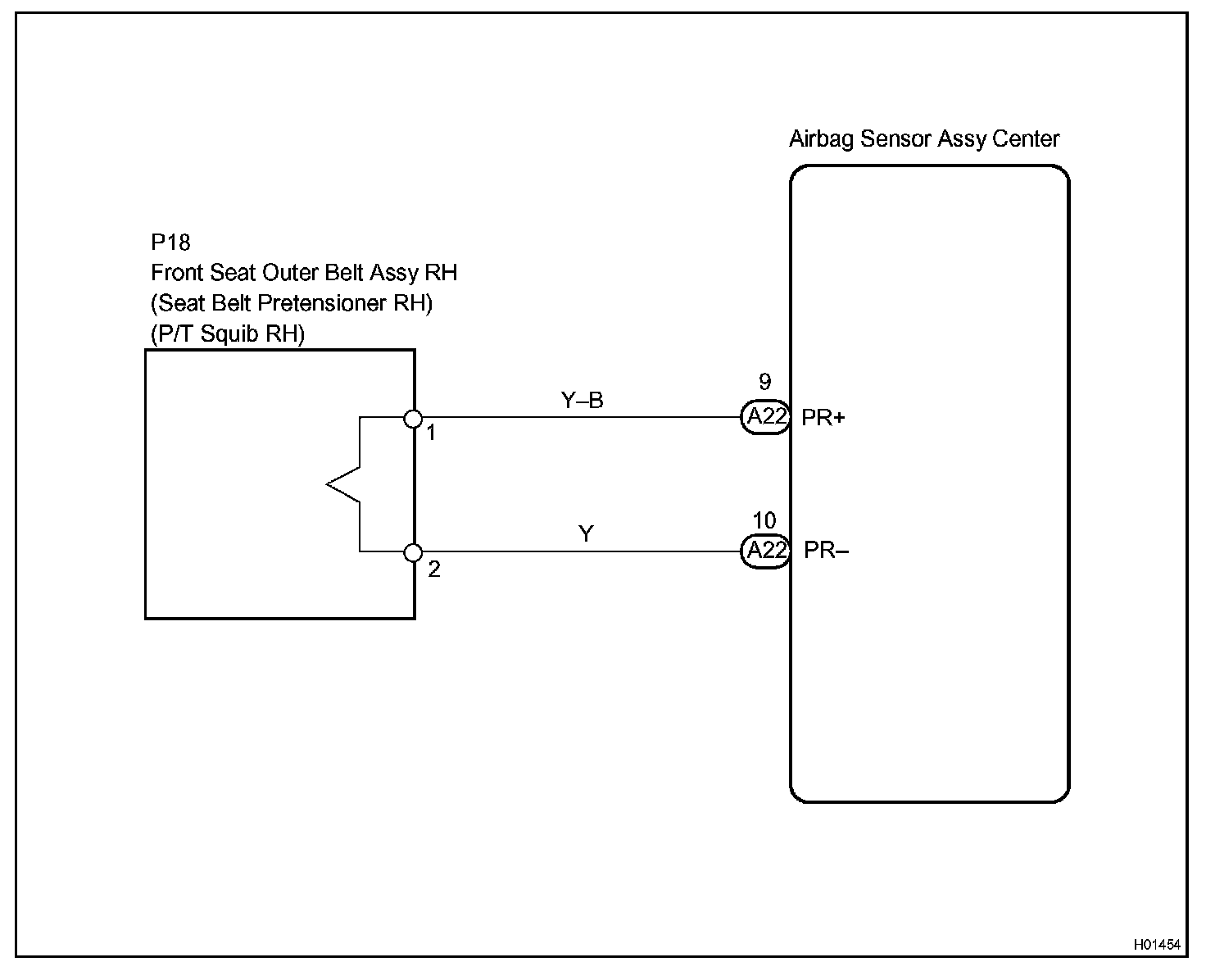

Wiring Diagram:

Step 1:

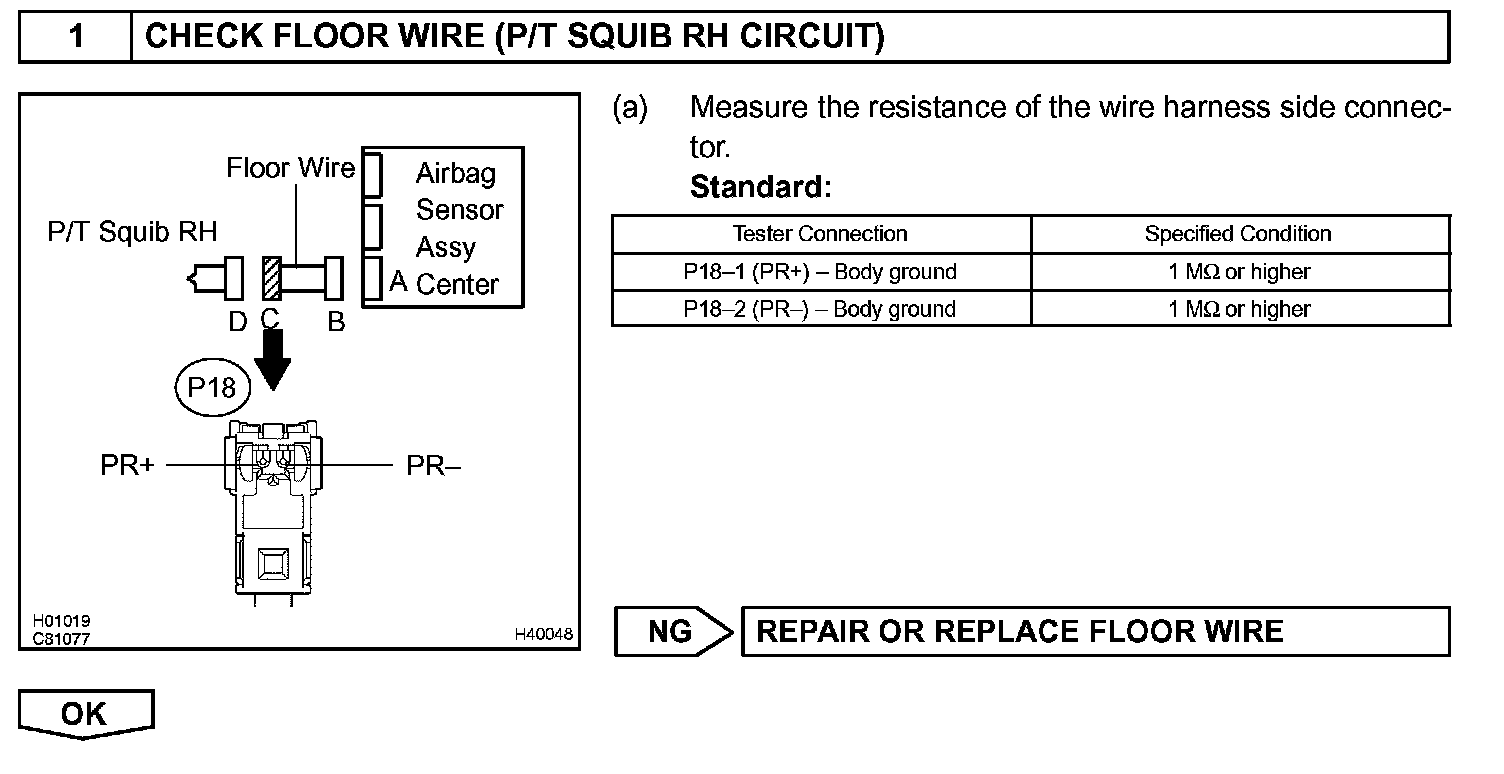

Step 2:

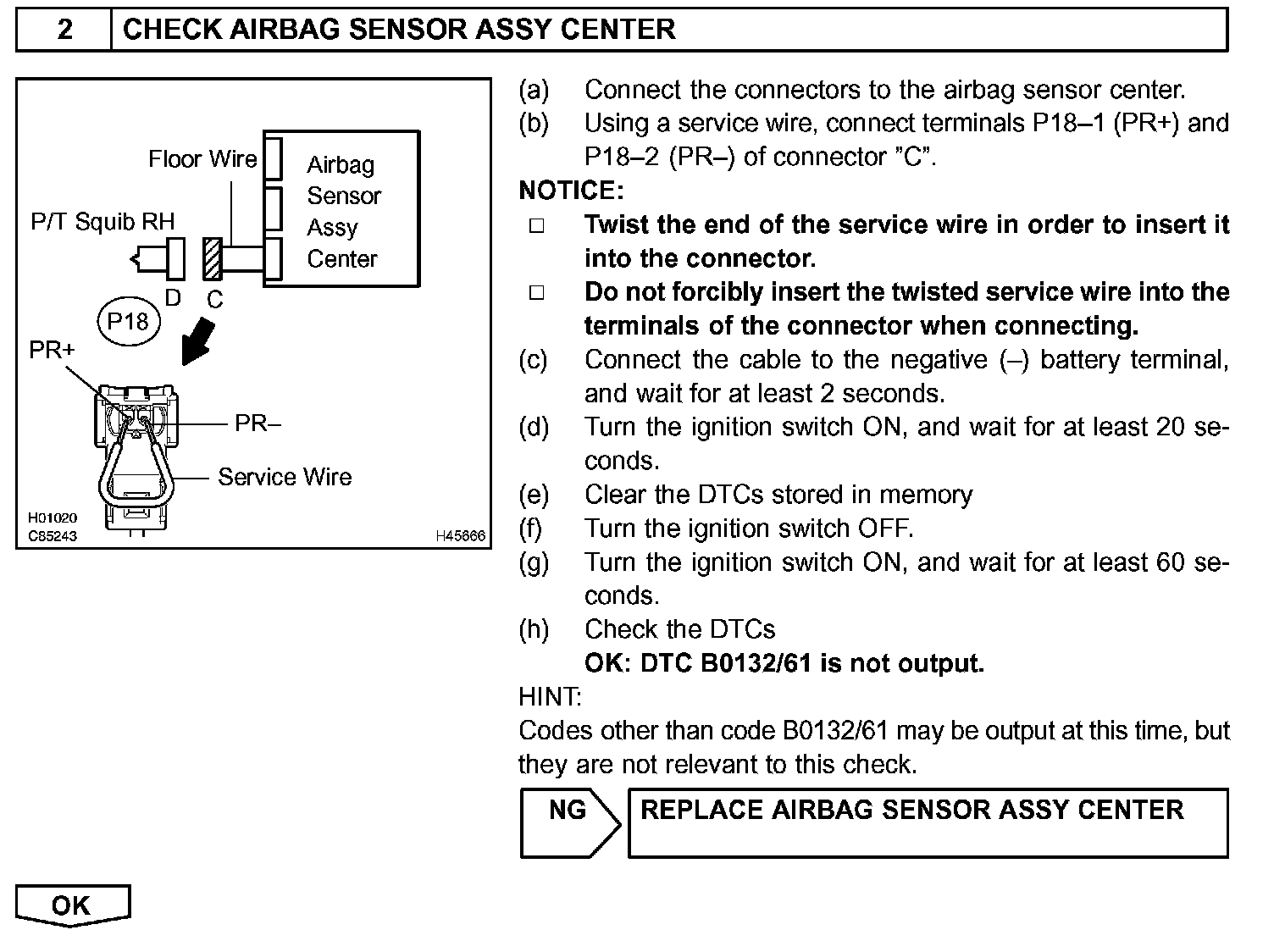

Step 3:

INSPECTION PROCEDURE

CAUTION: Be sure to perform the following procedures before troubleshooting to avoid unexpected airbag and seat belt pretensioner activation.

a. Turn the ignition switch OFF.
b. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
c. Disconnect the connectors from the airbag sensor center.
d. Disconnect the connector from the horn button.
e. Disconnect the connector from the front passenger airbag.
f. Disconnect the connector from the front seat airbag LH.
g. Disconnect the connector from the front seat airbag RH.
h. Disconnect the connector from the front seat outer belt LH.
i. Disconnect the connector from the front seat outer belt RH.
