Wiper and Washer Switch Circuit

WIPER AND WASHER SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the combination switch. The signals by manual operation are sent to the passenger side J/B ECU.

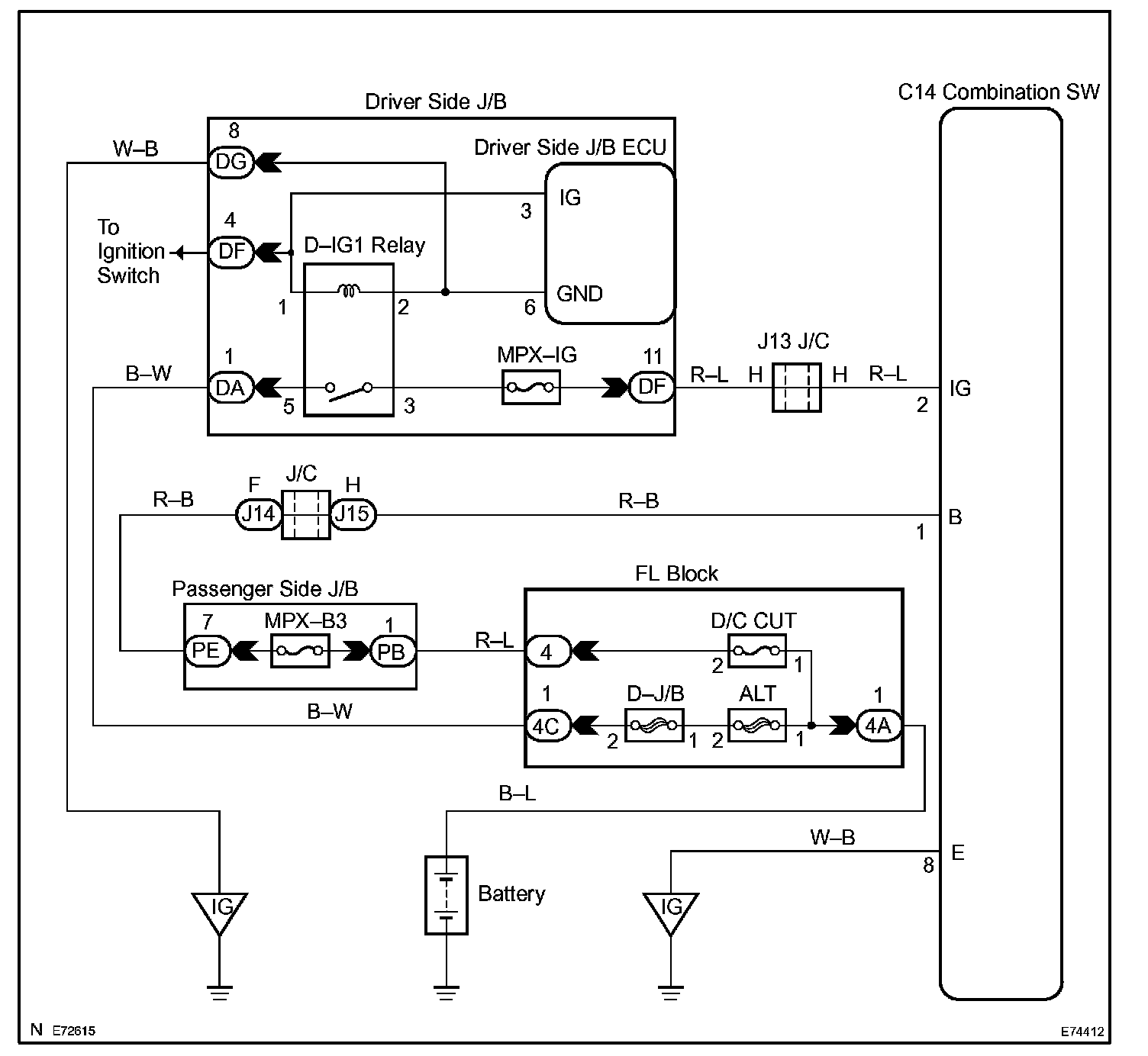

Wiring Diagram:

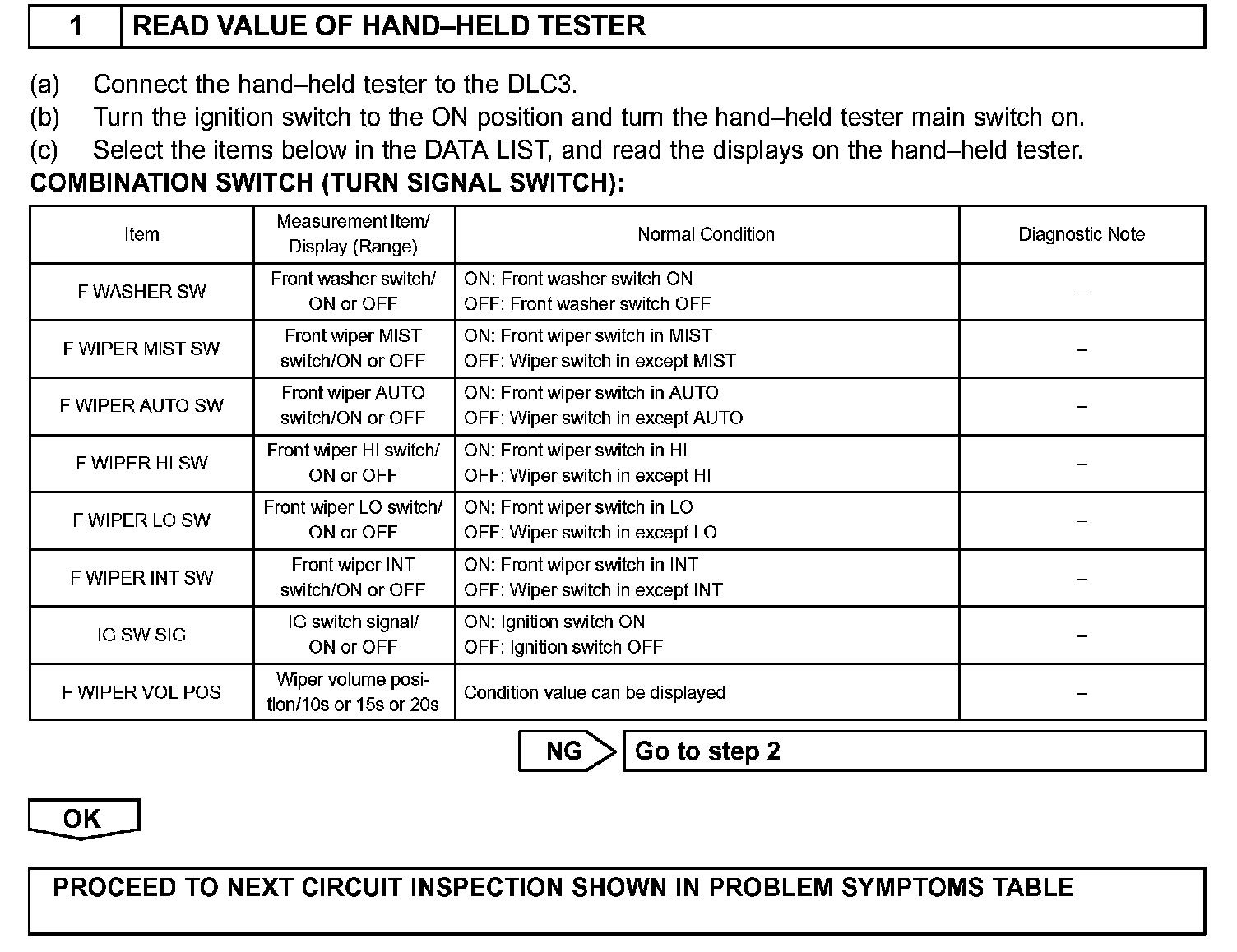

Step 1:

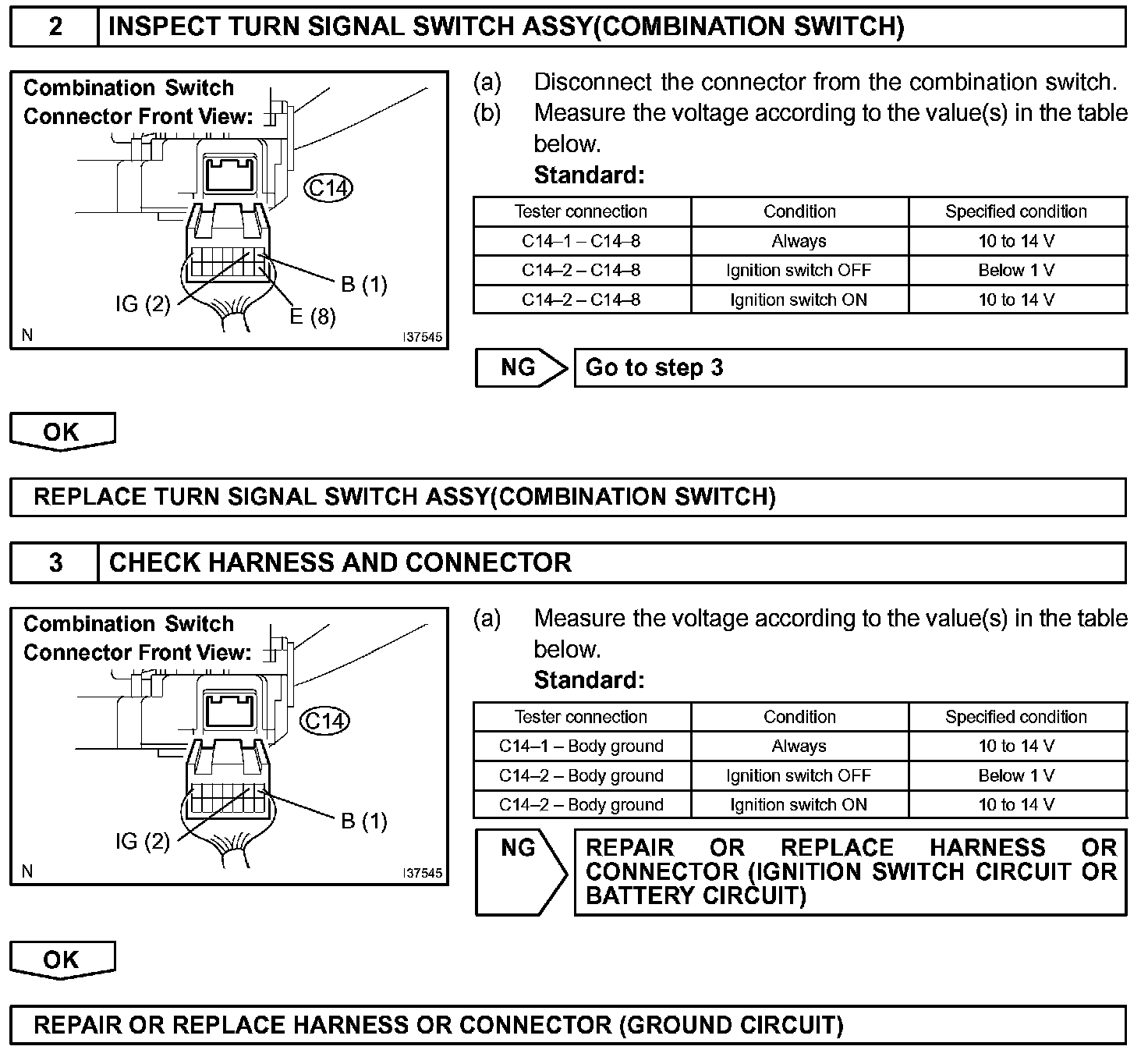

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Before the procedure, check that DTCs are not output of multiplex communication system.
