Washer Fluid Level Warning Switch Circuit

WASHER FLUID LEVEL WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The front light ECU receives washer fluid level sensor information, and sends it through the multiplex communication circuit to the combination meter.

The combination meter receives this information, and turns on the washer fluid level warning when the washer fluid becomes low.

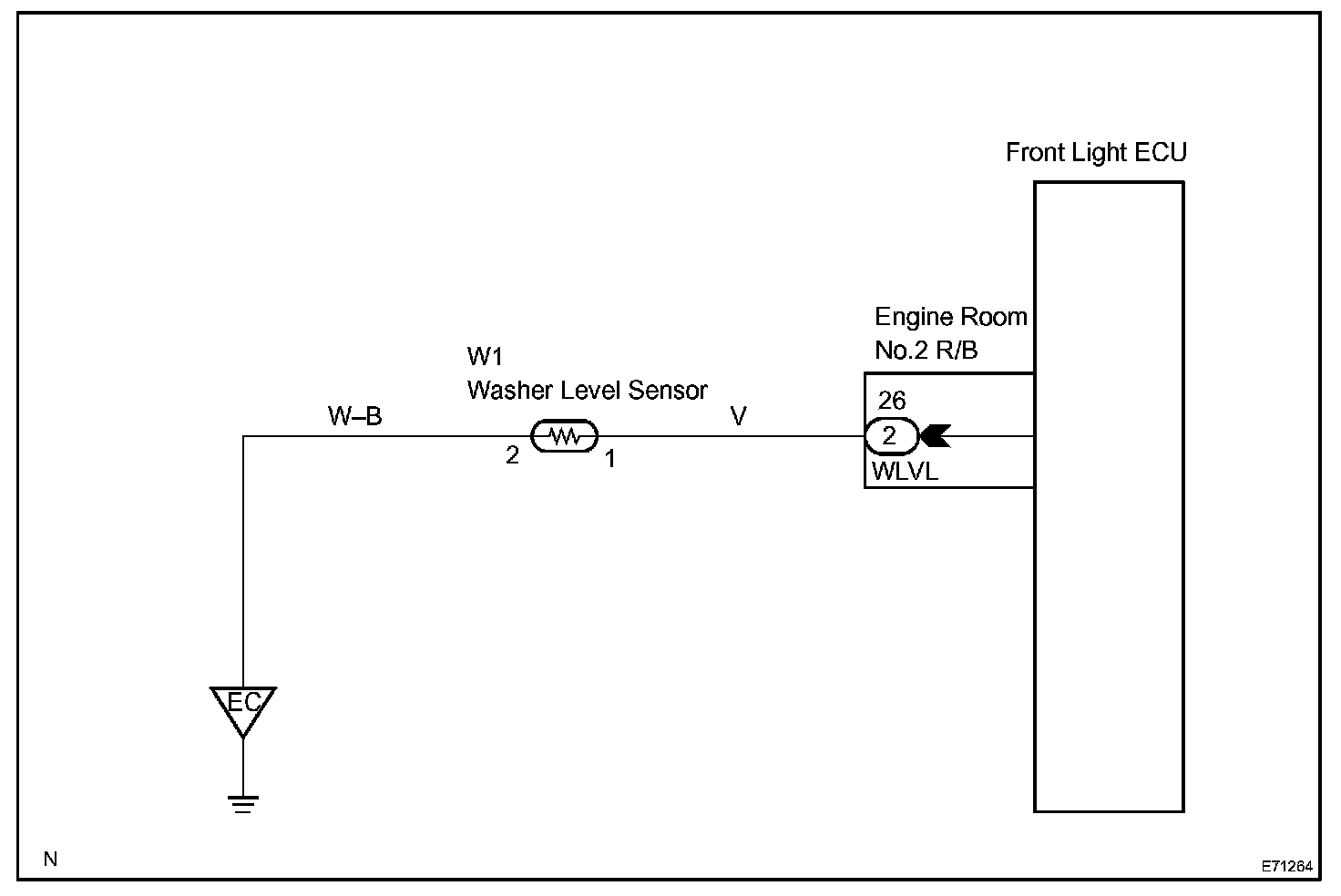

Wiring Diagram:

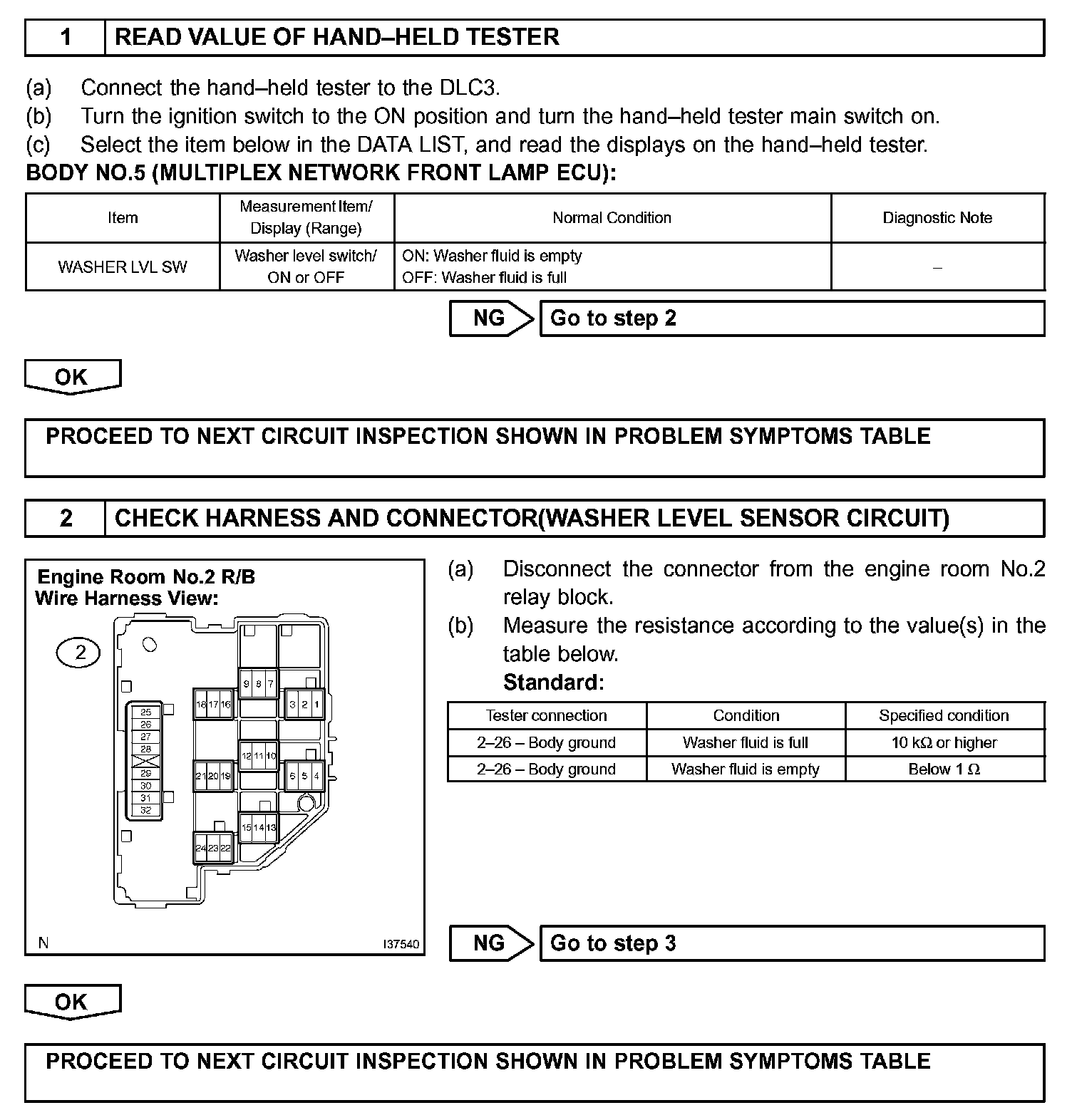

Step 1 - 2:

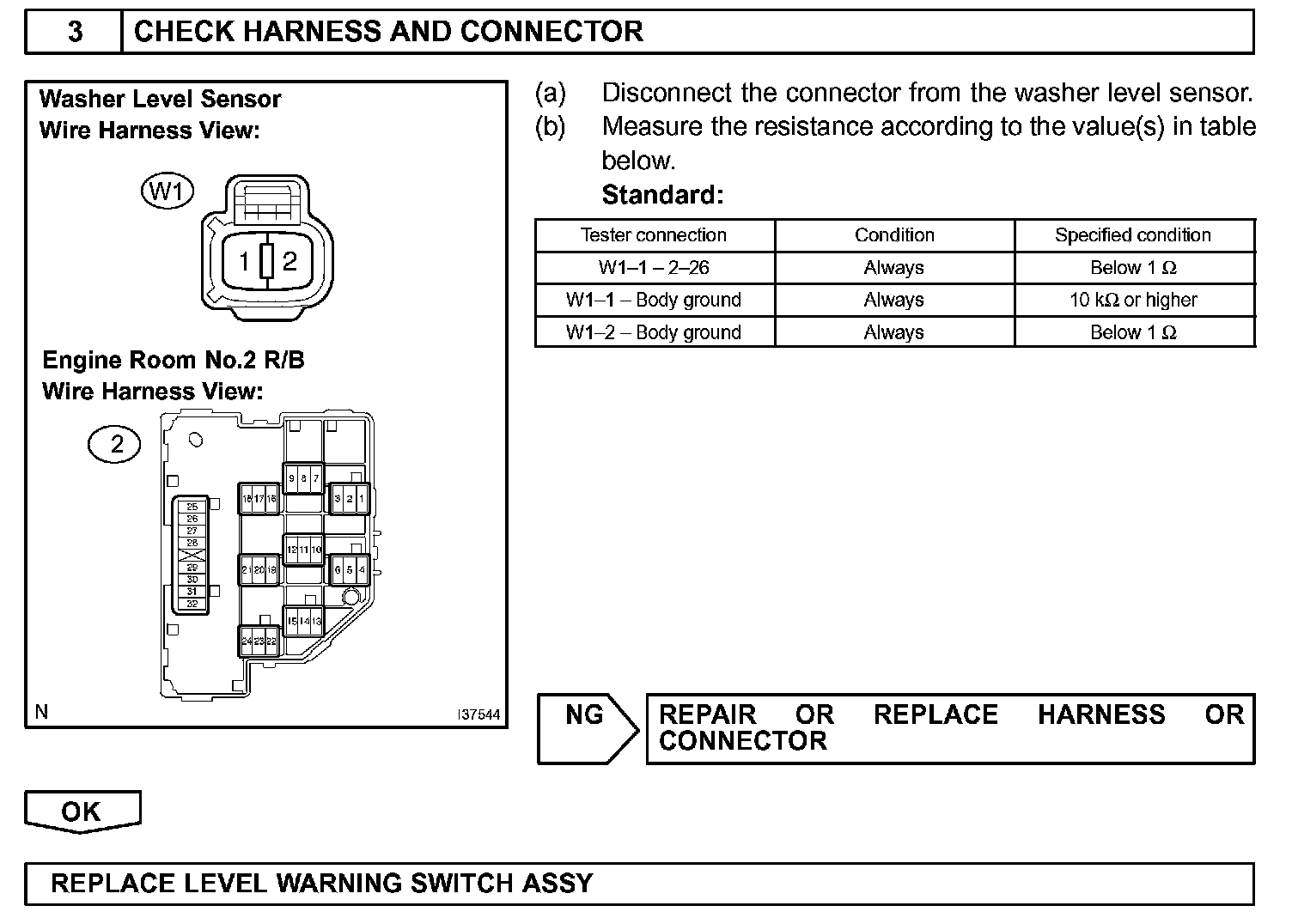

Step 3:

INSPECTION PROCEDURE
