HEADLIGHT CLEANER MOTOR AND RELAY CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides the headlamp cleaner control relay with the power circuit.

The headlamp cleaner control relay sends the signal to operate from the switch, etc. to the headlamp cleaner motor and pump assembly.

Wiring Diagram:

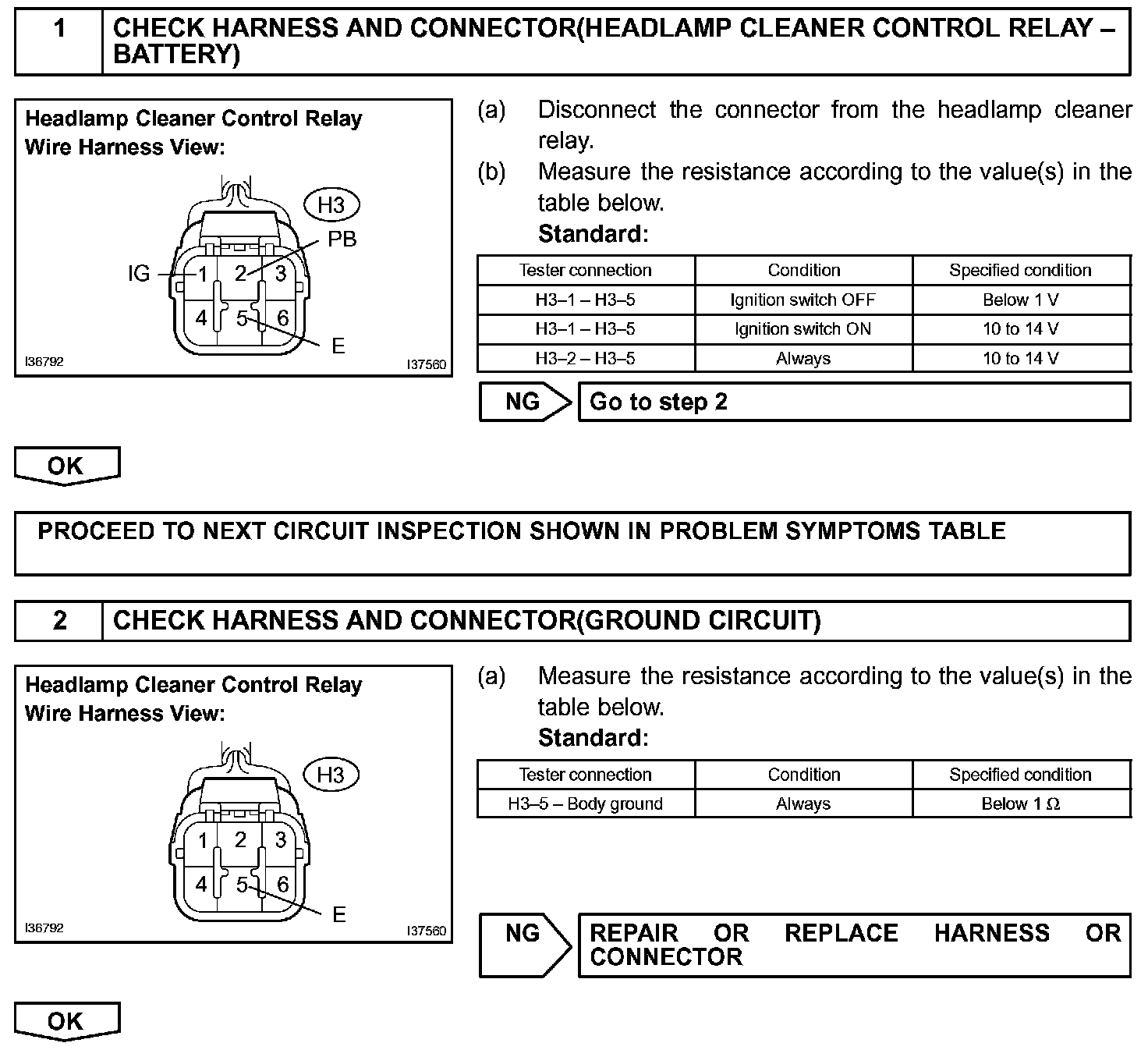

Step 1 - 2:

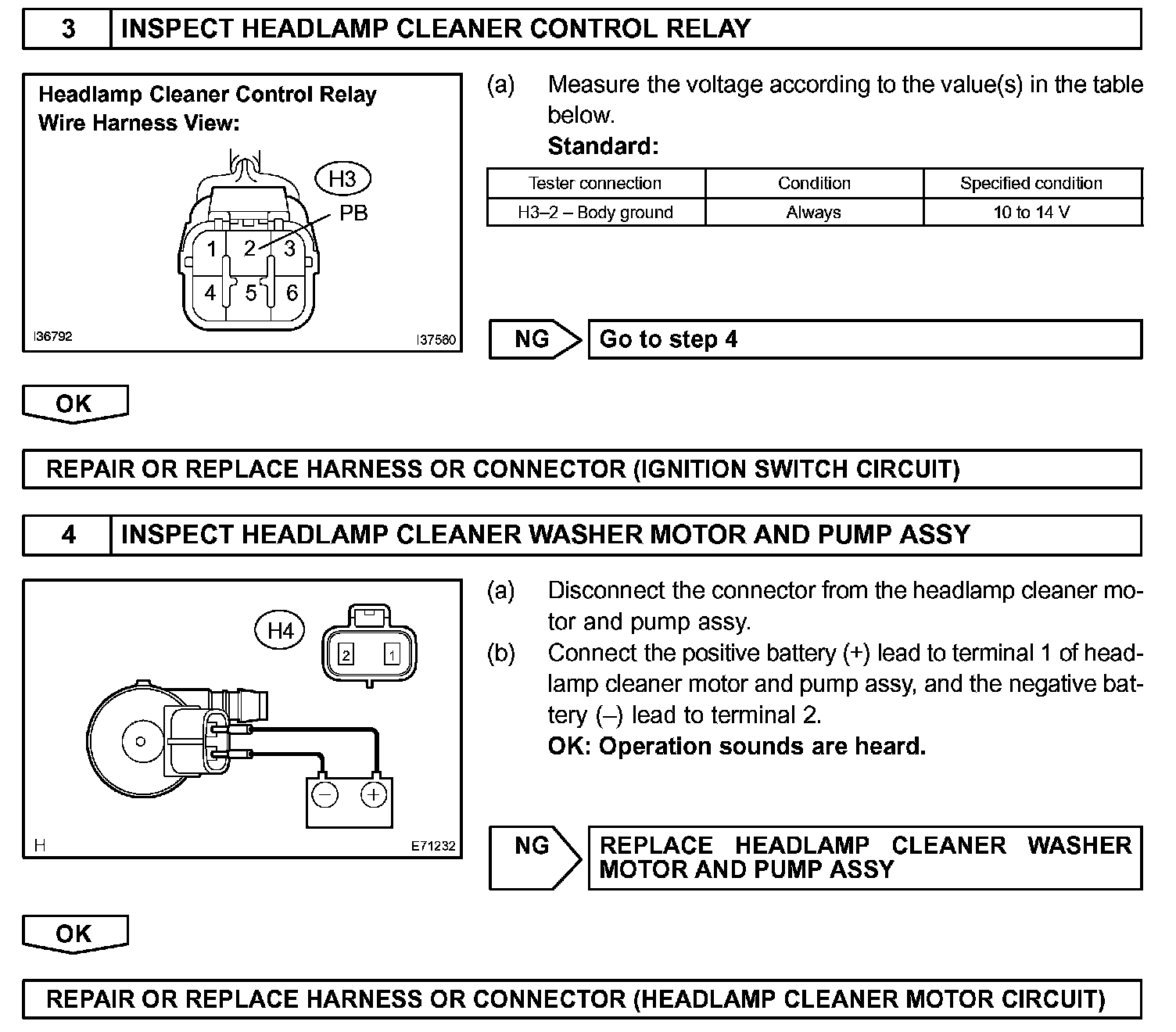

Step 3 - 4:

INSPECTION PROCEDURE
