Rear Door RH ECU Power Source Circuit

REAR DOOR RH ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the rear right door ECU.

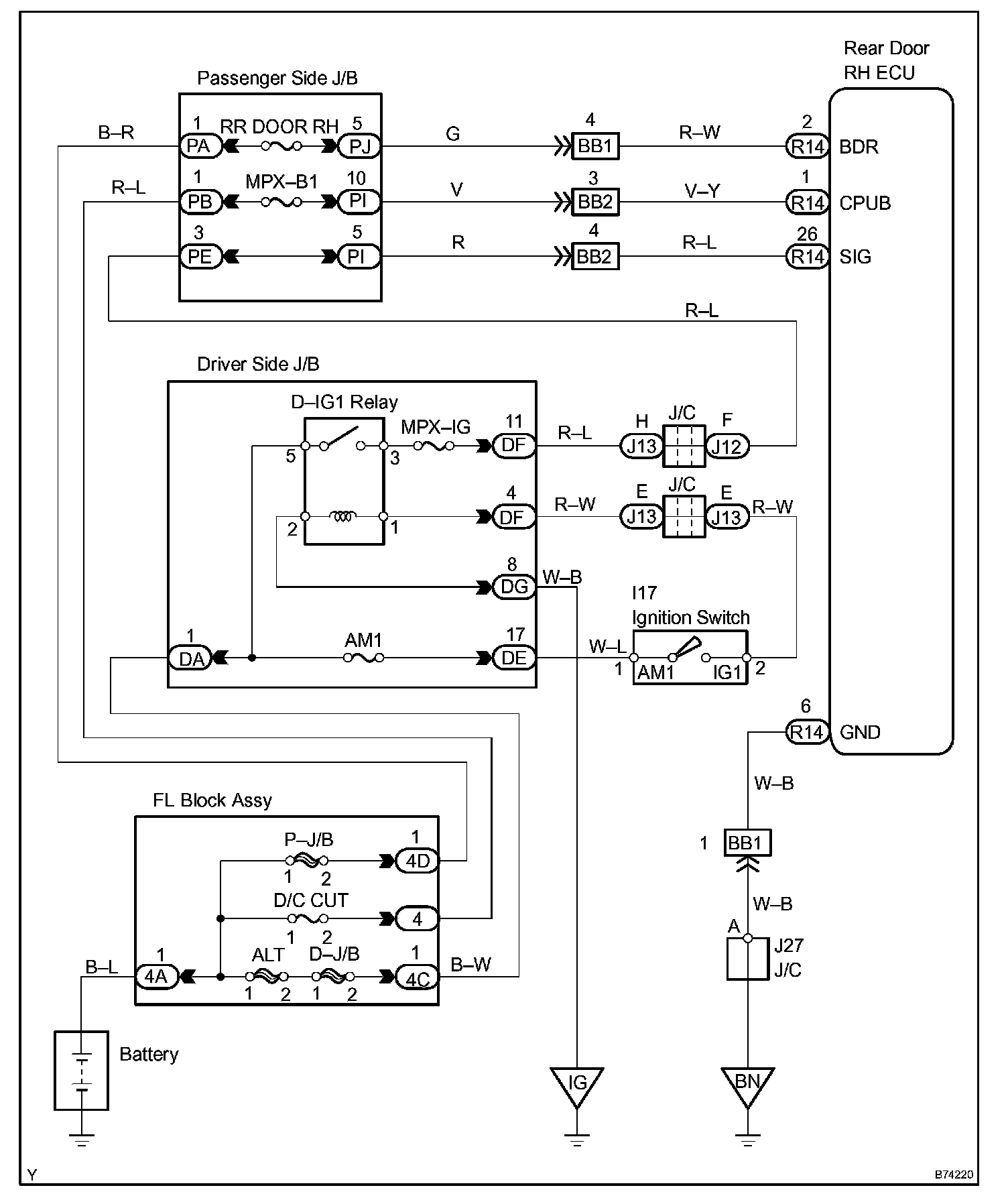

Wiring Diagram:

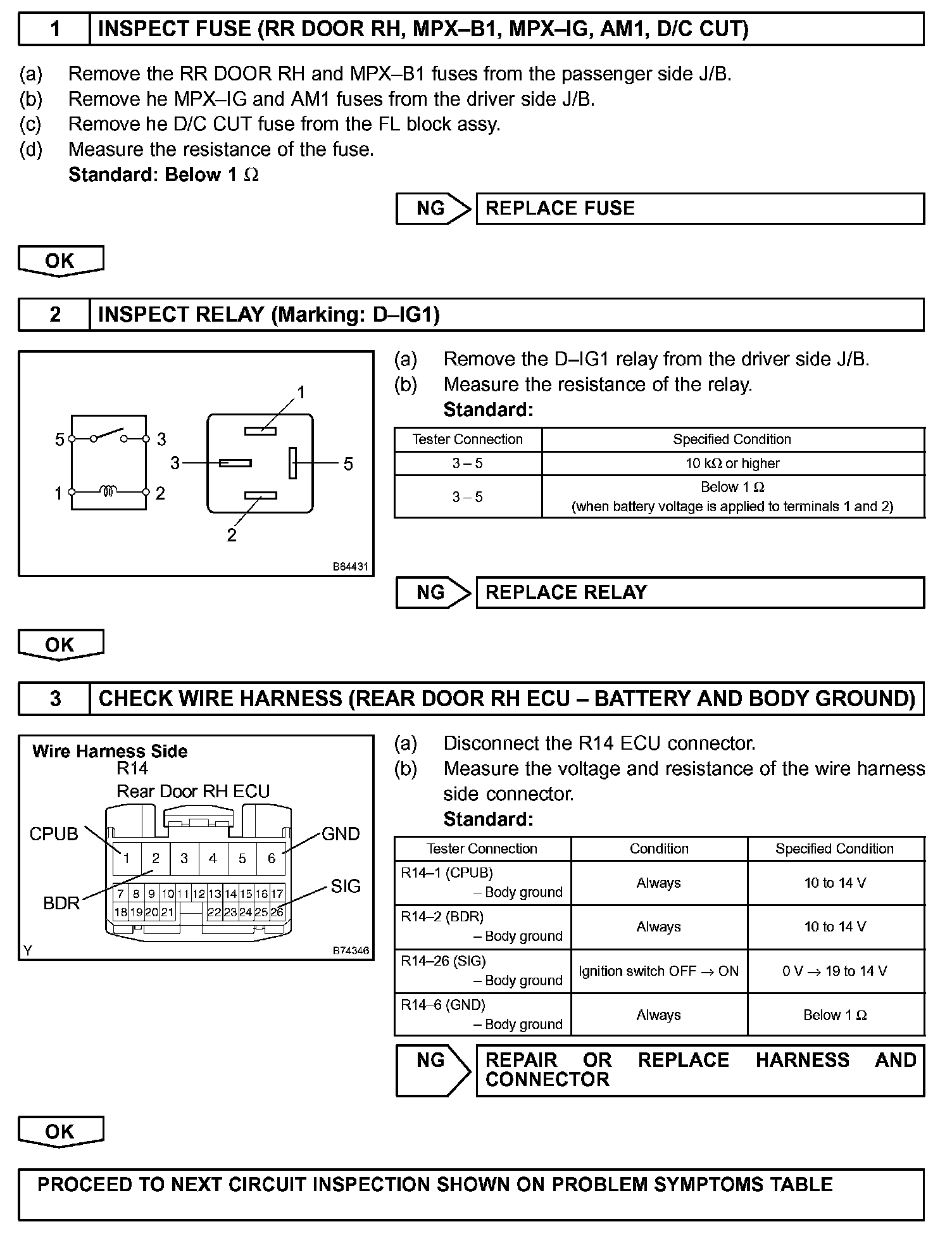

Step 1 - 3:




INSPECTION PROCEDURE
