Power Window Regulator Master Switch Circuit (Driver Side)

POWER WINDOW REGULATOR MASTER SWITCH CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

This circuit transmits signals from the power window master switch assembly to the driver door ECU.

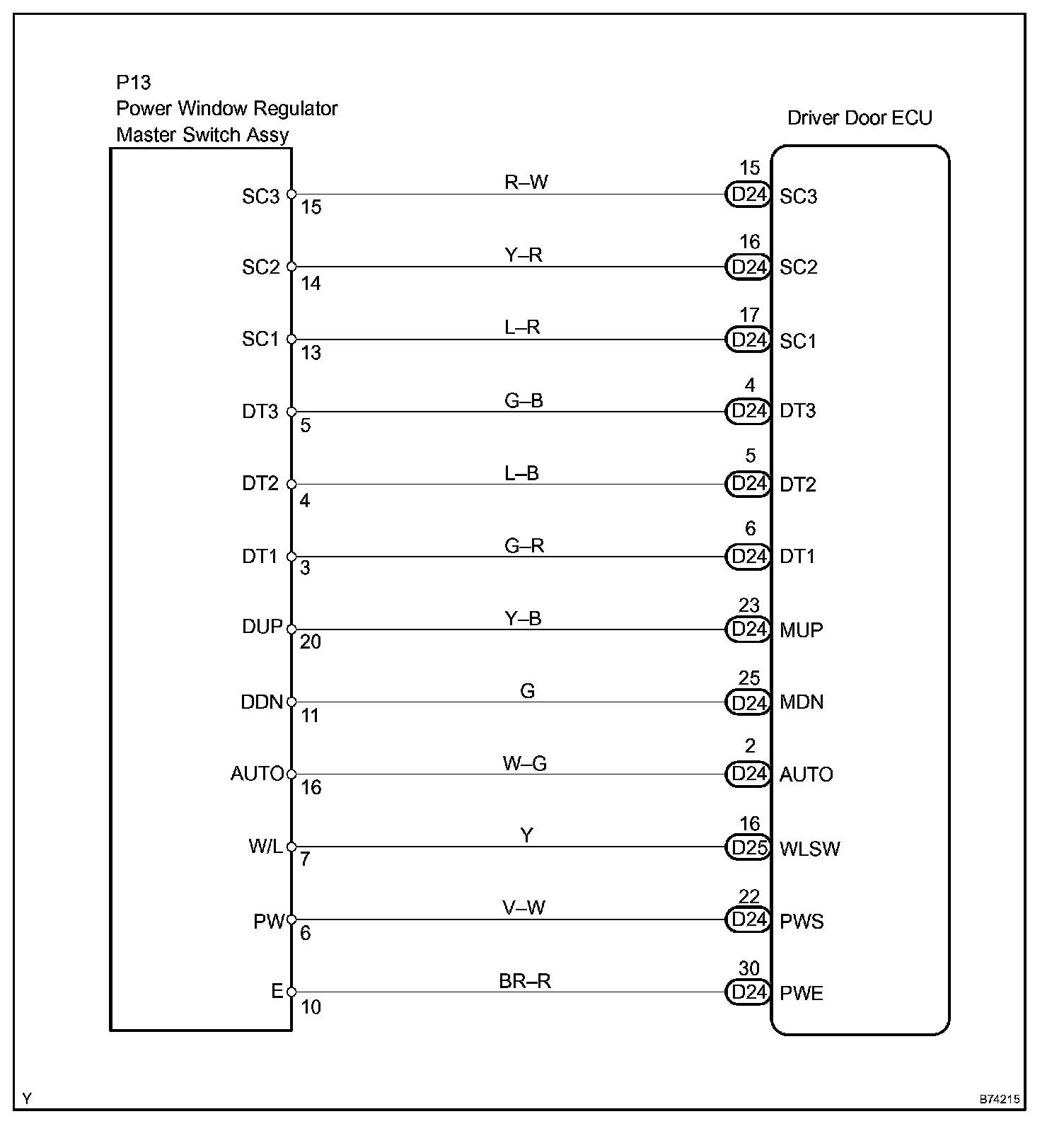

Wiring Diagram:

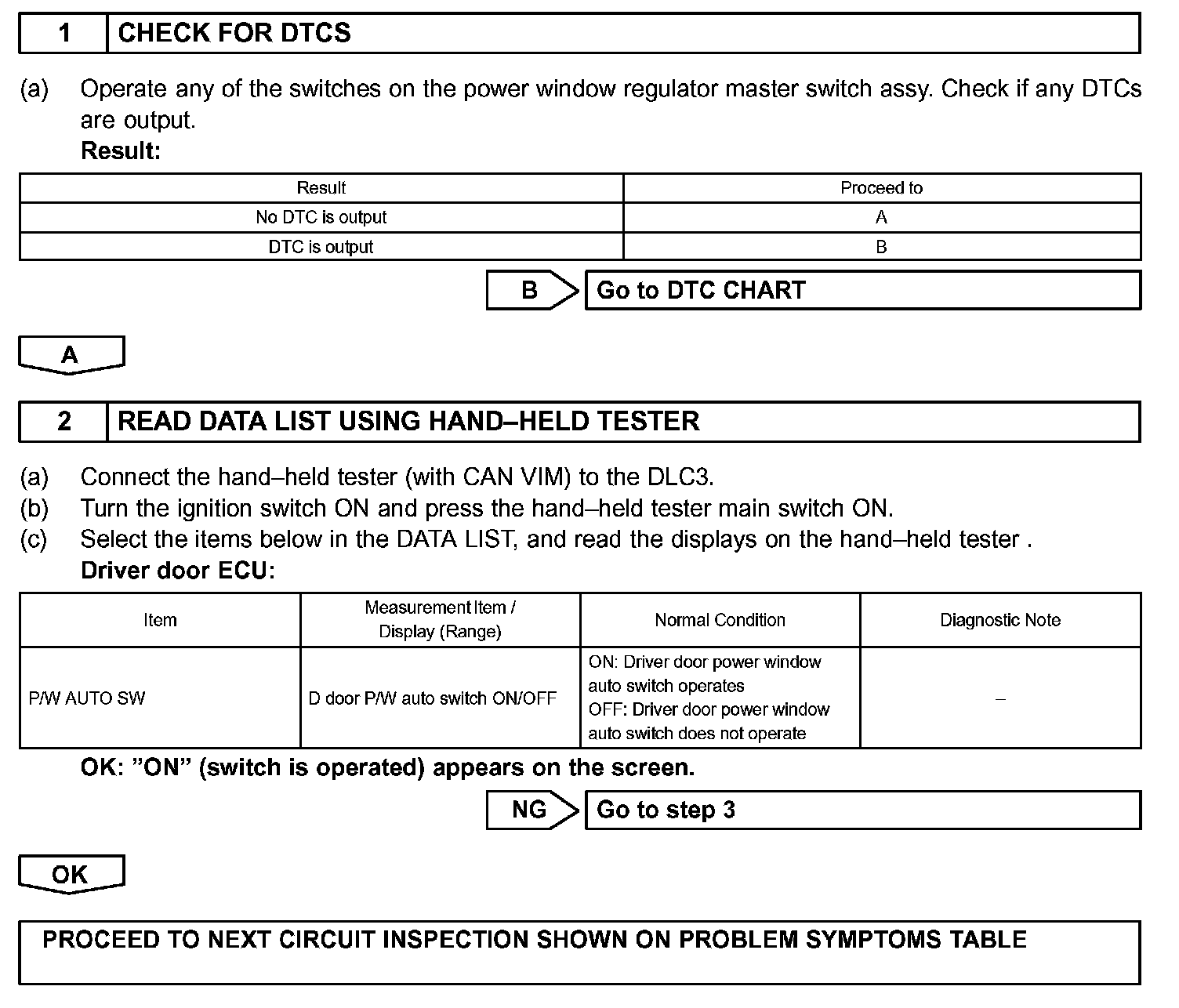

Step 1 - 2:

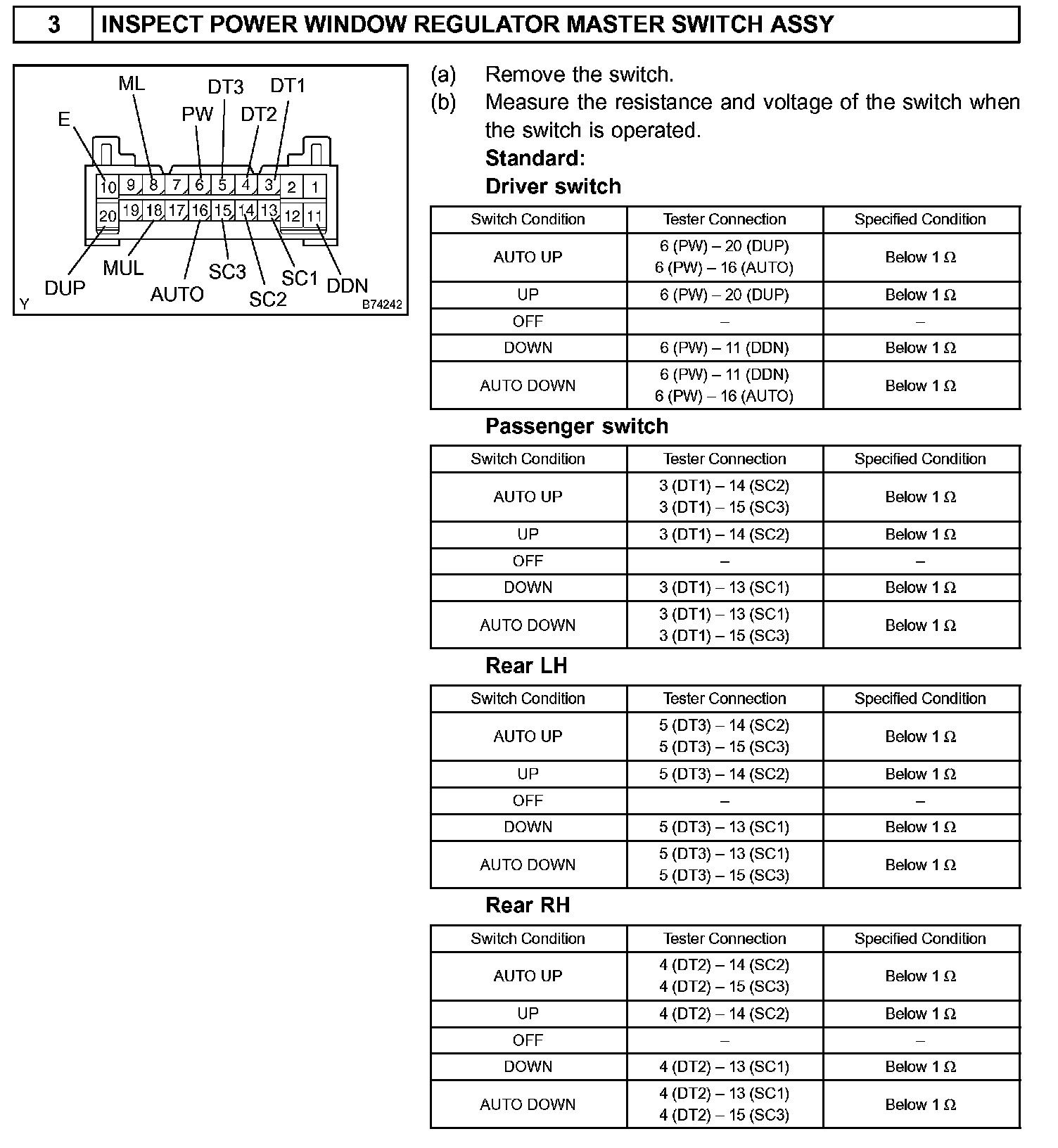

Step 3:

Step 3 (Continued):

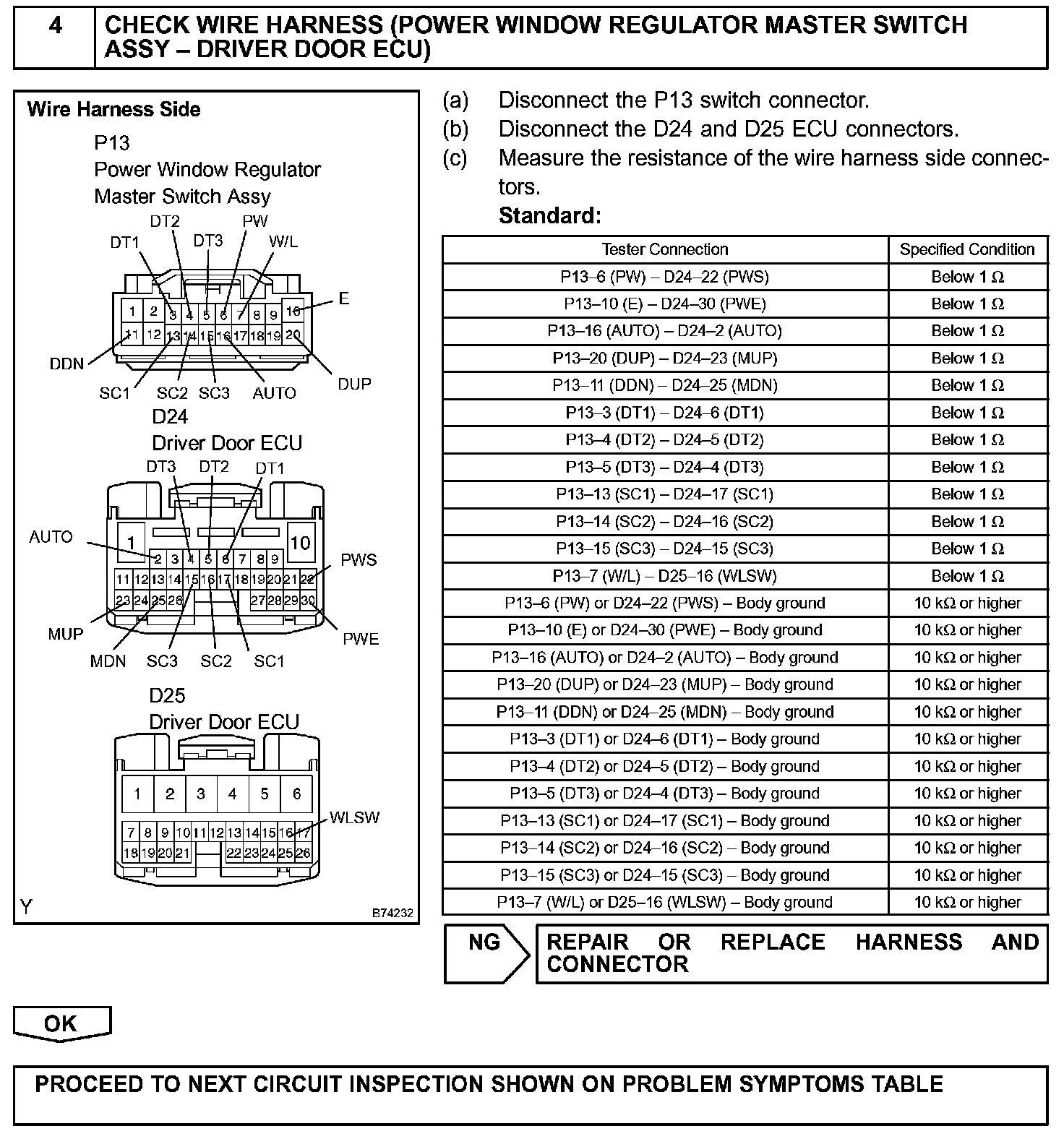

Step 4:

INSPECTION PROCEDURE
