Power Window Motor Circuit (Rear RH)

POWER WINDOW MOTOR CIRCUIT (REAR RH)

CIRCUIT DESCRIPTION

The rear door RH ECU receives signals from the power window regulator master switch assembly and power window regulator switch assembly rear RH to operate the power window regulator motor.

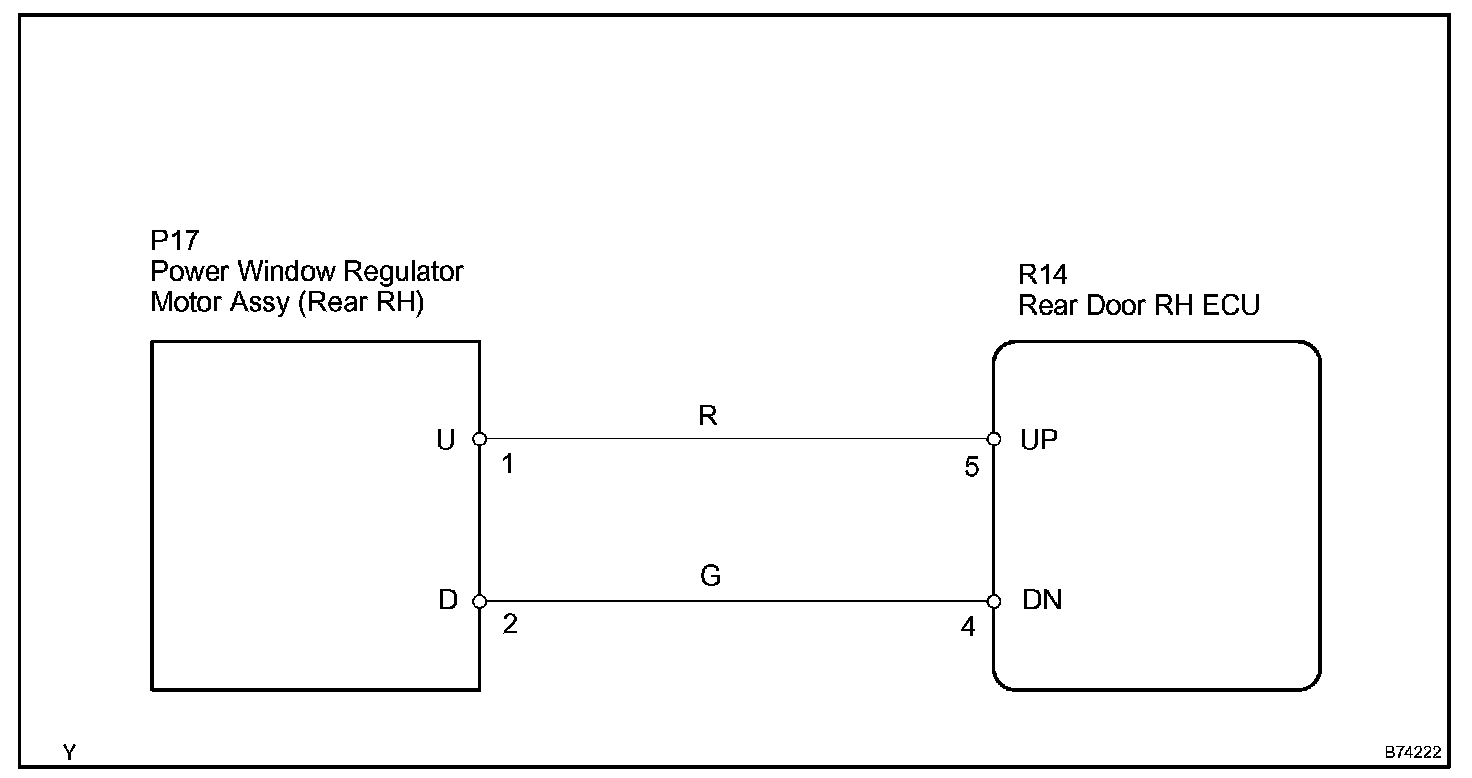

Wiring Diagram:

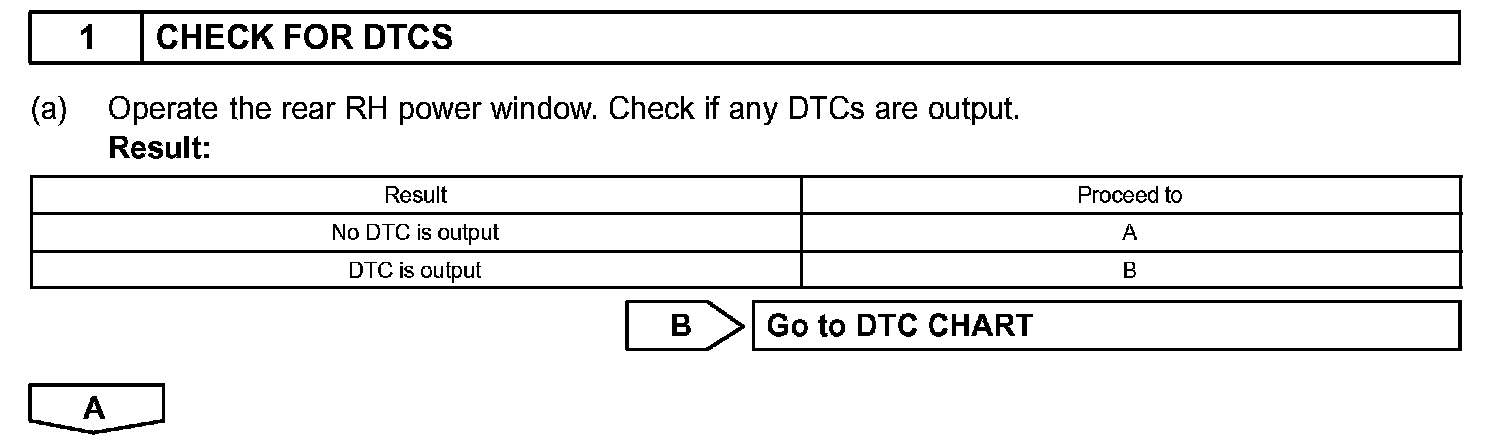

Step 1:

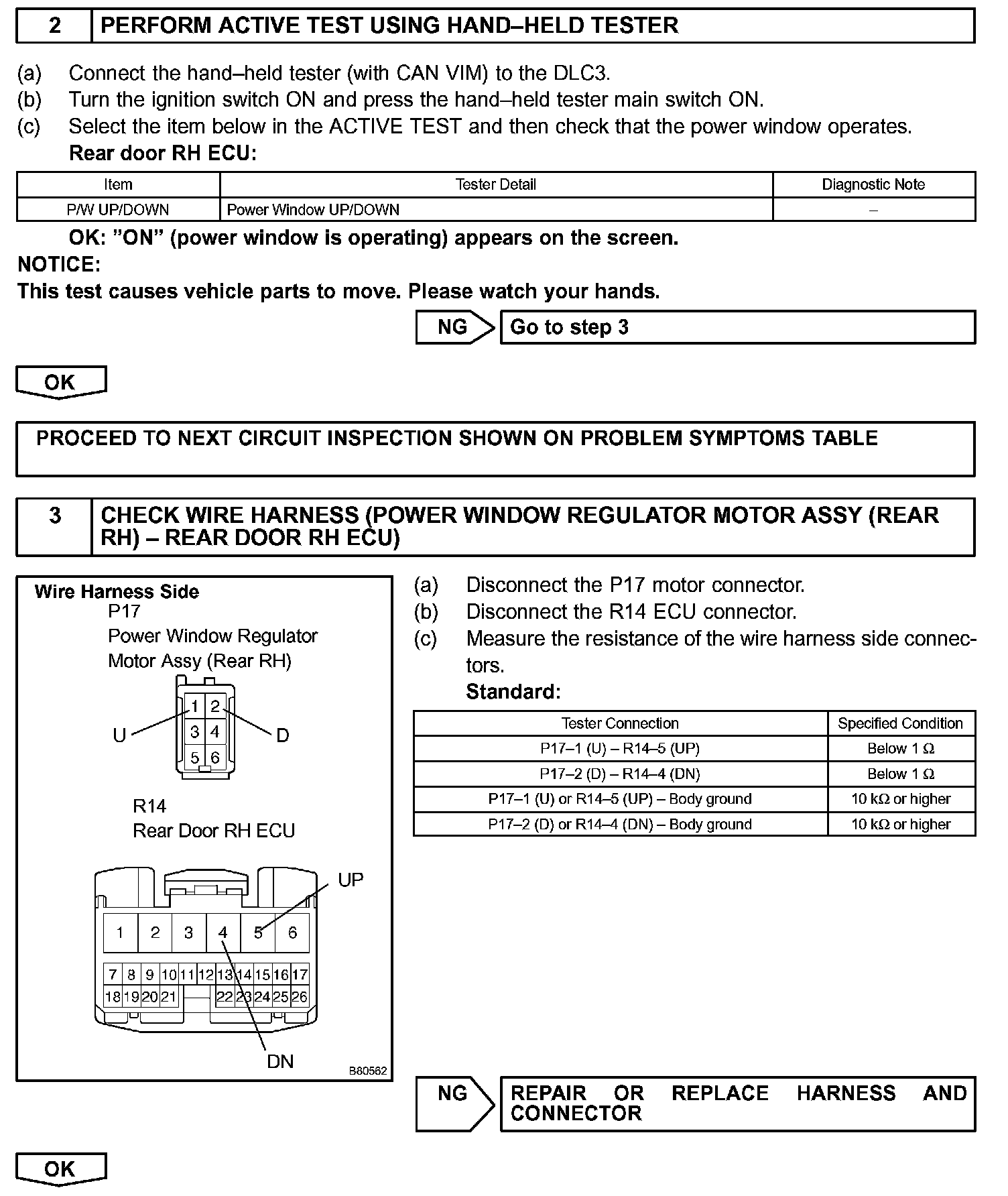

Step 2 - 3:

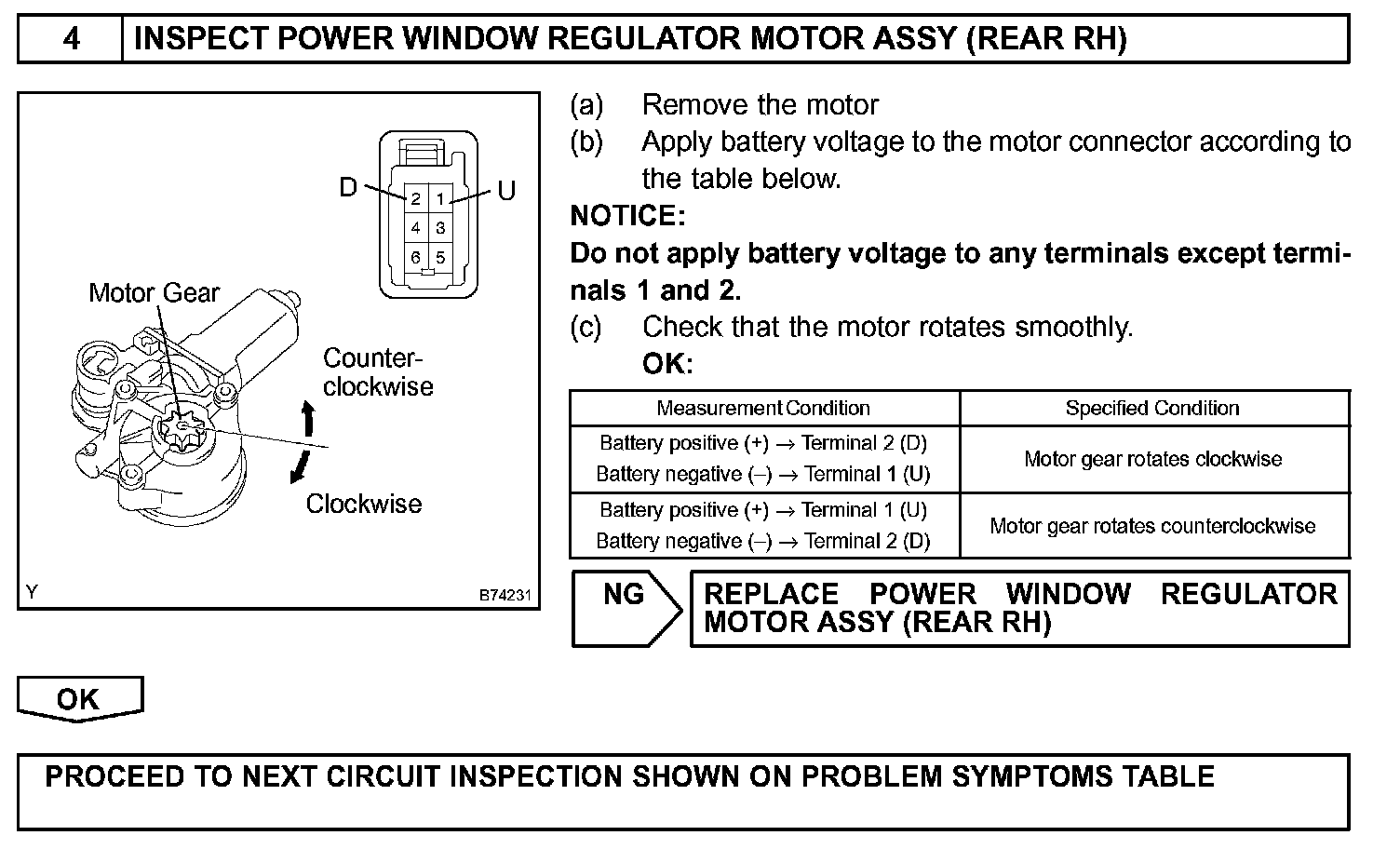

Step 4:

INSPECTION PROCEDURE
