Driver Door ECU Power Source Circuit

DRIVER DOOR ECU POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit supplies power to operate the driver door J/B ECU.

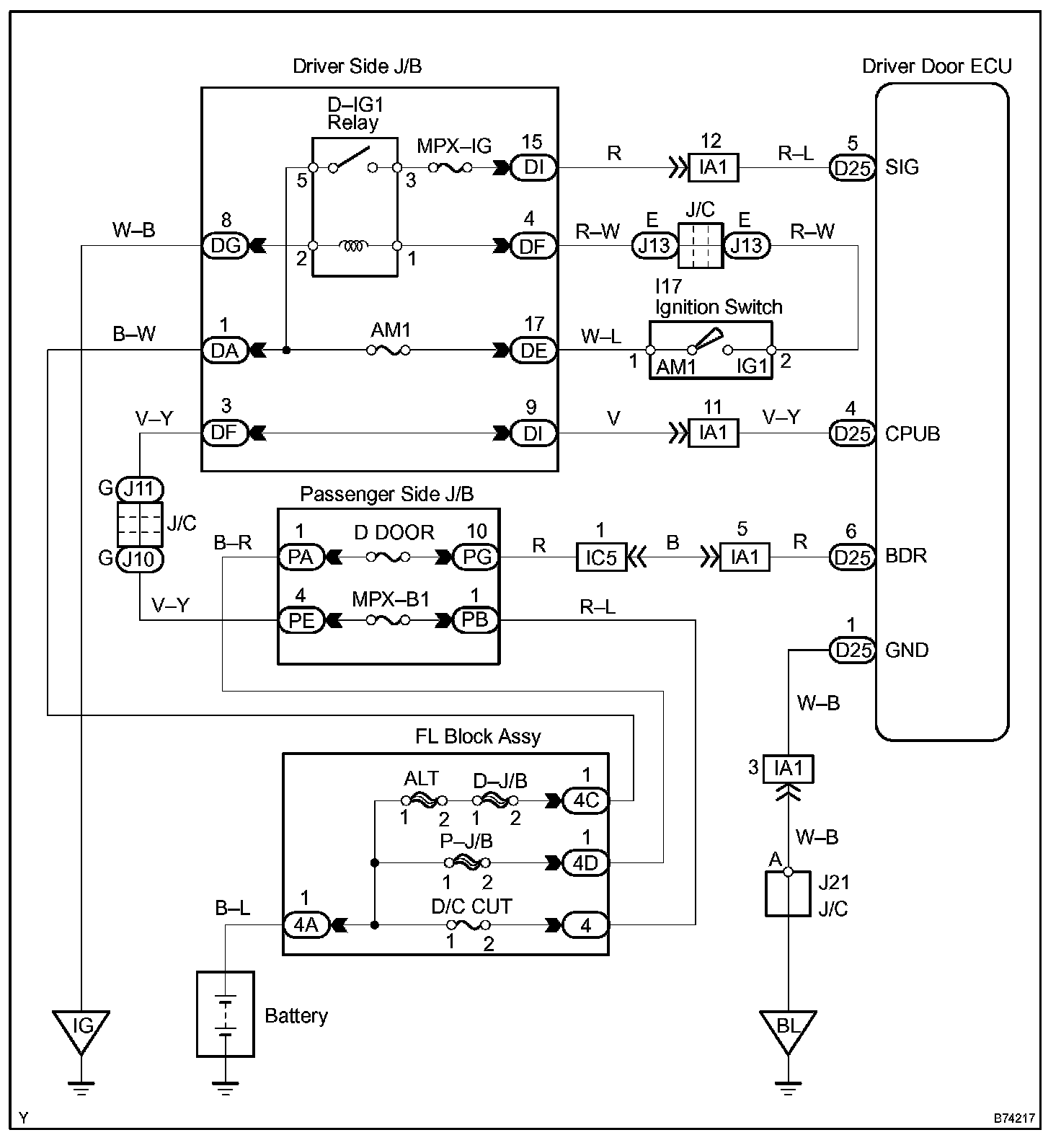

Wiring Diagram:






Step 1 - 3:

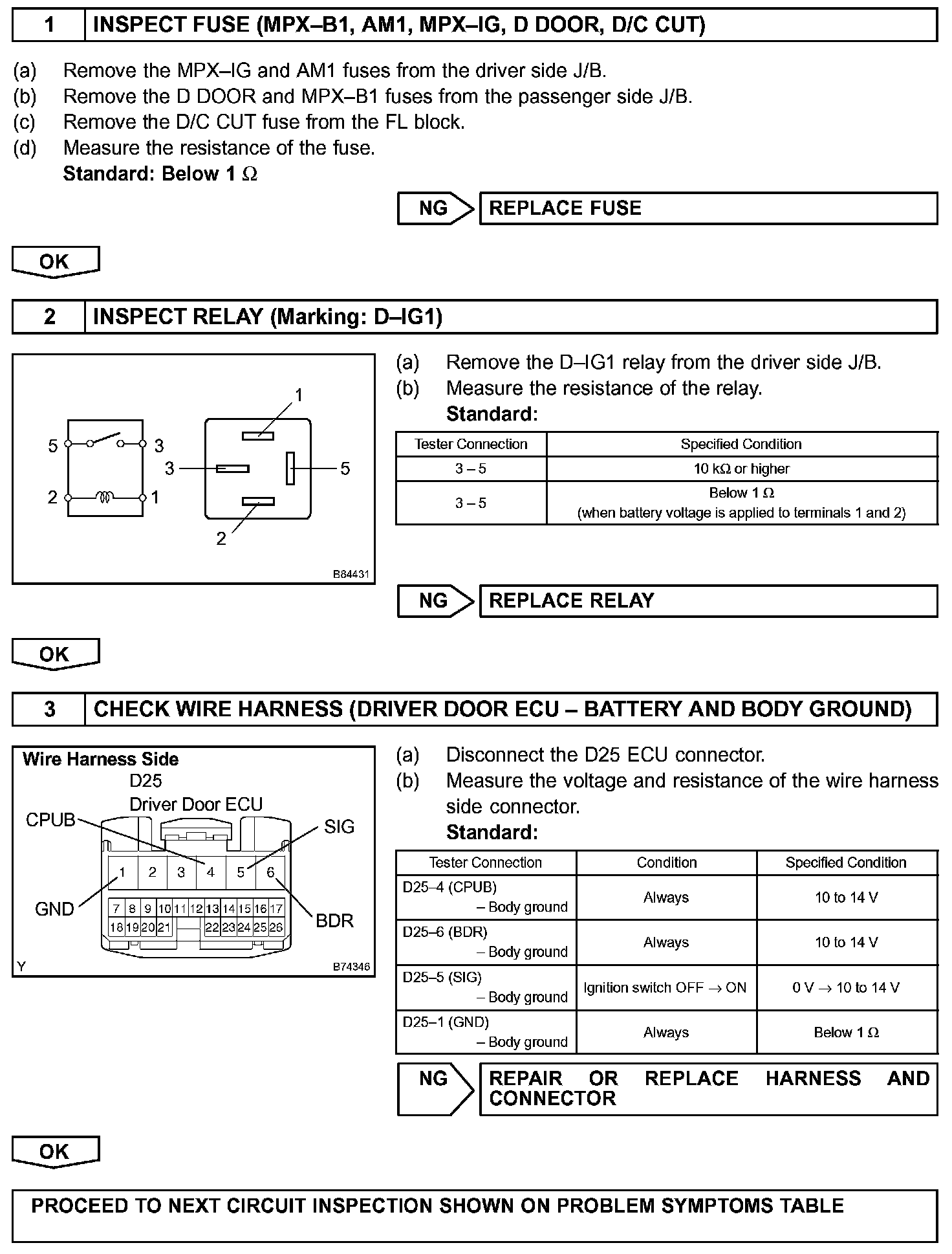

INSPECTION PROCEDURE
