Active Test

ACTIVE TEST

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position.

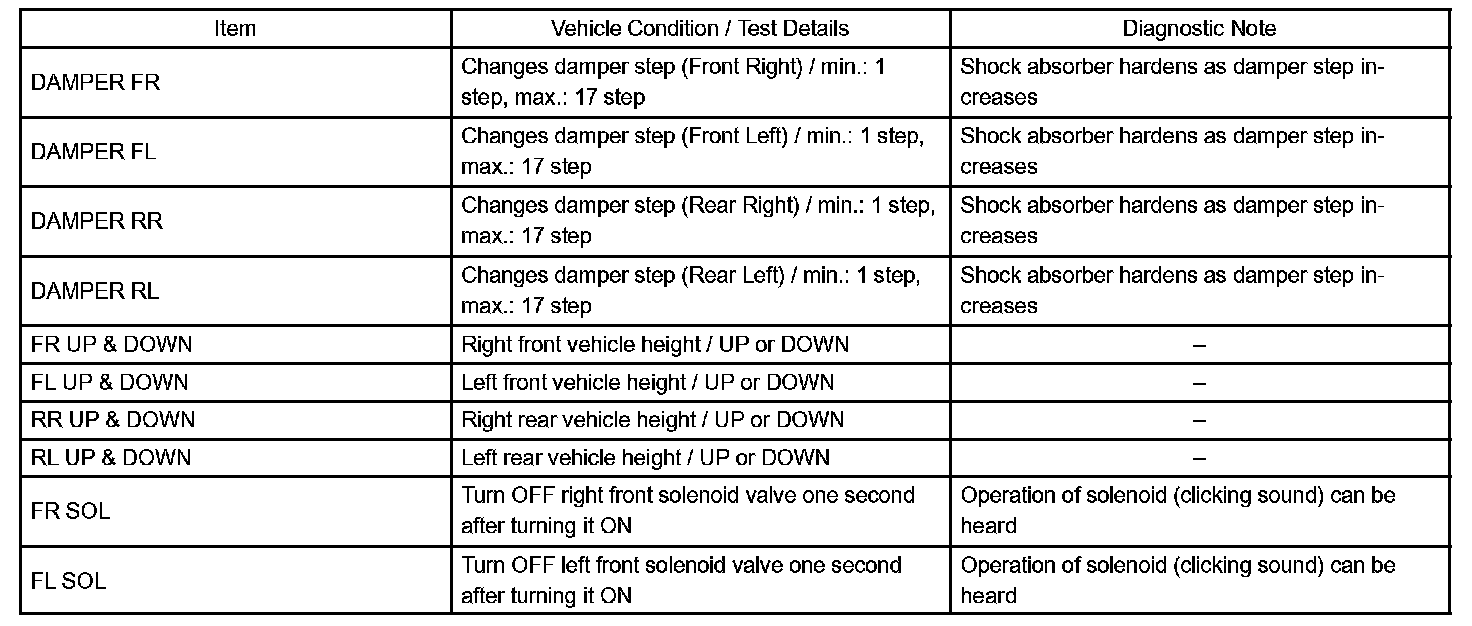

Part 1:

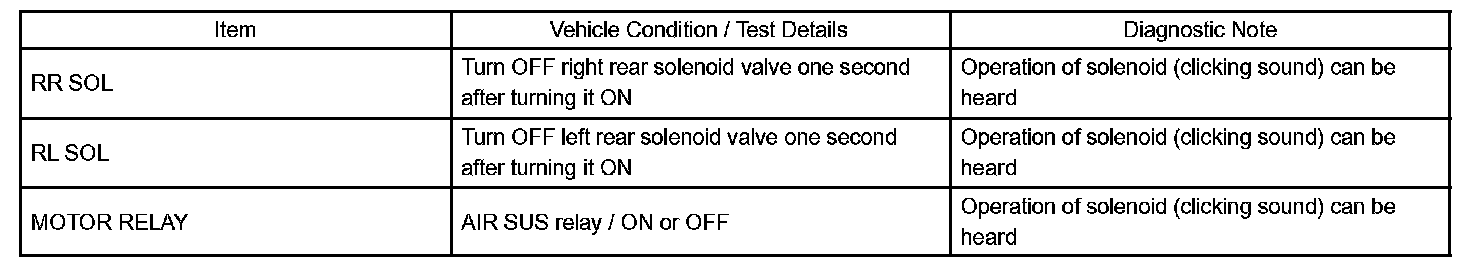

Part 2:

c. Following the display on the hand-held tester, perform the "ACTIVE TEST".
