Fail-Safe Chart

FAIL-SAFE FUNCTION

When an air suspension system malfunction is detected under the normal control operation, the suspension control ECU will suspend the switch control of the height control operation.

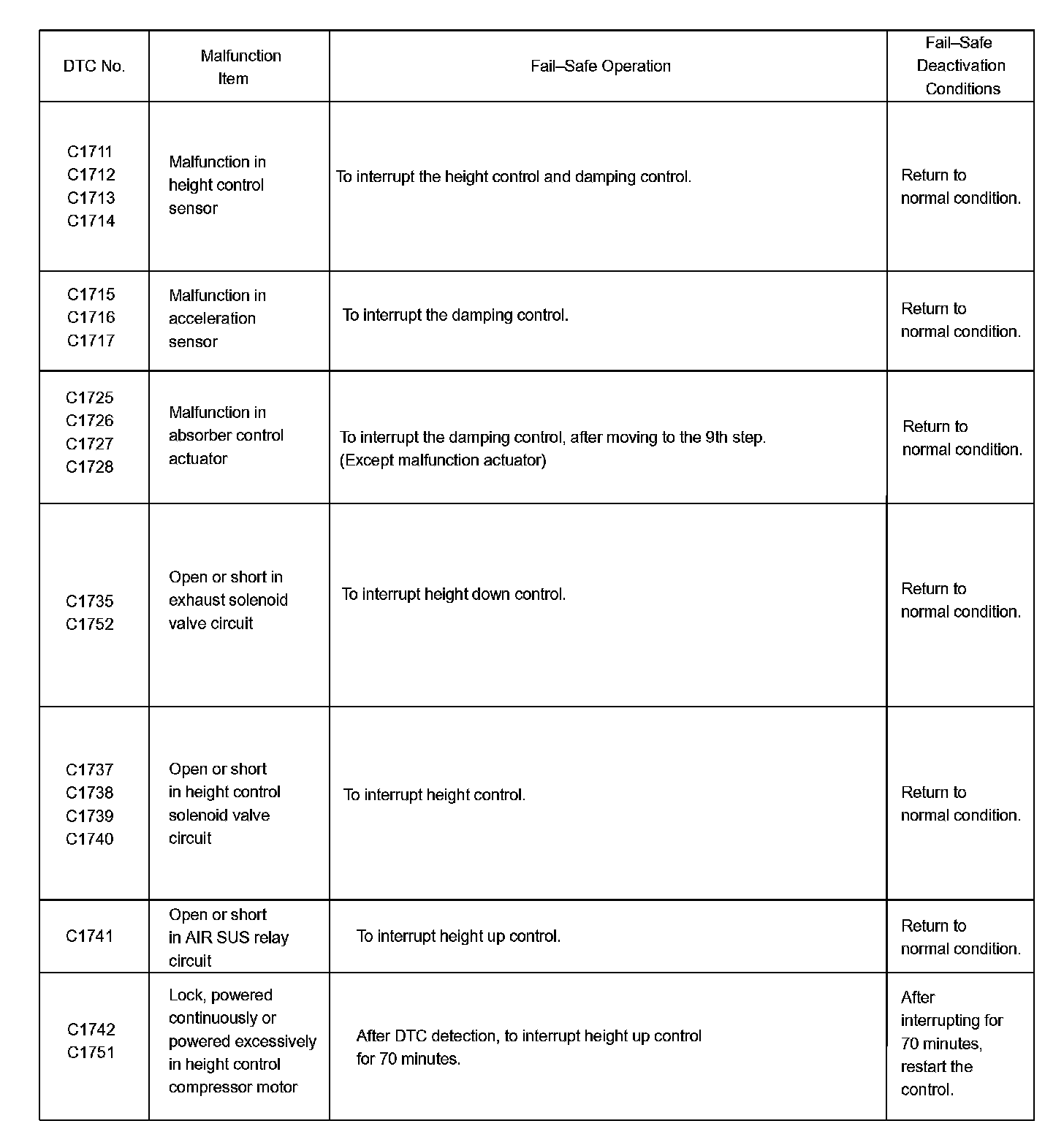

Fail-Safe Chart Part 1:




Fail-Safe Chart Part 2:




FAIL-SAFE CHART
