Height Control Indicator Light Circuit

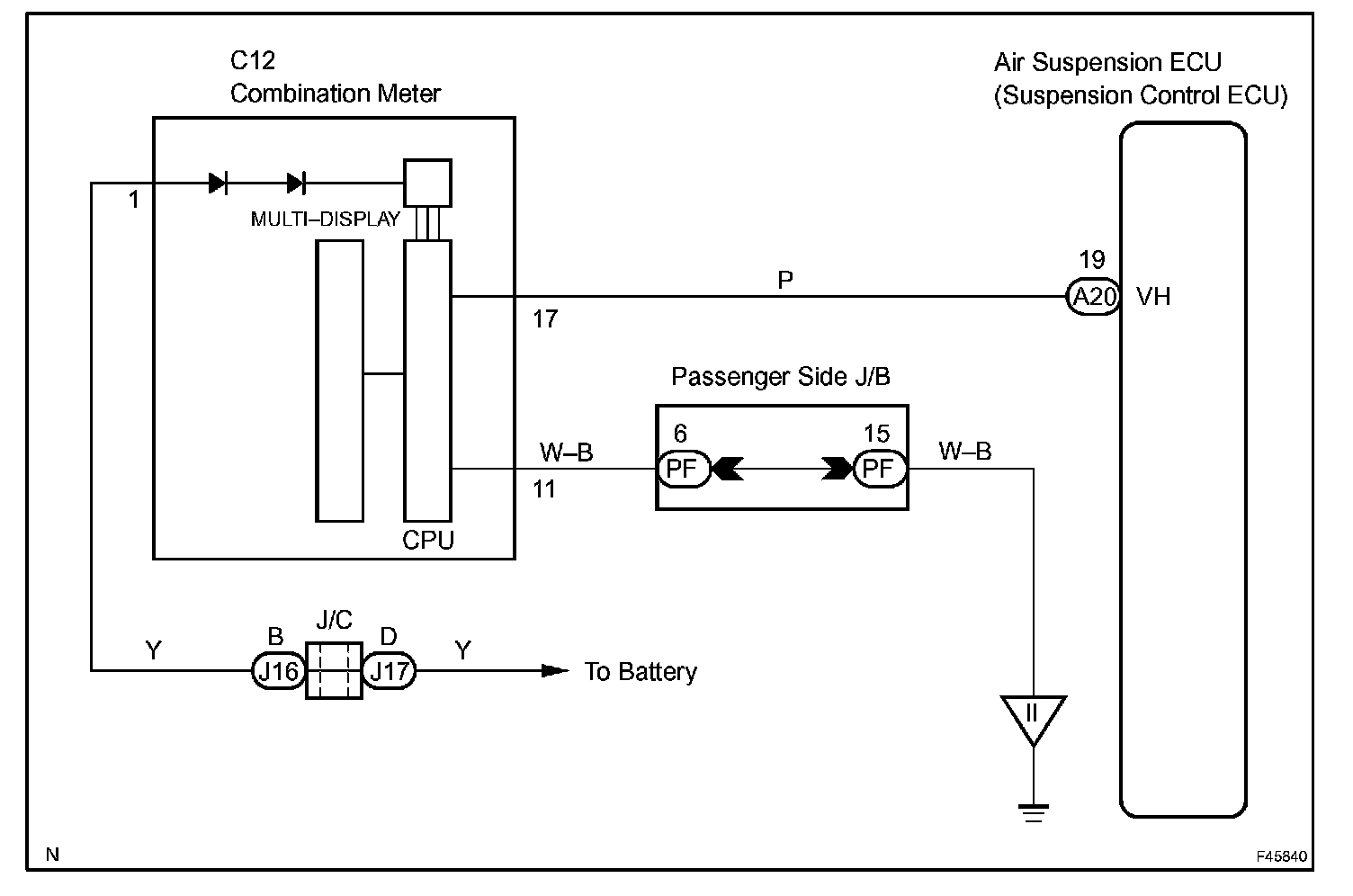

HEIGHT CONTROL INDICATOR LAMP CIRCUIT

CIRCUIT DESCRIPTION

The vehicle height is controlled by pressing the "HIGH" button of the height control switch, "Height Hi" is displayed on the multi-information display.
