Headlamp Alignment Switch: Testing and Inspection







HEADLAMP SWIVEL MAIN SWITCH

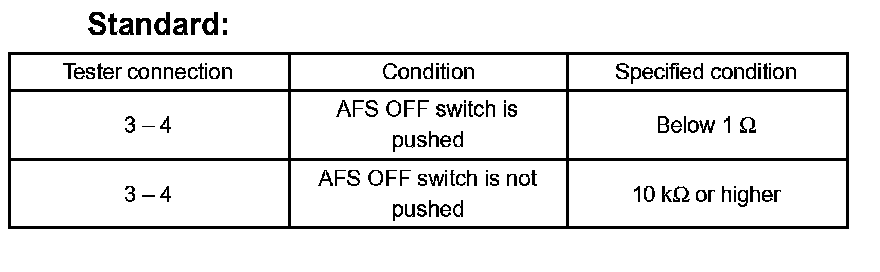

a. Measure the resistance according to the value(s) in the table.
