Speed Sensor, Front

SKID CONTROL SENSOR FRONT
REPLACEMENT

HINT:
^ Replace the RH side by using the same procedures as for the LH side.
^ The procedures listed are for the LH side.

1. REMOVE FRONT WHEEL





2. DISCONNECT SKID CONTROL SENSOR WIRE

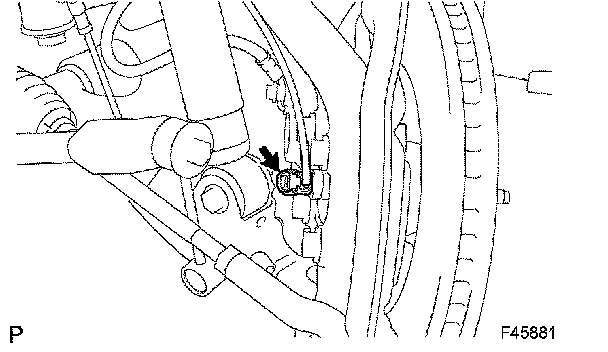

a. Disconnect the skid control sensor connector.
3. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH
4. REMOVE FRONT DISC
5. REMOVE FRONT AXLE HUB SUB-ASSEMBLY LH
6. REMOVE SKID CONTROL SENSOR FRONT
a. Mount the front axle hub sub-assembly LH on a soft jaw vise.

NOTICE: Replace the hub & bearing assembly if it is dropped or receives a strong shock.

b. Using a pin punch and hammer, drive out the 2 pins and remove the 2 attachments from SST

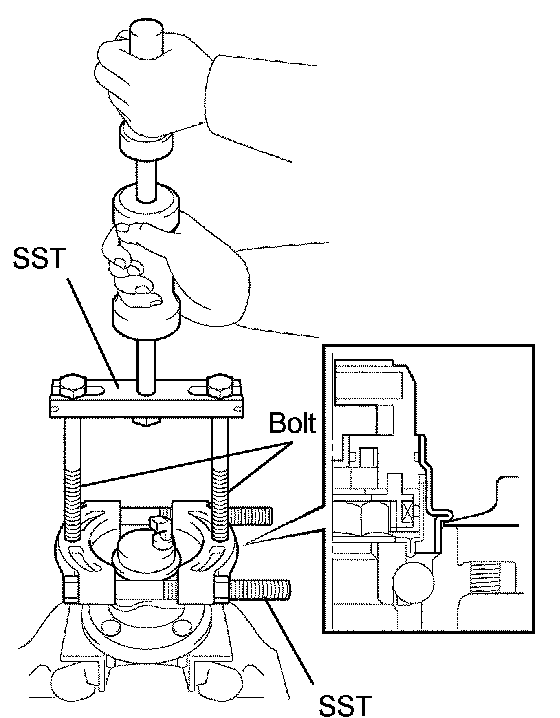

c. Using SST and 2 bolts (Diameter: 12 mm, pitch: 1.5 mm), remove the skid control sensor from the hub & bearing assembly.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020

NOTICE:
^ If the sensor rotor is damaged, replace the axle hub sub-assembly.
^ Do not scratch the contacting surface of the hub & bearing assembly and the skid control sensor.

7. INSTALL SKID CONTROL SENSOR FRONT





a. Clean the contacting surface of the front axle hub and a new skid control sensor.

NOTICE: Make sure the sensor rotor is clean.

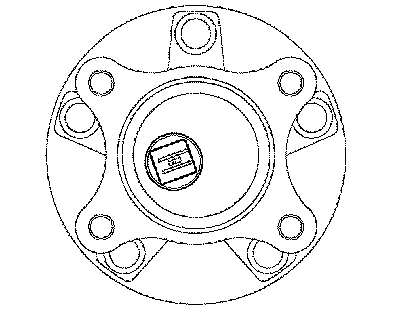

b. Place the skid control sensor on the front axle hub so that the connector makes the lowest position under the on vehicle condition.

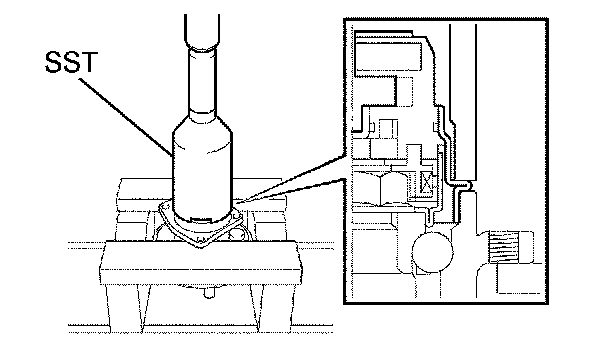

c. Using SST and a press, install the skid control sensor onto the hub & bearing assembly.
SST 09214-76011

NOTICE:
^ Do not tap the skid control sensor directly with a hammer.
^ Check that the skid control sensor detection part is clean.
^ Press in the skid control sensor straight and slowly.

8. INSTALL FRONT AXLE HUB SUB-ASSEMBLY LH
9. INSTALL FRONT DISC
10. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY LH





11. CONNECT SKID CONTROL SENSOR WIRE
a. Connect the skid control sensor connector.
12. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
13. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
14. CHECK ABS SPEED SENSOR SIGNAL
