Power Seat Motor Position Sensor: Locations
Bu - St:
Cl - Vi:

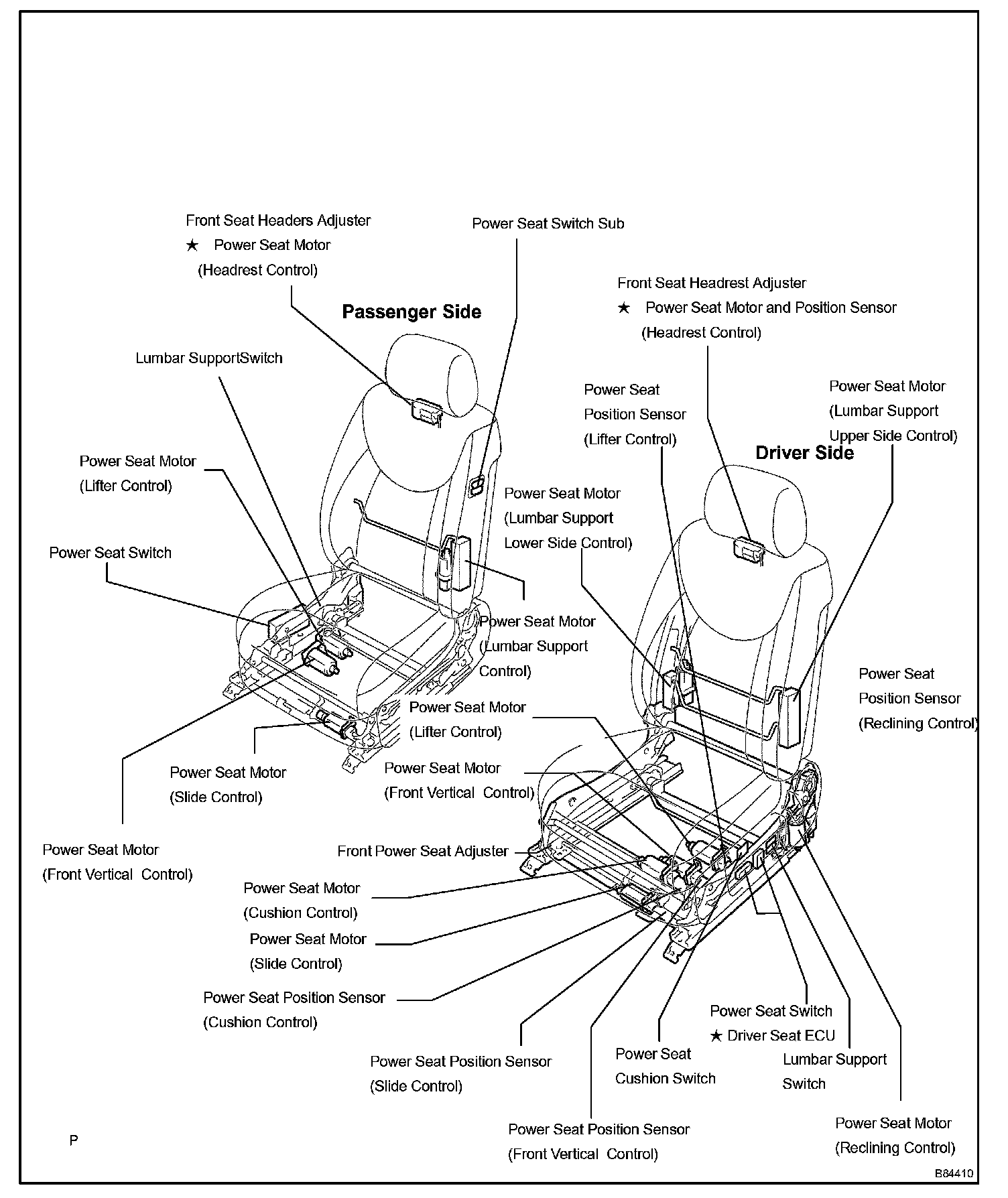

Front Power Seat Control System:

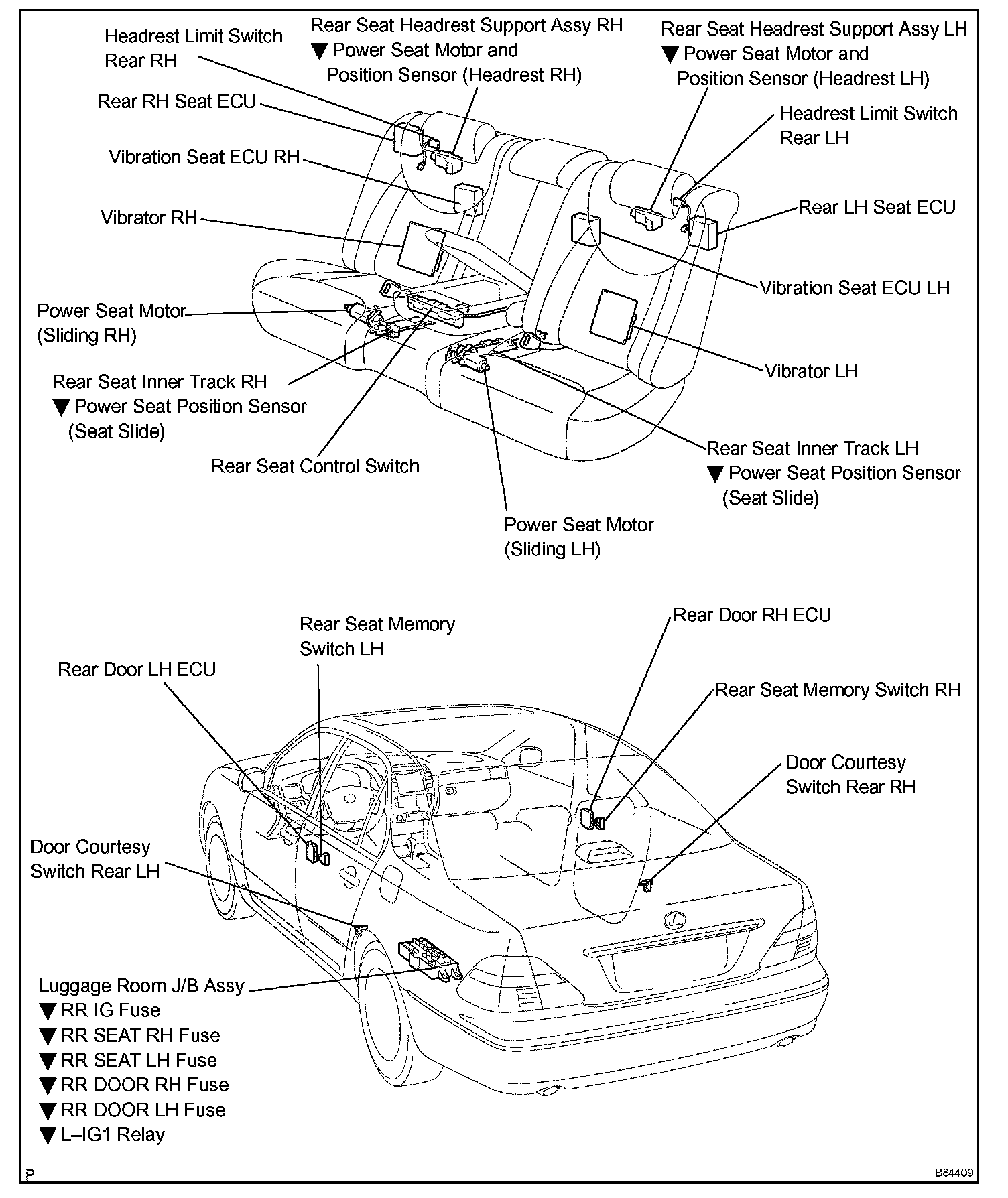

Rear Power Seat Control System:
