Buckle Switch Circuit

BUCKLE SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the conditions of the driver seat belt buckle switch and makes the driver seat belt warning lamp start flashing.

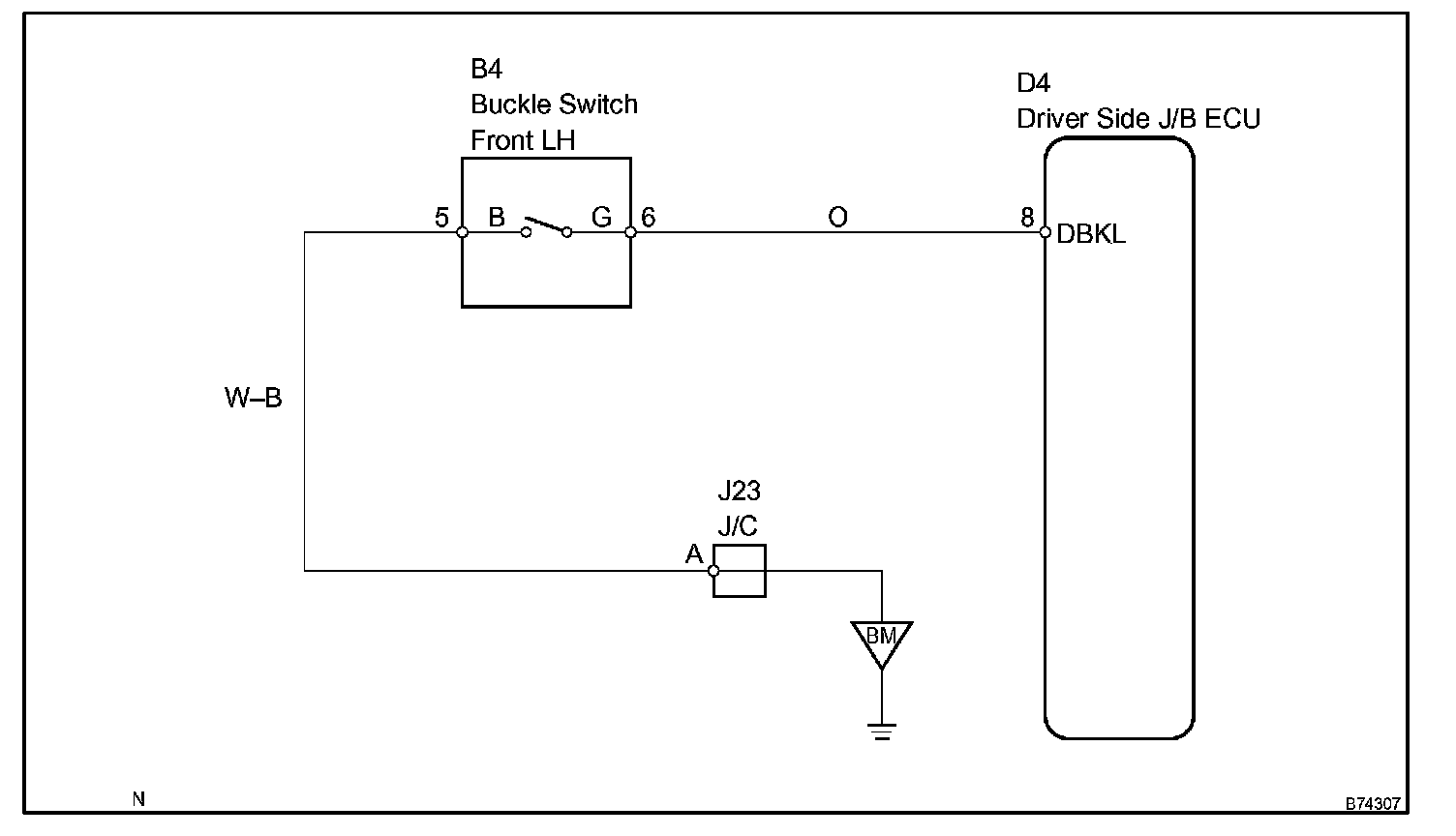

Wiring Diagram:






Step 1 - 2:




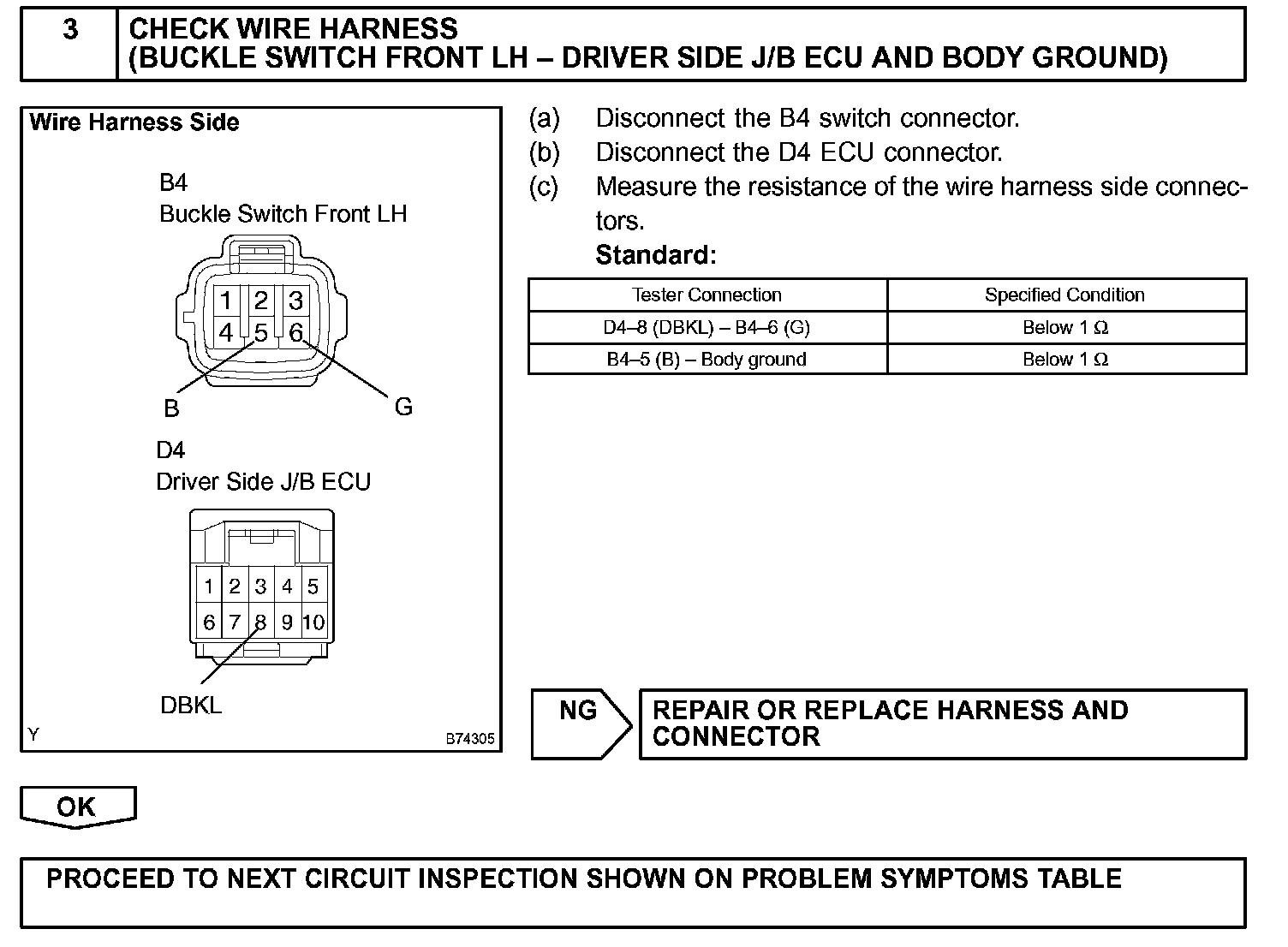

Step 3:

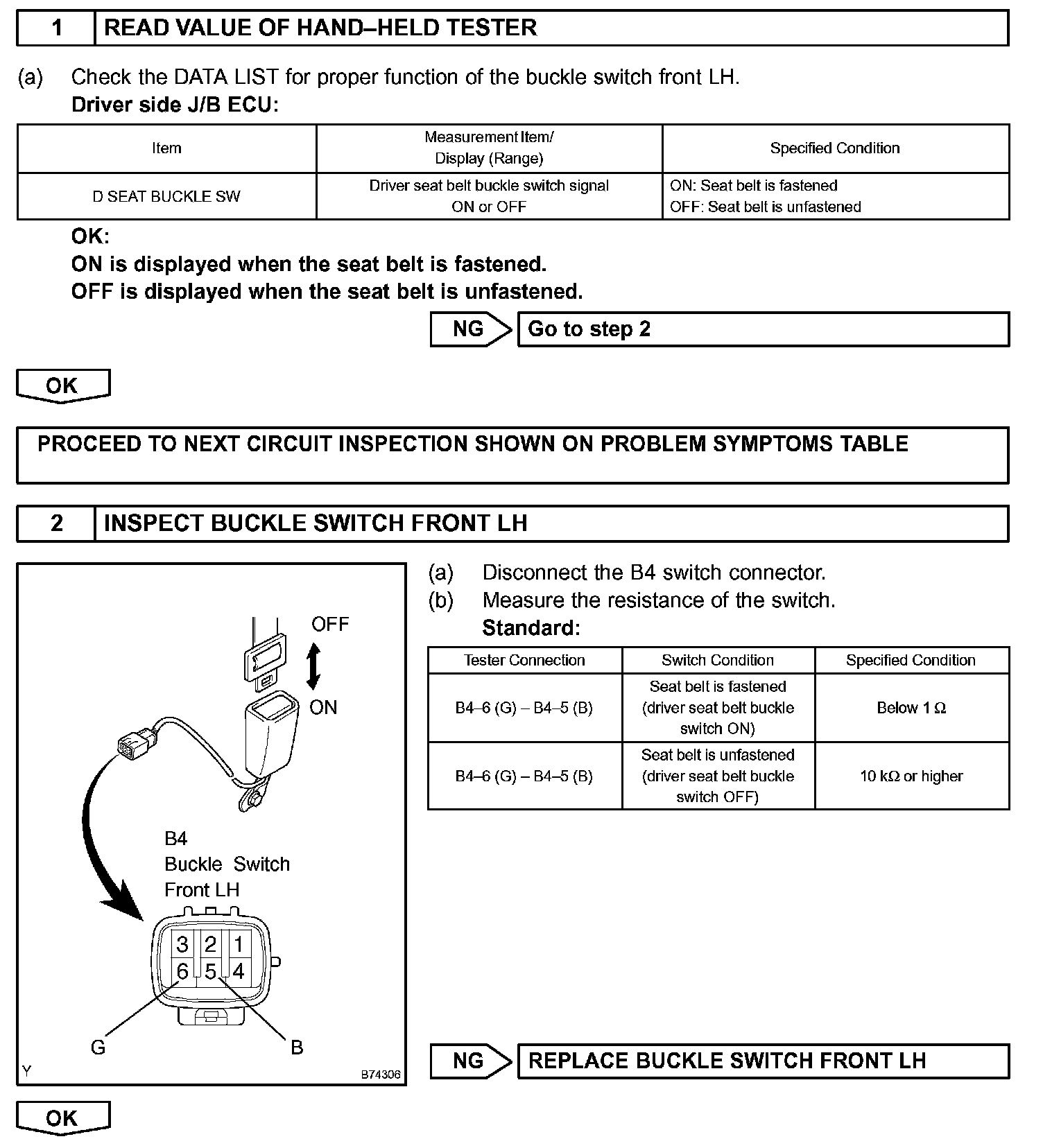

INSPECTION PROCEDURE
