Power Shoulder Belt Anchorage System

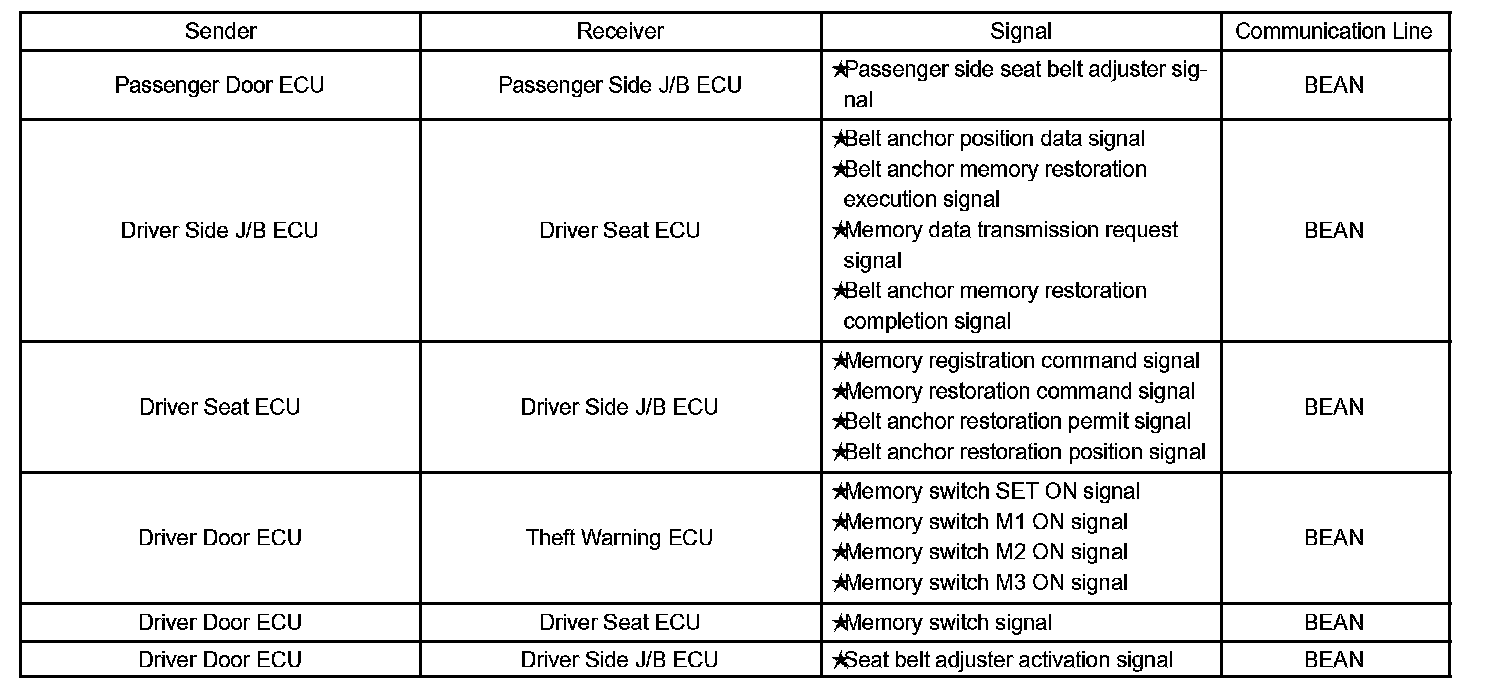

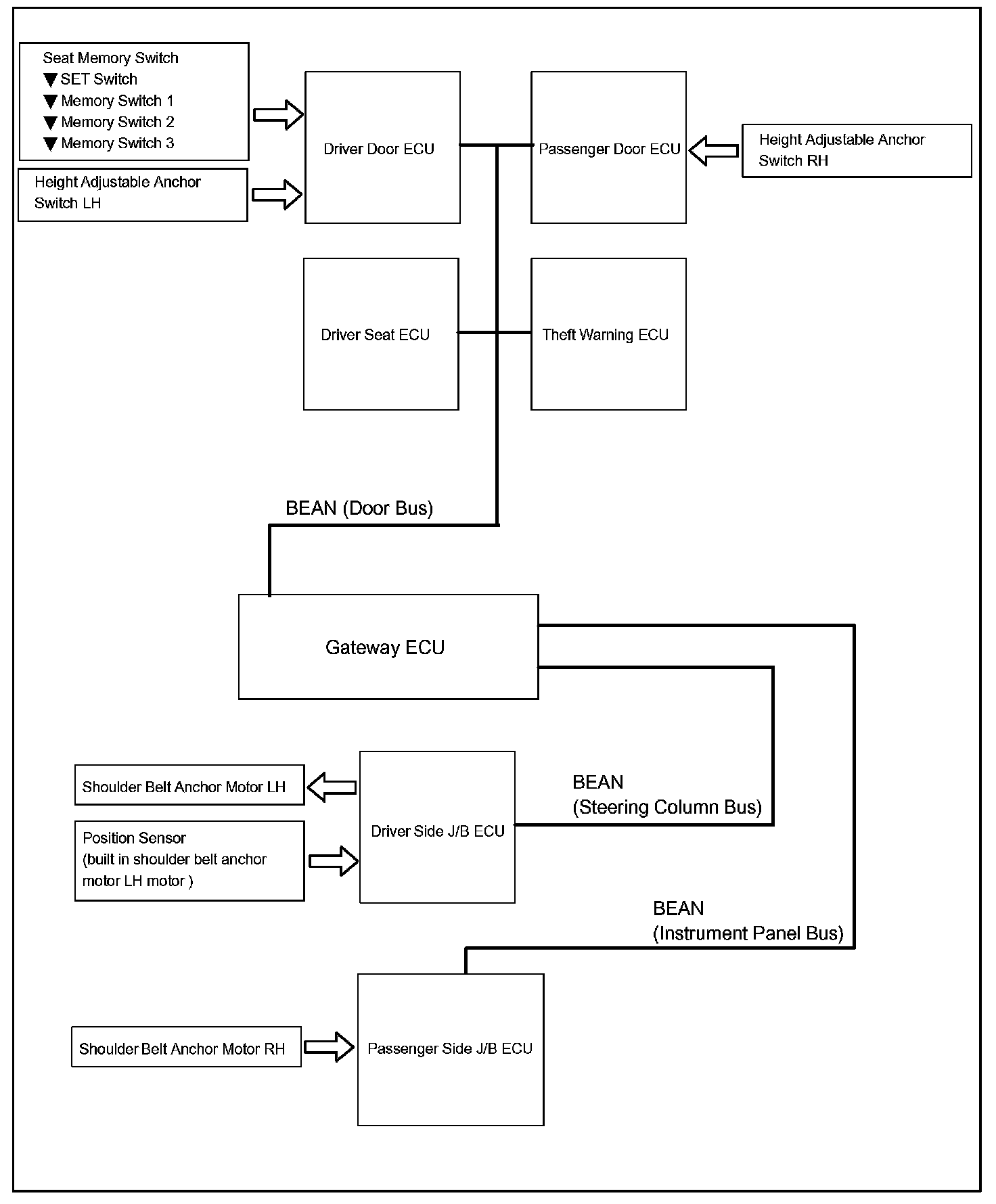

System Diagram:

System Diagram:

SYSTEM DESCRIPTION

1. POWER SHOULDER BELT ANCHORAGE SYSTEM DESCRIPTION
The position of the power adjustable shoulder belt anchor can be adjusted by operating the control switch, which is located on the door trim.

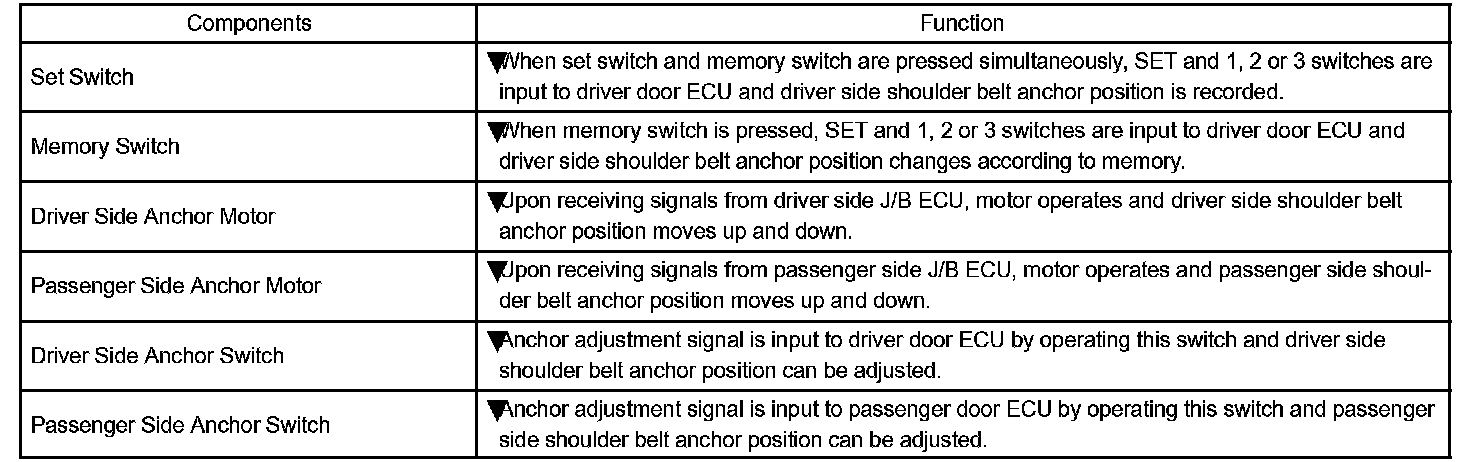

2. FUNCTION OF MAIN COMPONENT

3. POWER SHOULDER BELT ANCHORAGE FUNCTION
The height adjustable anchor switch is located on the door inside handle bezel on the front door trim. Using the switch, the shoulder belt anchor position can be adjusted electrically. Linked with the seat memory system and steering memory system, the shoulder belt anchor position can also be recorded in the memory.
