Suspension Control Module: Service and Repair
SUSPENSION CONTROL ECUREPLACEMENT
1. SEPARATE BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER
3. REMOVE INSTRUMENT CLUSTER FINISH PANEL END
4. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1
5. REMOVE COIN BOX ASSEMBLY
6. REMOVE OUTER MIRROR SWITCH ASSEMBLY
7. REMOVE INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
8. REMOVE INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
9. REMOVE SUSPENSION CONTROL ECU
a. Disconnect the connectors.

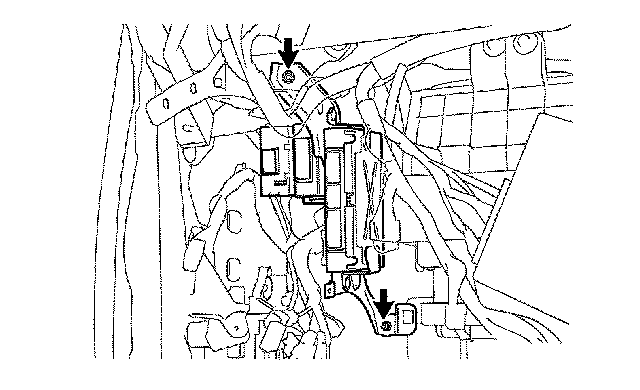

b. Remove the 2 nuts and suspension control ECU with bracket.
c. Remove the 2 nuts and suspension control ECU from the bracket.
10. INSTALL SUSPENSION CONTROL ECU
a. Install the suspension control ECU to the bracket with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 48 inch lbs.)

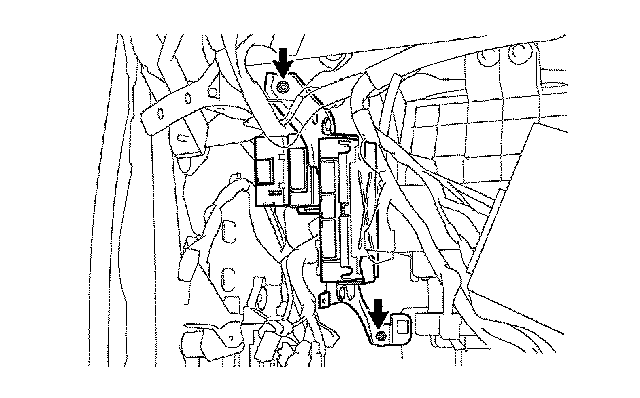

b. Install the suspension control ECU with bracket with the 2 nuts.
Torque: 5.5 Nm (56 kgf-cm, 48 inch lbs.)
c. Connect the connectors.
11. INSTALL INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER NO.1
12. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
13. INSTALL OUTER MIRROR SWITCH ASSEMBLY
14. INSTALL COIN BOX ASSEMBLY
15. INSTALL INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1
16. INSTALL INSTRUMENT CLUSTER FINISH PANEL END
17. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER LOWER
18. INSPECT SRS WARNING LIGHT
19. CONNECT BATTERY NEGATIVE TERMINAL
