Cruise Control Module: Service and Repair
CRUISE CONTROL ECU ASSEMBLYREPLACEMENT
1. SEPARATE BATTERY NEGATIVE TERMINAL
2. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
3. REMOVE INSTRUMENT PANEL GARNISH SUB-ASSEMBLY
4. REMOVE GLOVE COMPARTMENT PLATE
5. REMOVE CHOKE KNOB HOLE COVER
6. REMOVE INSTRUMENT PANEL FINISH PANEL

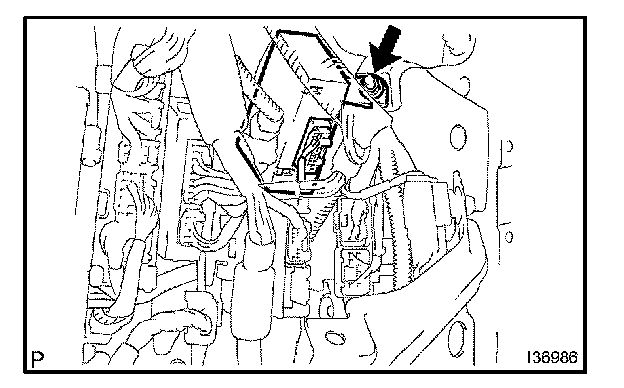

7. REMOVE CRUISE CONTROL ECU ASSEMBLY
a. Disconnect the connector.
b. Remove the nut and cruise control ECU (distance control ECU) assembly.
8. INSTALL CRUISE CONTROL ECU ASSEMBLY
a. Install the cruise control ECU (distance control ECU) assembly with the nut.
Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)
NOTE: Do not install the cruise control ECU (distance control ECU) assembly if it has been damaged or if it has received some sort of shock.
When replacing the distance control ECU, perform the following procedures to have the ECU recognize the spec.
b. Be sure to perform the following procedures after replacing the distance control ECU.
1. Turn the ignition switch to the ON position.
2. Push the cruise main switch ON-OFF button on.
3. With the brake pedal depressed, push the cruise control main switch to RES/ACC 3 times within 3 seconds. Check that the VSC buzzer sounds at this time.
NOTE: Do not turn the headlamp dimmer switch on at this time because optical axis automatic adjustment mode has already started, which could lead to incorrect optical axis.
If the light control switch is turned on by mistake, readjust the optical axis (refer to optical axis adjustment).
