Canada - Doors - DTC's B1211/B1212 Multiplex Inoperative
BulletinTSB2124
Issue Date
June 21, 2005
Title
MULTIPLEX COMMUNICATION FAILURE/DTC B1211 OR B1212
Component
BODY ELECTRICAL
Models
'04 - '05 LS430
INTRODUCTION:
Some 2004 - 2005 model year LS430 vehicles may experience a condition, where all of the following systems are inoperative due to a driver's/passenger's Multiplex Network Door Computer communication failure:
- The following functions will be inoperative for the door with the affected computer:
- Smart Key entry
- Auto Window Operation Inop (Manual window will operate)
- Power door lock
- Power mirror
- Seat memory
- The affected door ECU will not communicate with the scan tool.
- B1211 or B1212 (Door ECU communication stop) will be stored in the Body ECU.
APPLICABLE VEHICLES:
- 2004 - 2005 model year LS430 vehicles produced BEFORE the Production Change Effective VINs shown below.

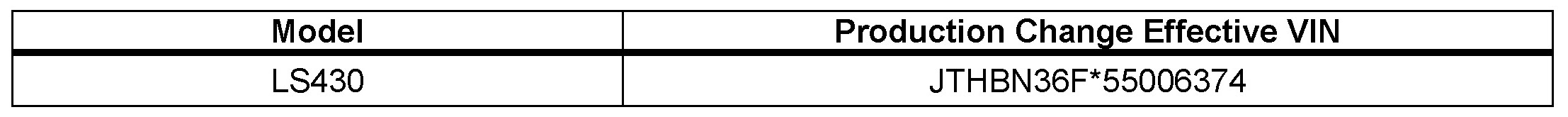

PRODUCTION CHANGE INFORMATION:

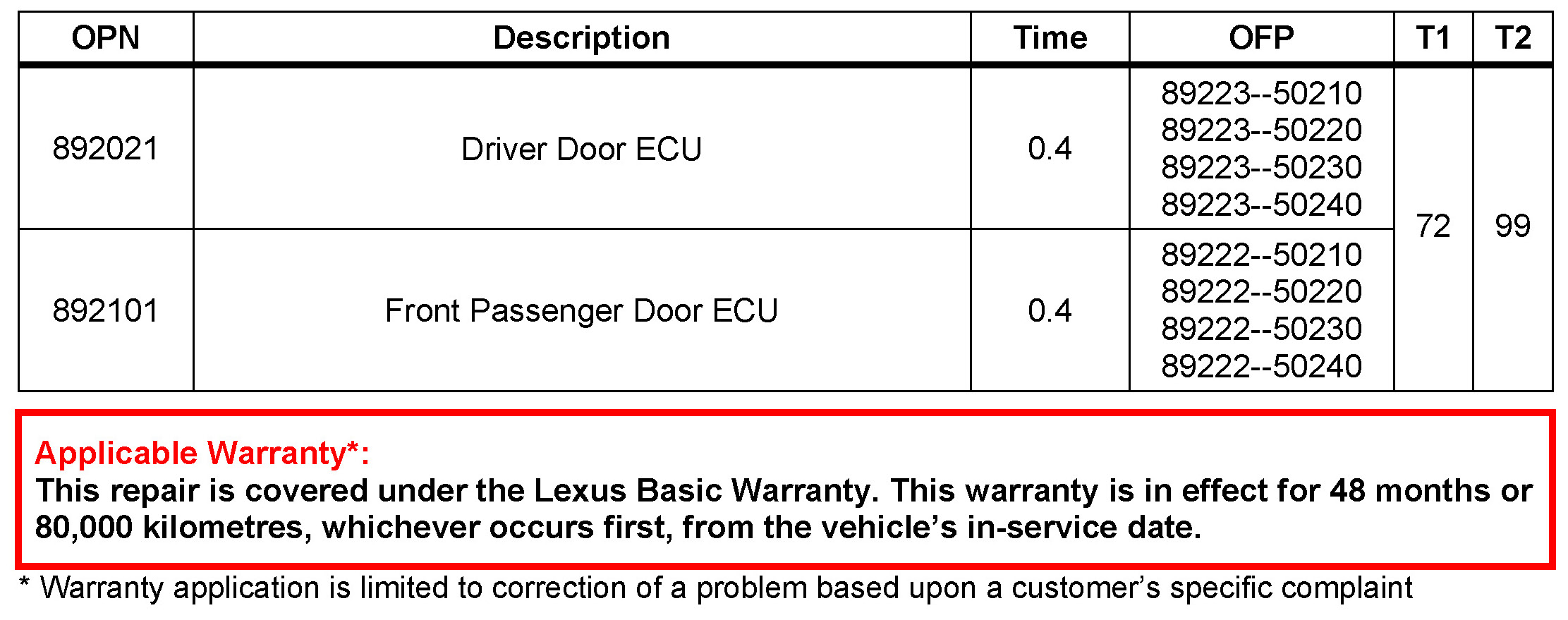

WARRANTY INFORMATION:

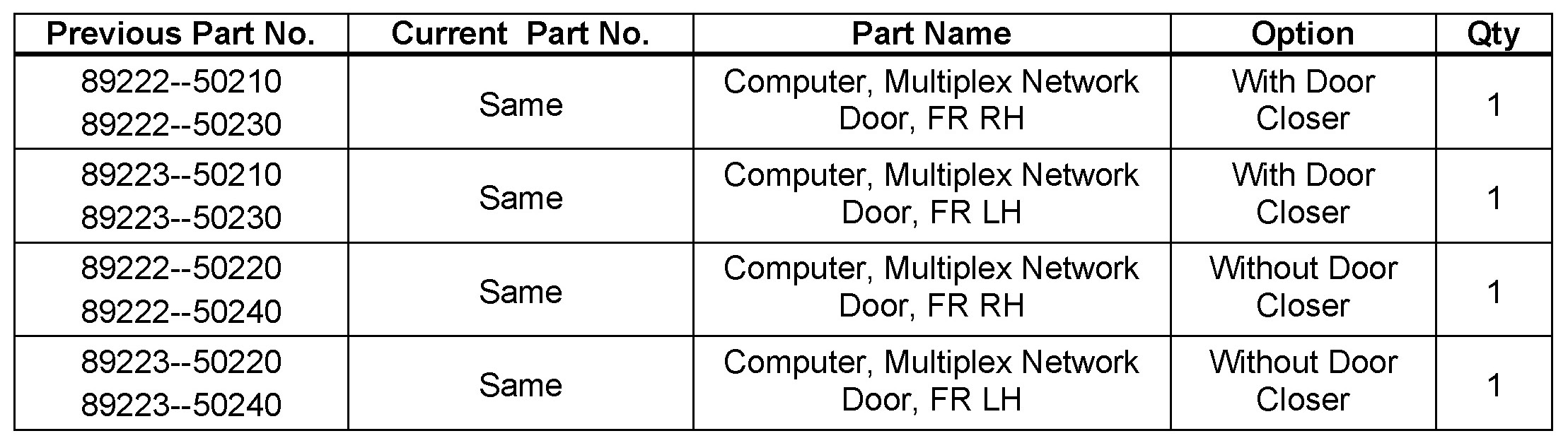

PARTS INFORMATION:

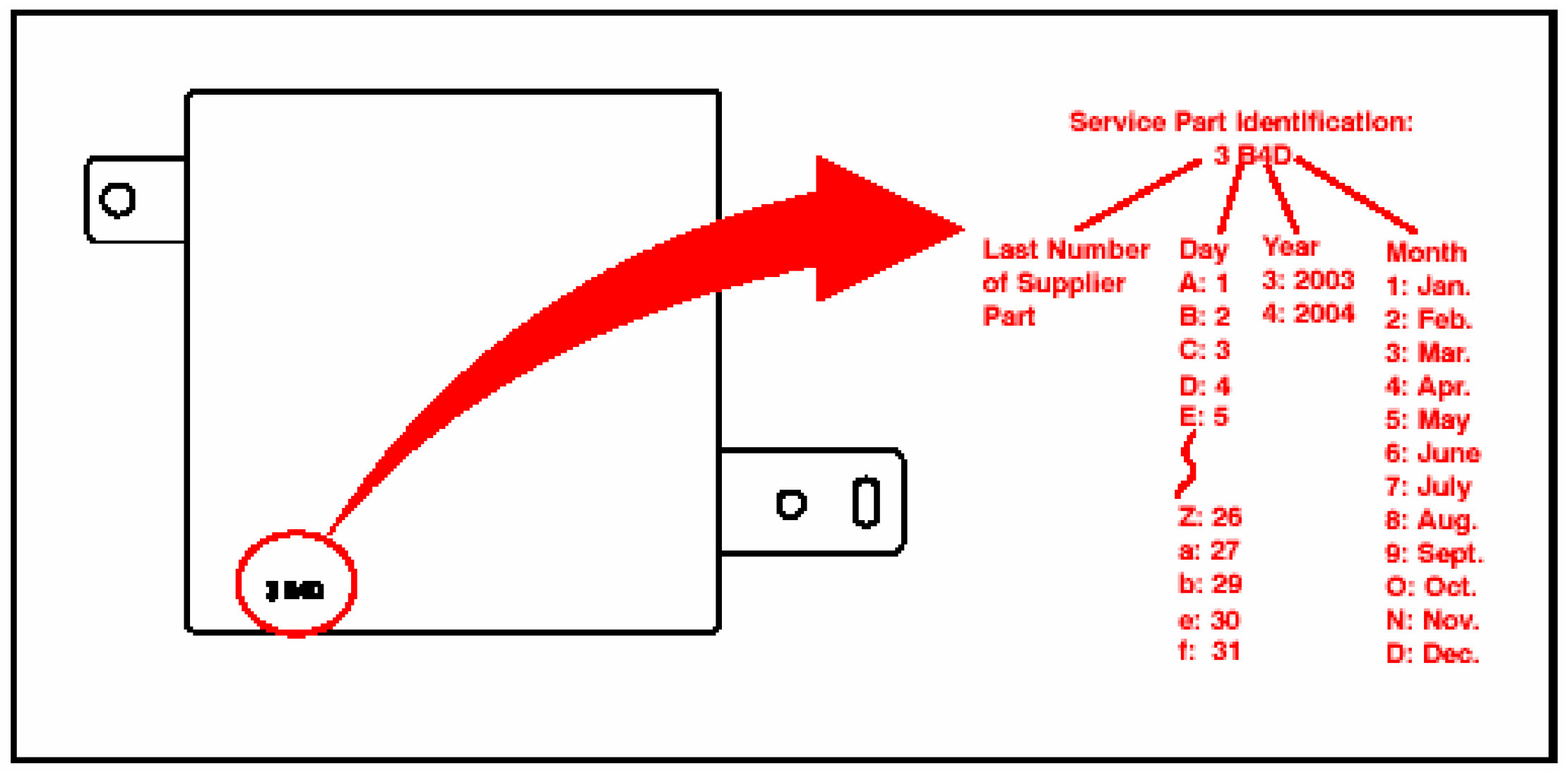

PARTS IDENTIFICATION METHOD:
Countermeasure service parts are identified by the 4-digit date code printed on the bottom of the front door multiplex network computer. Date code is 3 B4D or later.
REPAIR PROCEDURE:
Refer to ETAS: 2004 - 2005 model year LS 430 Repair Manual: Engine Hood/door: Front Door: Overhaul (LS 430) for the repair procedure.
- Complete steps 1-8 to replace the ECU.
- Reverse the steps for installation.
NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
