Ignition Coil: Service and Repair
REPLACEMENT1. REMOVE V-BANK COVER
2. REMOVE ENGINE ROOM SIDE COVER
3. REMOVE INTAKE AIR CONNECTOR PIPE
4. REMOVE OIL LEVEL GAGE SUB-ASSEMBLY
5. REMOVE IGNITION COIL ASSEMBLY

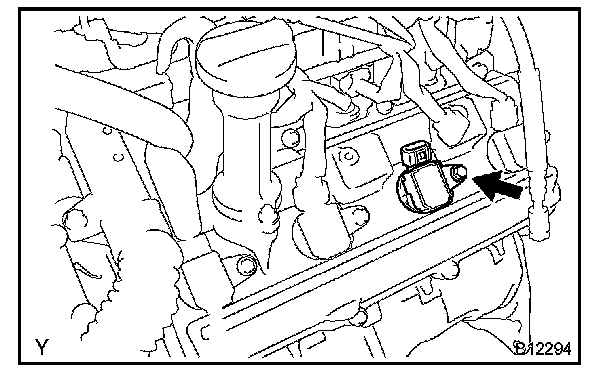

a. Disconnect the ignition coil connector.
b. Remove the bolt and pull out the ignition coil.
6. INSTALL IGNITION COIL ASSEMBLY
a. Connect a new ignition coil to the spark plug, attach the ignition coil to the cylinder head cover, and install the bolt.
Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)
b. Connect the ignition coil connector.
7. INSTALL OIL LEVEL GAGE SUB-ASSEMBLY
8. INSTALL INTAKE AIR CONNECTOR PIPE
9. INSTALL V-BANK COVER
10. INSTALL ENGINE ROOM SIDE COVER
