CAN Communication System

TERMINALS OF ECU

HINT: This section describes the standard CAN values for all CAN related components.

1. JUNCTION CONNECTOR (D CAN J/C, P CAN J/C, LUG CAN J/C).

Terminals Of Control Module / Pinouts:

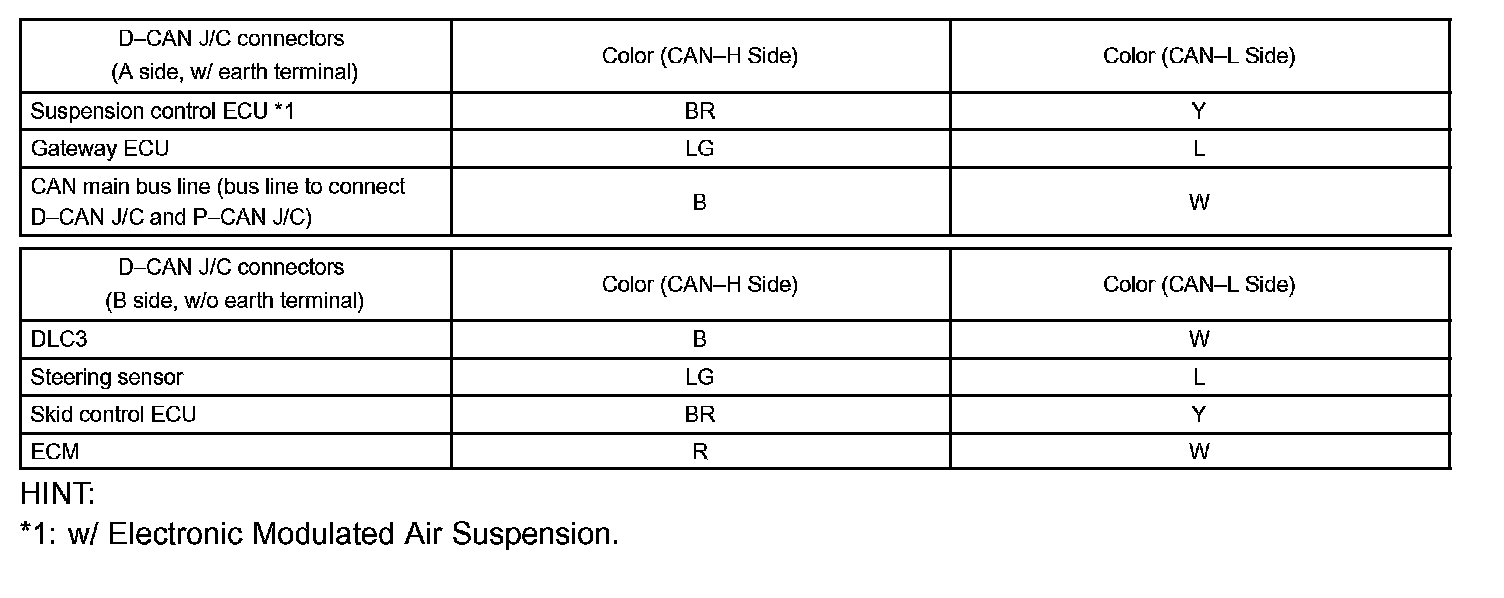

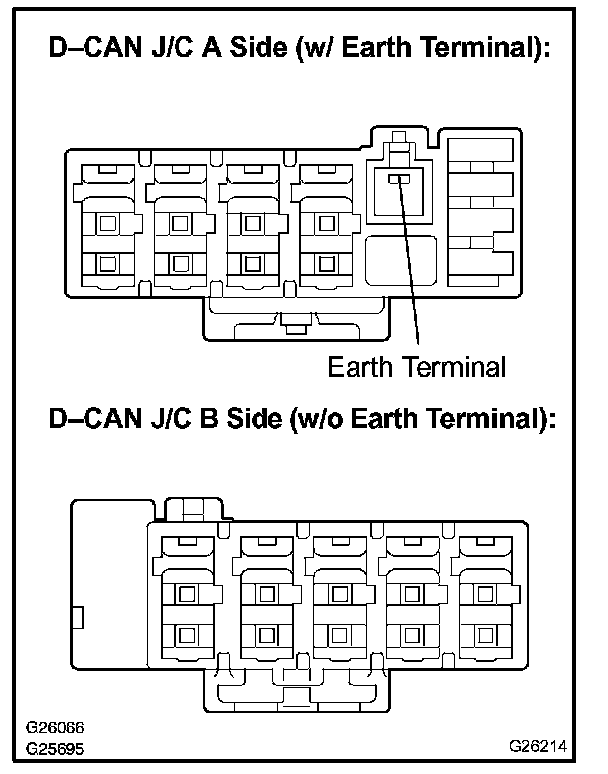

a. D CAN J/C.

HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
- The connectors can be connected to any terminals on the same side.

Terminals Of Control Module / Pinouts:

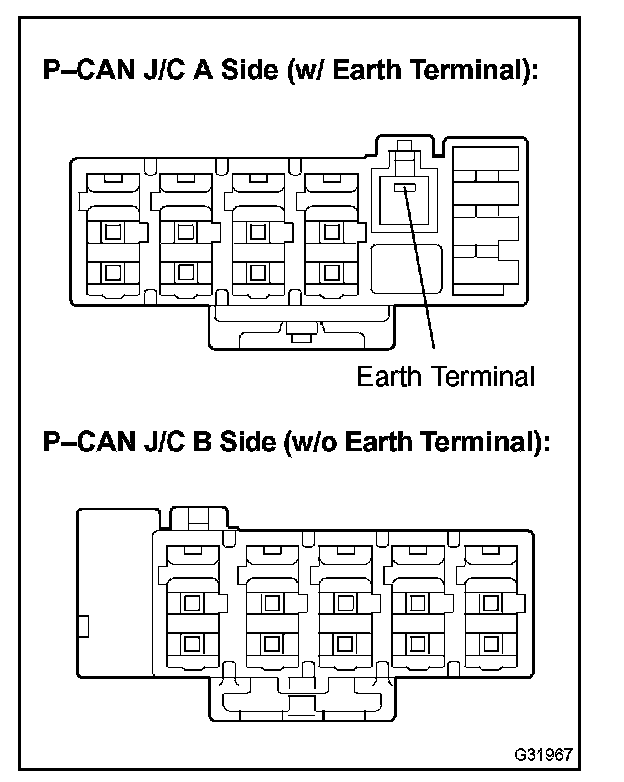

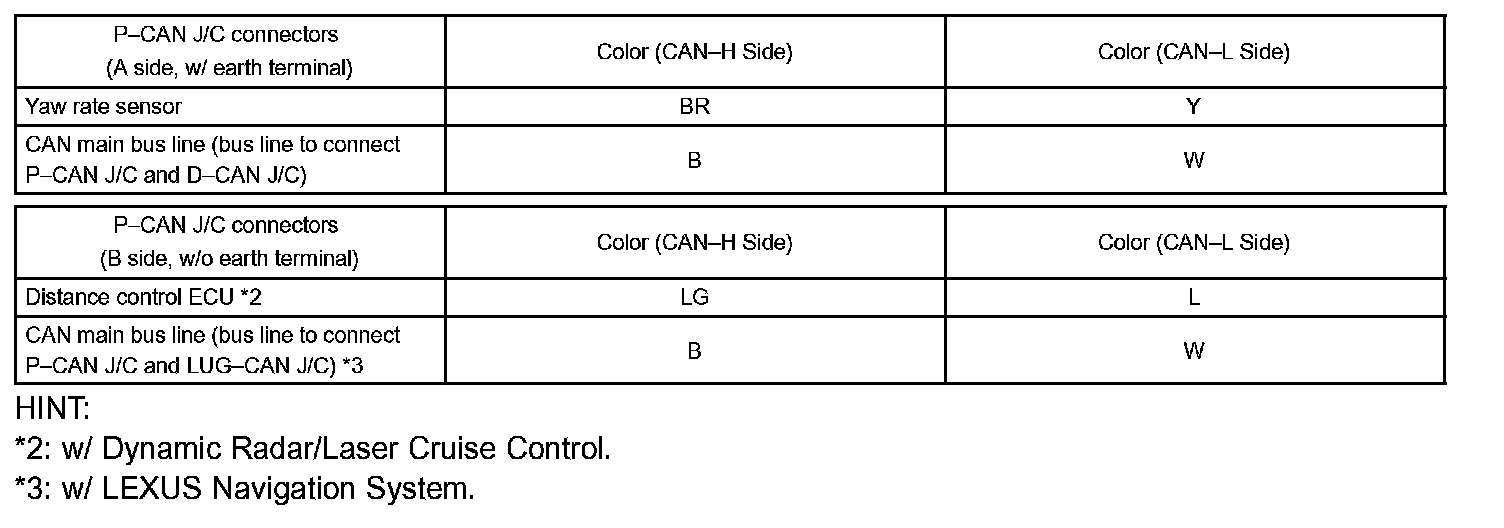

b. P CAN J/C.

HINT:
- The connectors connected to the CAN J/C can be distinguished by the colors of the bus lines and the connecting side of the connector.
- The connectors can be connected to any terminals on the same side.

Terminals Of Control Module / Pinouts:

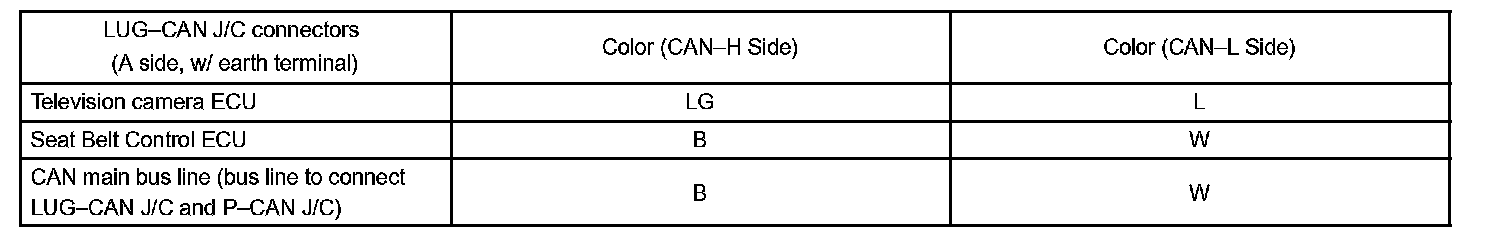

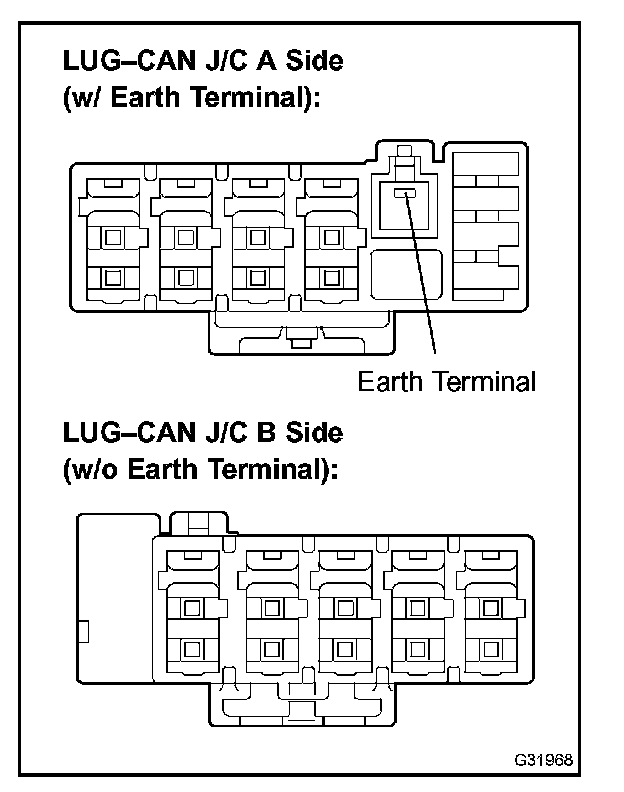

c. LUG-CAN J/C.

NOTE: The LUG CAN J/C is only mounted in vehicles with a LEXUS Navigation System.

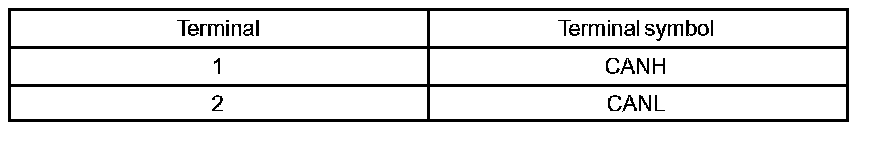

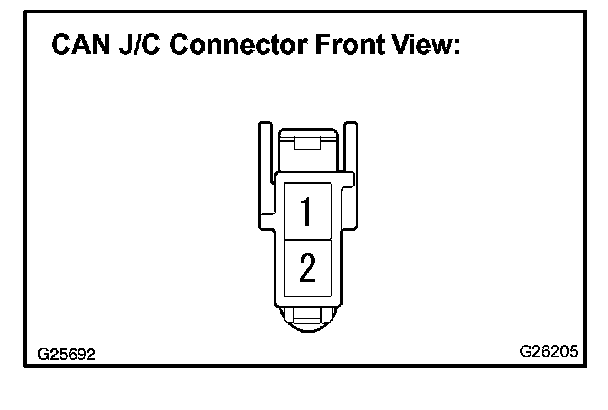

d. The terminals on connectors for the CAN J/C.

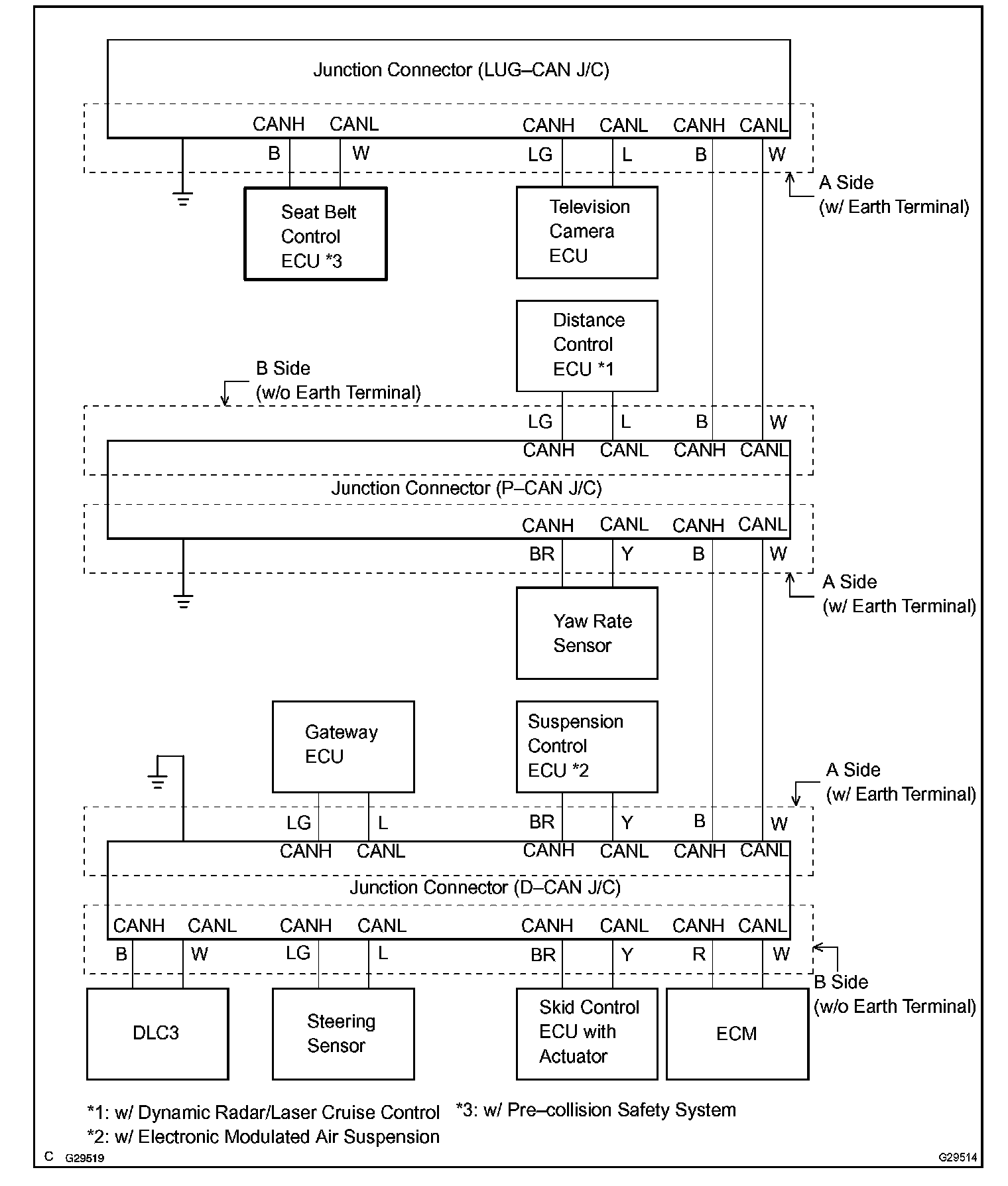

e. WIRING DIAGRAM FOR IDENTIFYING CAN J/C CONNECTORS
(w/ LEXUS Navigation System).

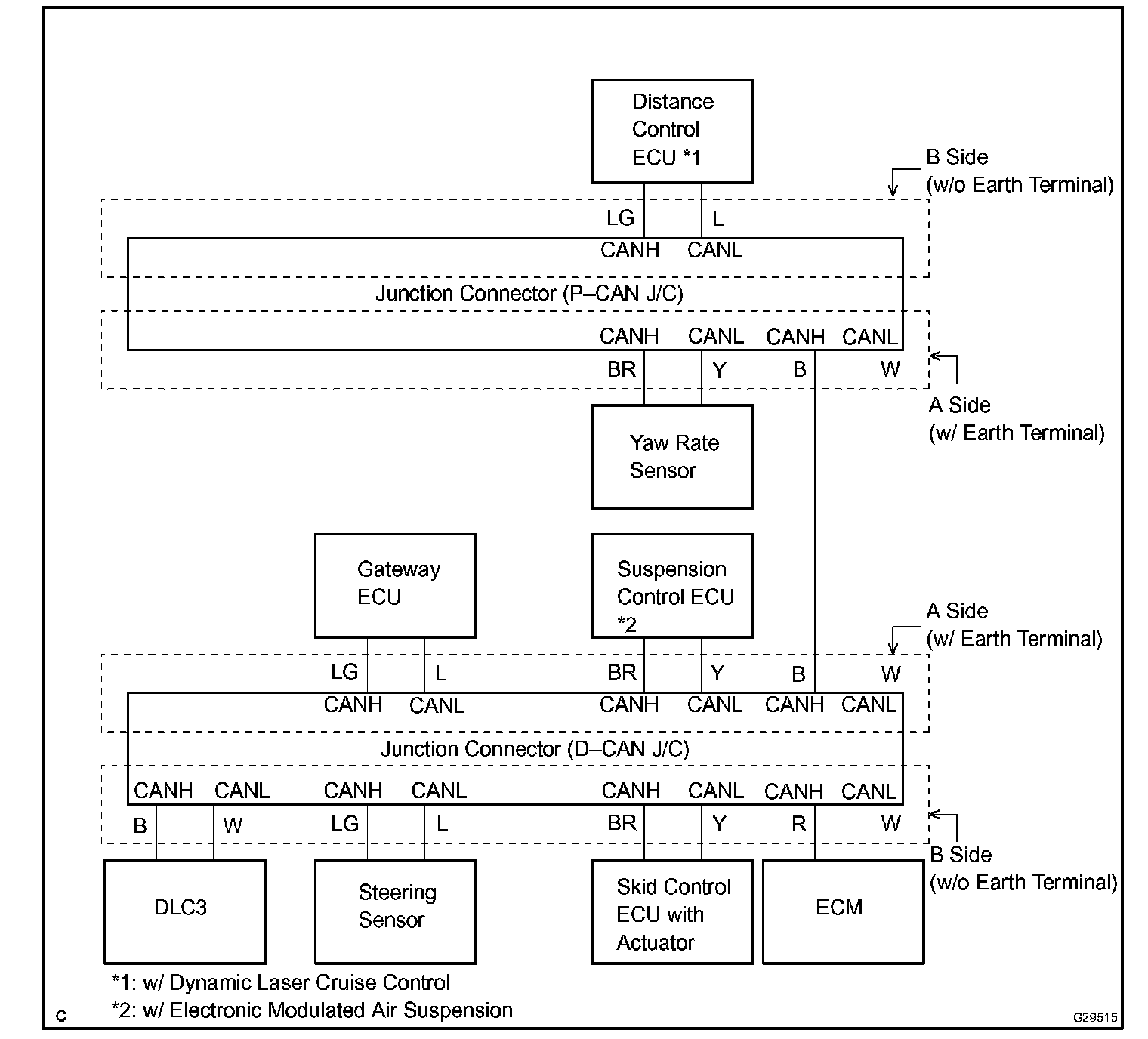

f. WIRING DIAGRAM FOR IDENTIFYING CAN J/C CONNECTORS
(w/o LEXUS Navigation System).

Terminals Of Control Module / Pinouts:

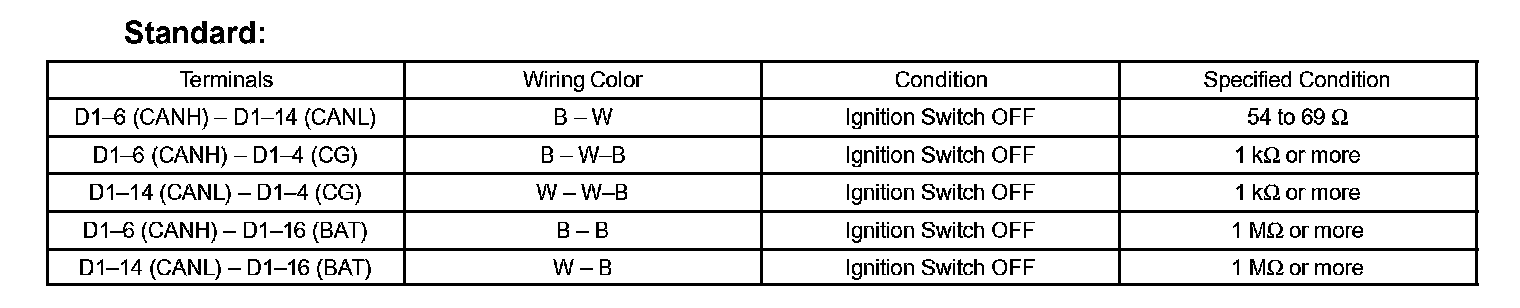

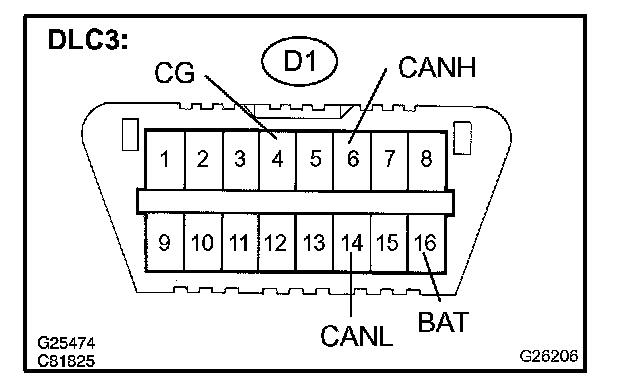

2. DLC3

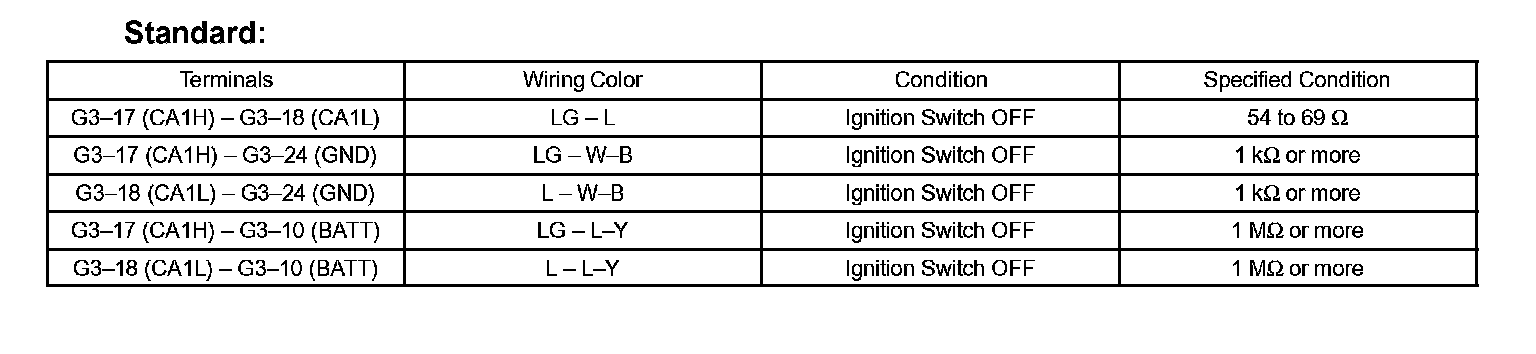

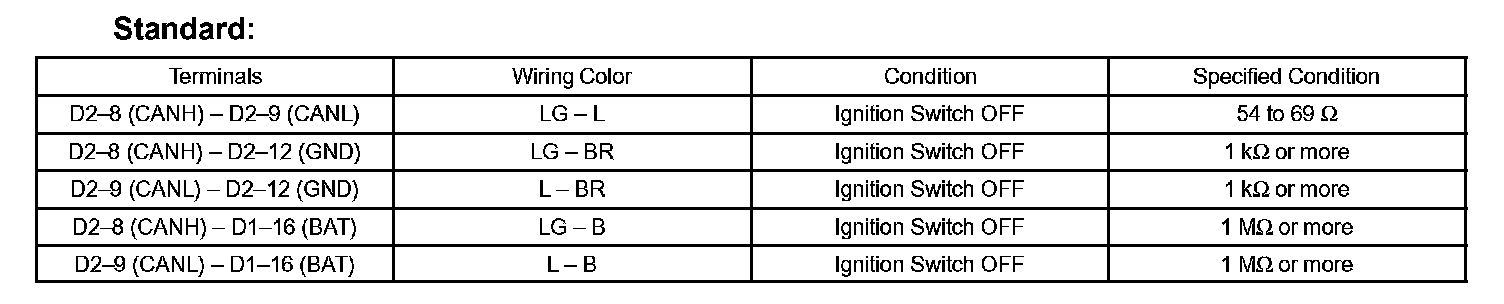

a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

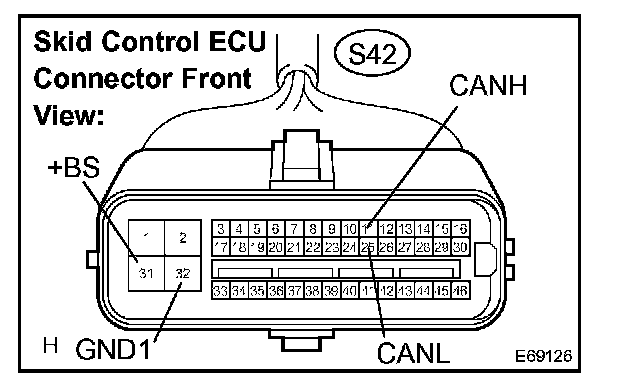

3. SKID CONTROL ECU




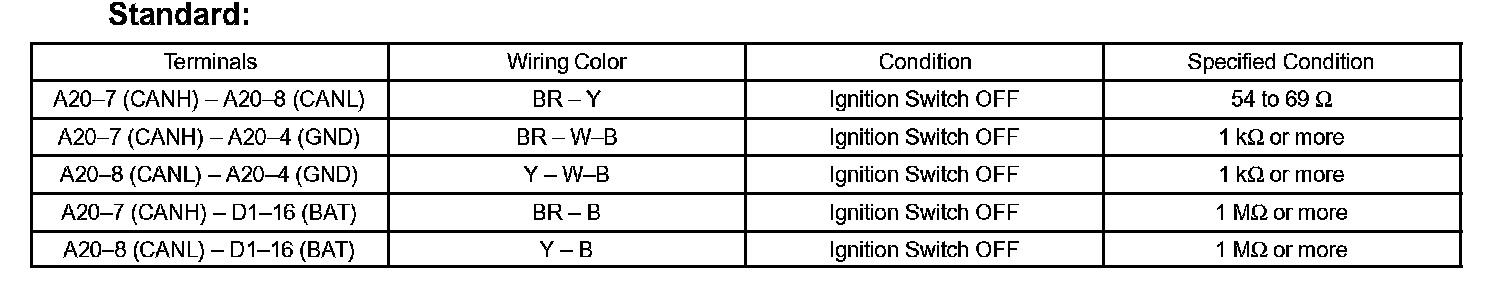

a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

4. STEERING SENSOR

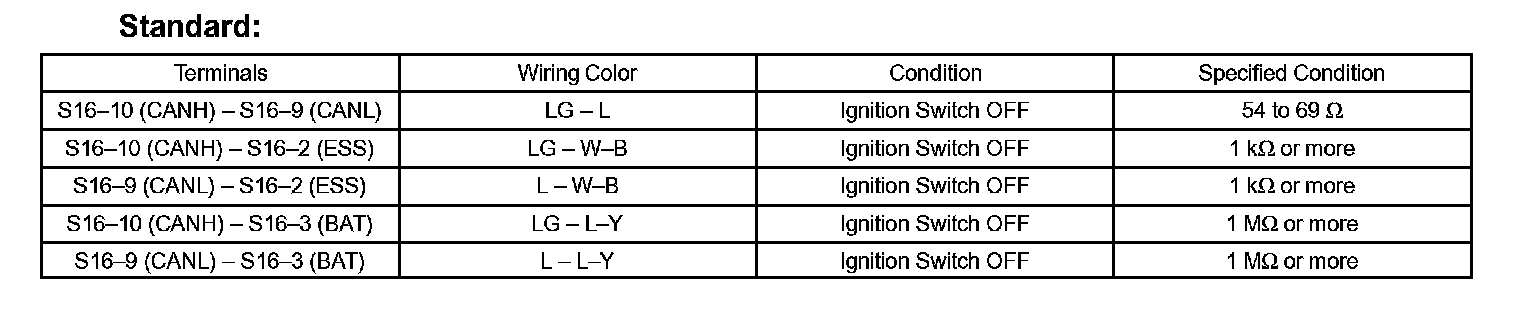

a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

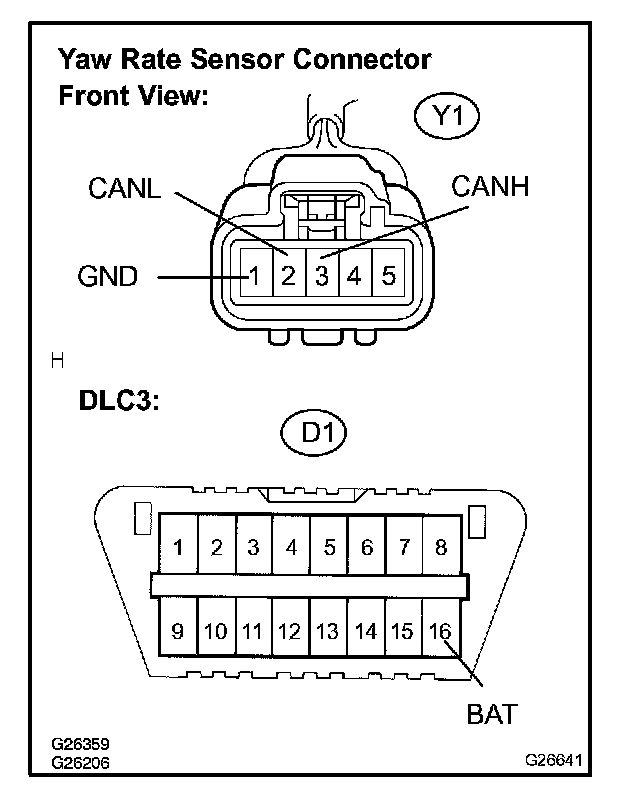

5. YAW RATE SENSOR

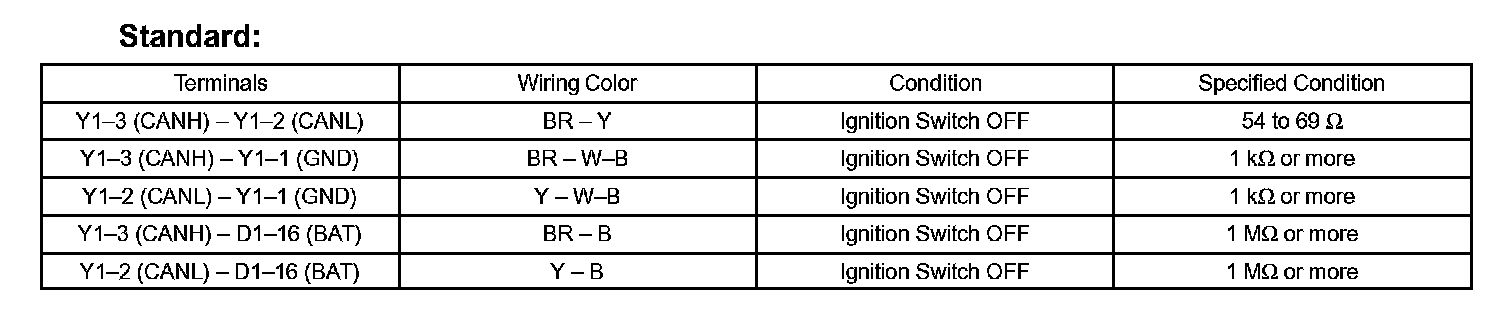

a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

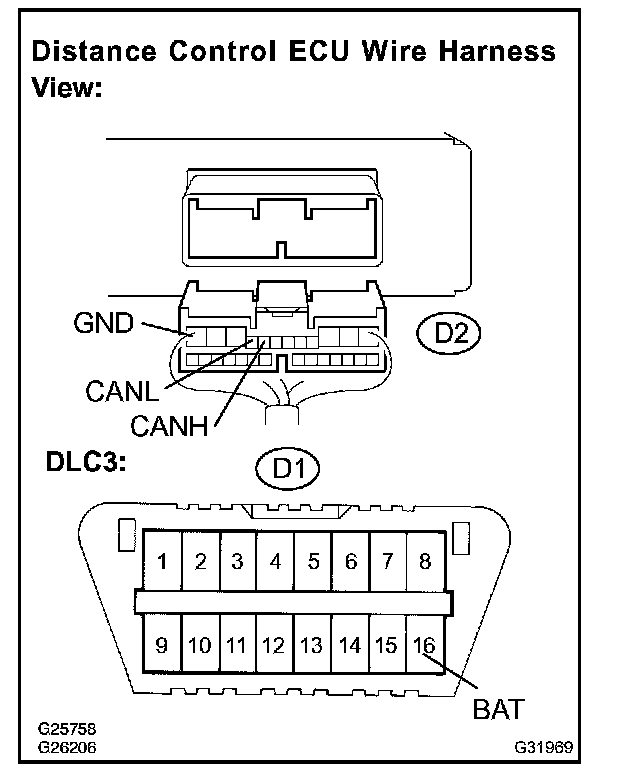

6. DISTANCE CONTROL ECU




a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

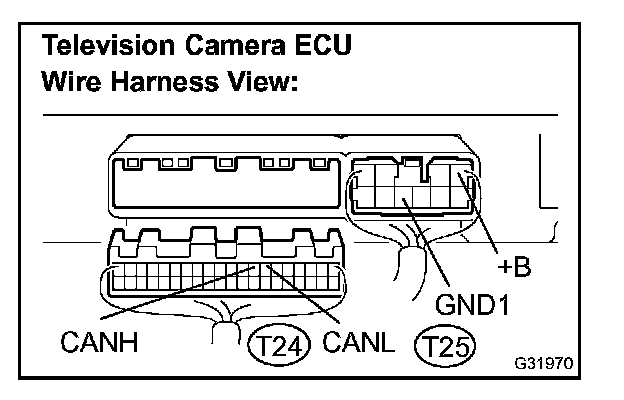

7. TELEVISION CAMERA ECU




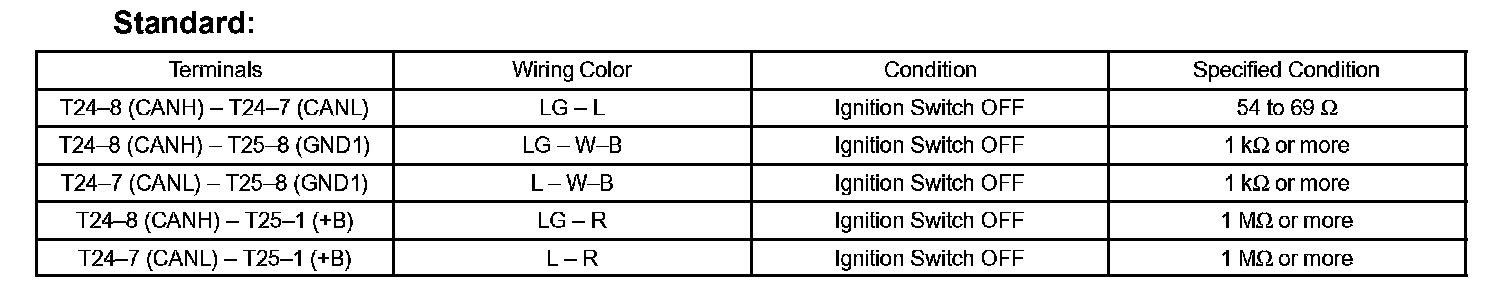

a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

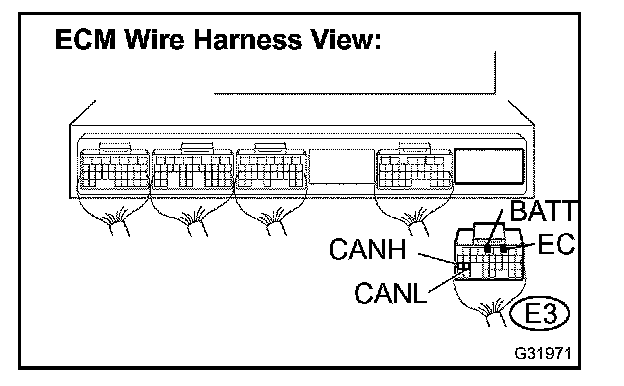

8. ECM




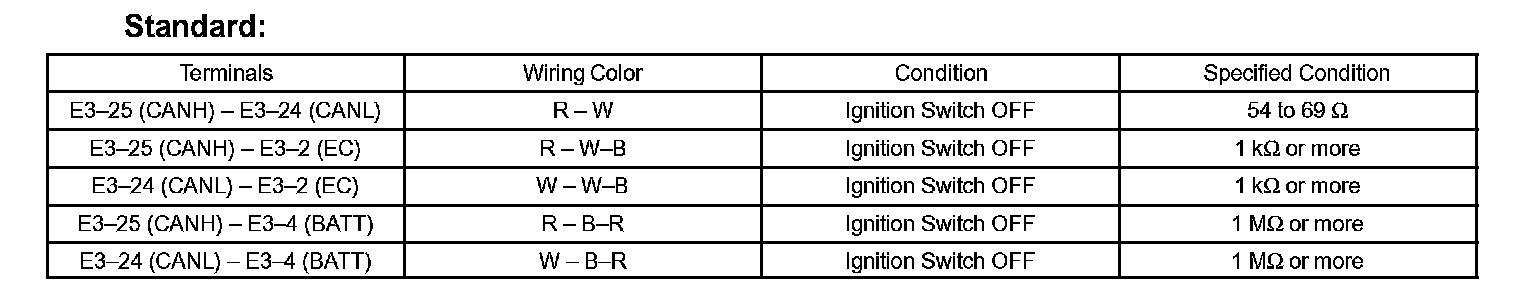

a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

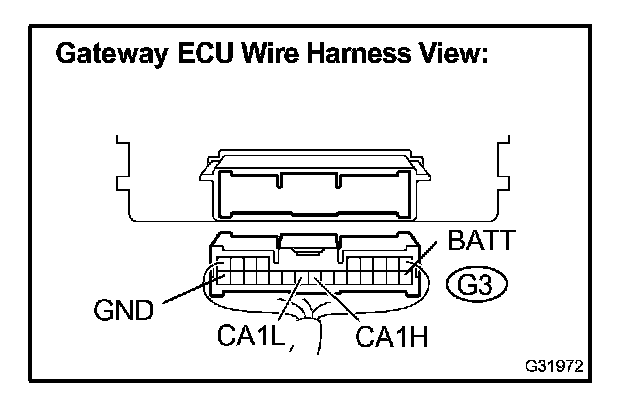

9. GATEWAY ECU




a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

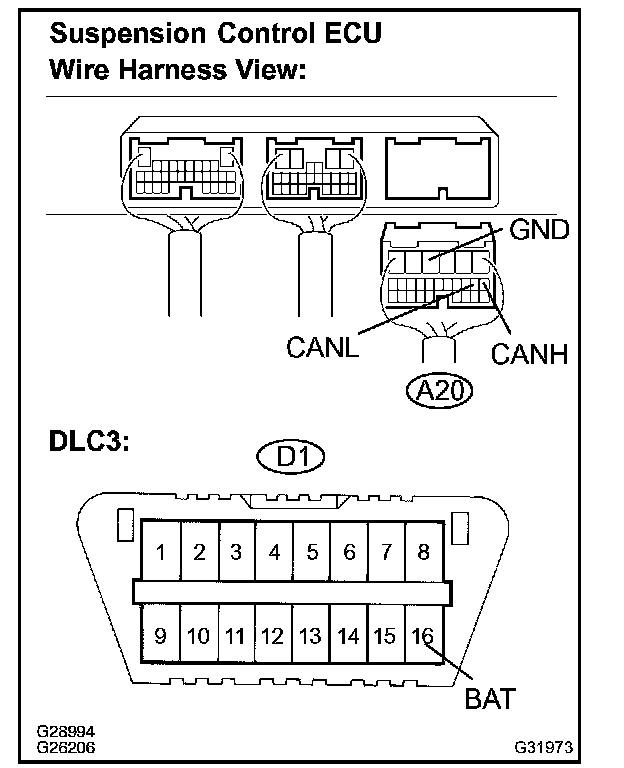

10. SUSPENSION CONTROL ECU




a. Measure the resistance according to the value(s) in the table.

Terminals Of Control Module / Pinouts:

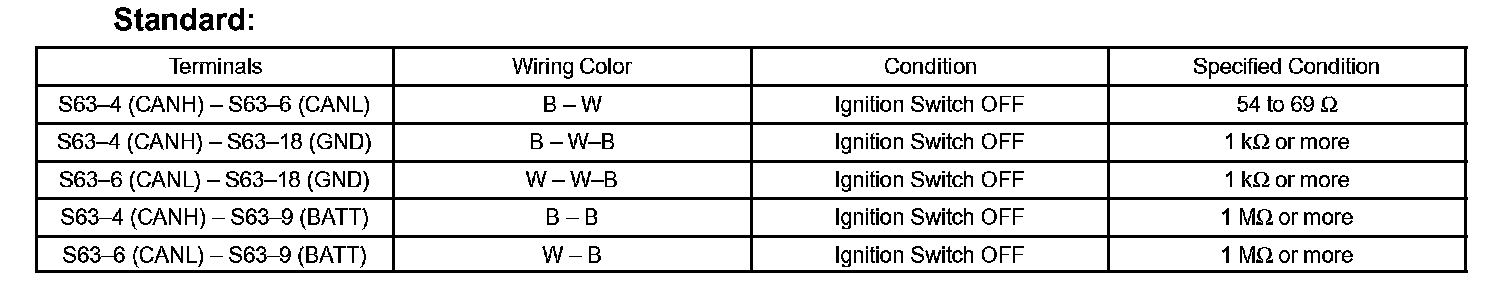

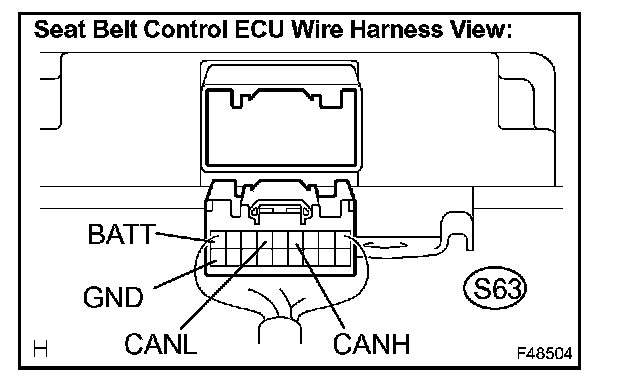

11. SEAT BELT CONTROL ECU




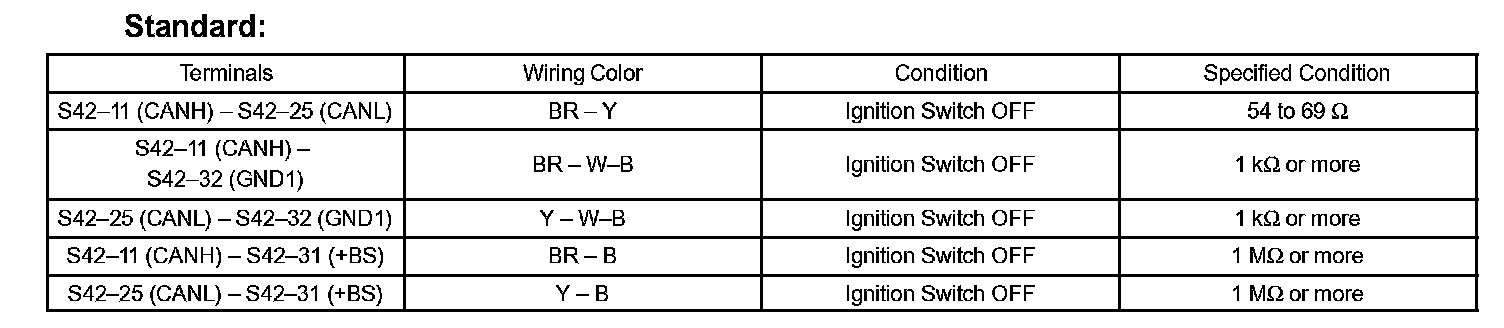

a. Measure the resistance according to the value(s) in the table.
