Check CAN Main Bus Line For Disconnection (W/ Lexus Navigation System)

CHECK CAN MAIN BUS LINE FOR DISCONNECTION (w/ LEXUS Navigation System)

CIRCUIT DESCRIPTION

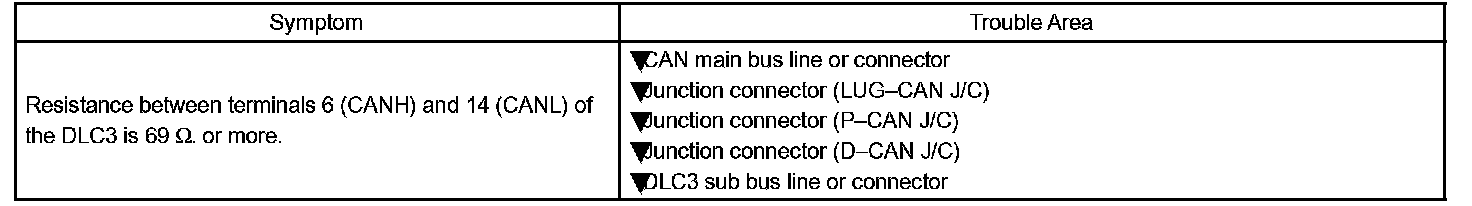

There may be an open circuit in the CAN main bus line and/or the DLC3 sub bus line when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is 69 Ohm or more.

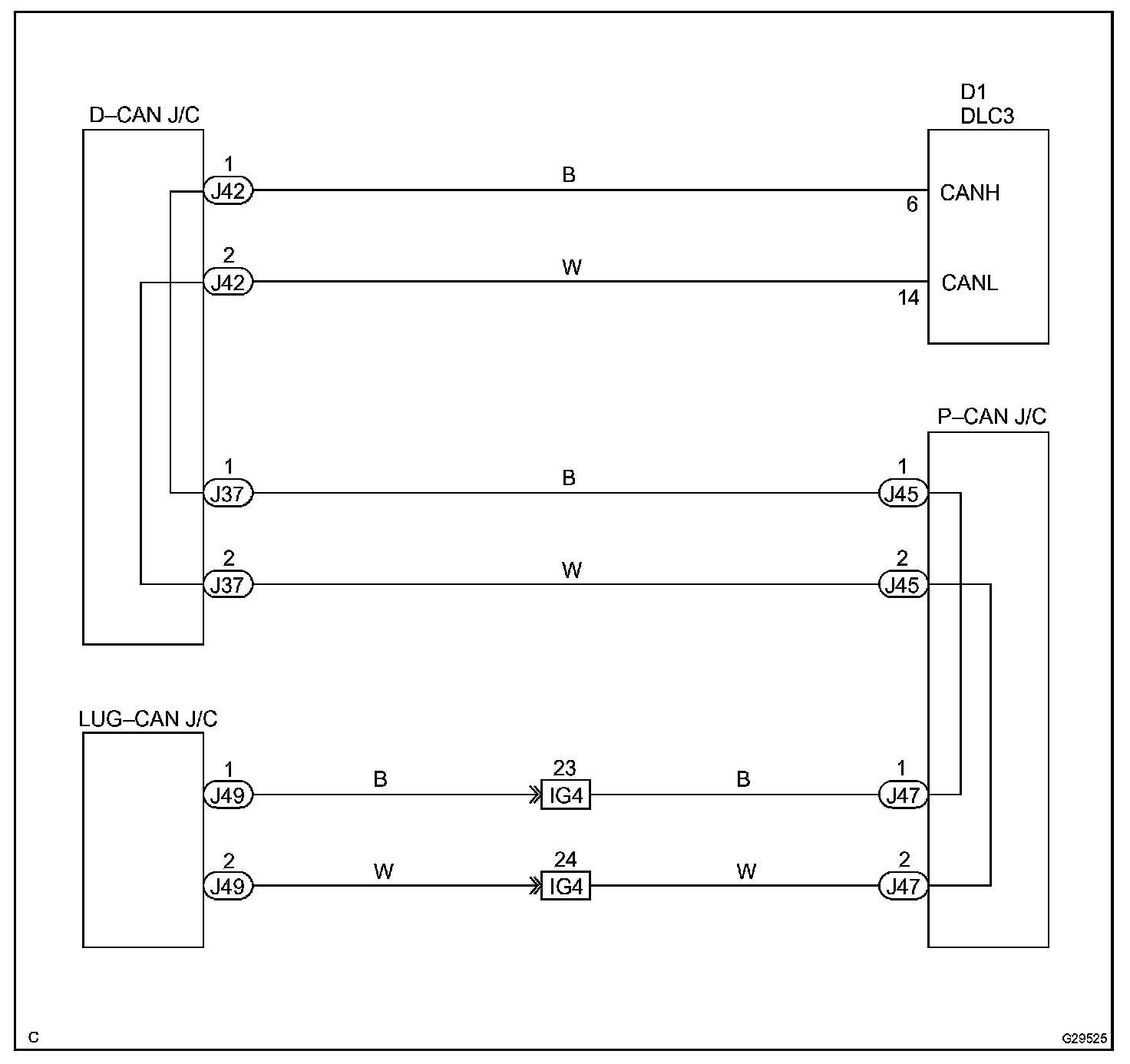

Wiring Diagram:

Step 1 - 2:

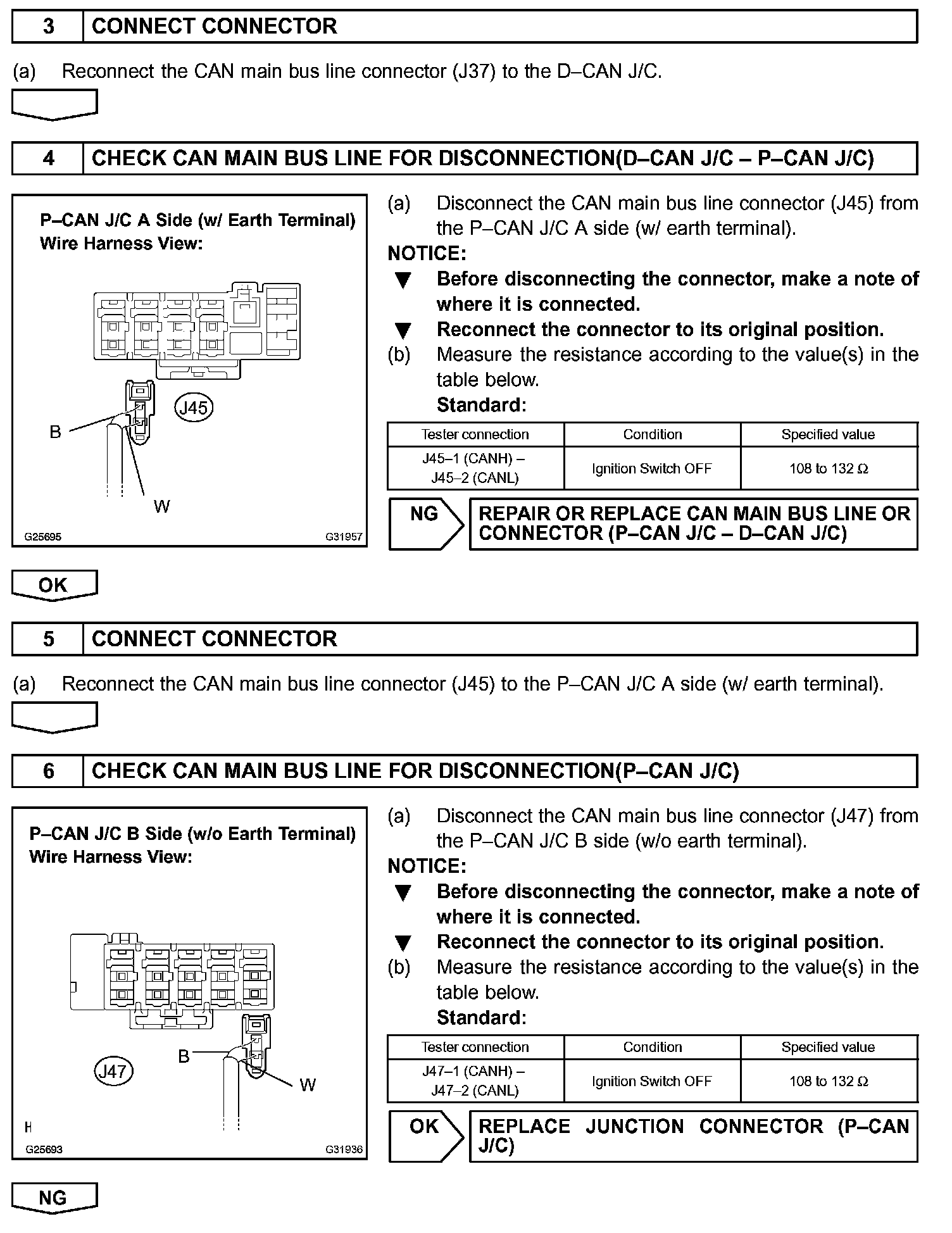

Step 3 - 6:

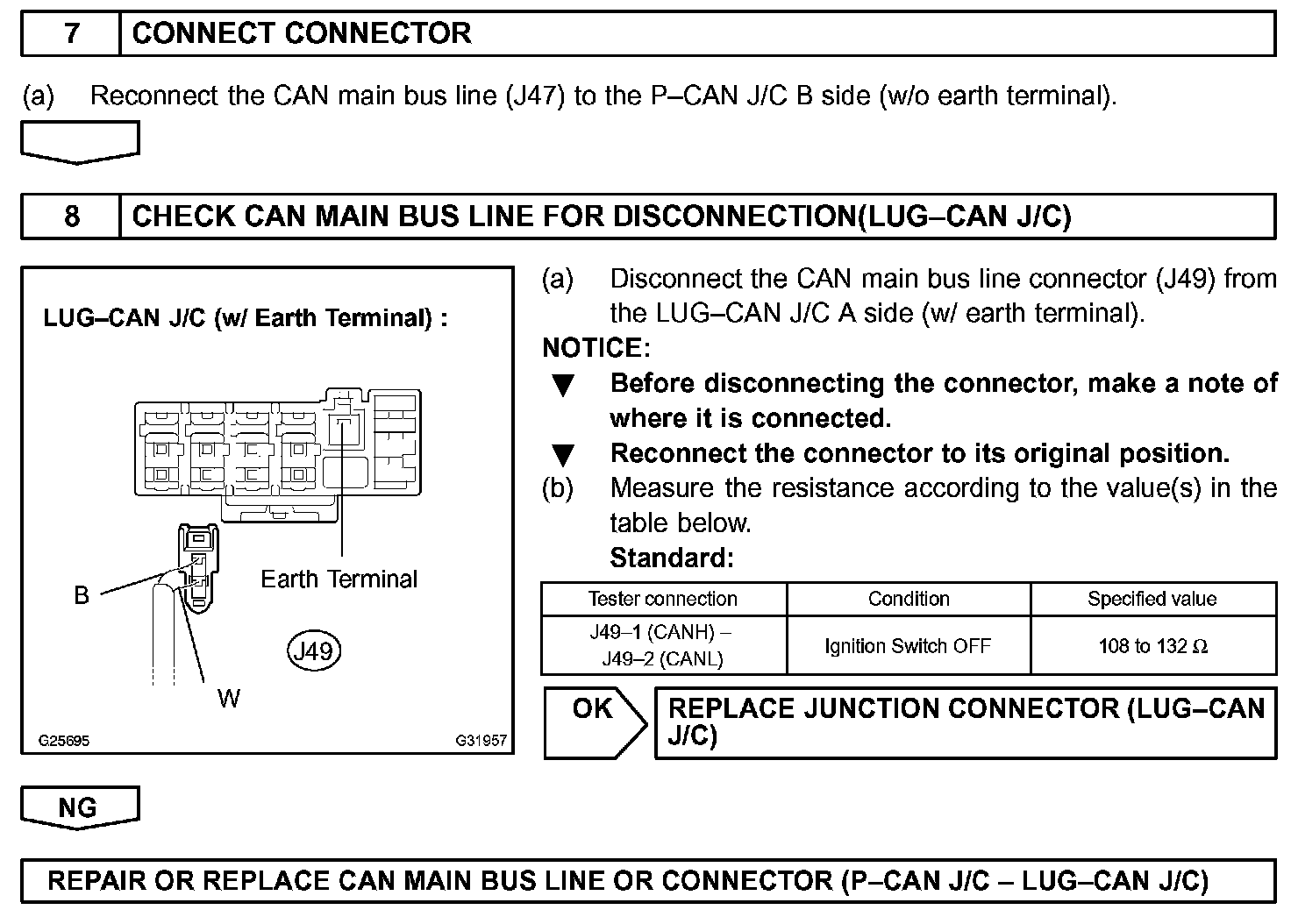

Step 7 - 8:

INSPECTION PROCEDURE
