Multiple Junction Connector: Application and ID

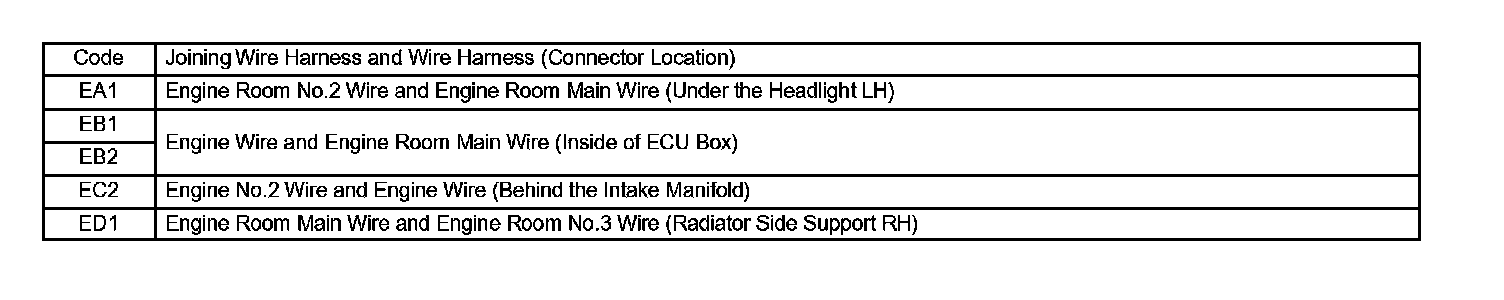

EA1 - ED1:

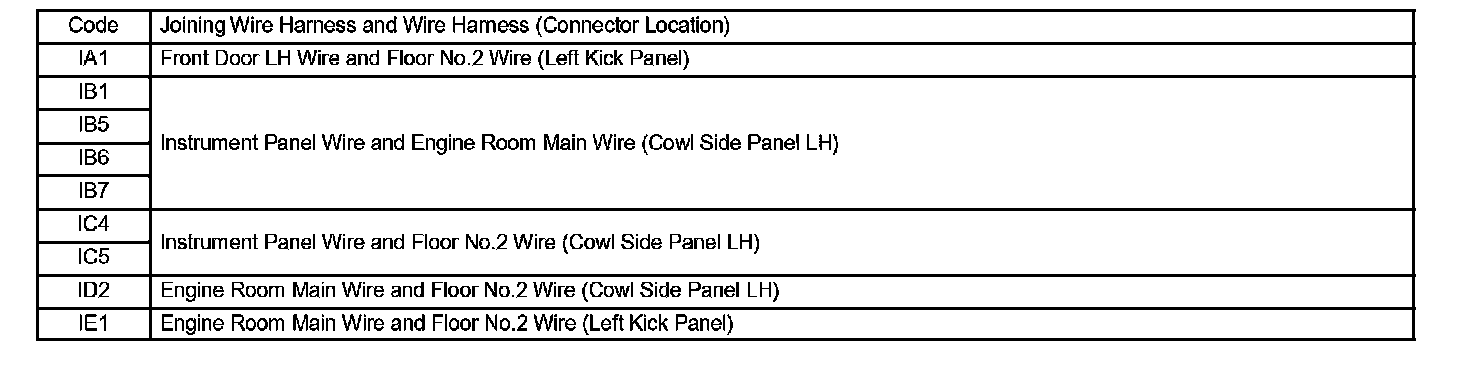

IA1 - IE1:

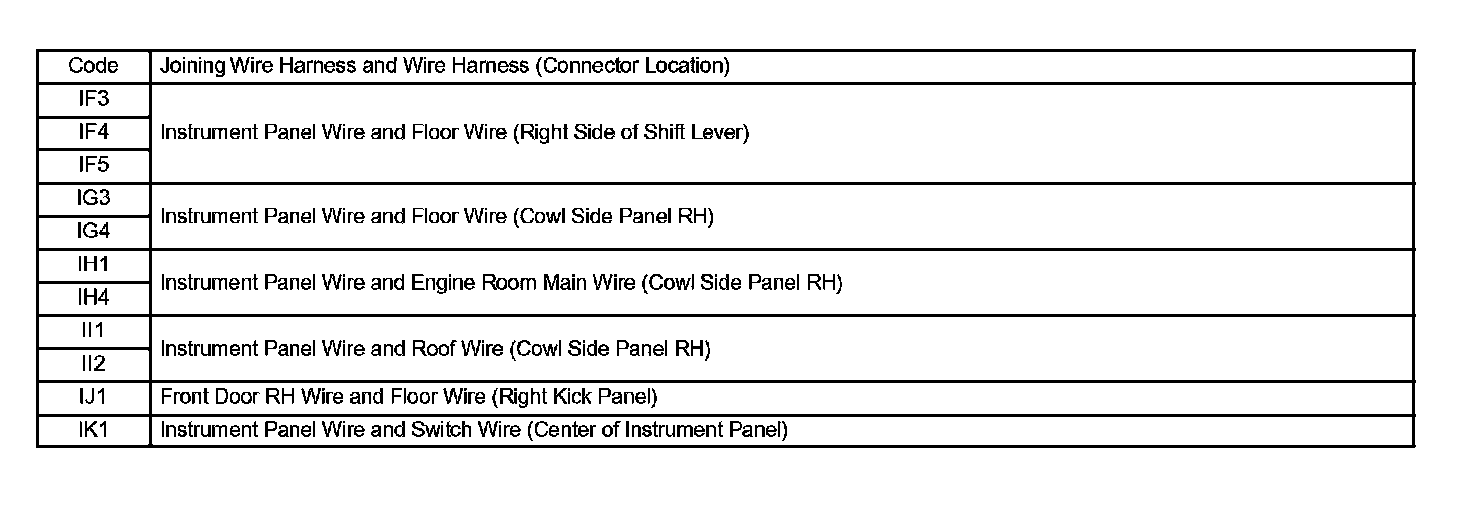

IF3 - IK1:

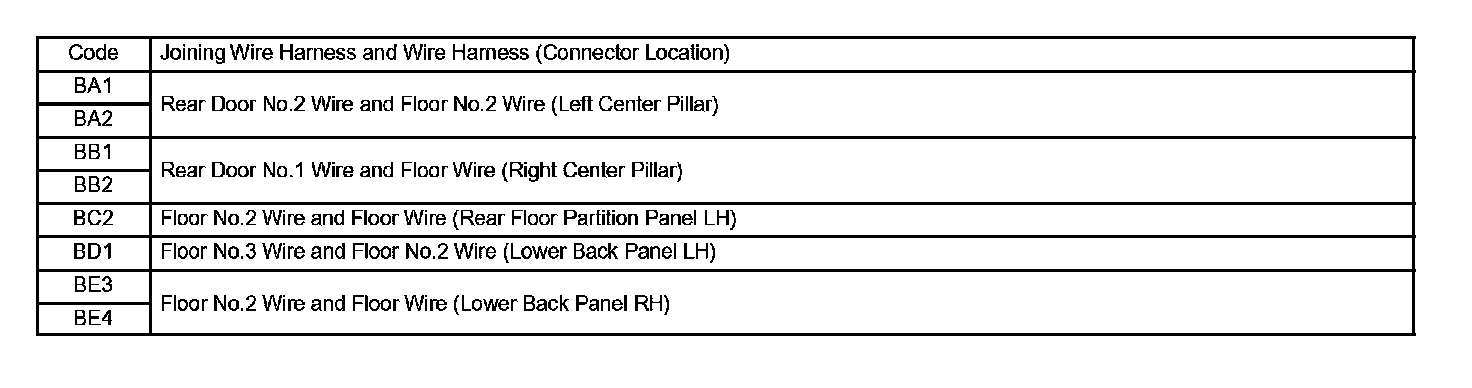

BA1 - BE4:

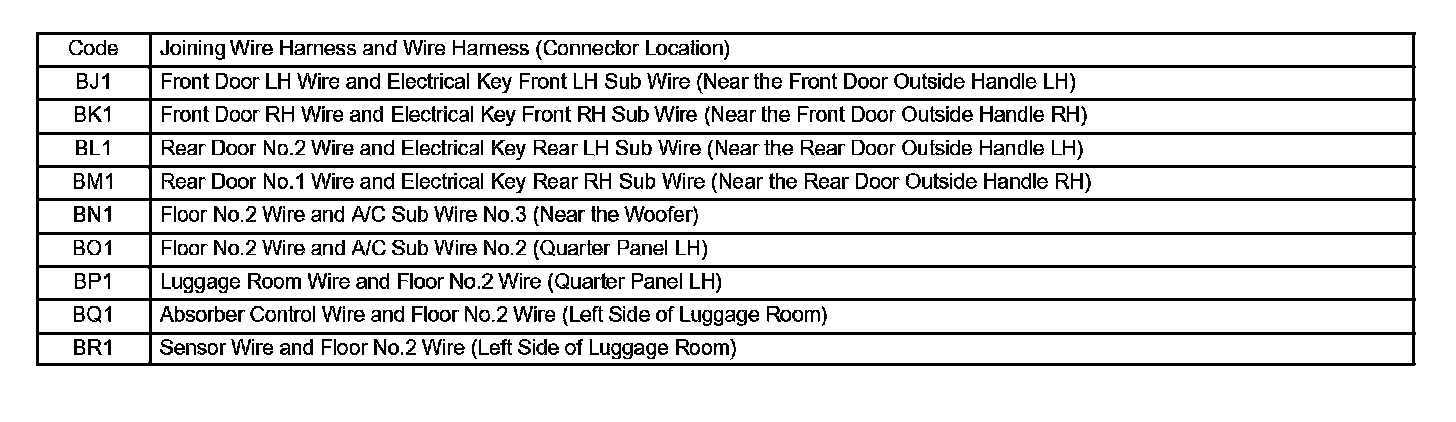

BJ1 - BR1:



BF2 - BG3:

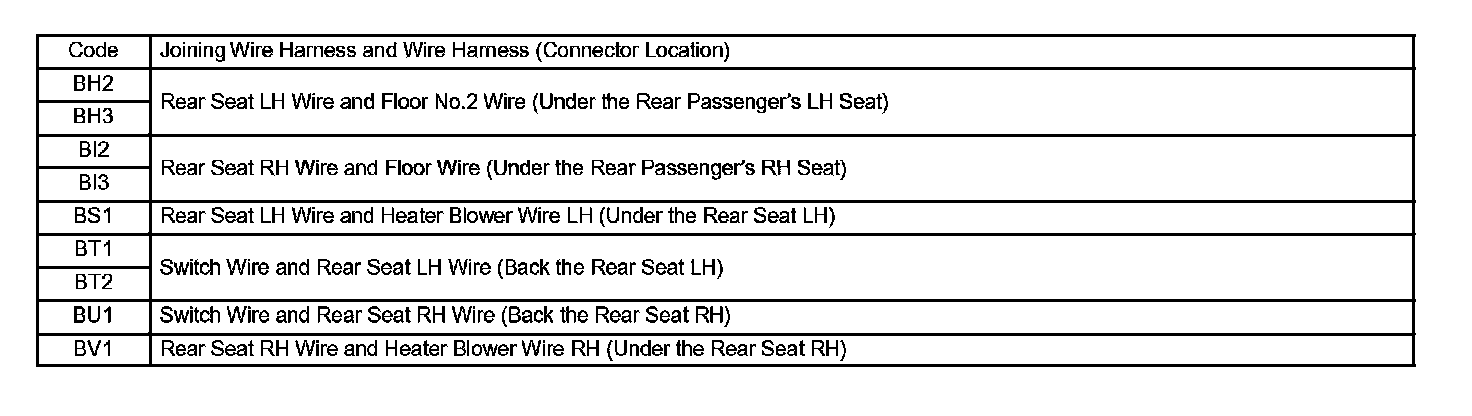

BH2 - BV1:
