Stop Lamp Switch Circuit

STOP LAMP SWITCH CIRCUIT

CIRCUIT DESCRIPTION

When the stop lamp switch is on (brake pedal is depressed), the skid control ECU prevents tire pressure warning system operation.

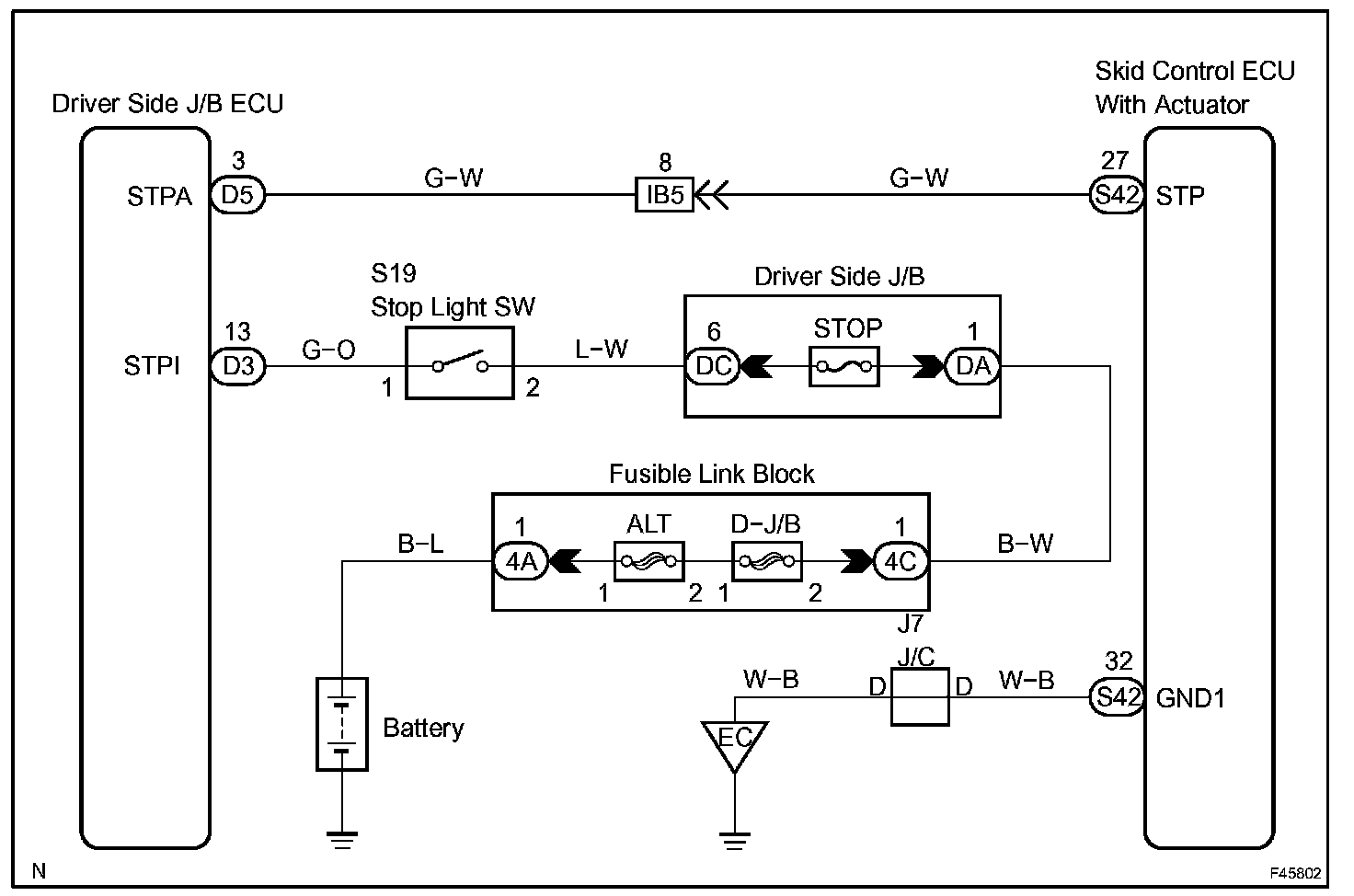

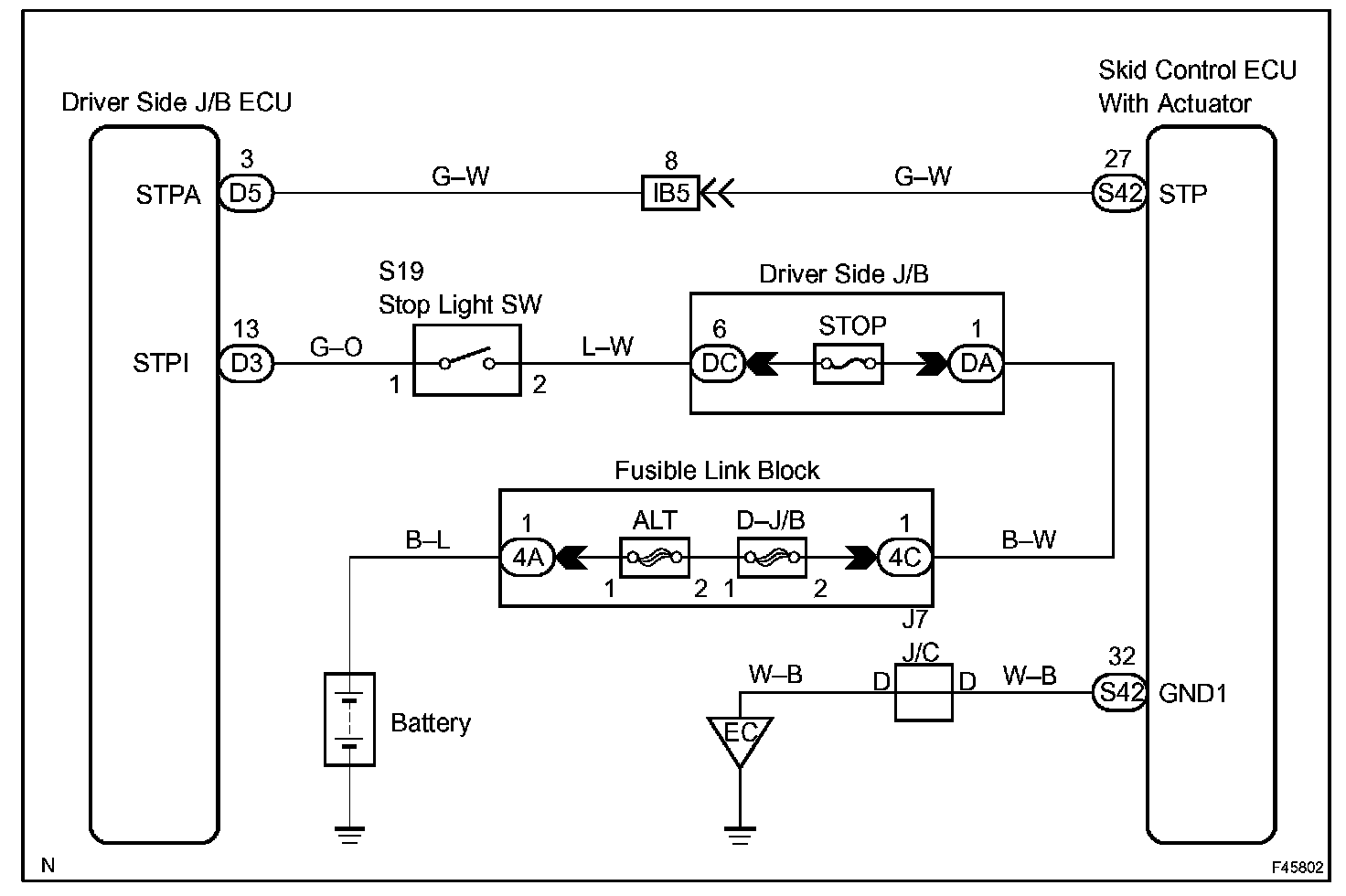

Wiring Diagram:

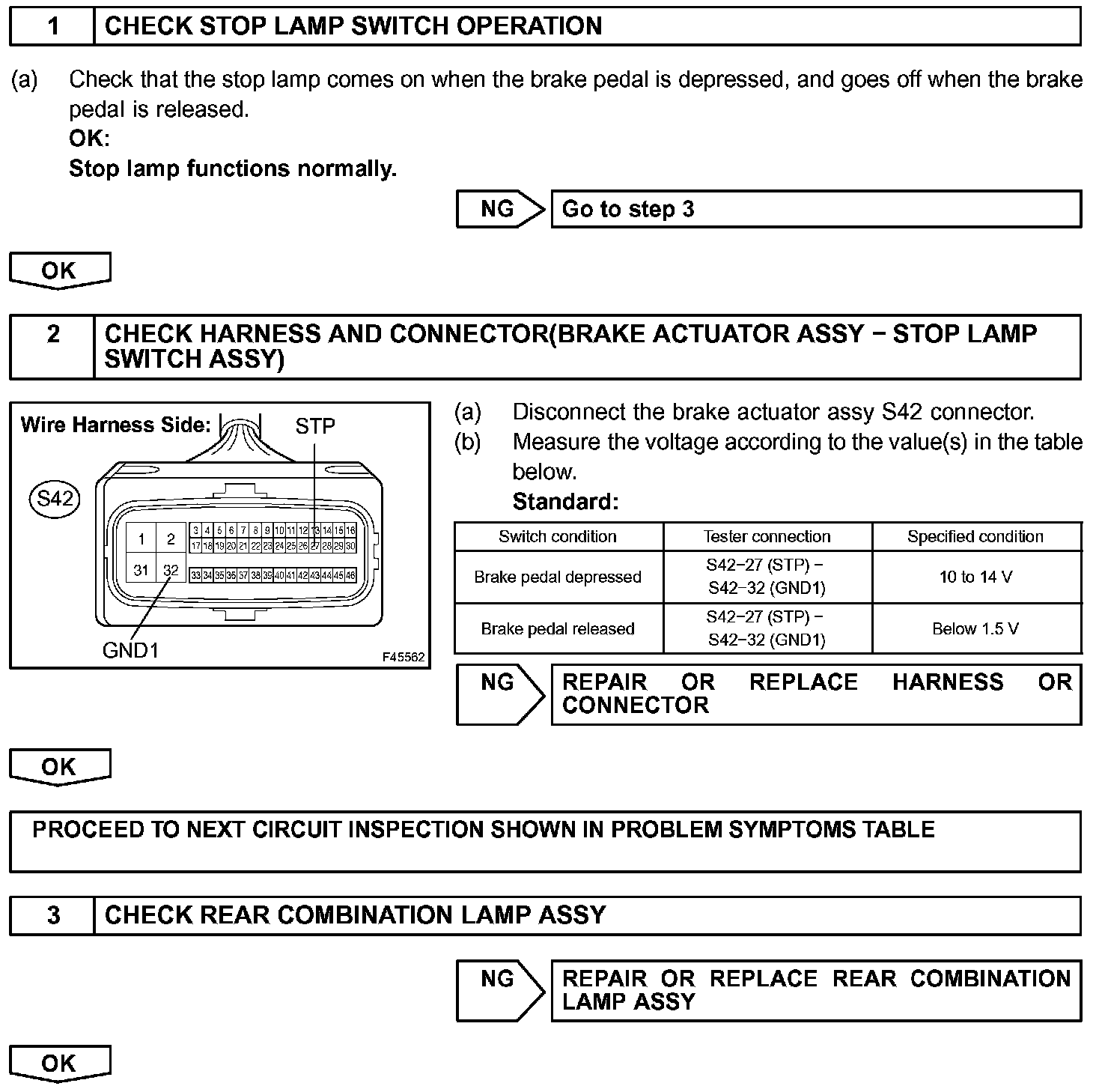

Step 1 - 3:

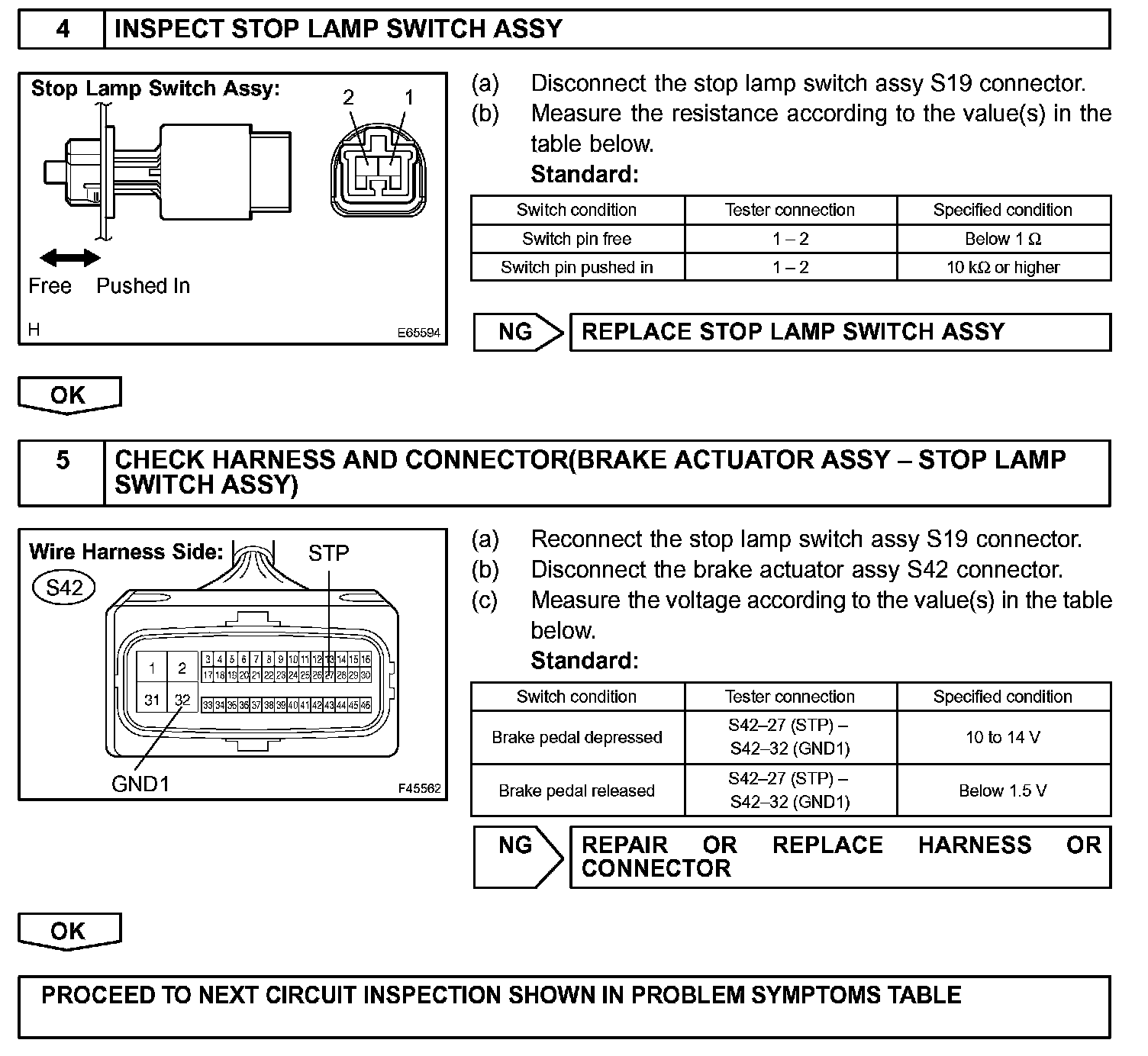

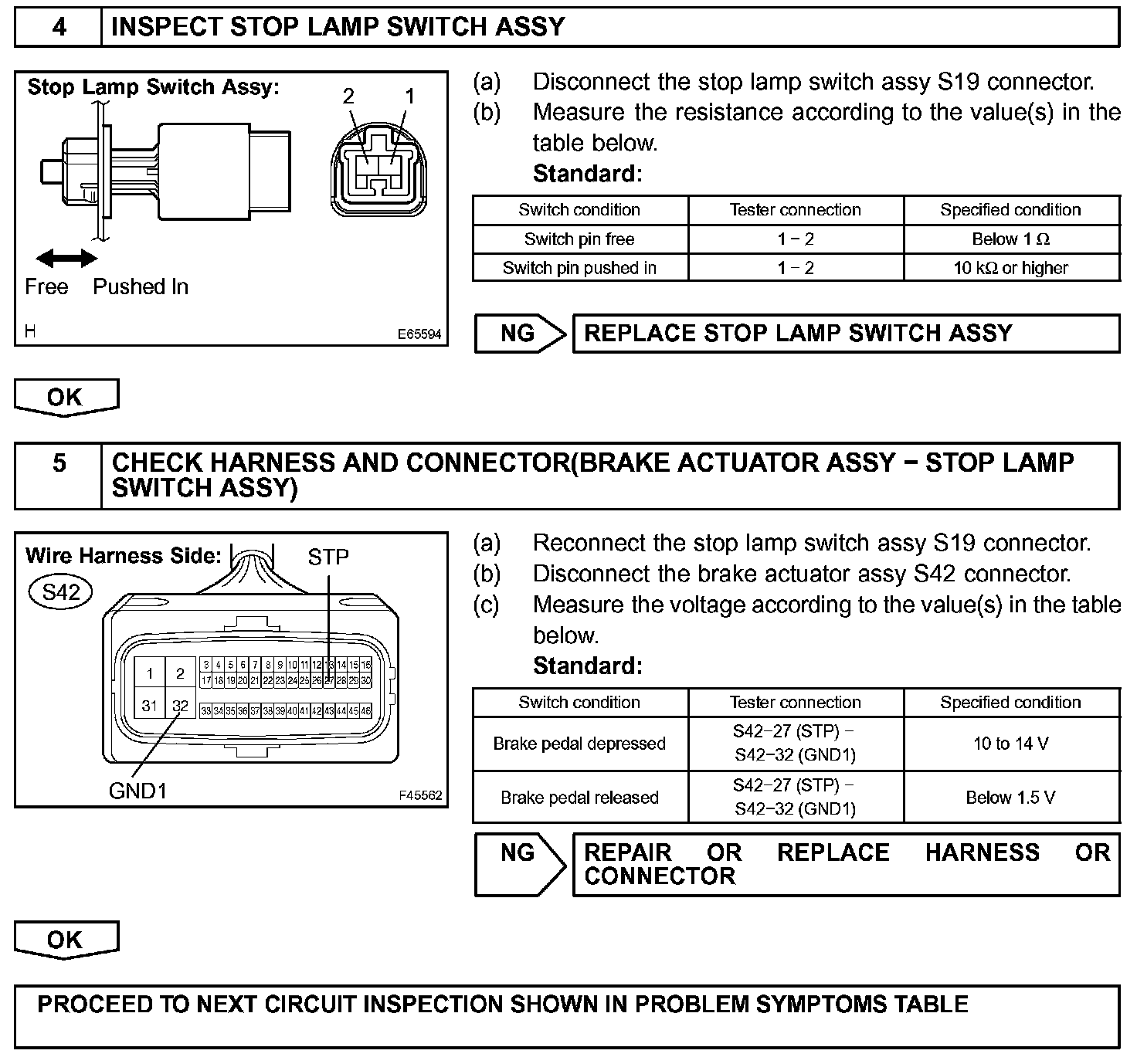

Step 4 - 5:

INSPECTION PROCEDURE
