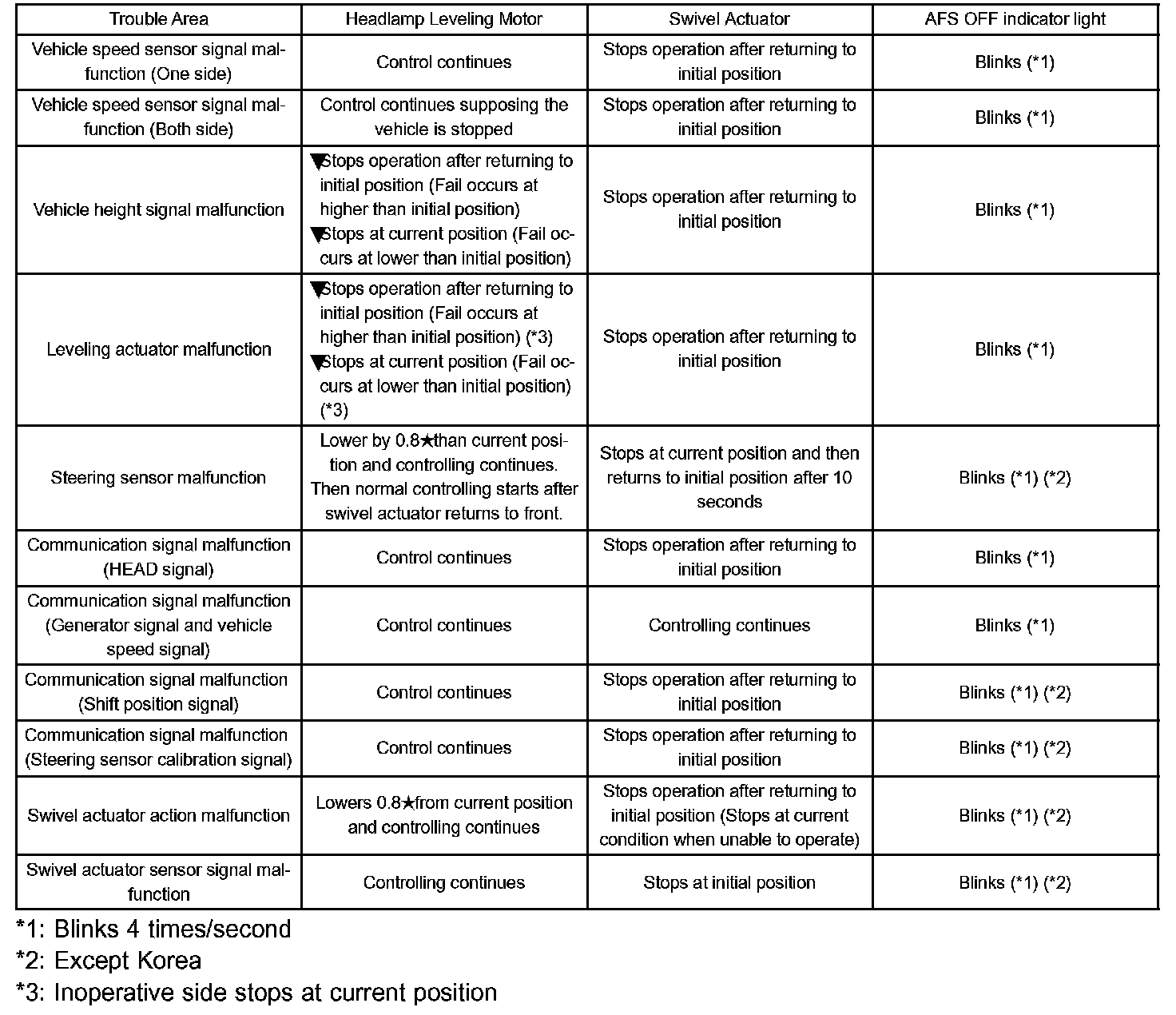

FAIL-SAFE CHART

Fail-Safe Chart:

AFS ECU

HINT:
- The AFS ECU performs fail-safe when detecting the following troubles. The AFS OFF indicator light on the combination meter comes on at the same time.
- The AFS OFF indicator light is not available on Korea models. It has "Headlight Leveling" warning information of combination meter instead.
- If the AFS OFF indicator light comes on, inspect and repair in accordance with the "DIAGNOSTICS TROUBLE CODE CHART" and "PROBLEM SYMPTOMS TABLE".
