Stop Lamp Circuit

STOP LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The driver side junction block receives stop light switch information from the stop lamp switch and sends the signal to the luggage room junction block which uses it to turn on the stop lamp.

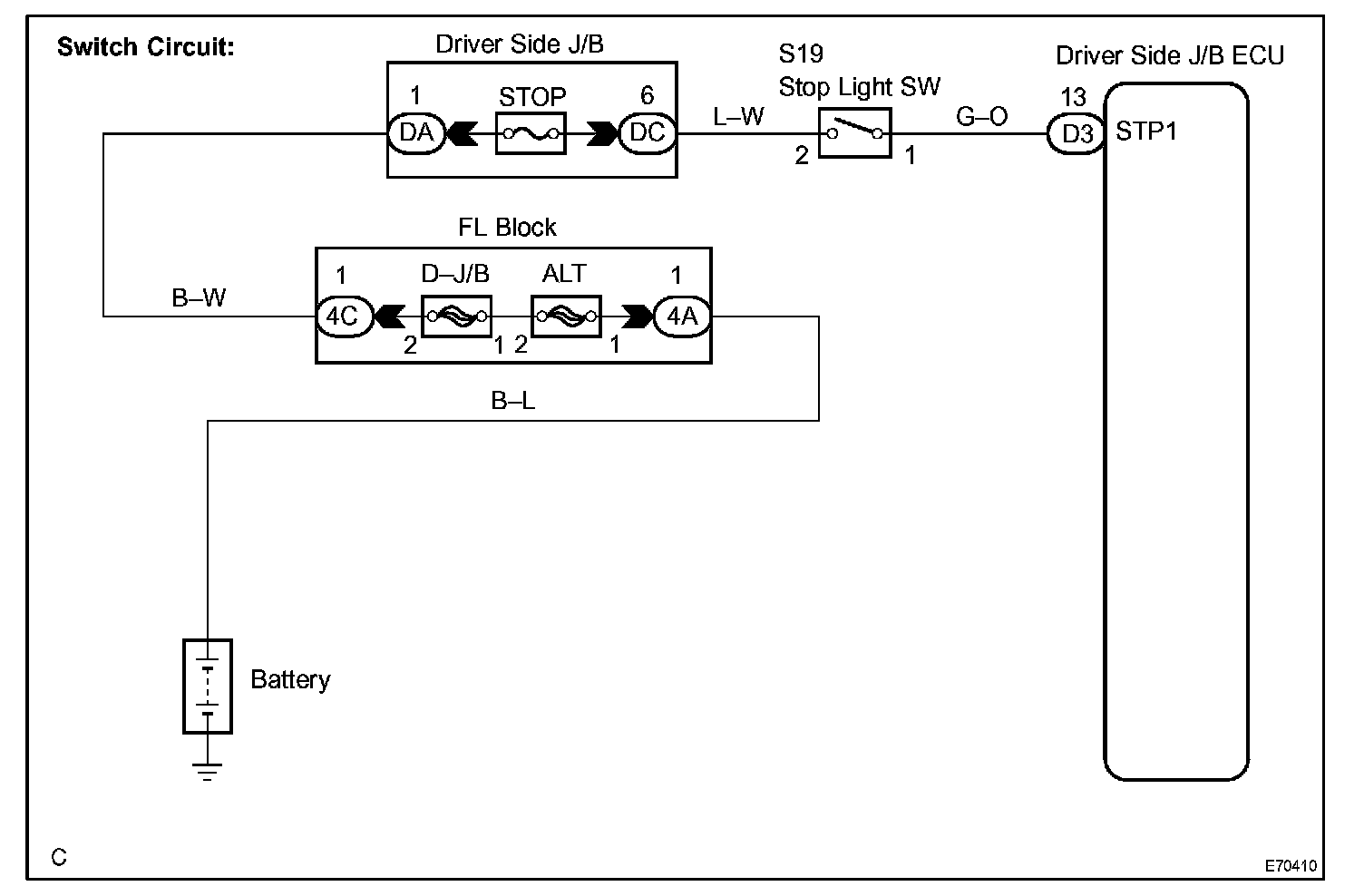

Wiring Diagram:

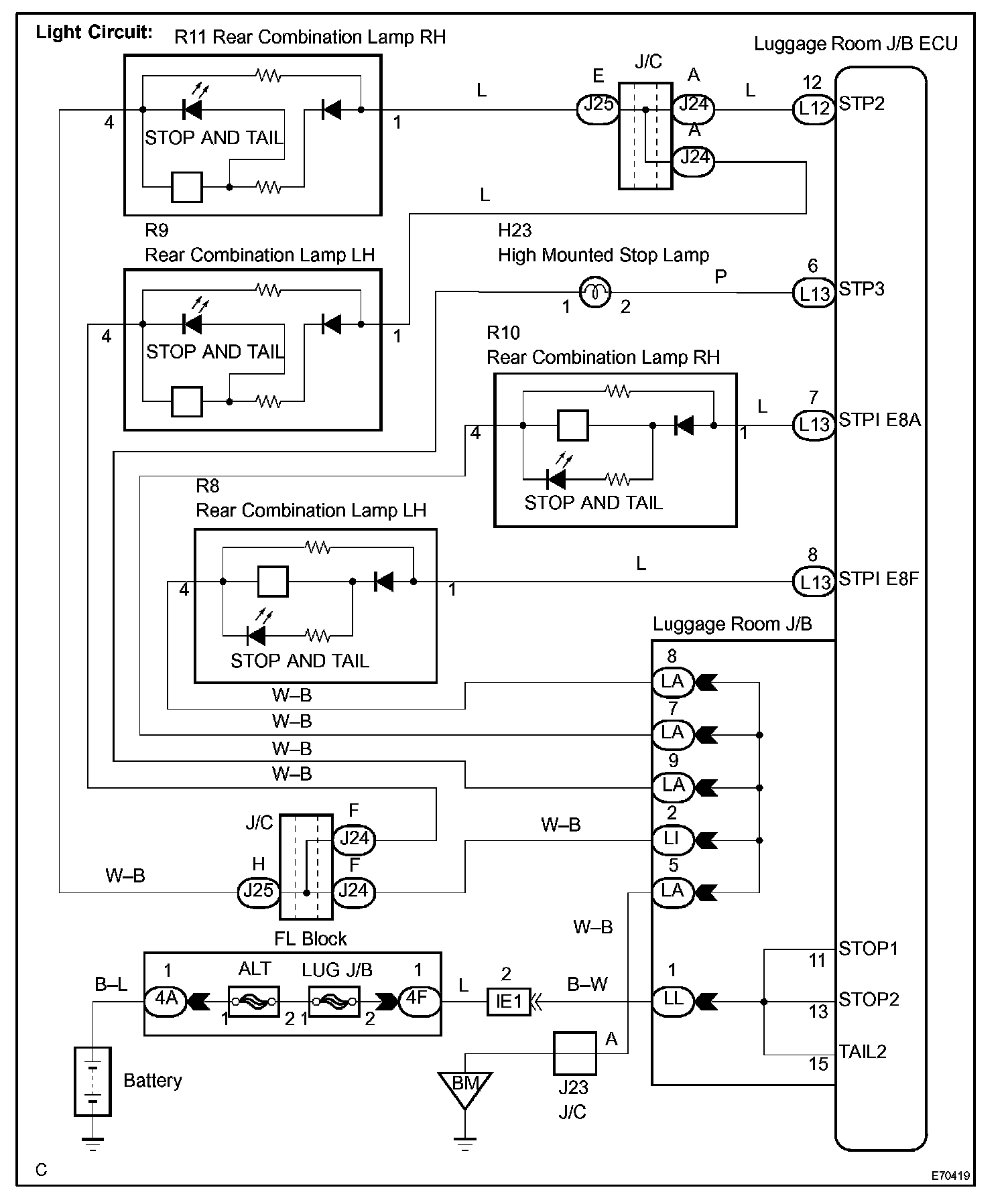

Wiring Diagram:

Step 1 - 2:

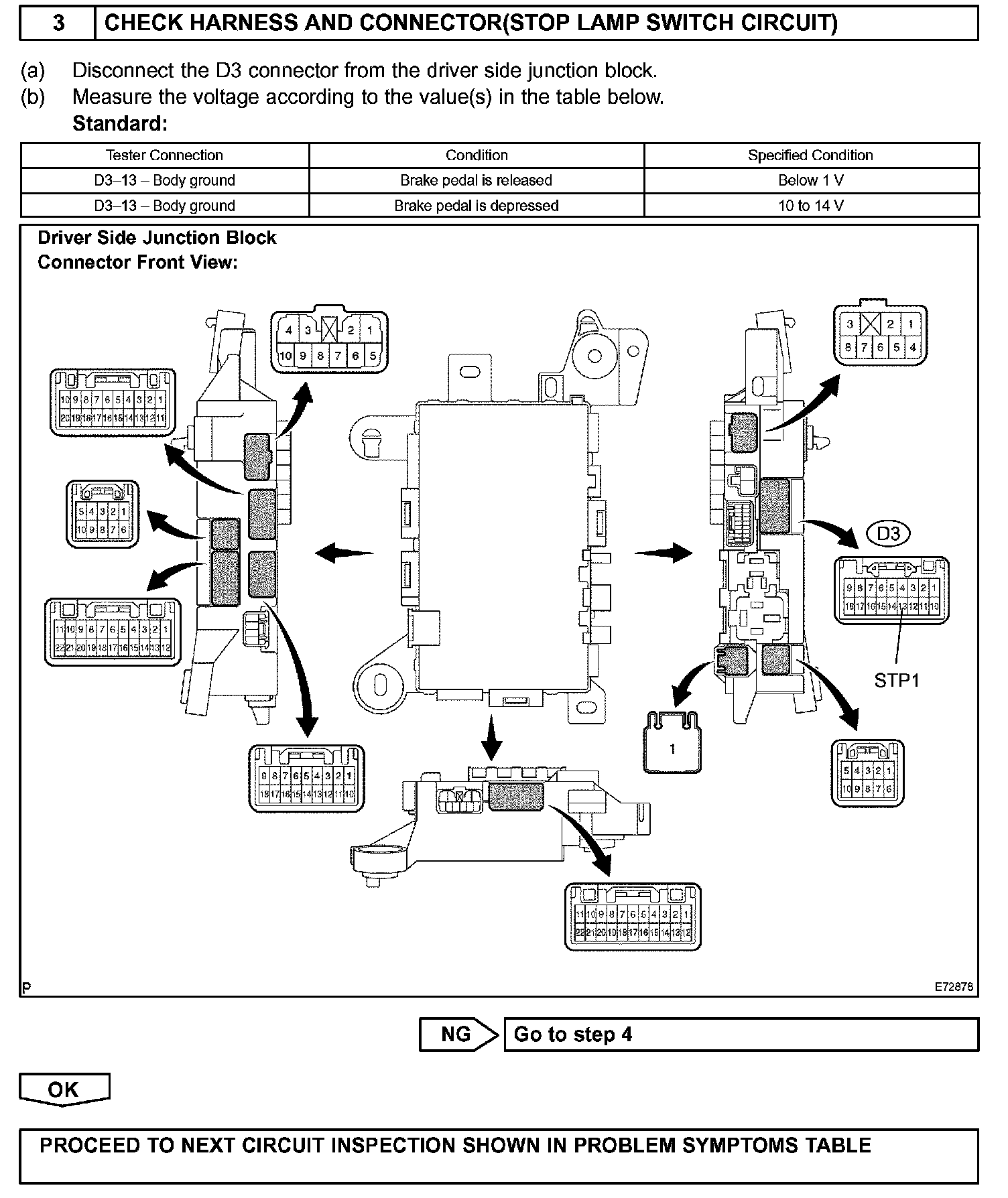

Step 3:

Step 4:

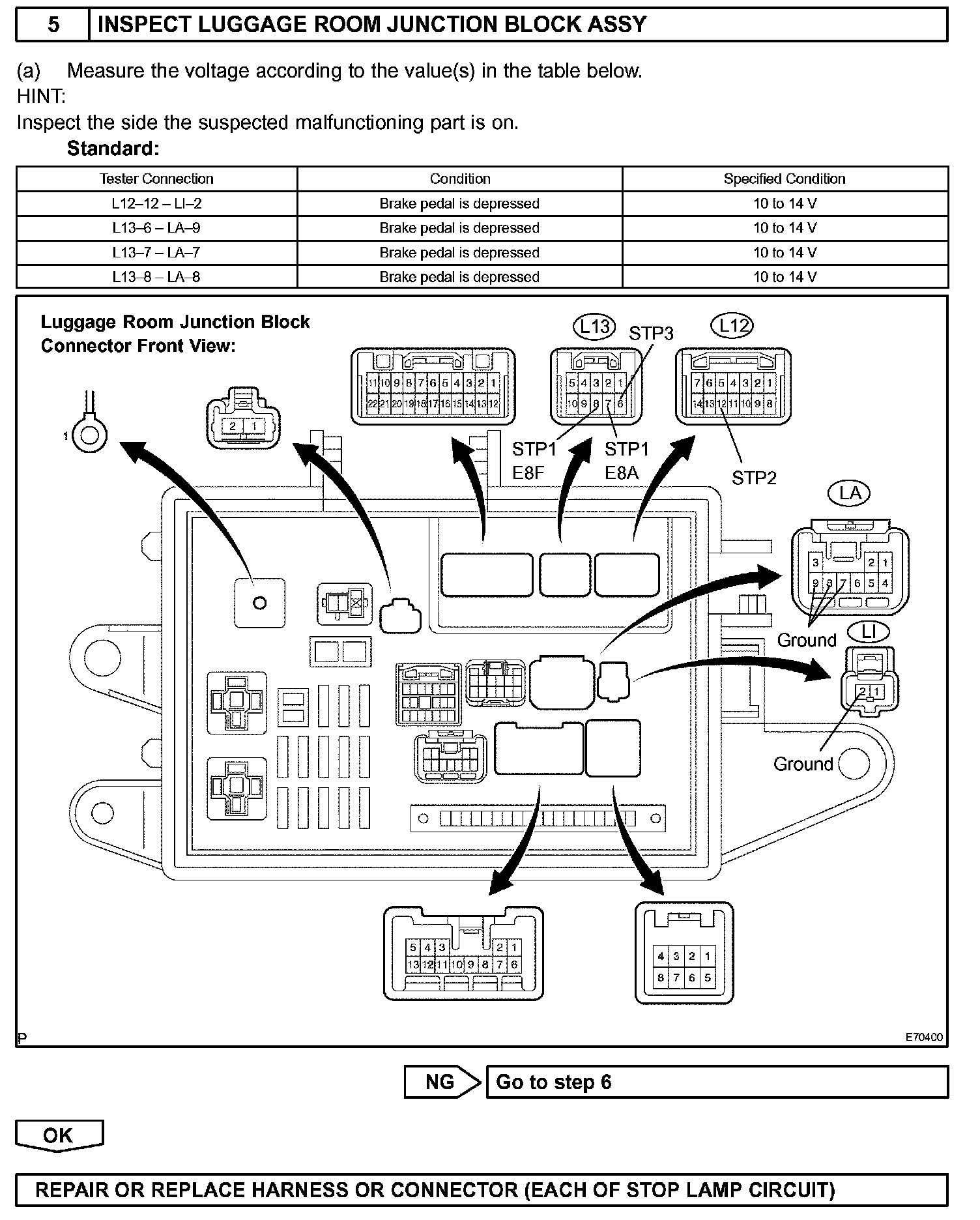

Step 5:

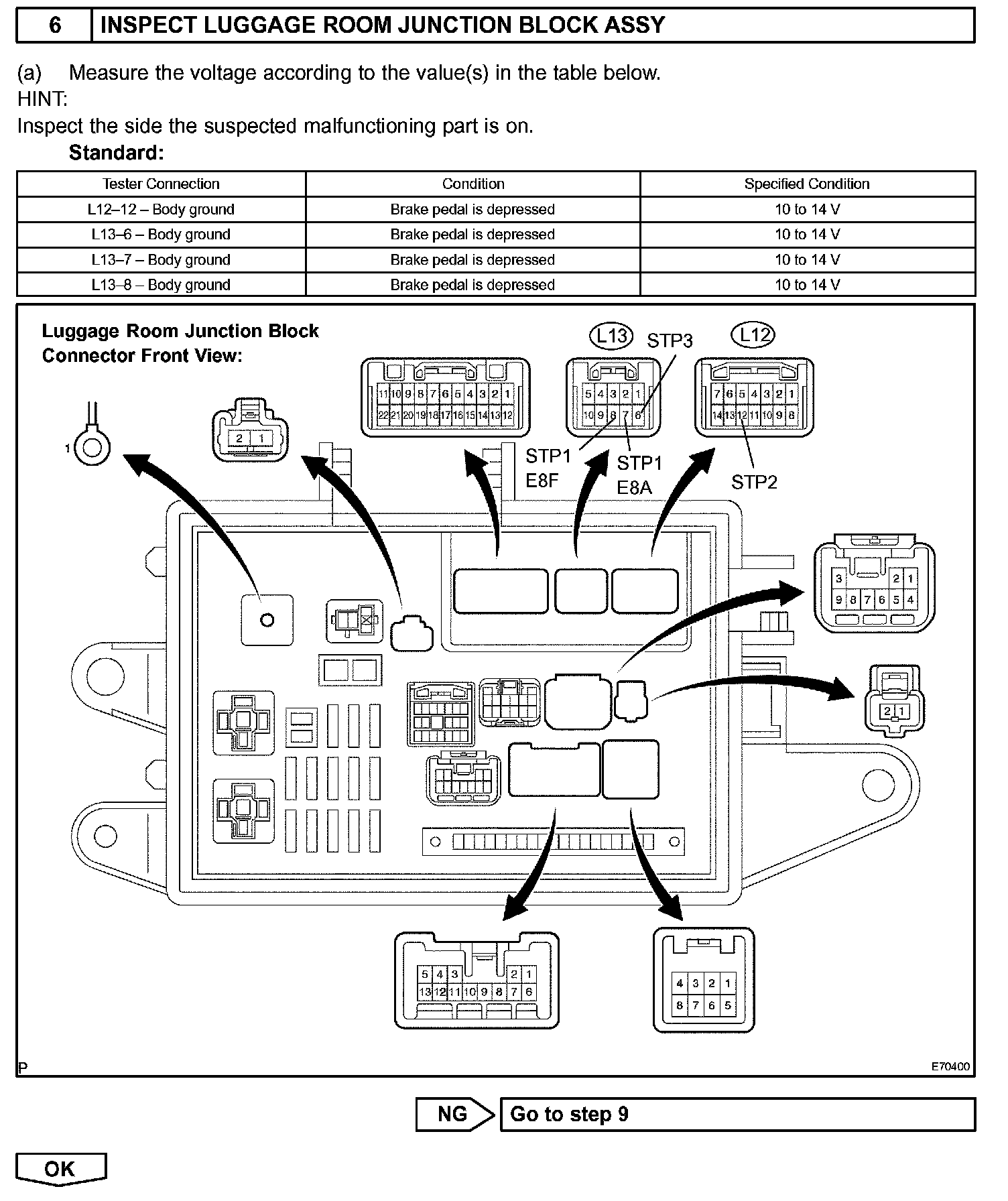

Step 6:

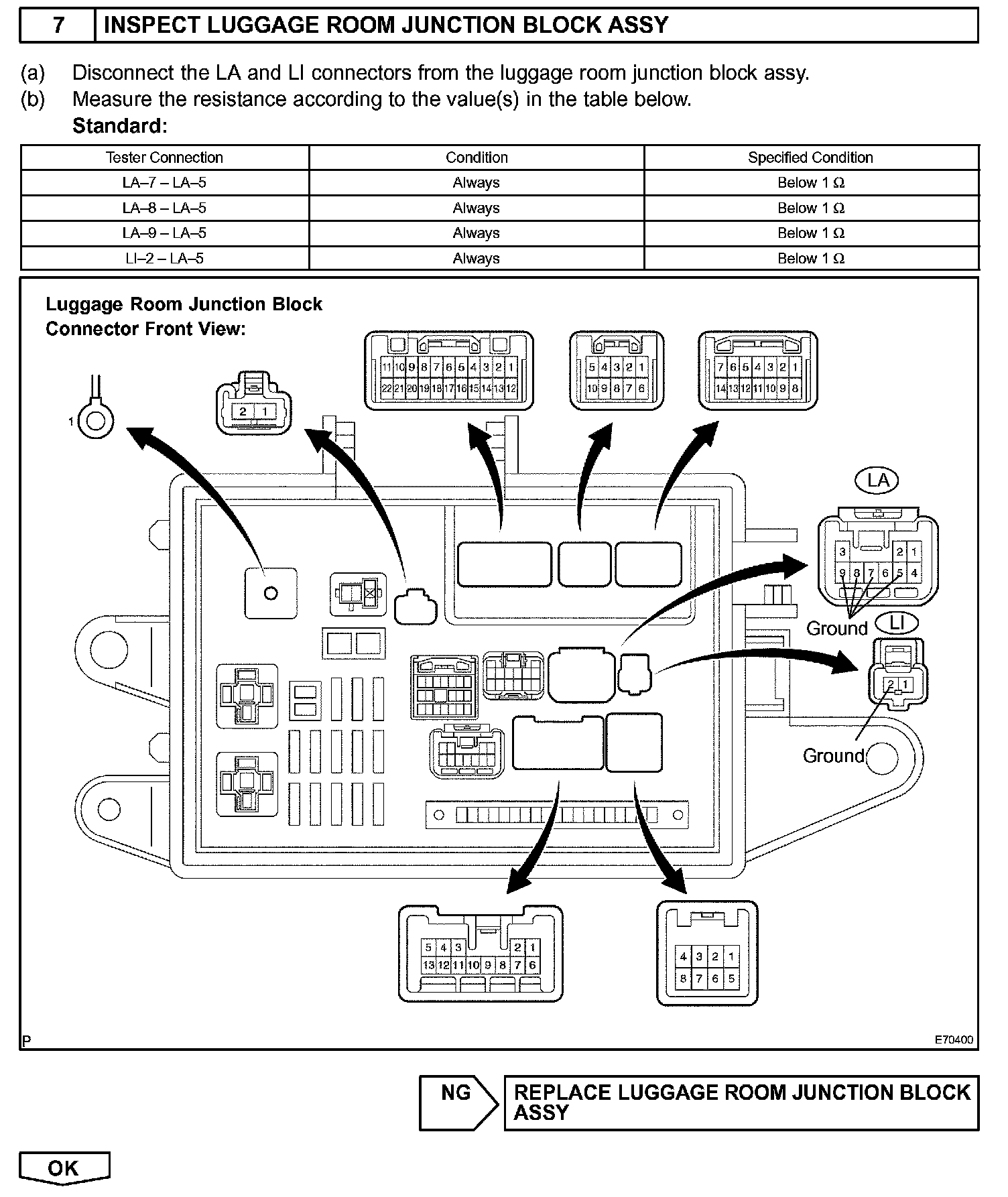

Step 7:

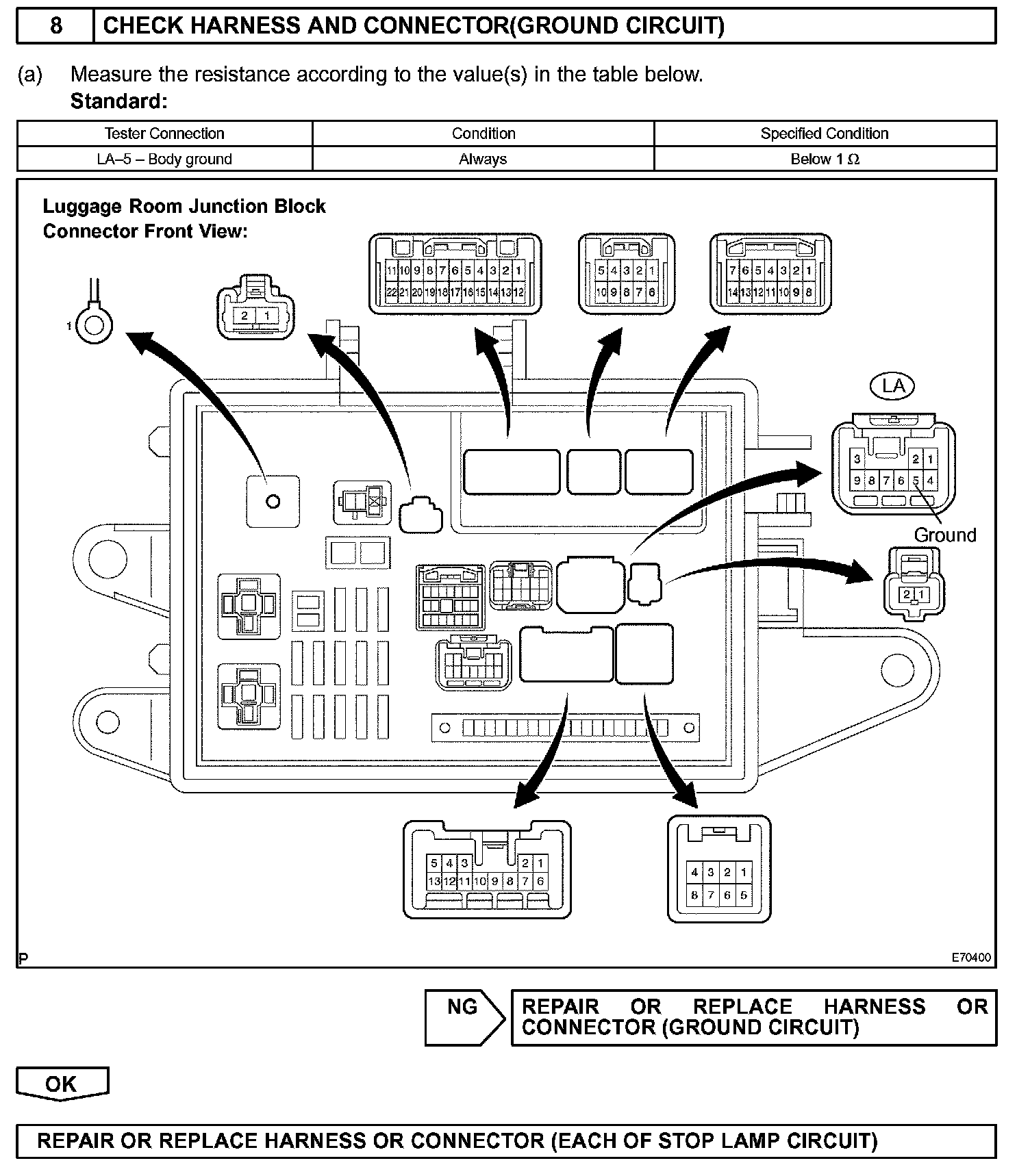

Step 8:

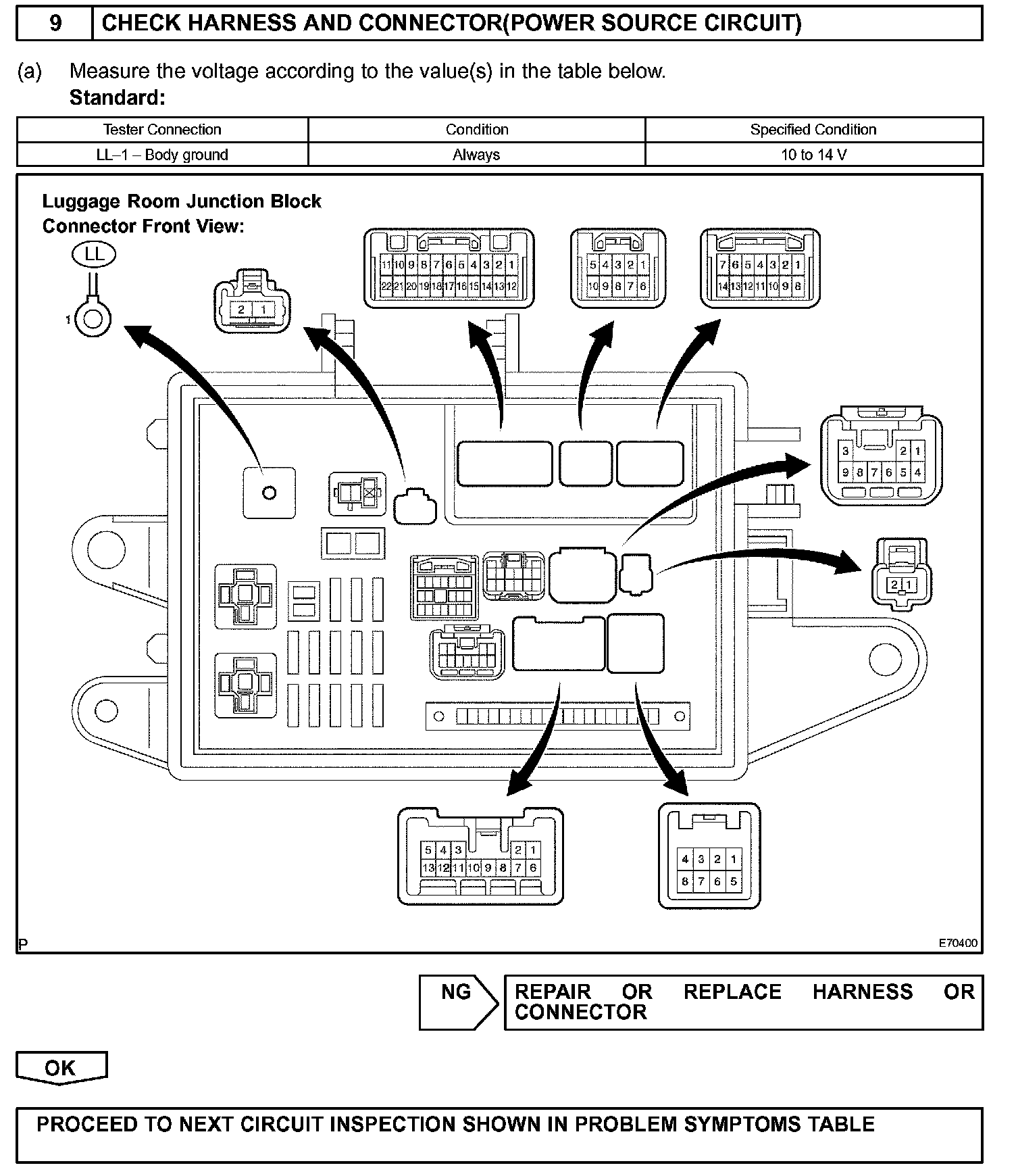

Step 9:

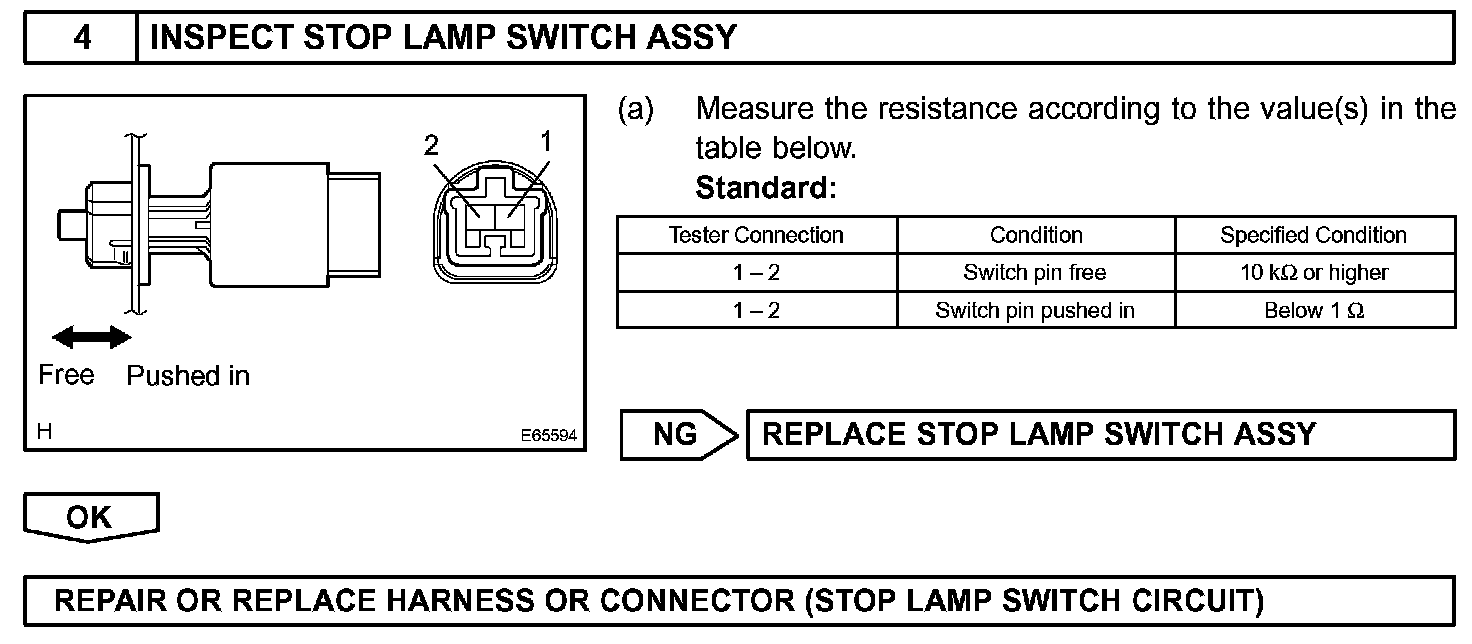

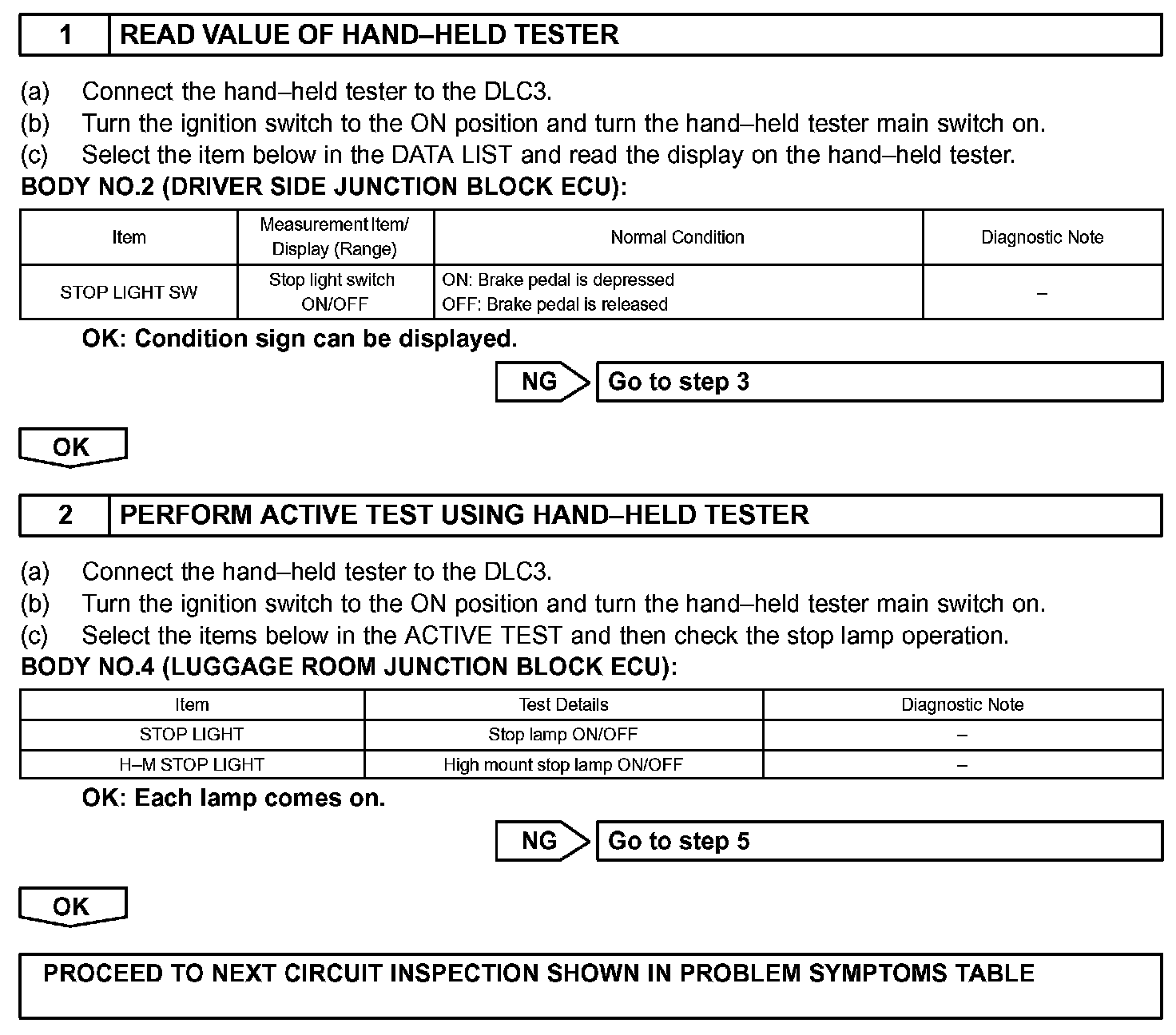

INSPECTION PROCEDURE
