LUGGAGE ROOM LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The luggage room junction block receives luggage room door information, and turns on the luggage compartment lamps.

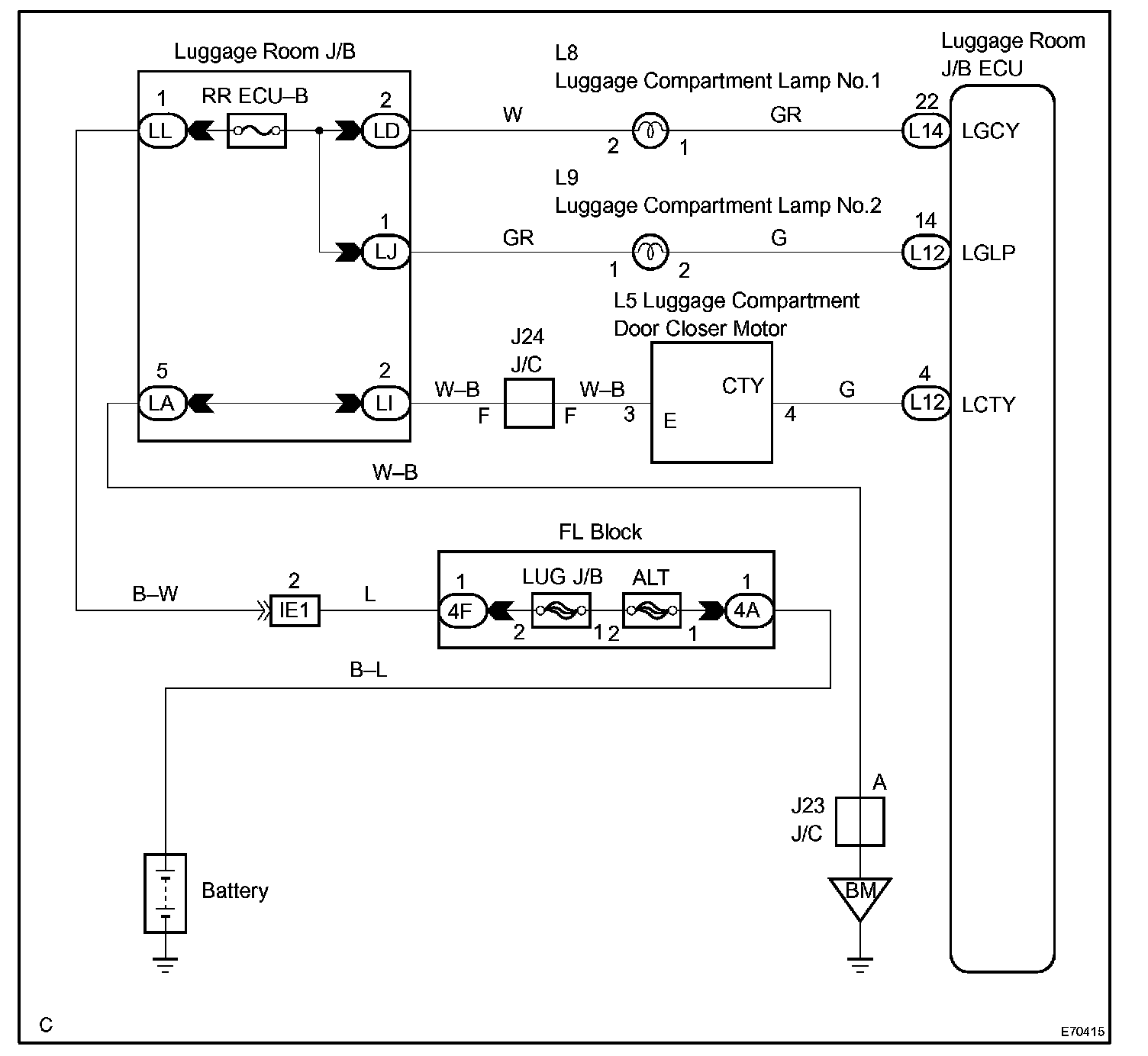

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

Step 5:

Step 6:

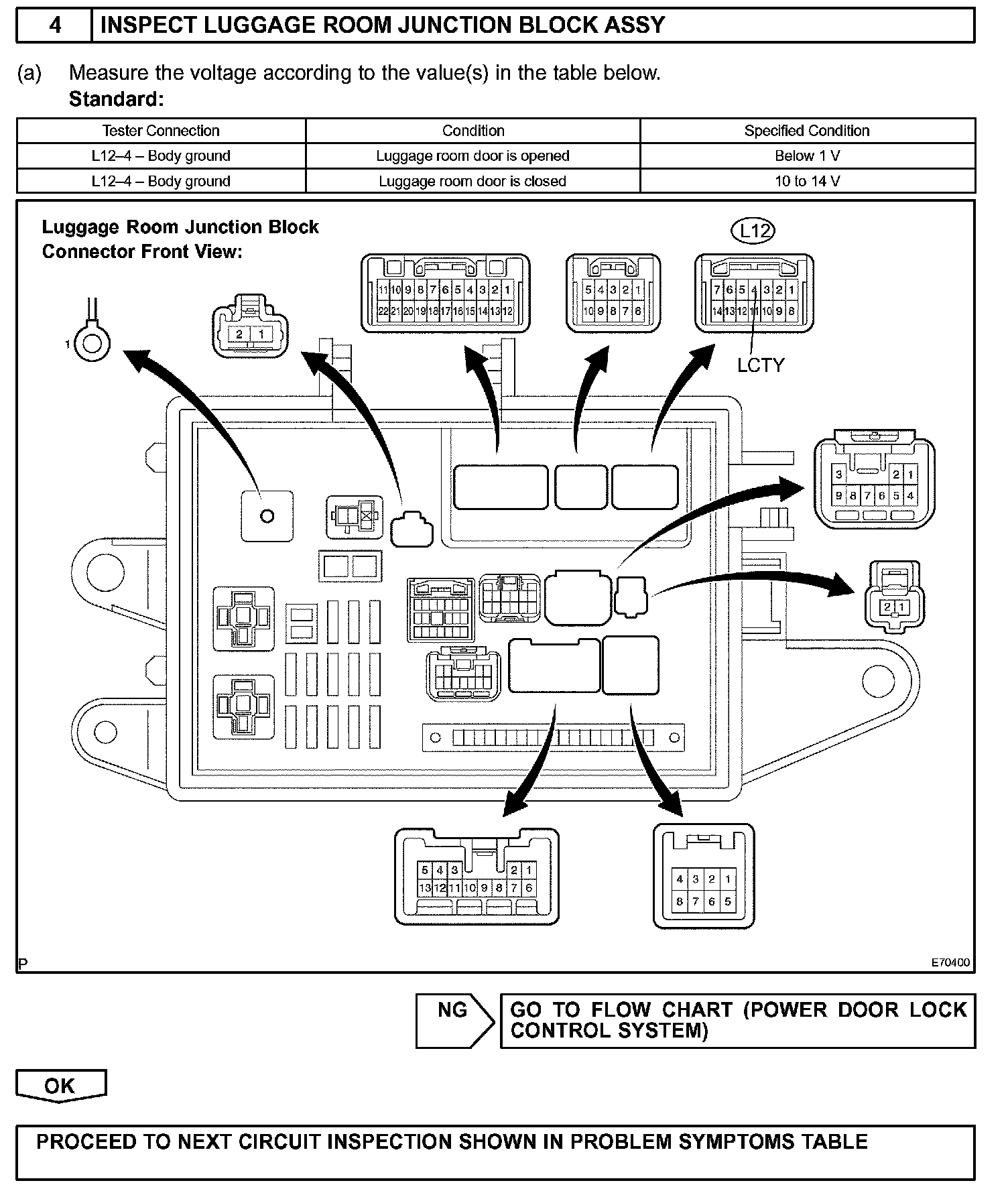

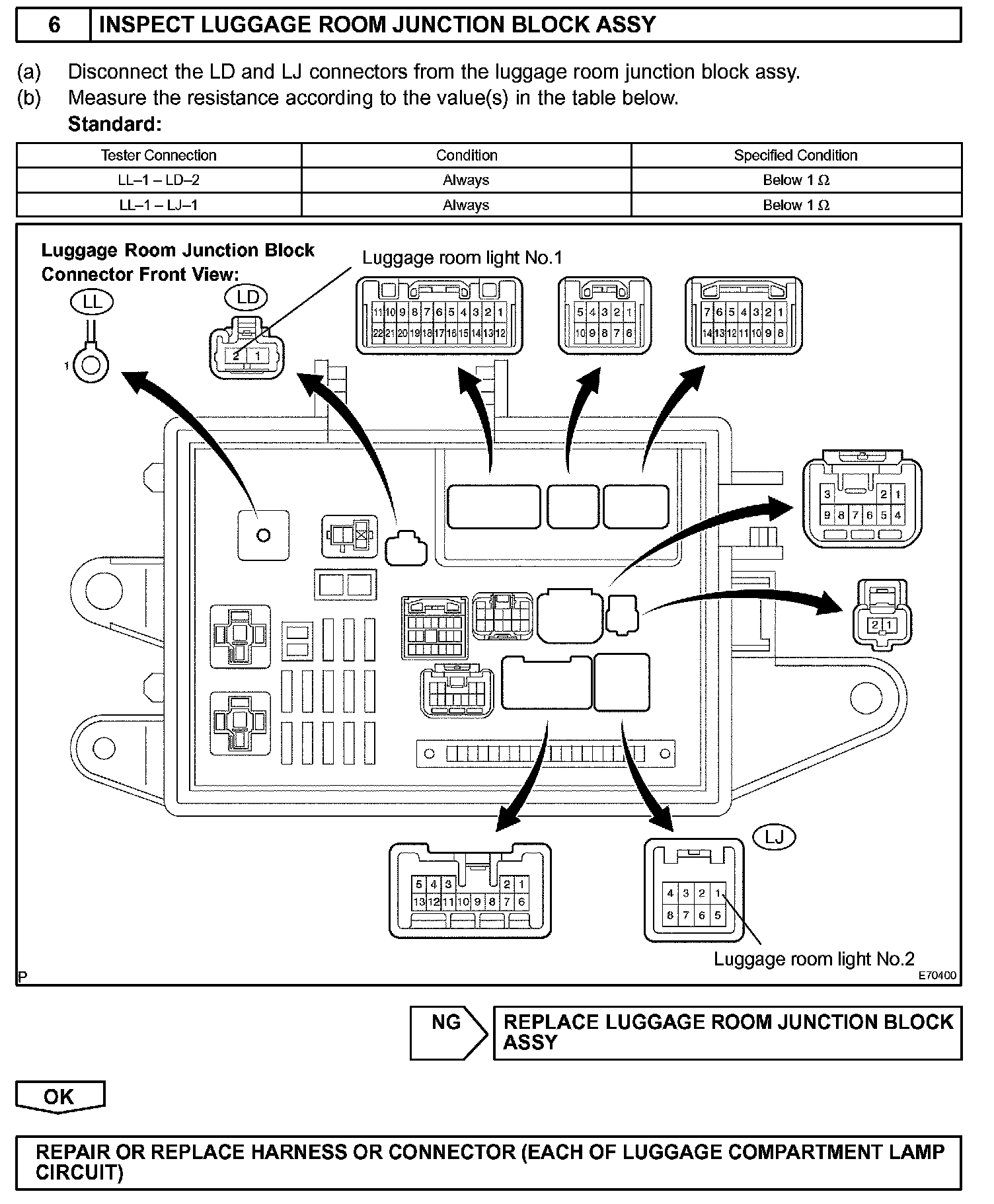

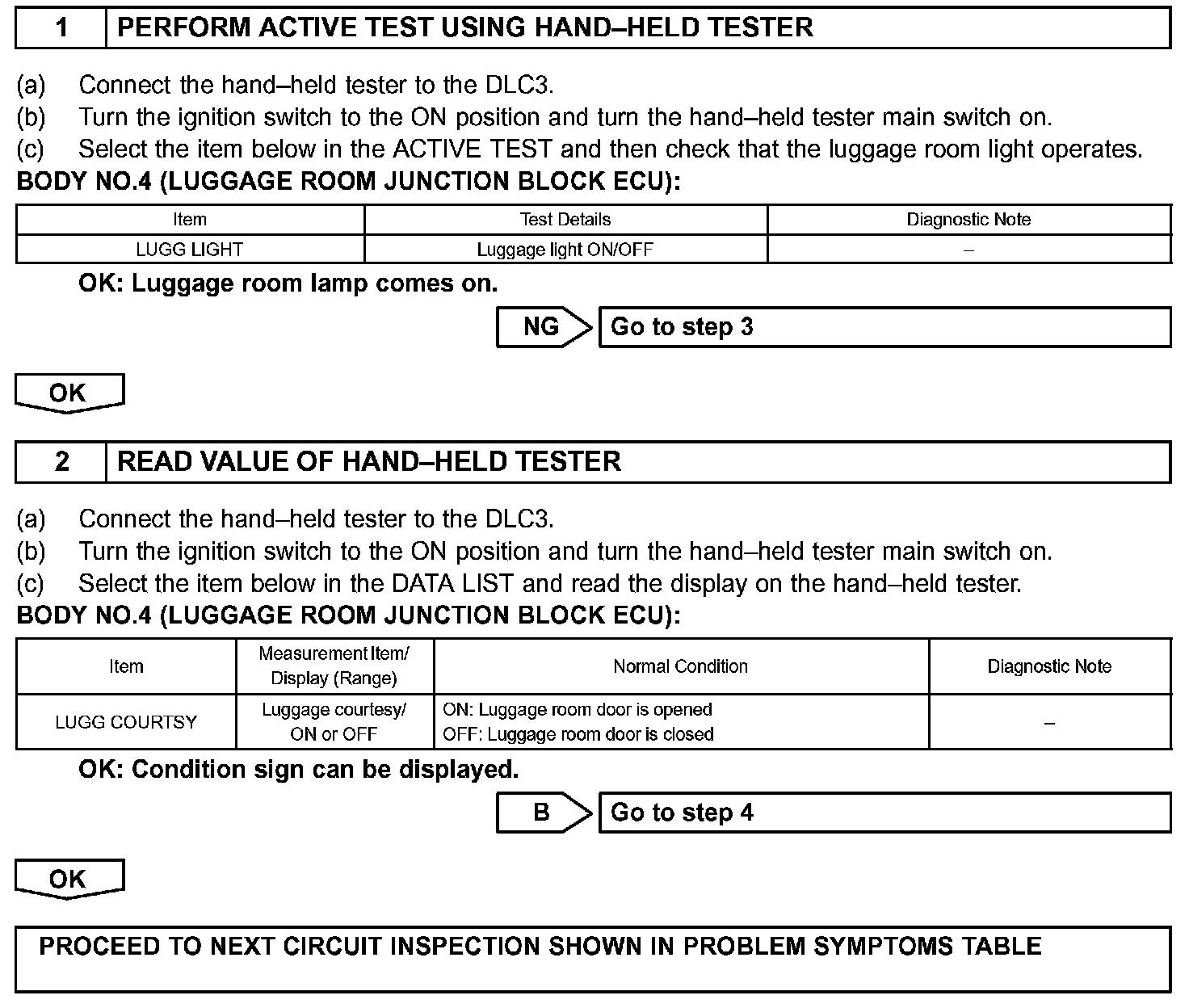

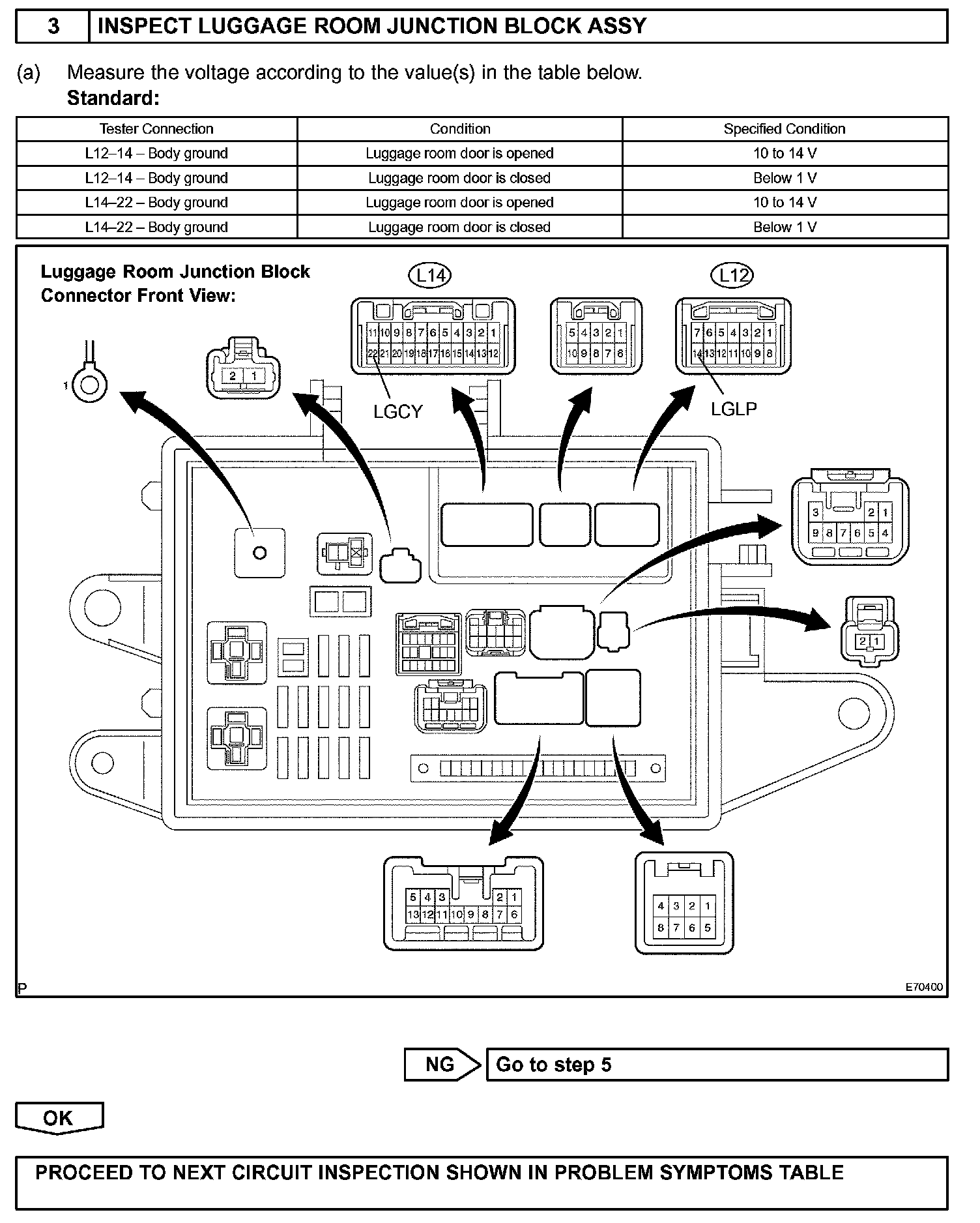

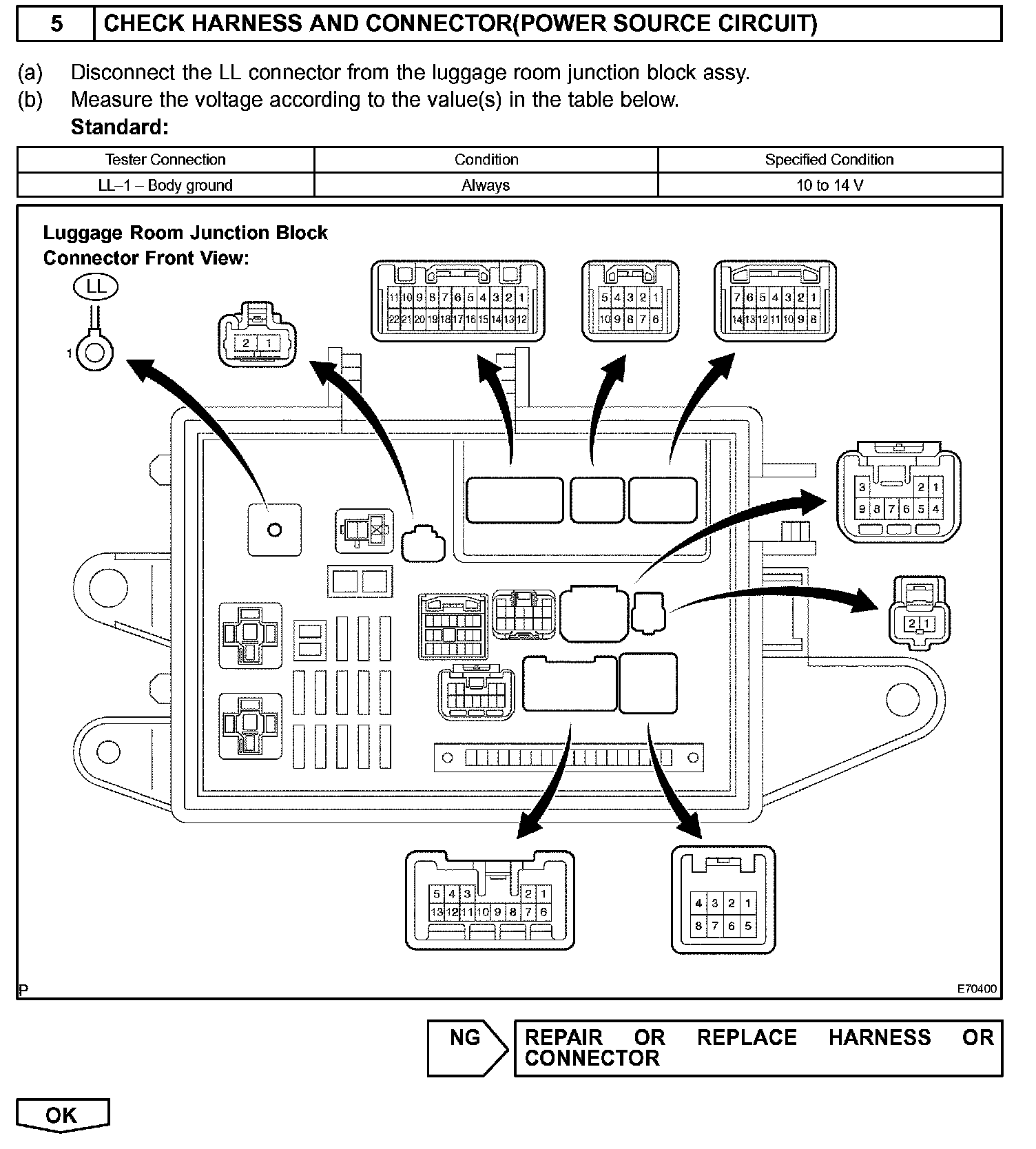

INSPECTION PROCEDURE
