Light Control Switch Circuit

LIGHT CONTROL SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit provides power to operate the combination switch. The signals produced by operating the manual switch are sent to the passenger side J/B ECU.

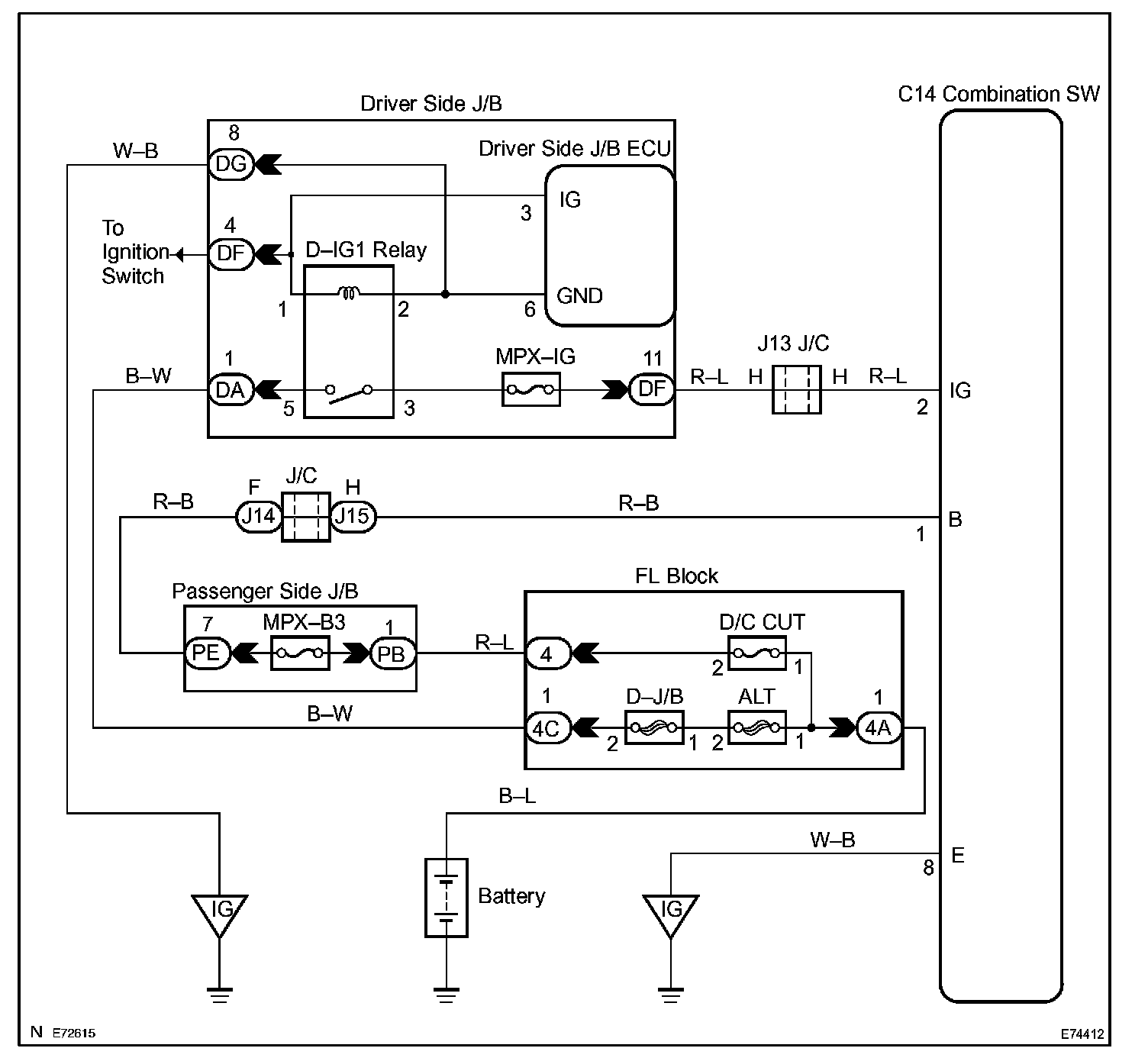

Wiring Diagram:

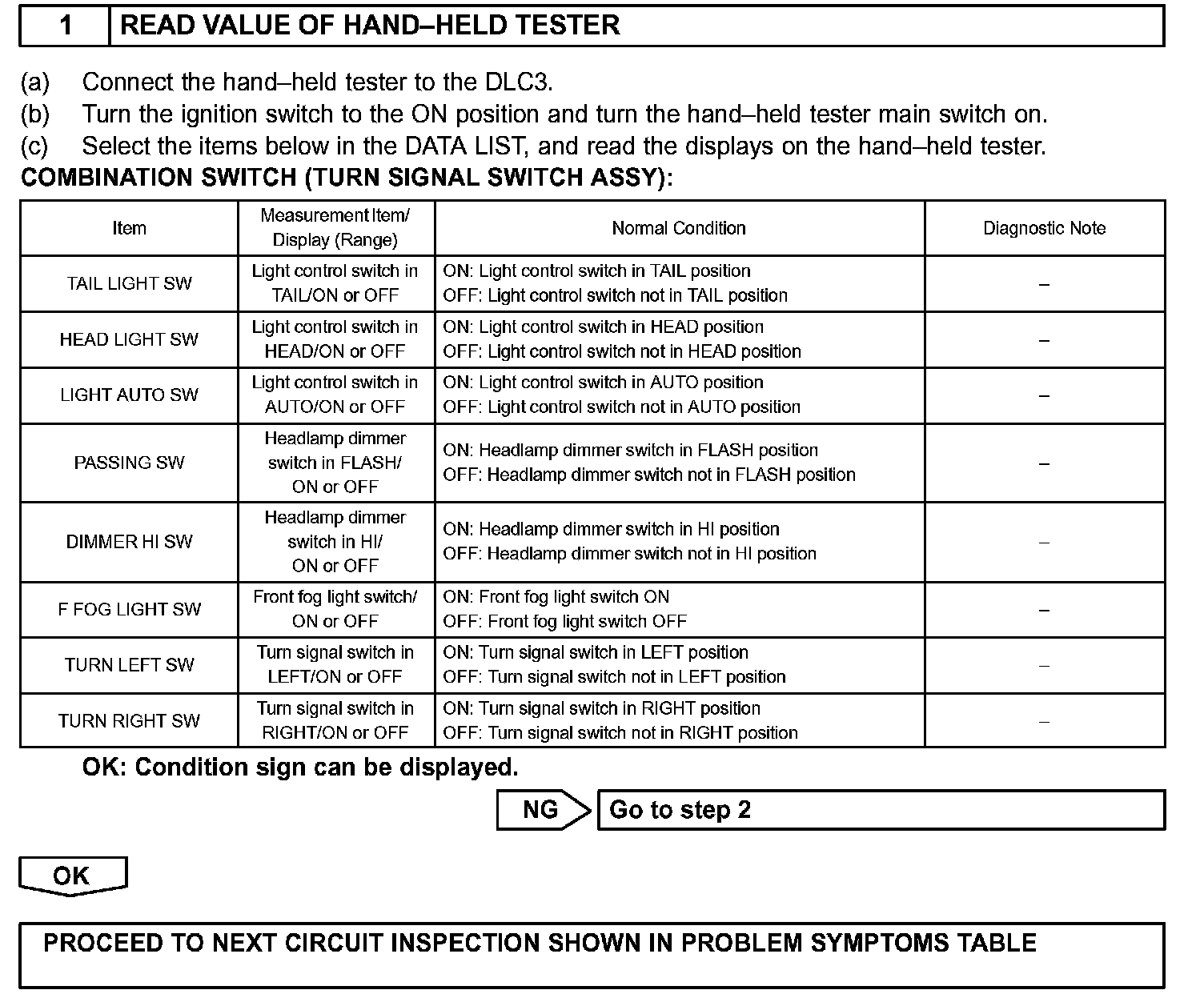

Step 1:

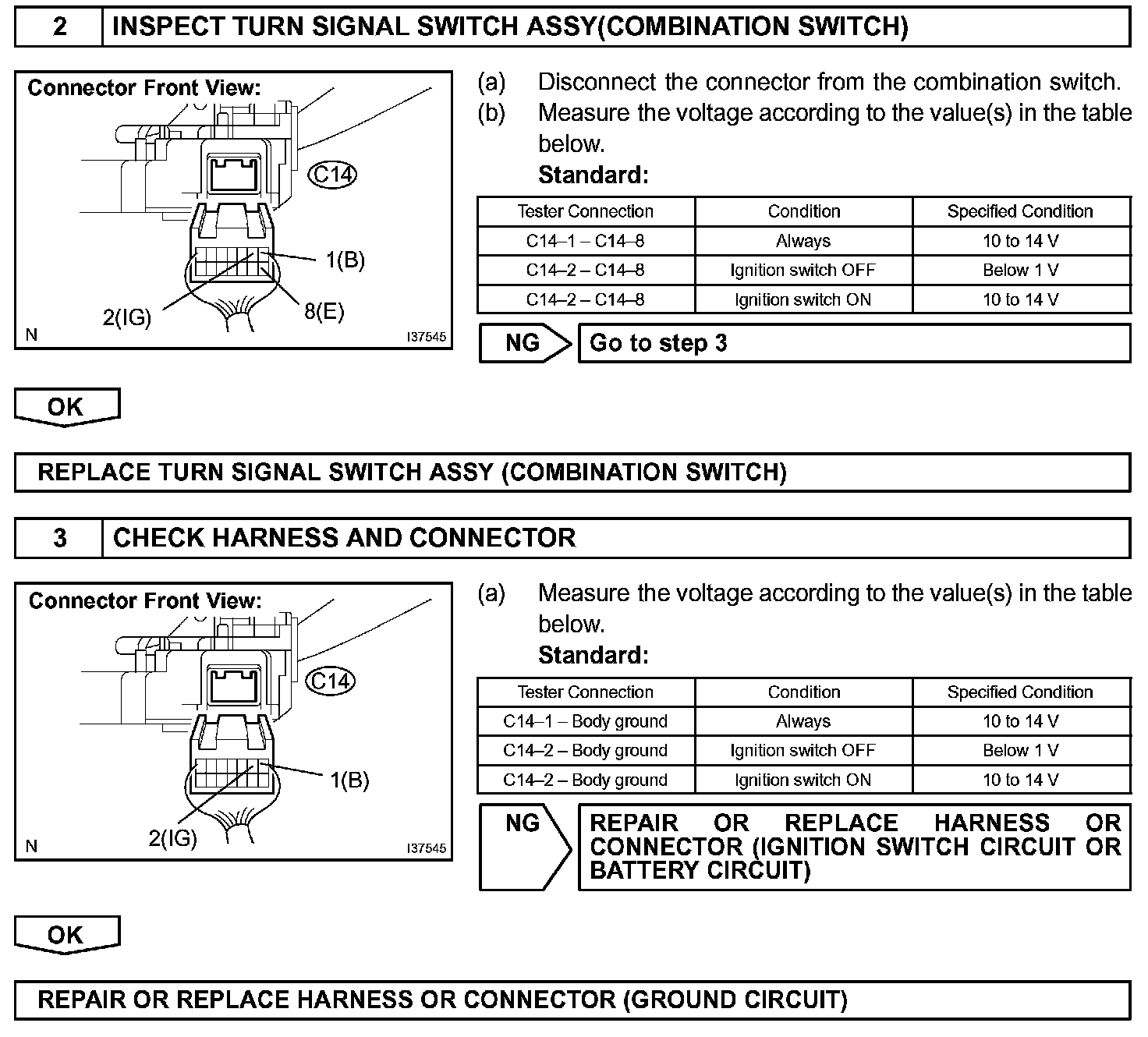

Step 2 - 3:

INSPECTION PROCEDURE

HINT: Before the procedure, check that the multiplex communication system DTCs are not output.
