Ignition Switch Circuit

IGNITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION

The driver side junction block receives ACC and ON information from the ignition switch and sends it to each ECU.

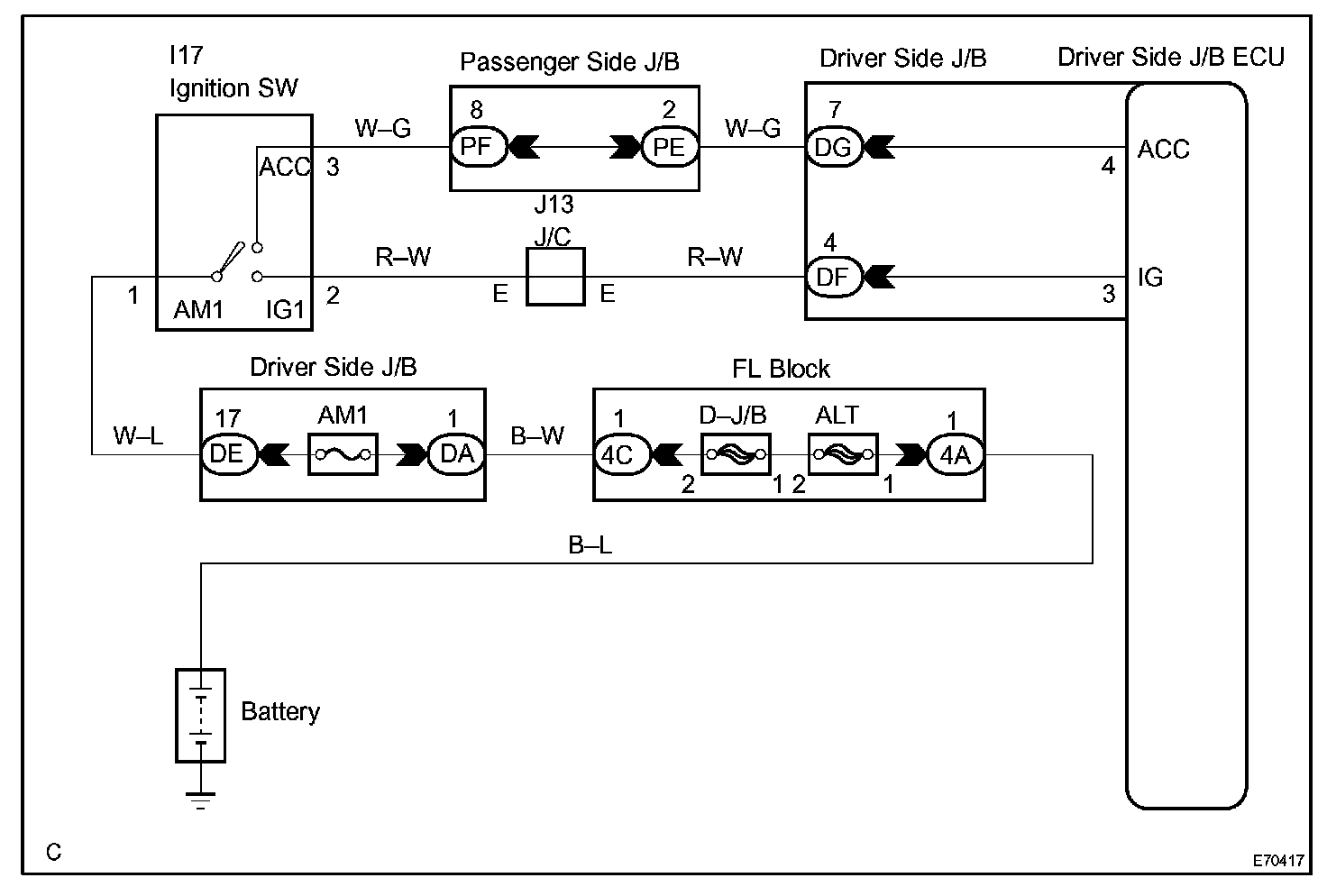

Wiring Diagram:

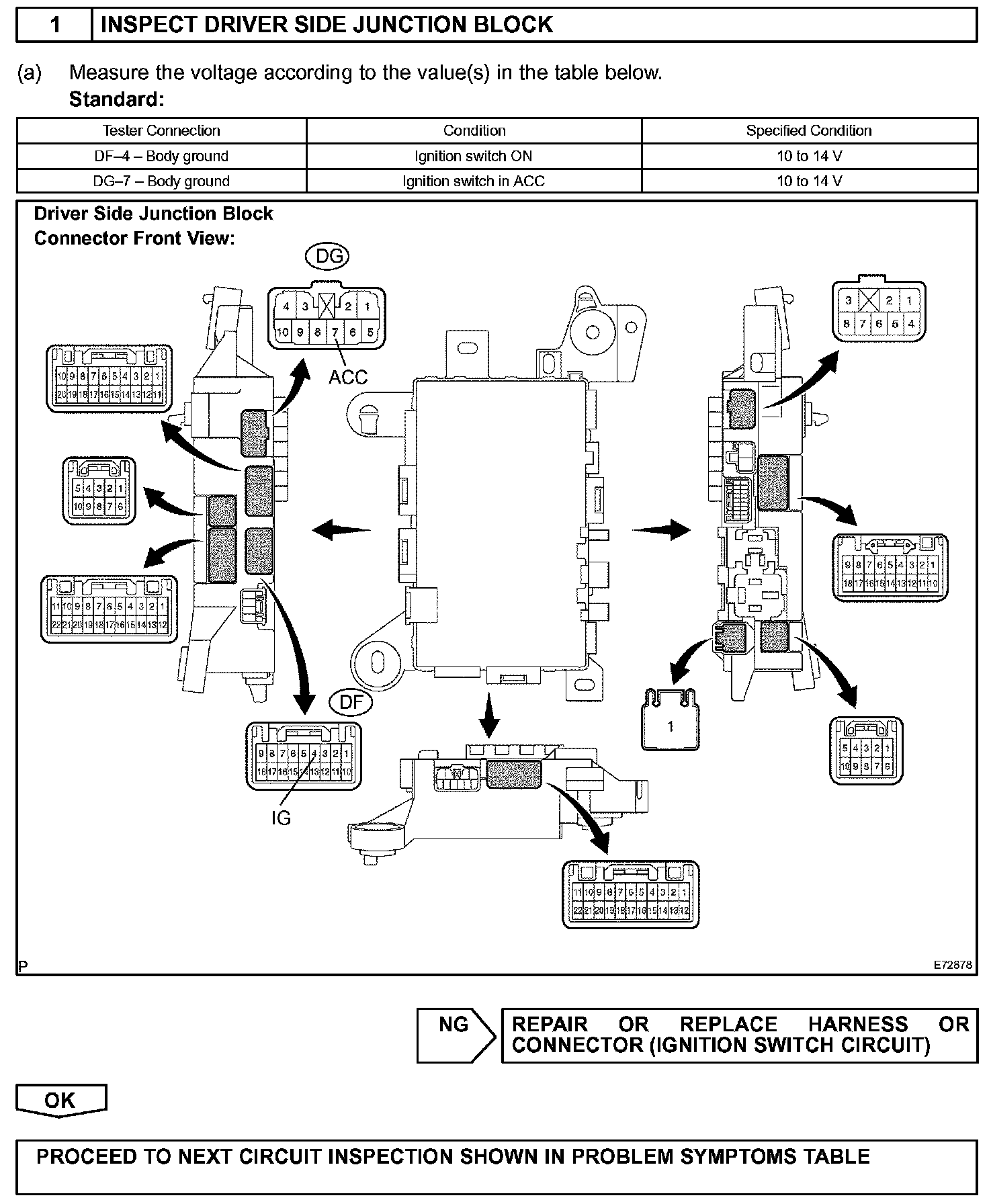

Step 1:




INSPECTION PROCEDURE
