Door Lock Position Circuit

DOOR LOCK POSITION CIRCUIT

CIRCUIT DESCRIPTION

The door ECU receives door lock information from each detection switch and sends it to each of the ECU.

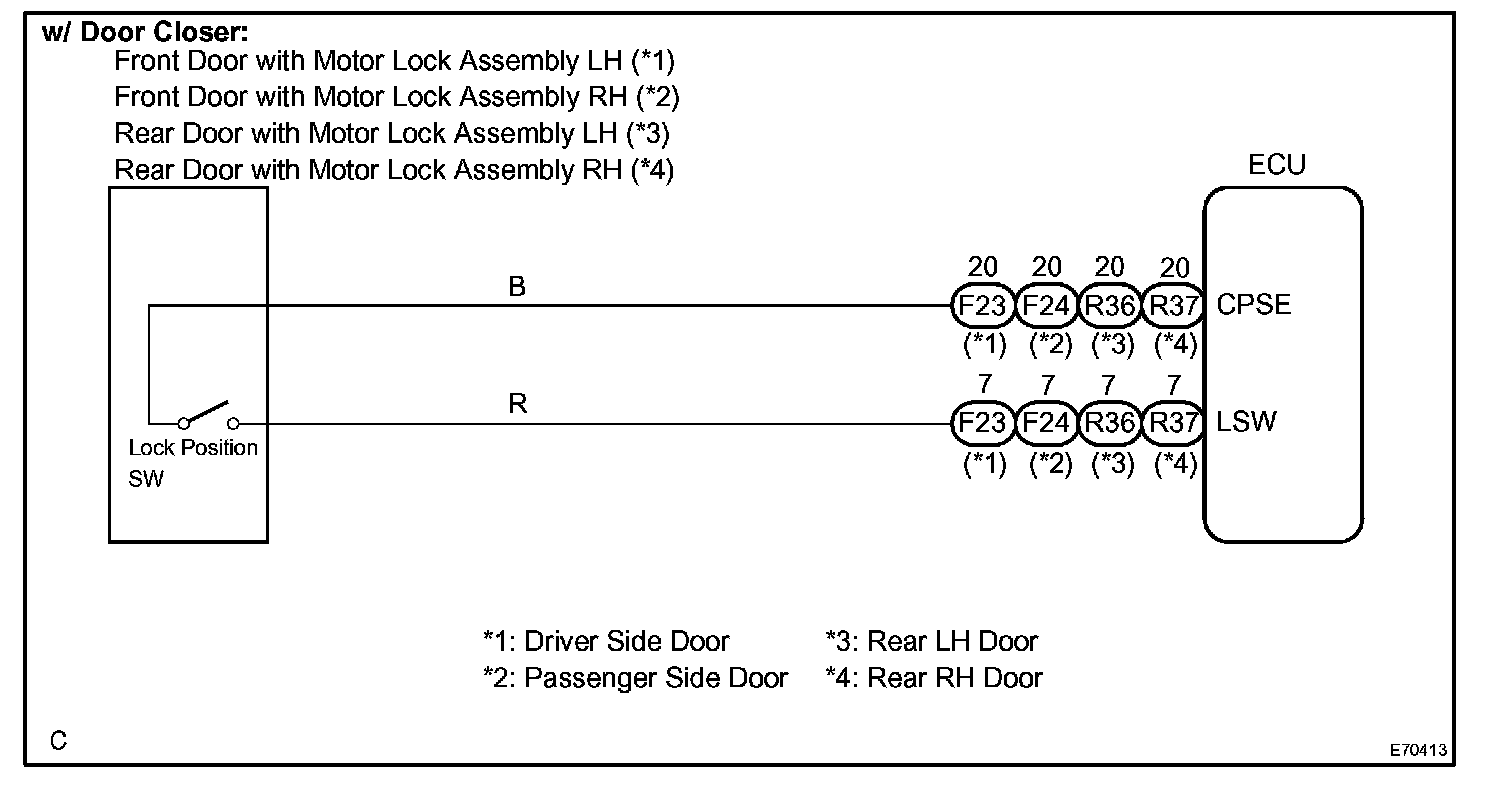

Wiring Diagram:

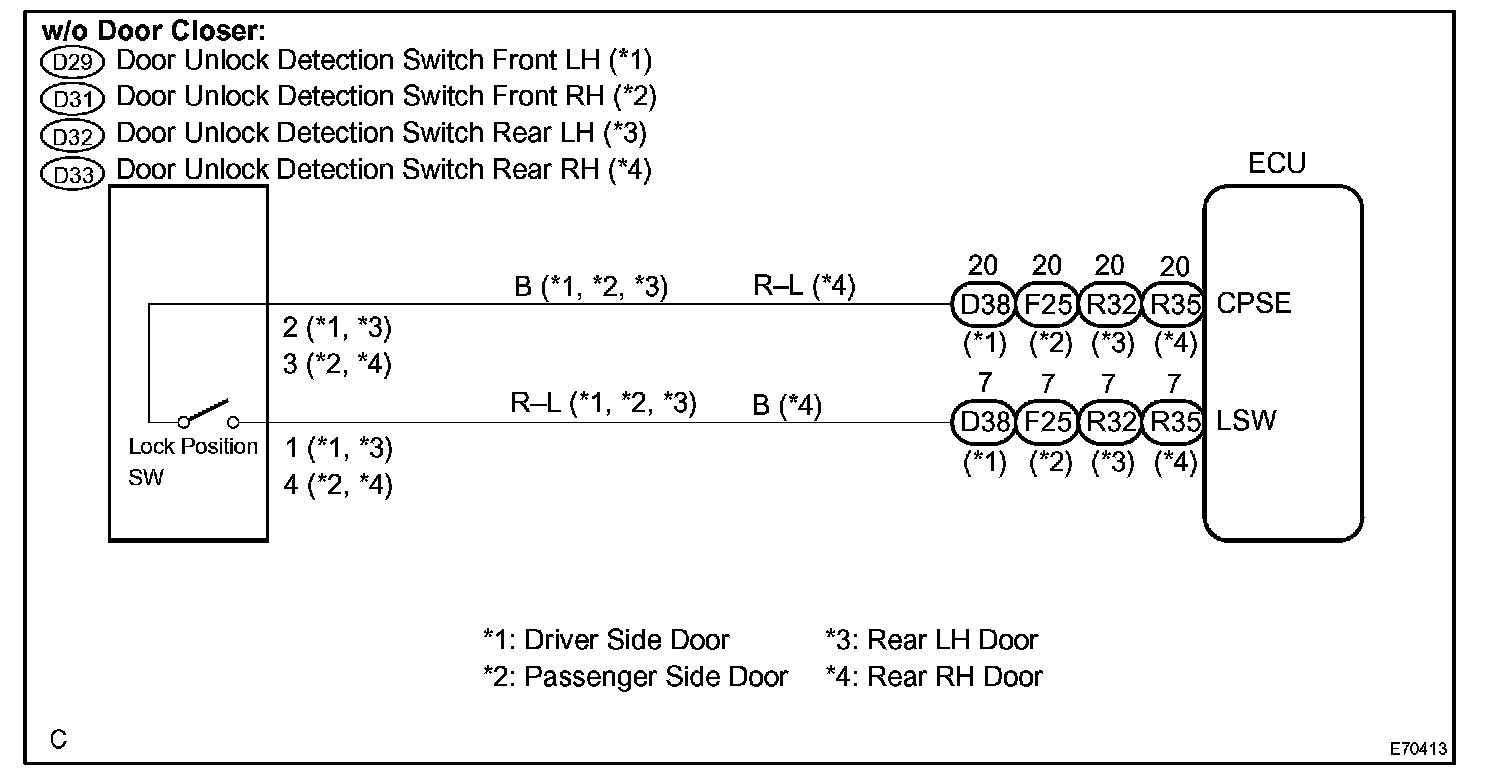

Wiring Diagram:

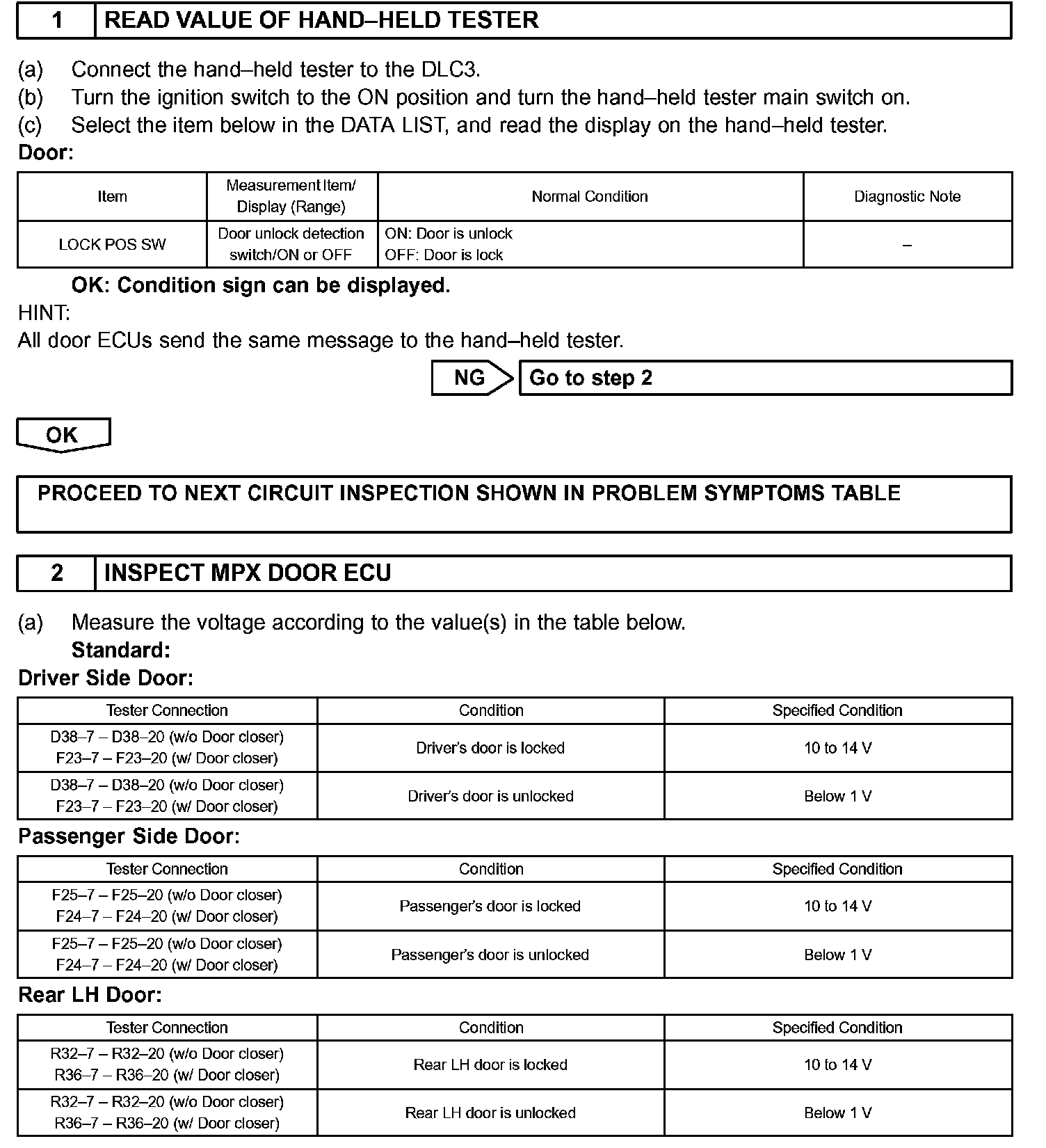

Step 1 - 2:

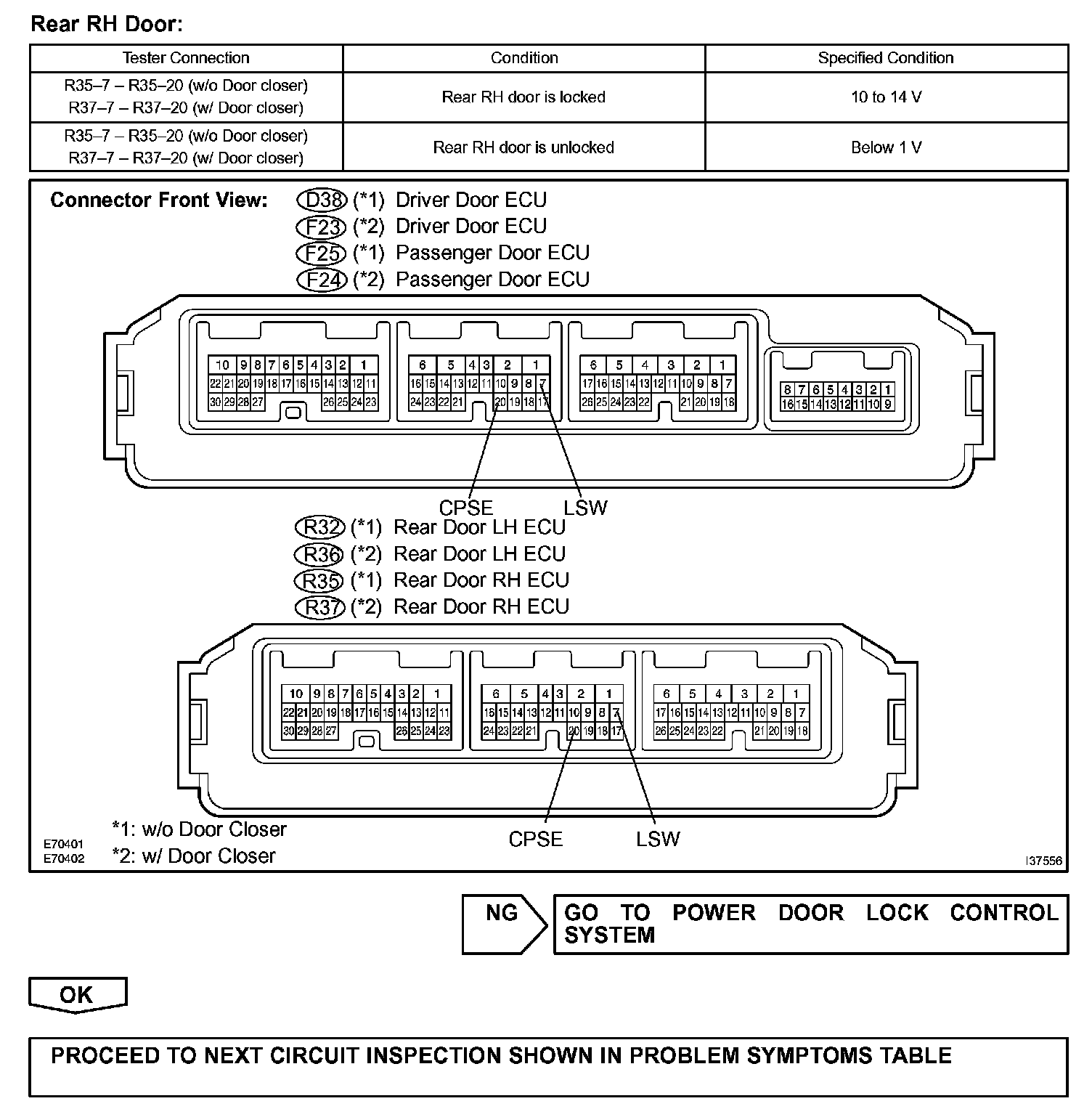

Step 2 (Continued):

INSPECTION PROCEDURE

HINT:
- Before this procedure, check if the wireless door lock system operation is normal.
- The procedure is the same for all door lock positions. Inspect the suspected door lock position first.
