Back-Up Lamp Circuit

BACK-UP LIGHT CIRCUIT

CIRCUIT DESCRIPTION

The back-up lamp comes on by receiving the park neutral position switch signal (shift position R signal) from the luggage room junction block ECU.

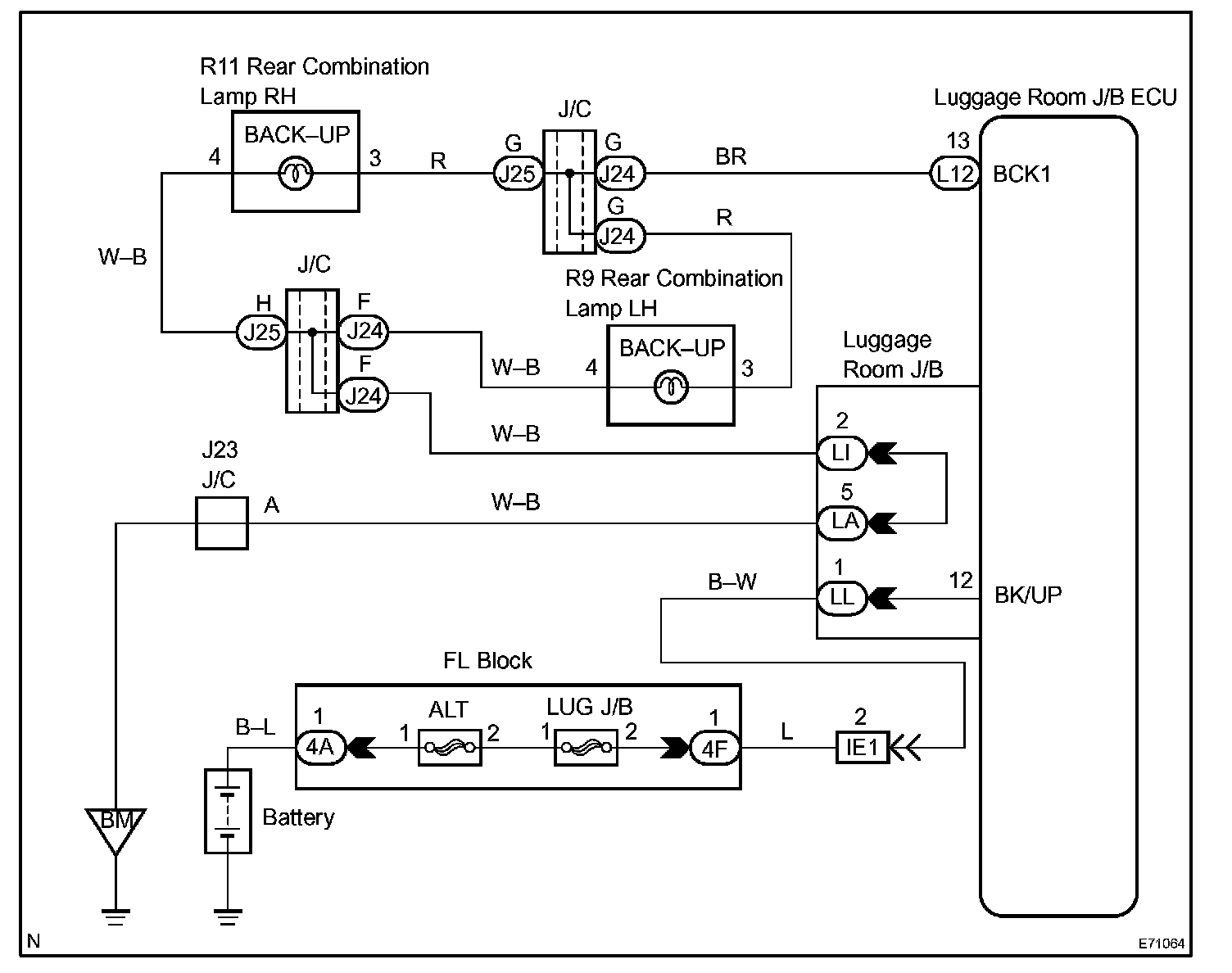

Wiring Diagram:

Step 1:

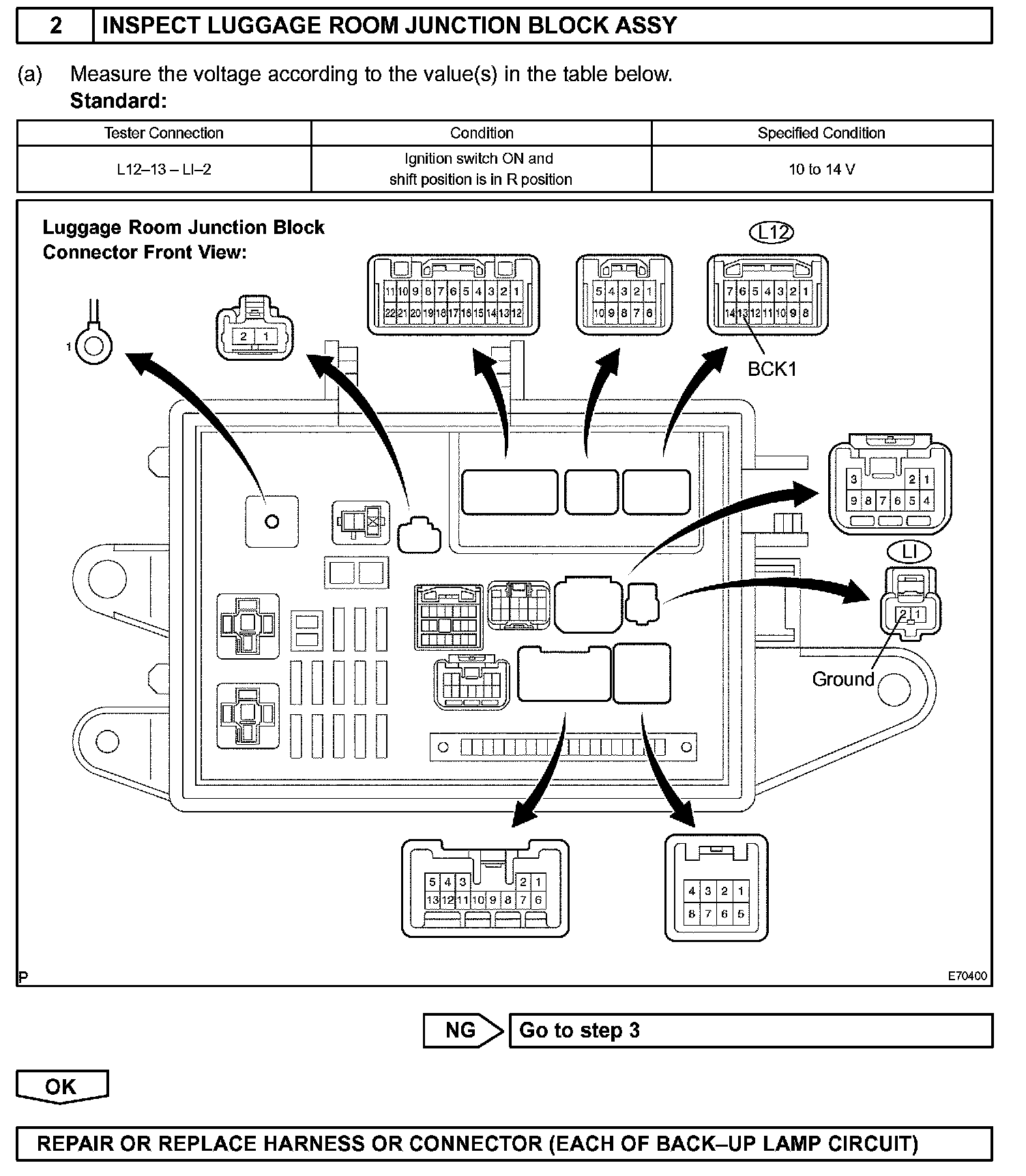

Step 2:

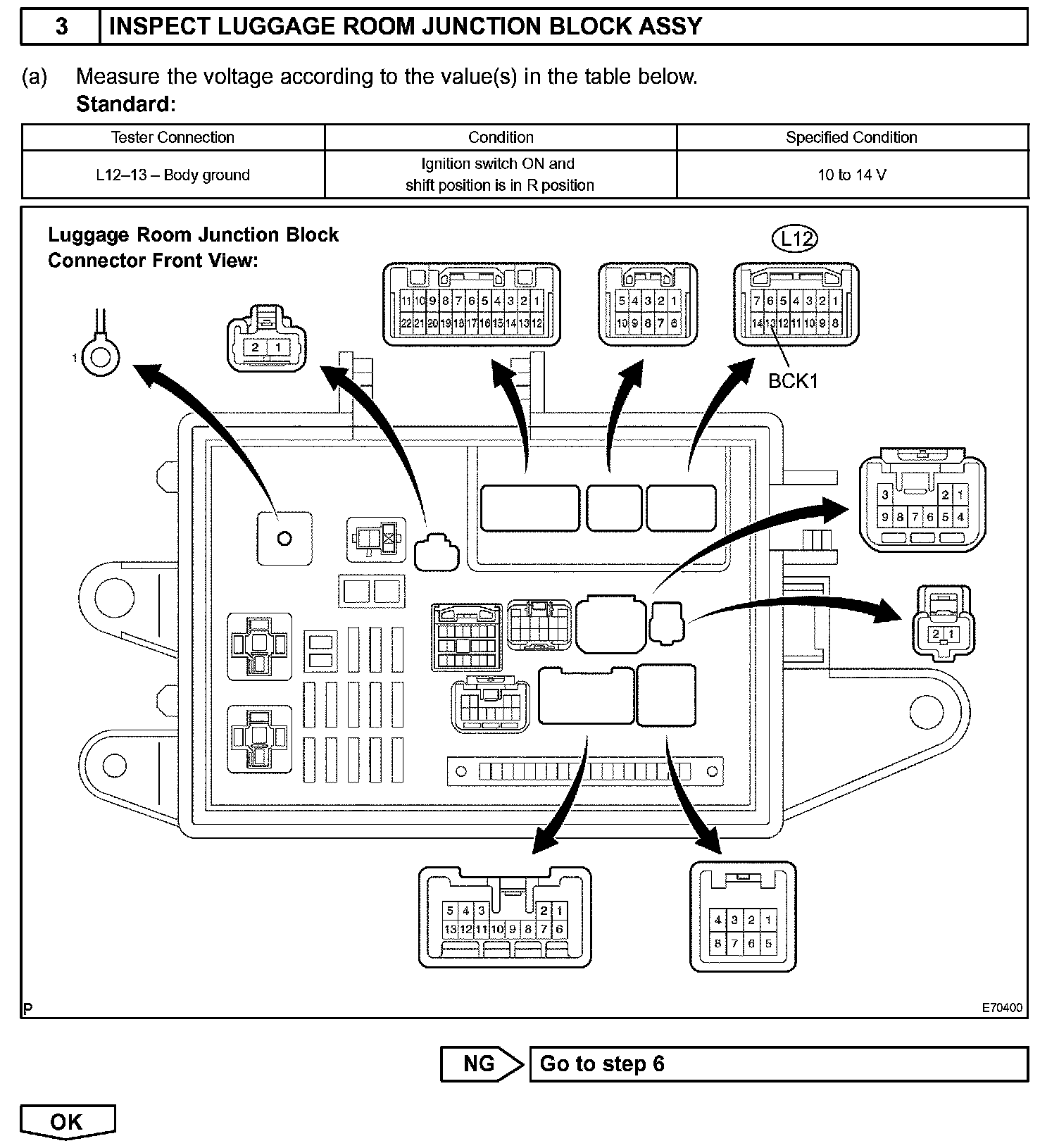

Step 3:

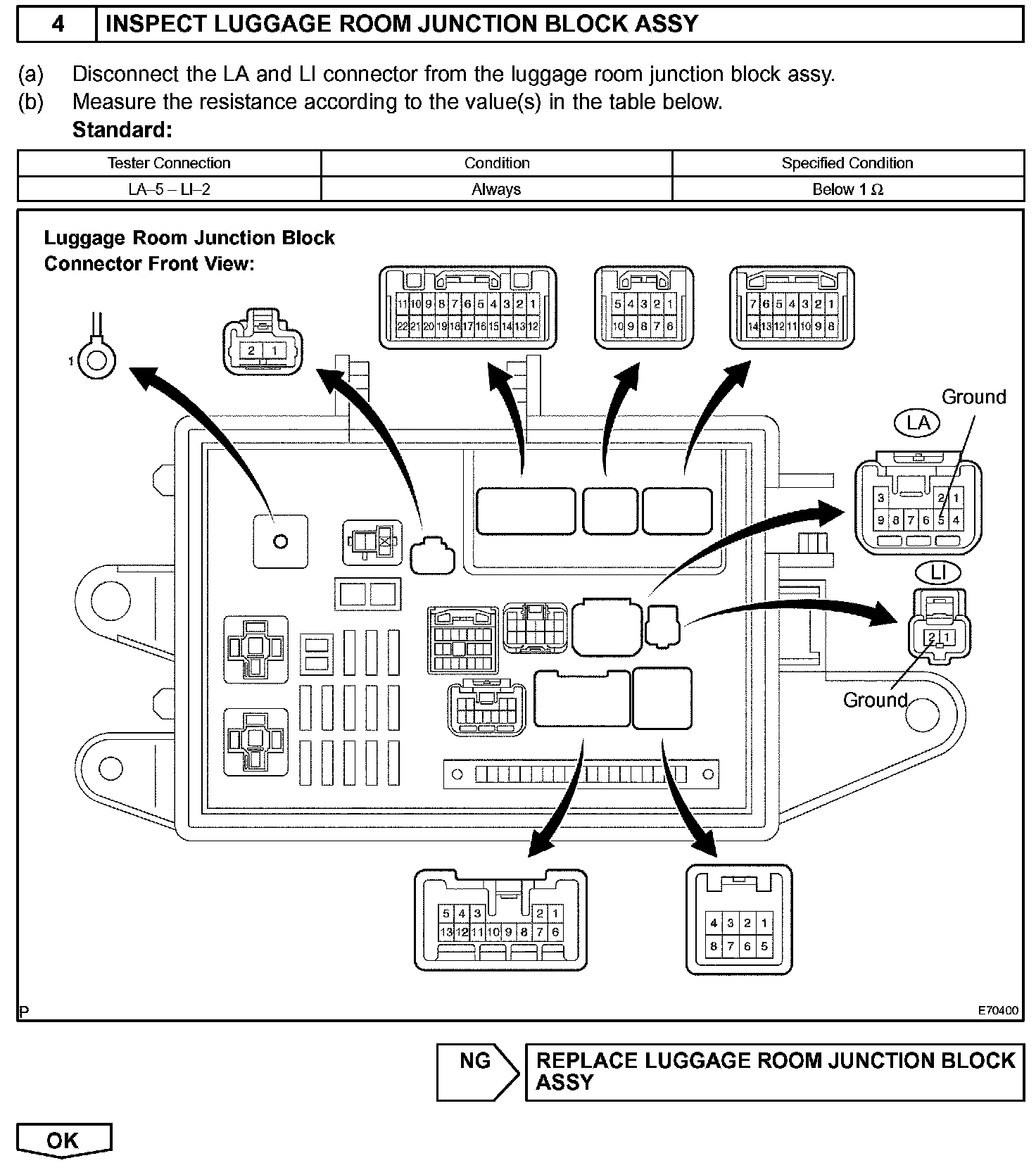

Step 4:

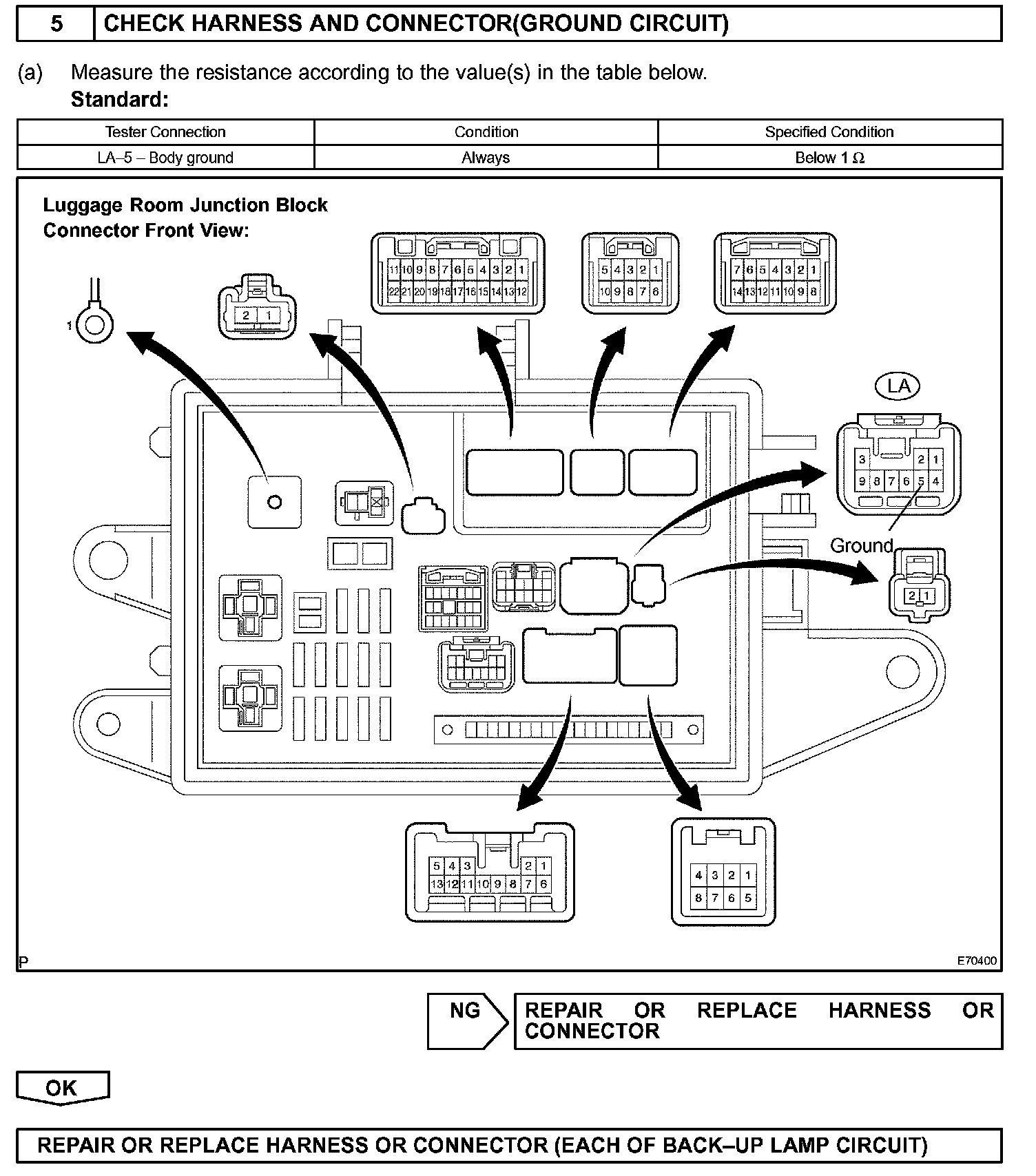

Step 5:

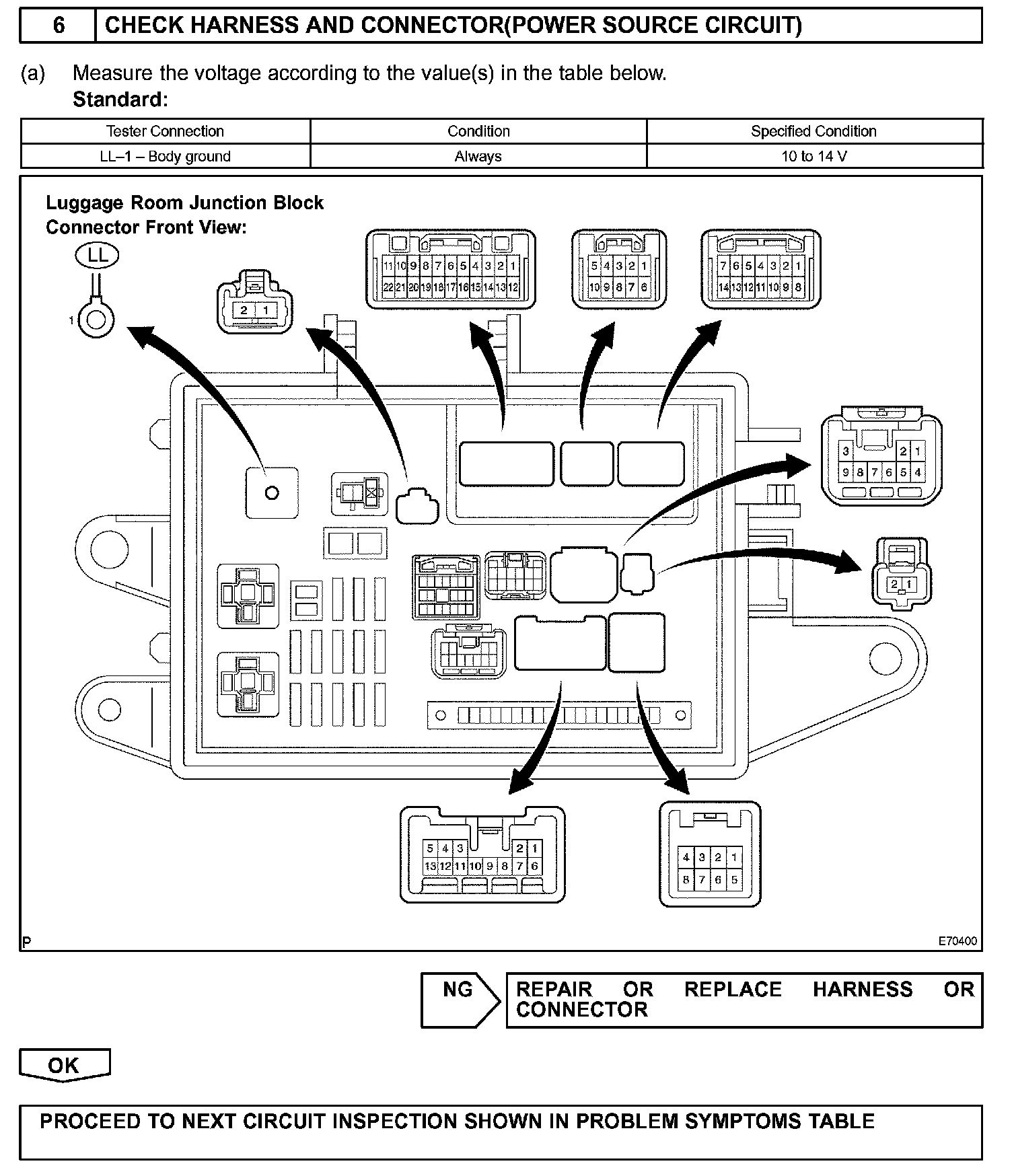

Step 6:

INSPECTION PROCEDURE
