Map Light: Testing and Inspection

MAP LAMP ASSEMBLY
a. Inspect map lamp assembly in the overhead J/B.

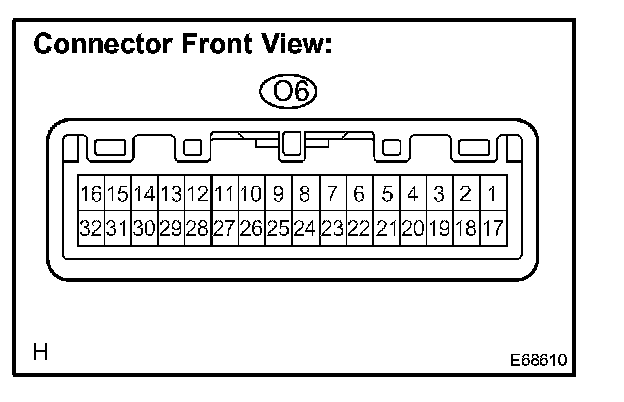

1. Connect the (+) lead from the battery to terminal 17 and the (-) lead to terminal 5, and check that the map lamp comes on when the map lamp switch is in the ON position.
OK: Comes on.
