VSC Warning Light Circuit (Remains On)

VSC WARNING LIGHT CIRCUIT (REMAINS ON)

CIRCUIT DESCRIPTION

If the ECU stores DTC, the VSC warning light comes on in the combination meter.

The skid control ECU is connected to the combination meter via CAN and MPX communications.

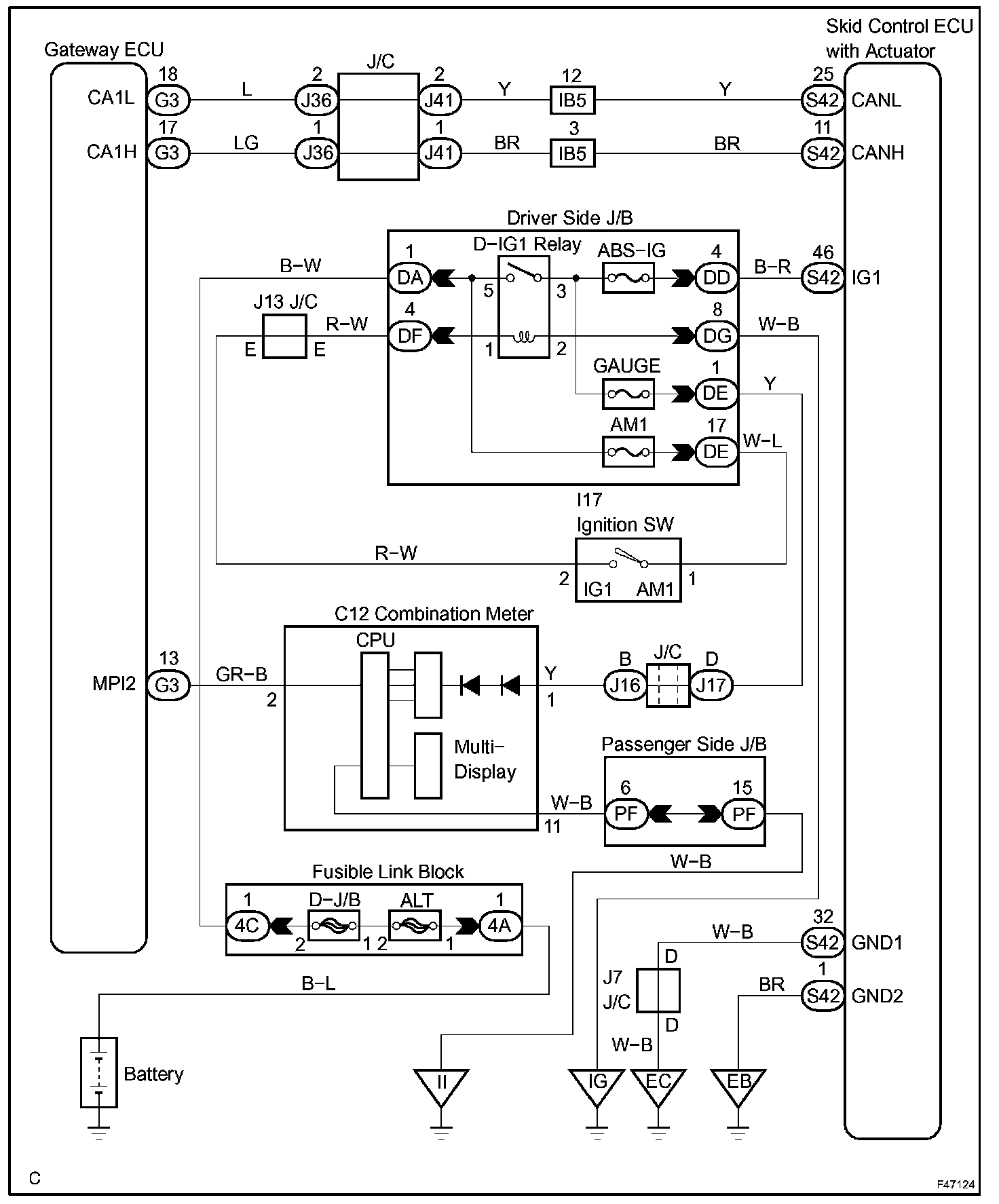

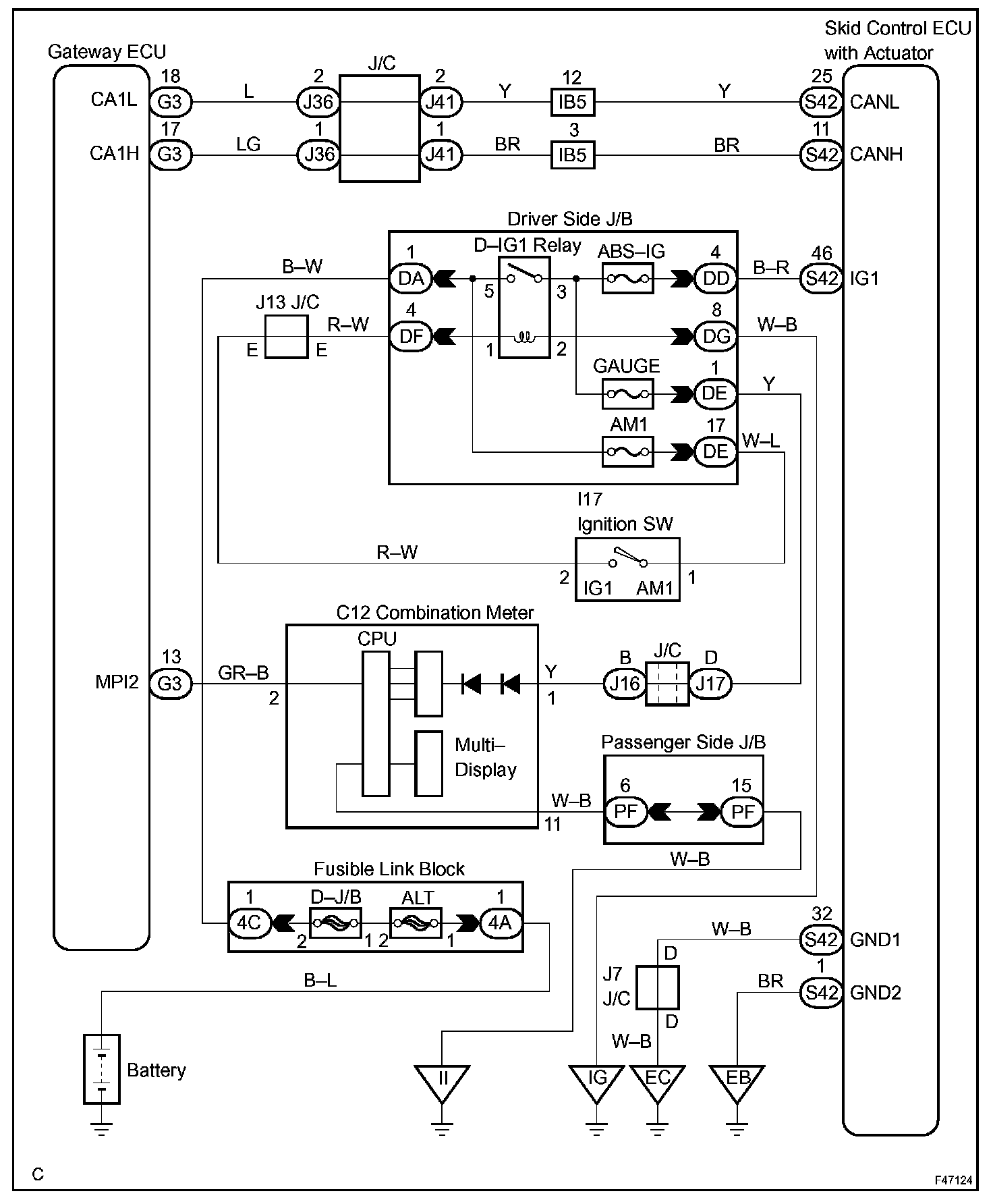

Wiring Diagram:

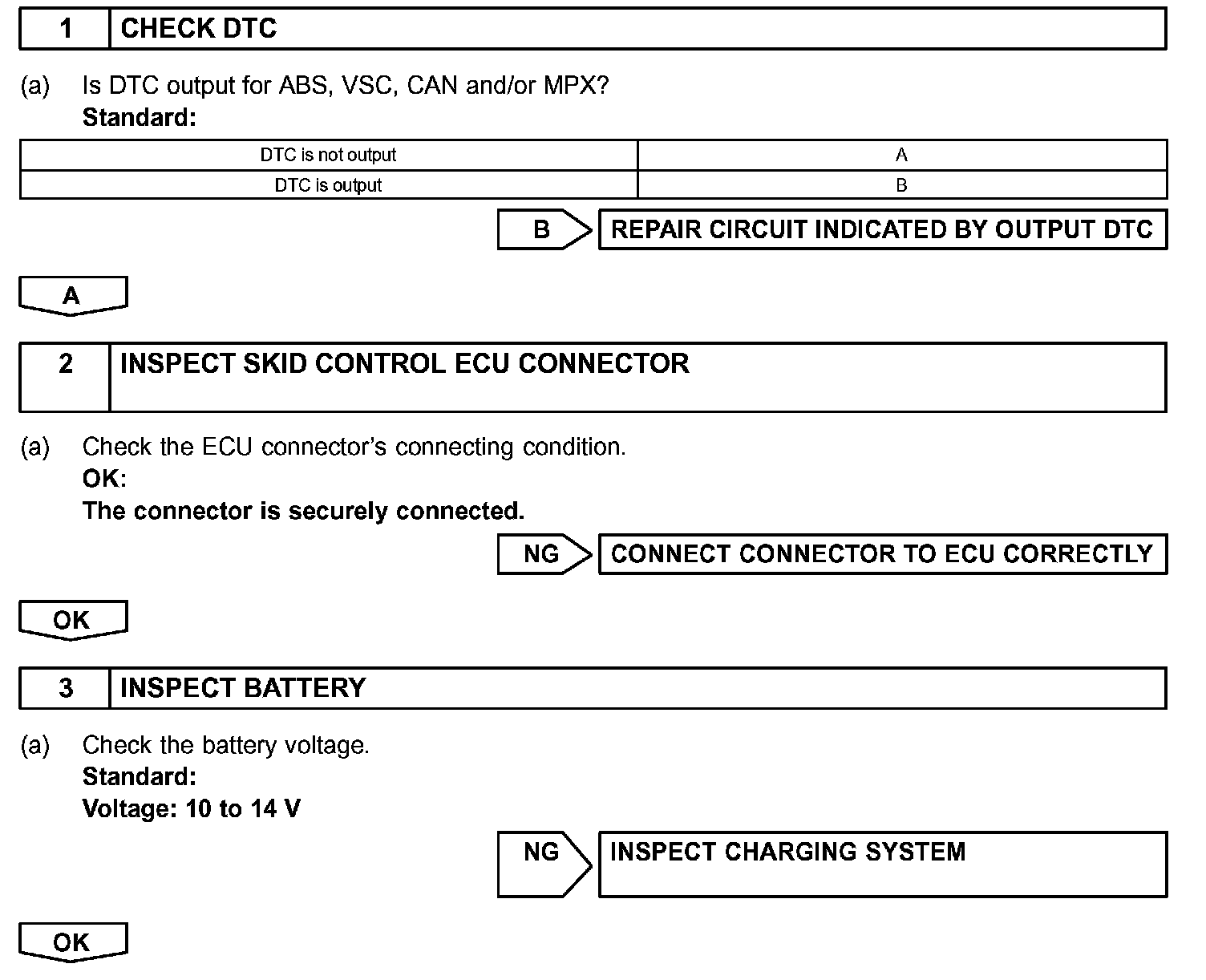

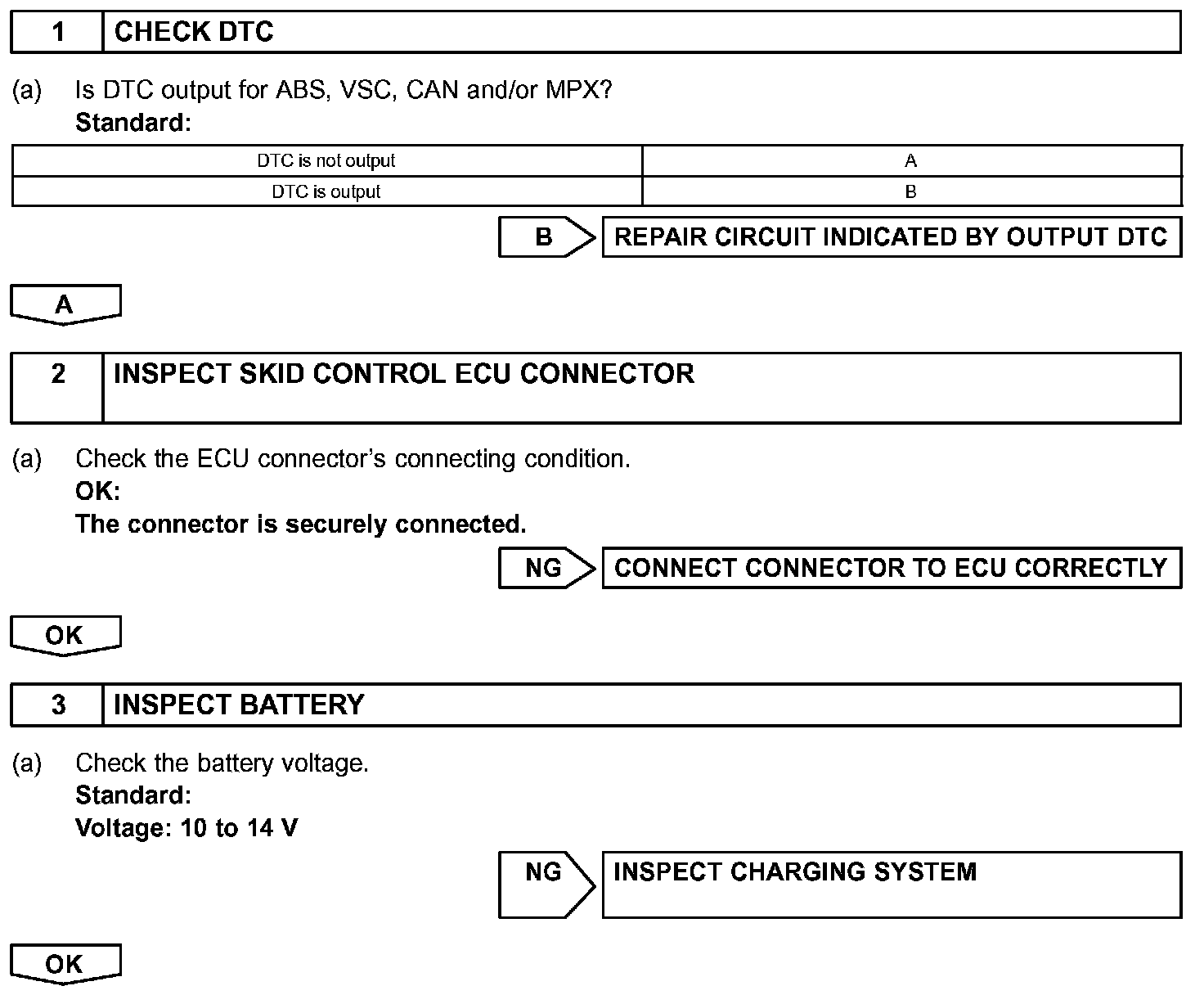

Step 1 - 3:

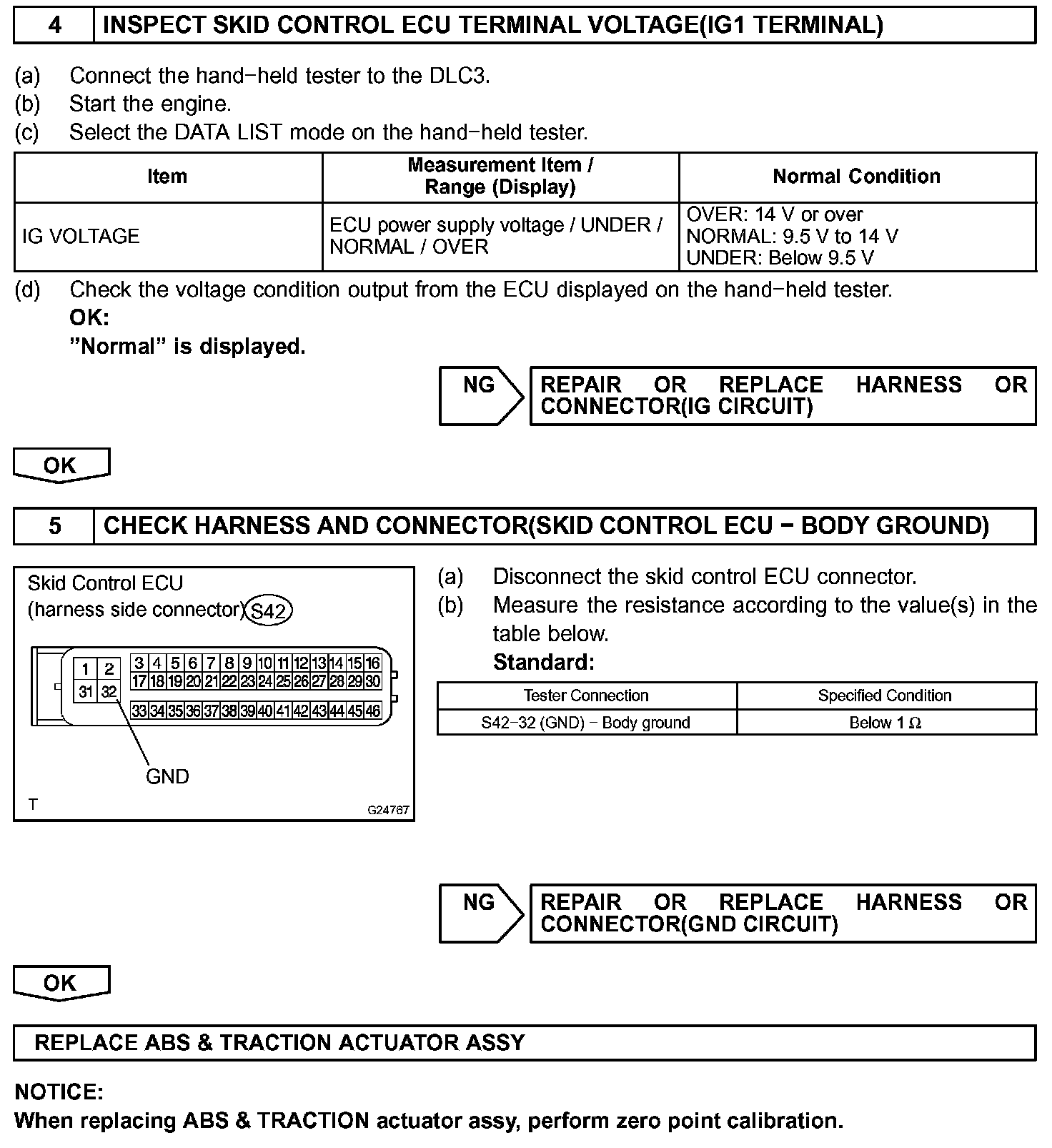

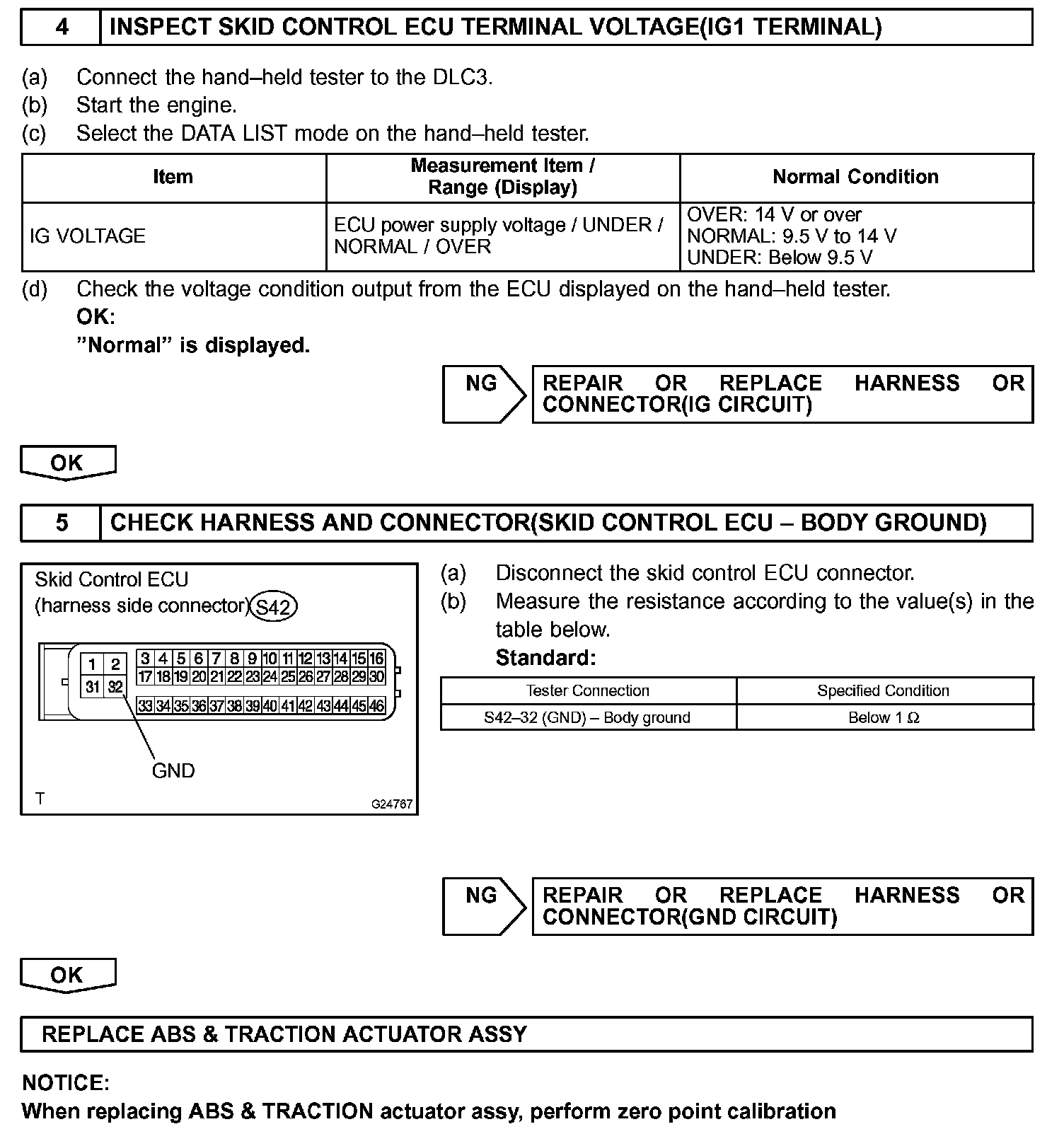

Step 4 - 5:

INSPECTION PROCEDURE
