Seat Belt Warning Lamp For Passenger's Seat Does Not Operate

SEAT BELT WARNING LAMP FOR PASSENGER'S SEAT DOES NOT OPERATE

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

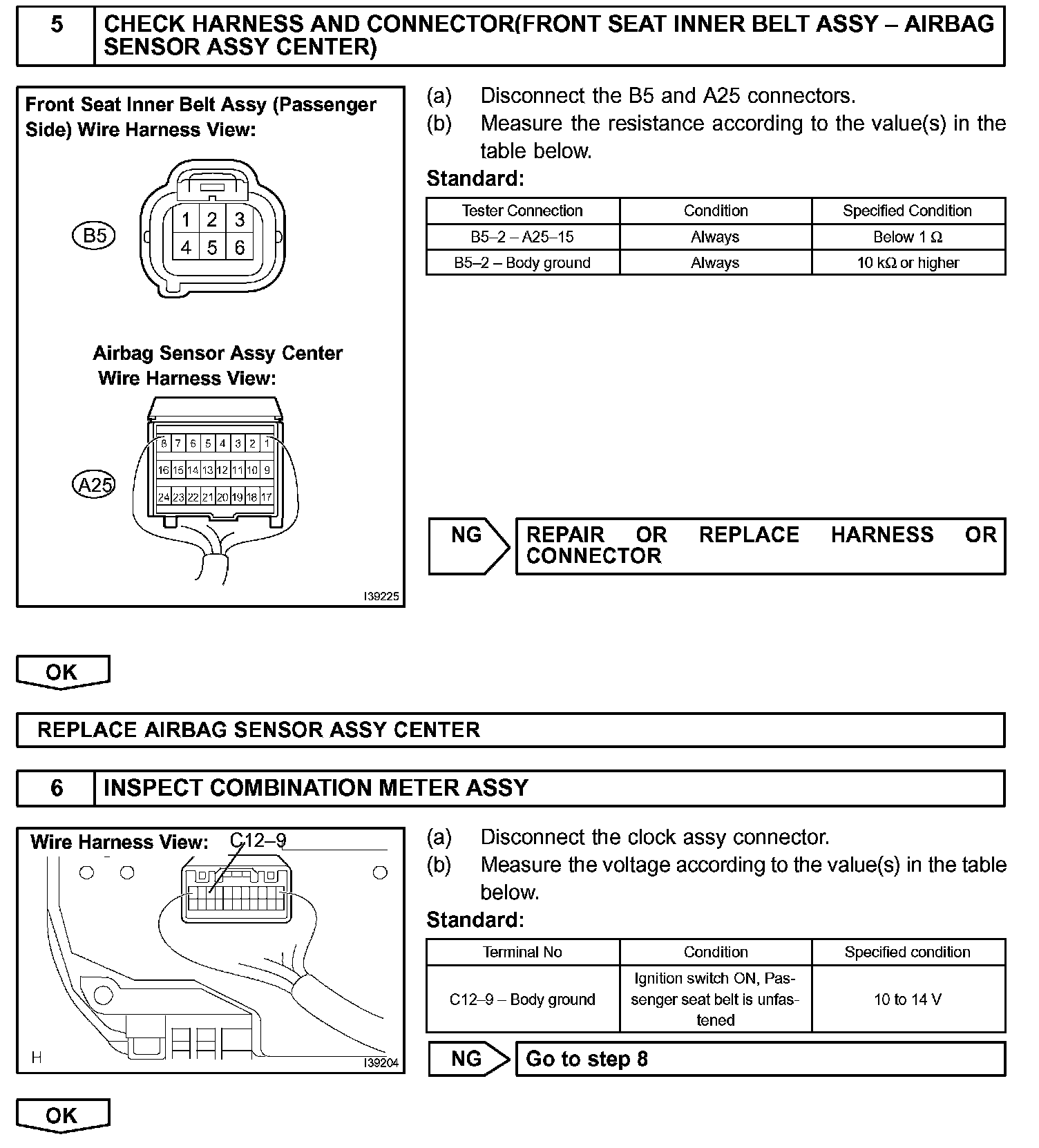

Step 5 - 6:

Step 7 - 8:

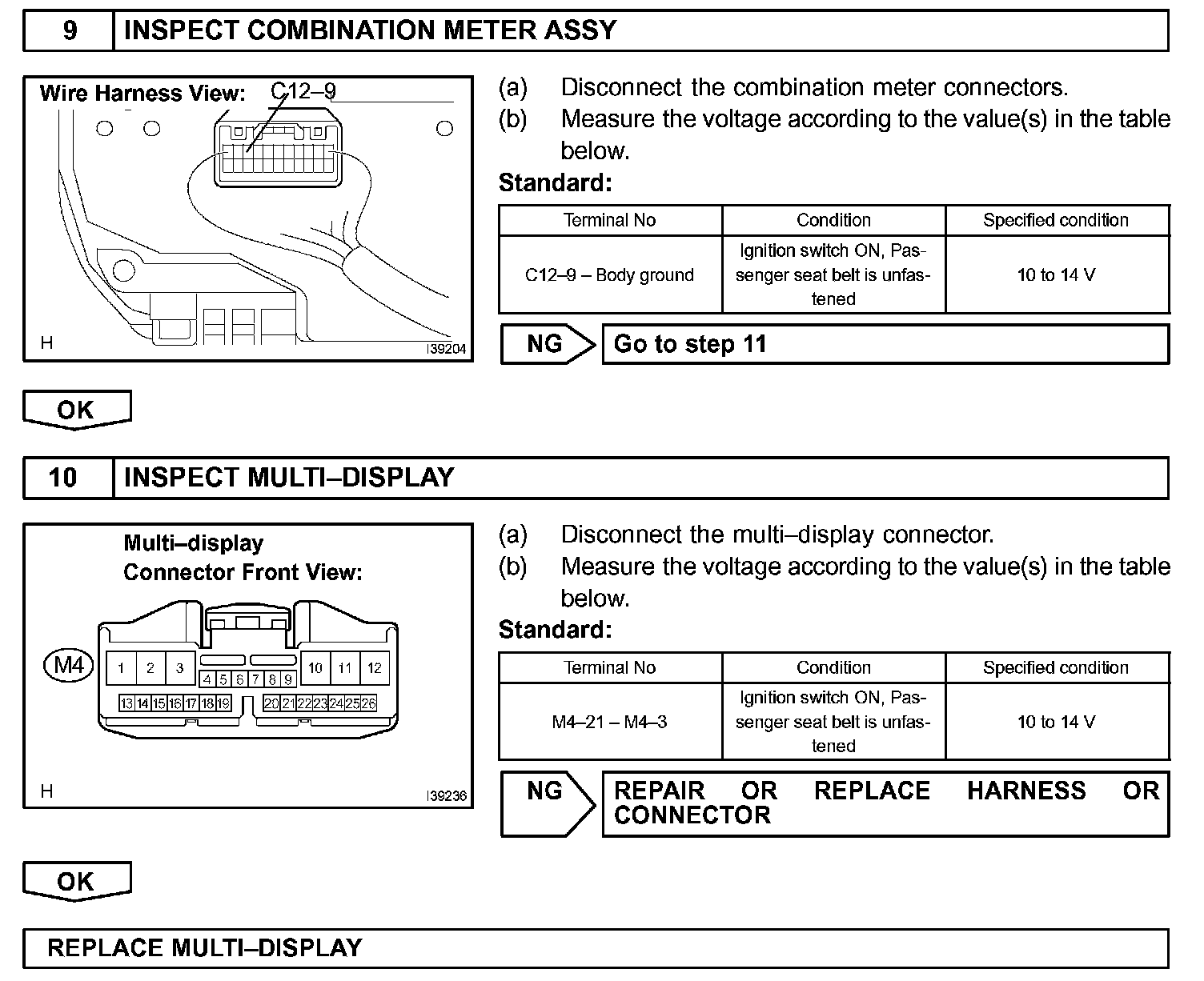

Step 9 - 10:

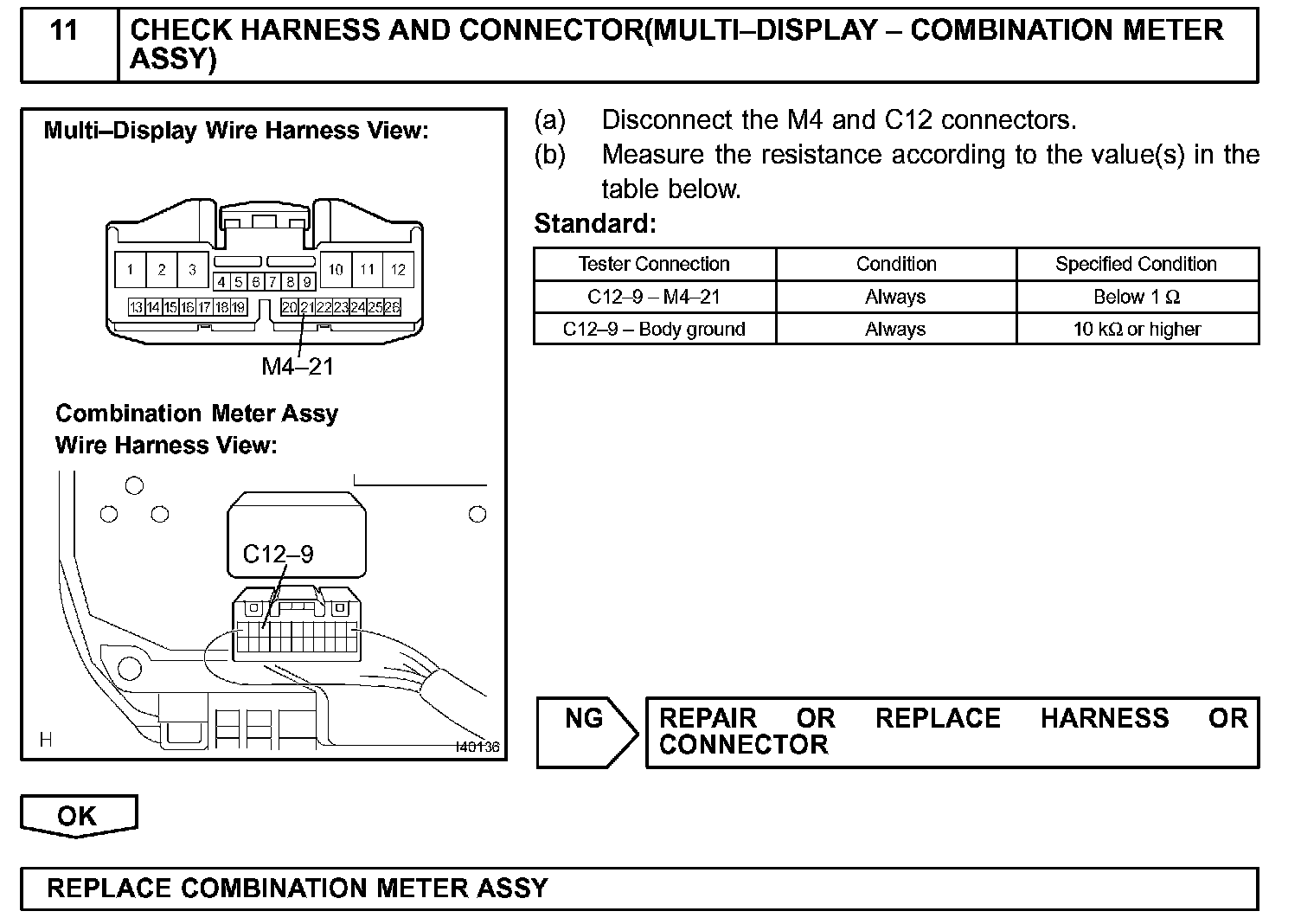

Step 11:

INSPECTION PROCEDURE

HINT: Display except for the seat belt warning indicator are shown in the navigation system and A/C system.
