Rear Blower Motor Circuit

REAR BLOWER MOTOR CIRCUIT

CIRCUIT DESCRIPTION

The luggage room J/B ECU requests the rear A/C amplifier to operate the rear blower motor and controls its operation via the rear blower resistor in this circuit.

Wiring Diagram:

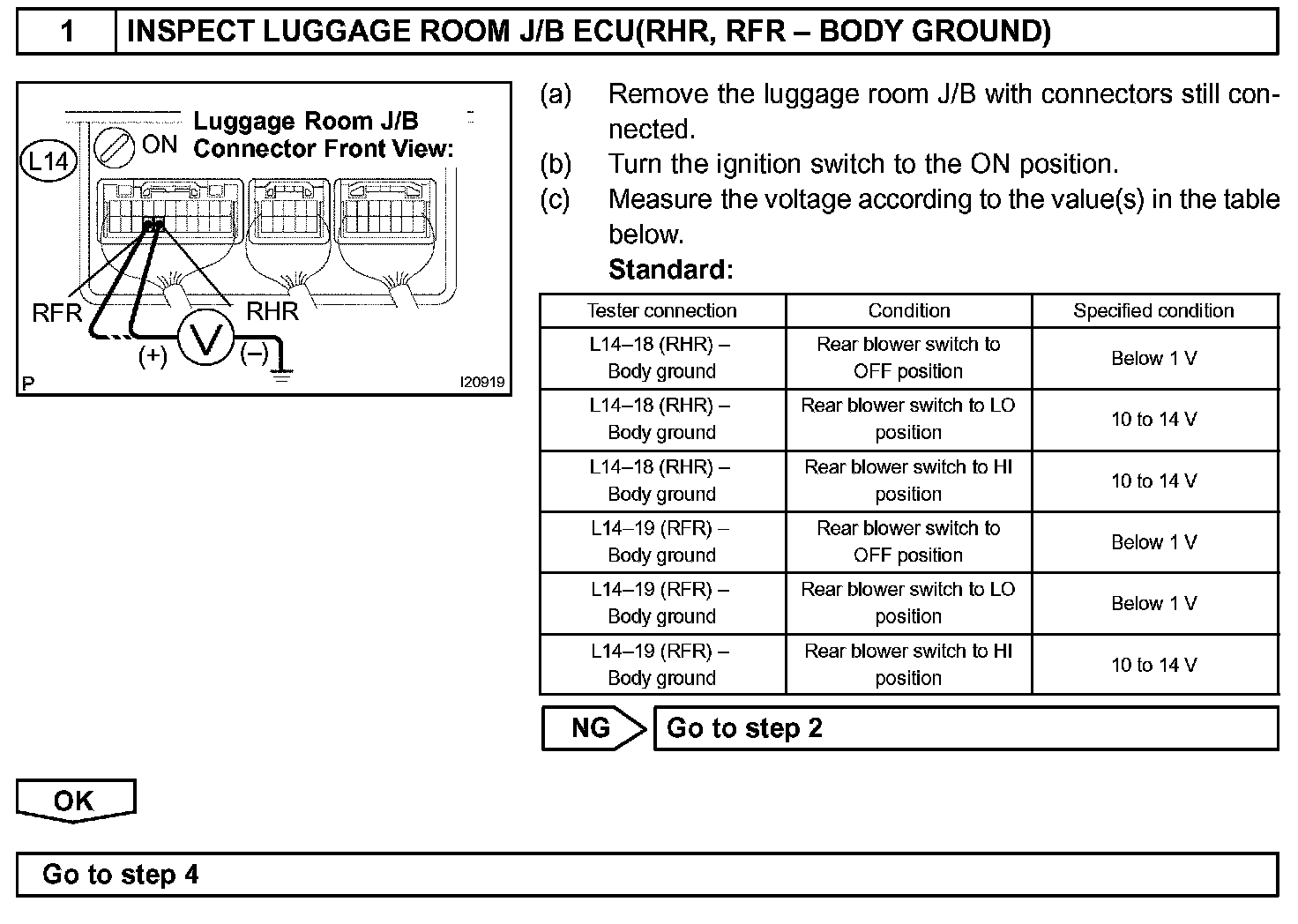

Step 1:

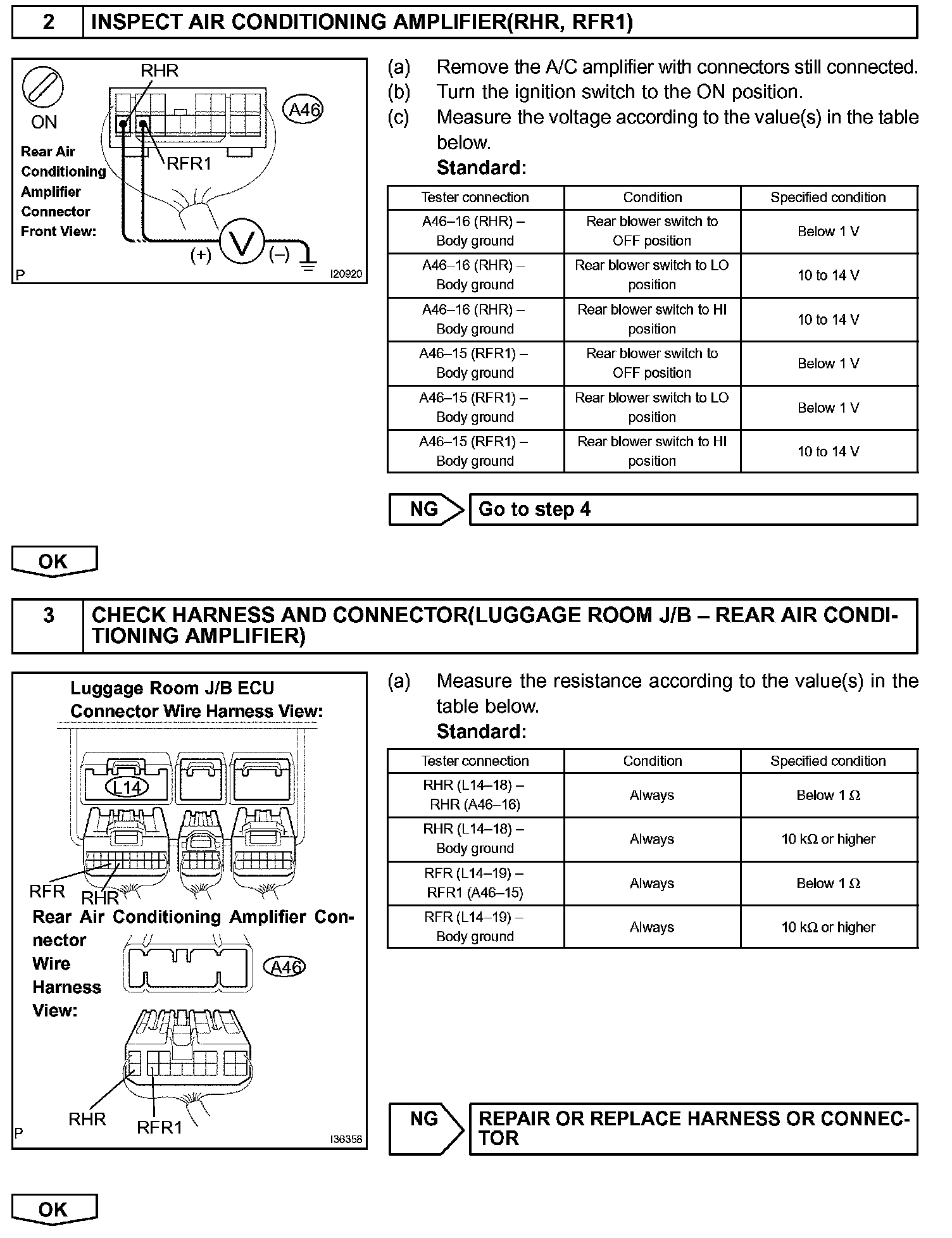

Step 2 - 3:

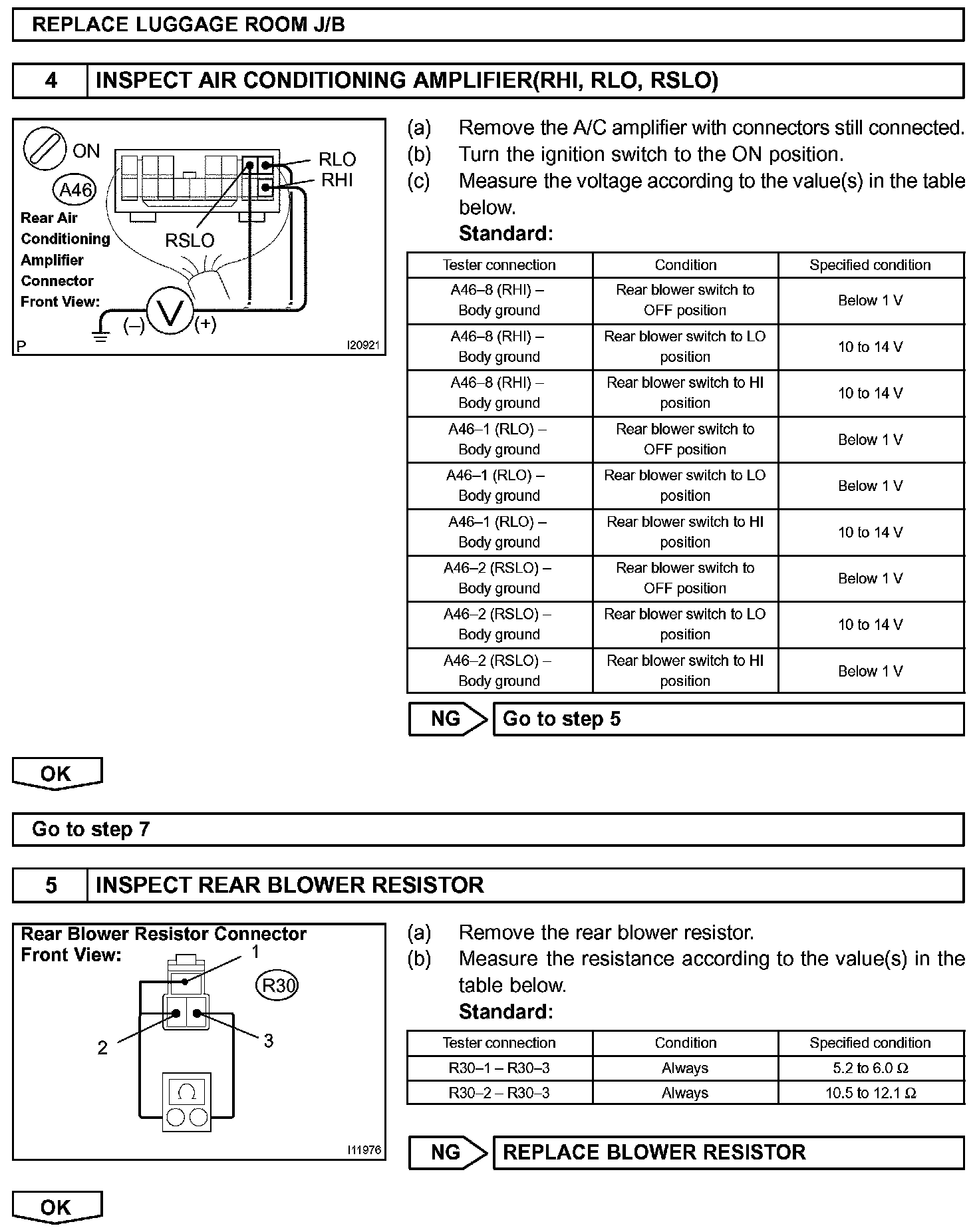

Step 3 (Continued) - 5:

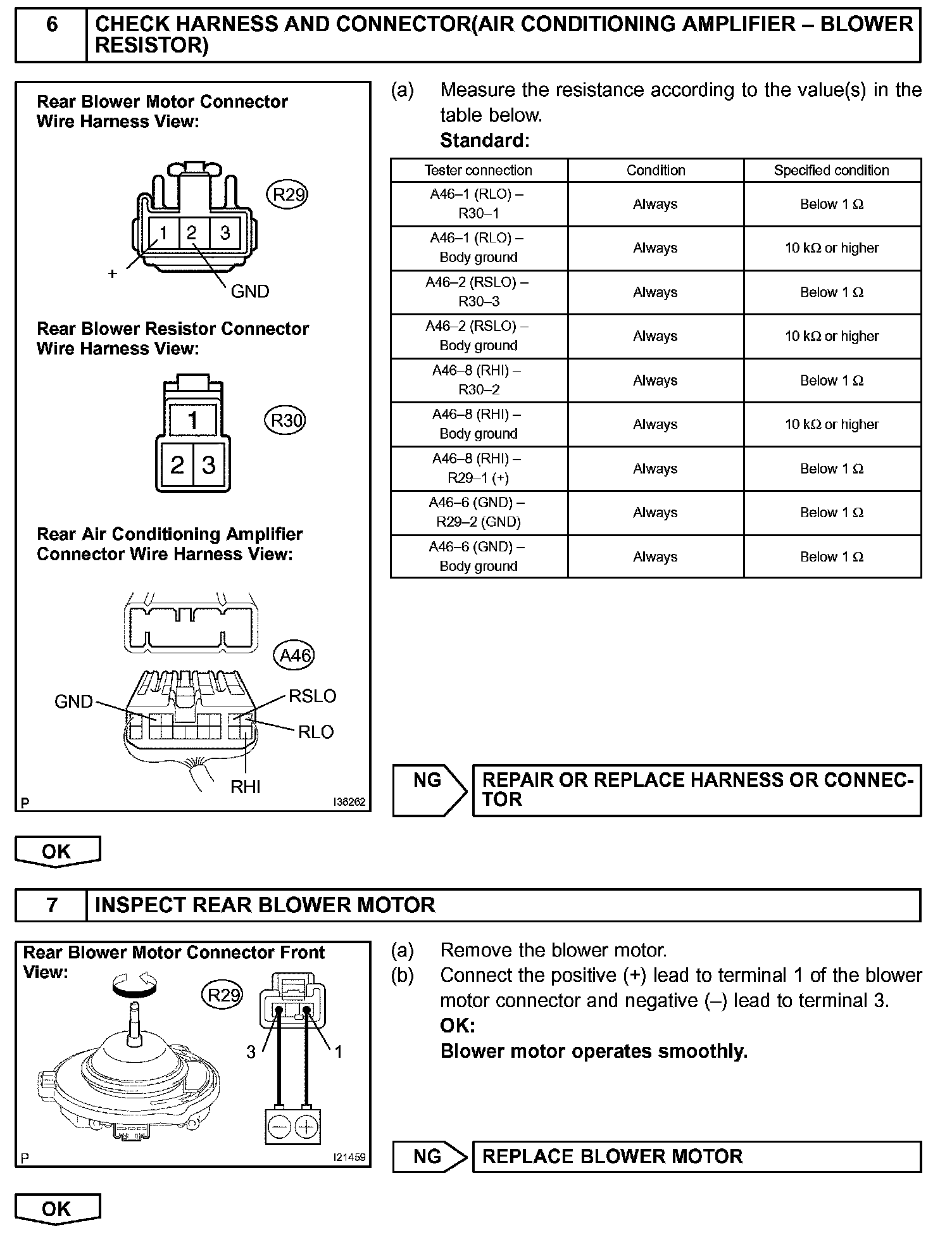

Step 6 - 7:

Step 8:

INSPECTION PROCEDURE
