Exhaust Damper Control Servomotor Circuit

EXHAUST DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

The exhaust damper control servomotor is controlled by the luggage room J/B ECU and moves the rear exhaust damper to the desired position.

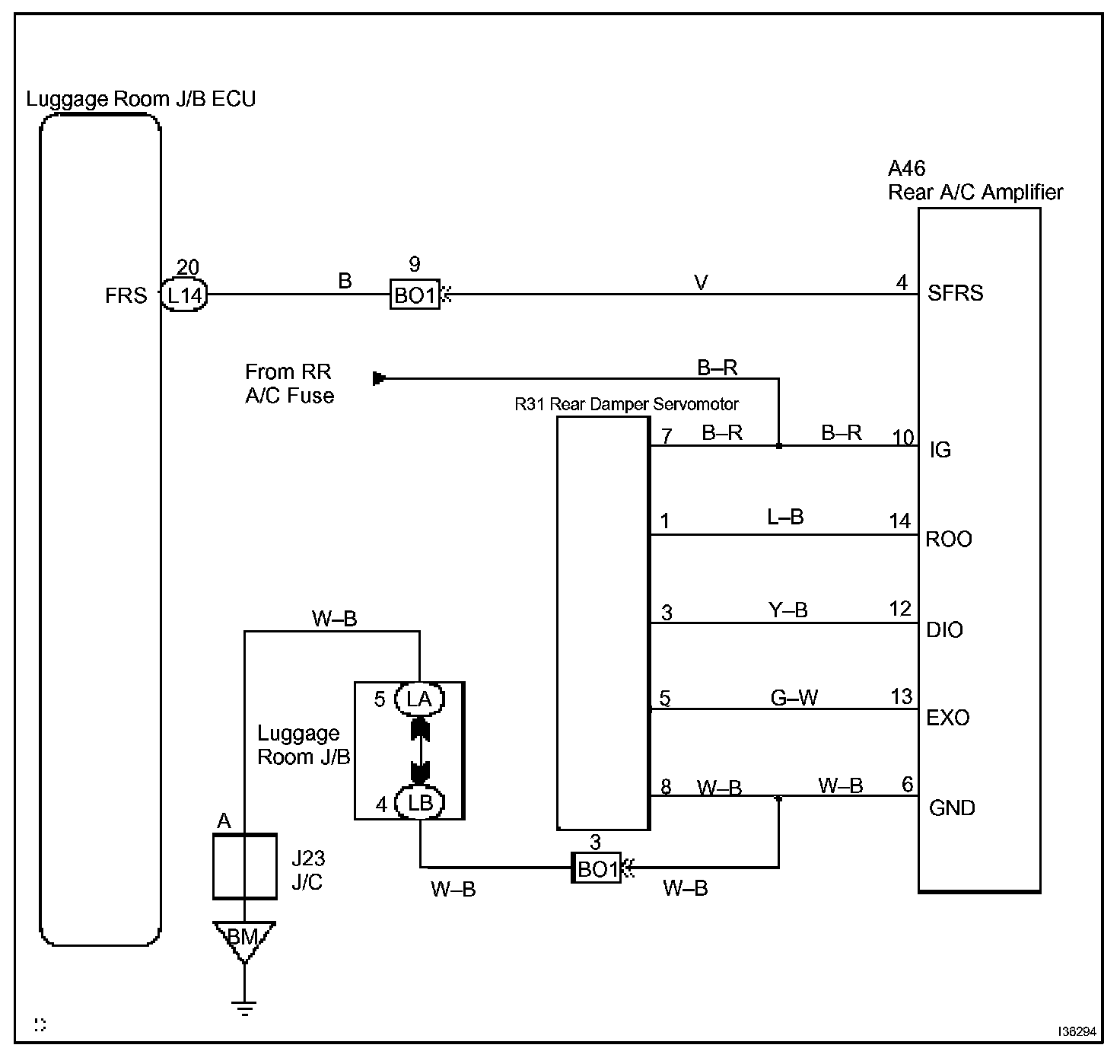

Wiring Diagram:

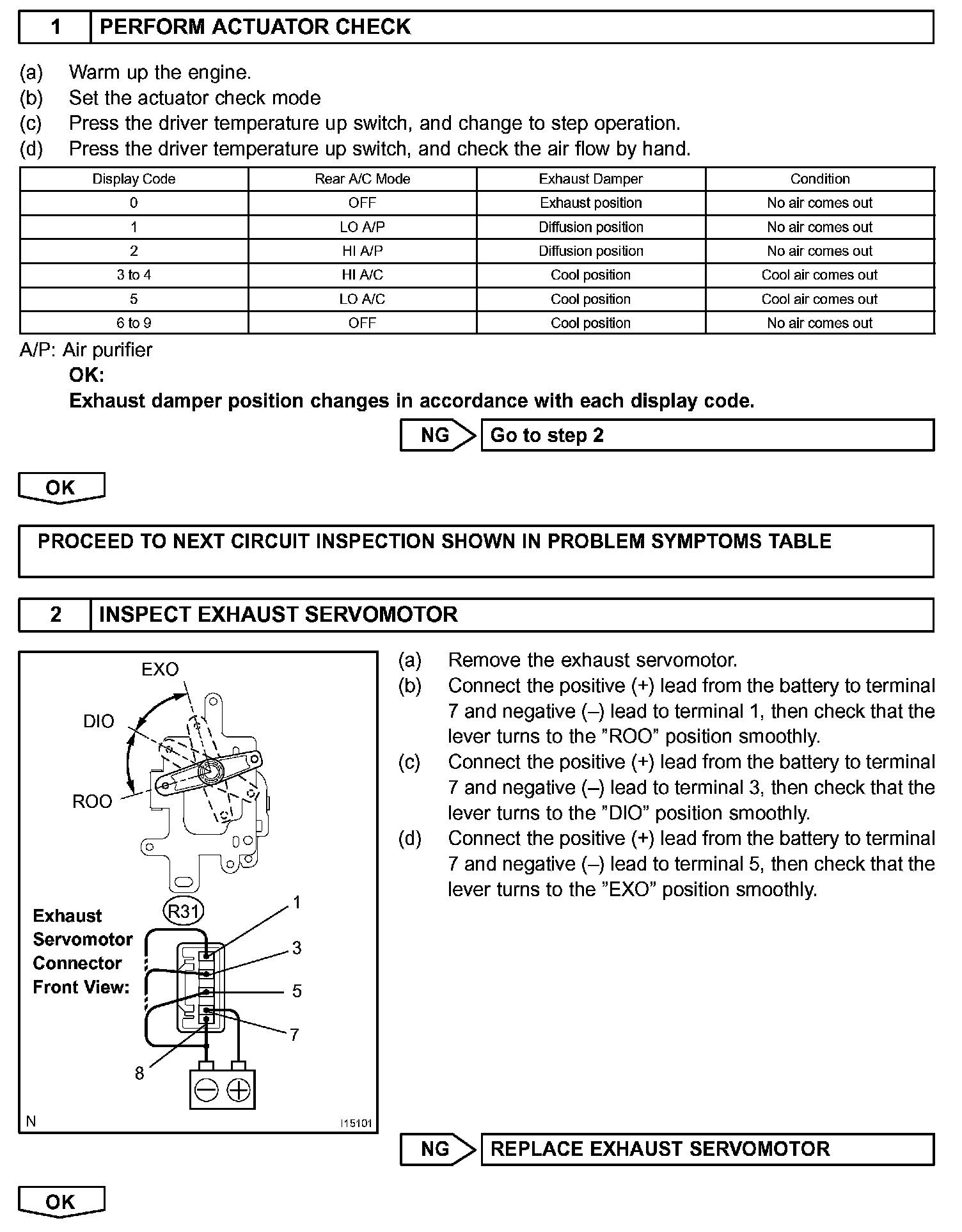

Step 1 - 2:

Step 3:

INSPECTION PROCEDURE
