Cool Air Bypass Damper Control Servomotor Circuit (Passenger Side)
COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (PASSENGER SIDE)CIRCUIT DESCRIPTION
The cool air bypass servomotor is controlled by the A/C amplifier and moves the cool air bypass damper to the desired position.

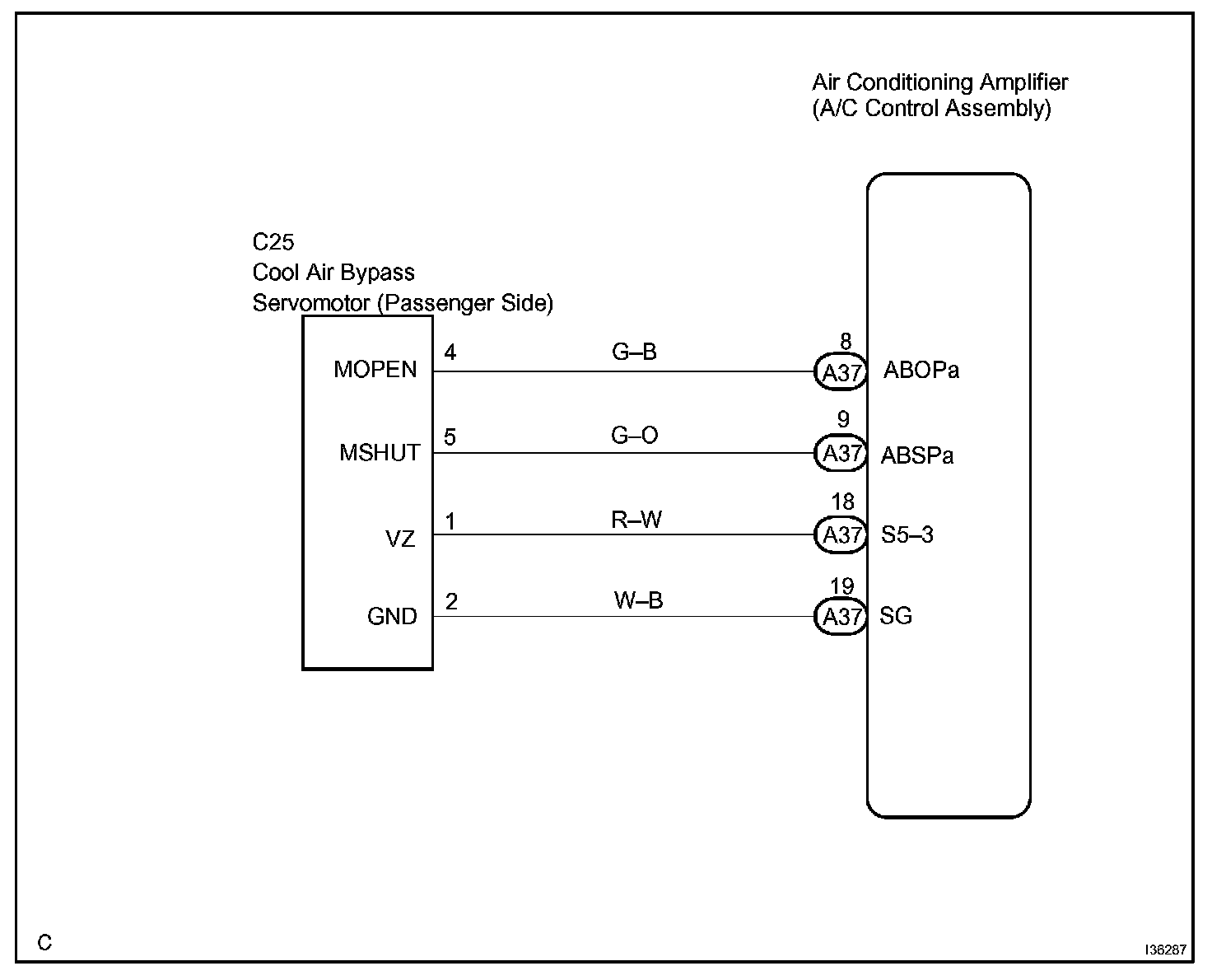

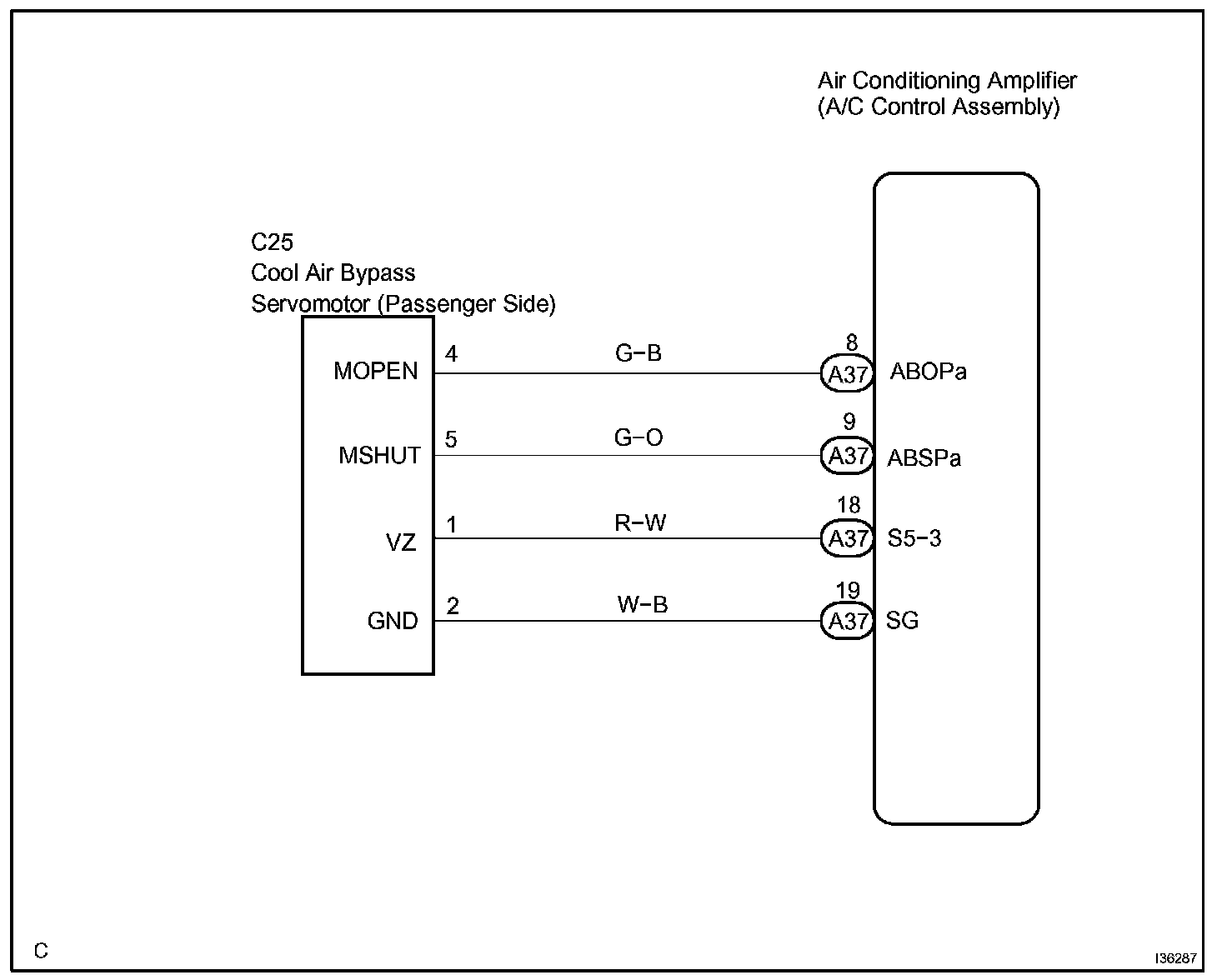

Wiring Diagram:

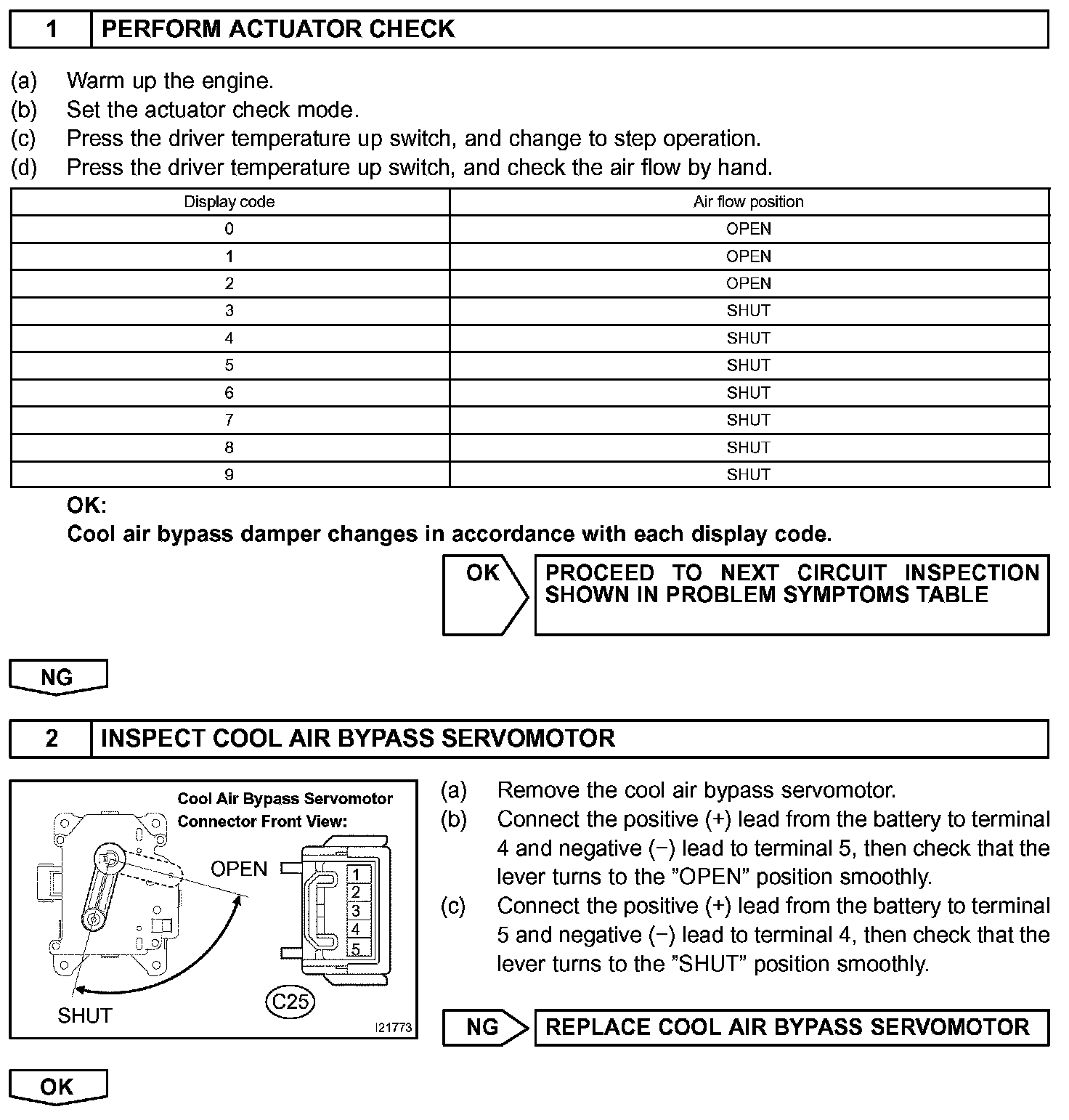

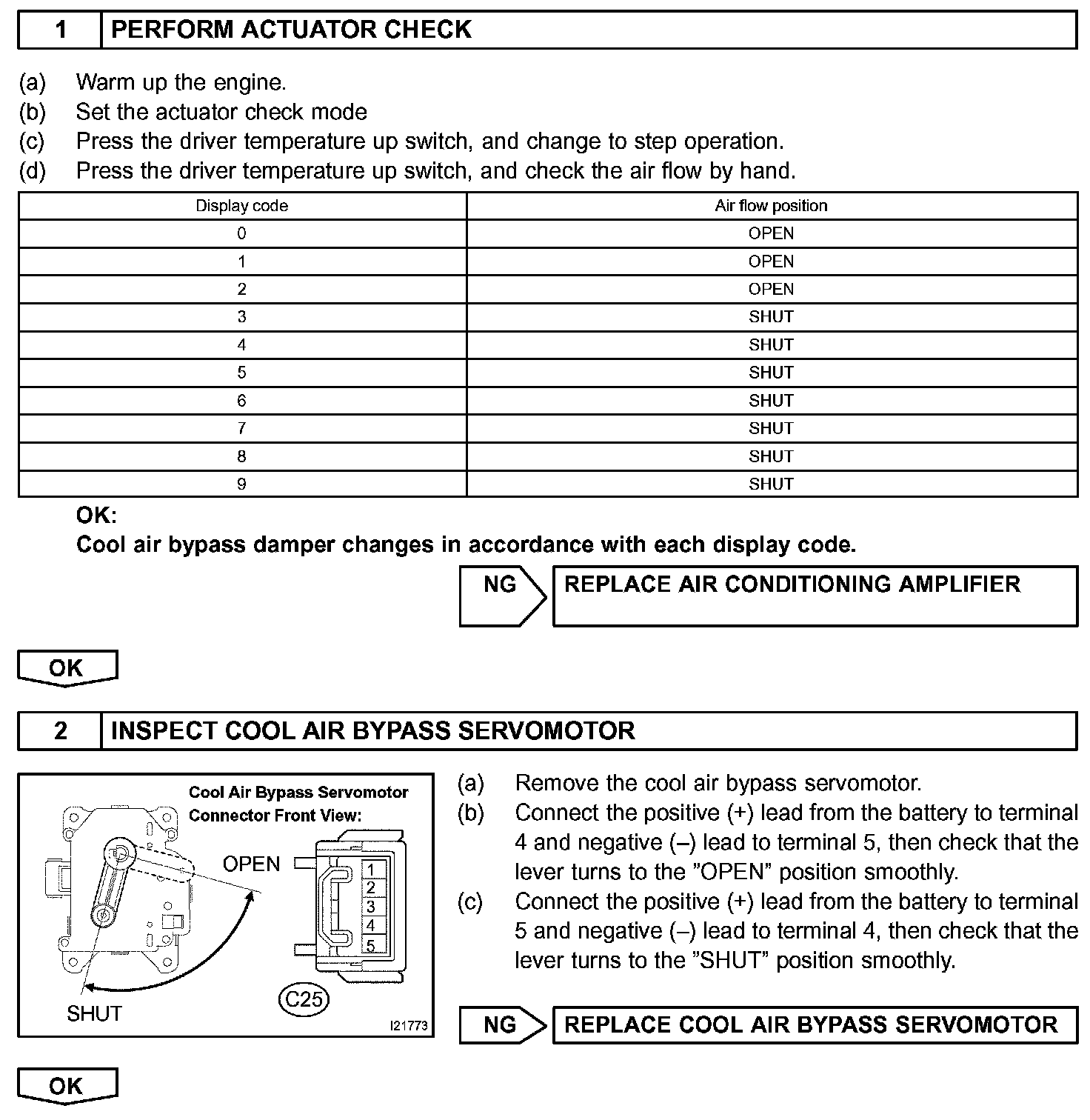

Step 1 - 2:

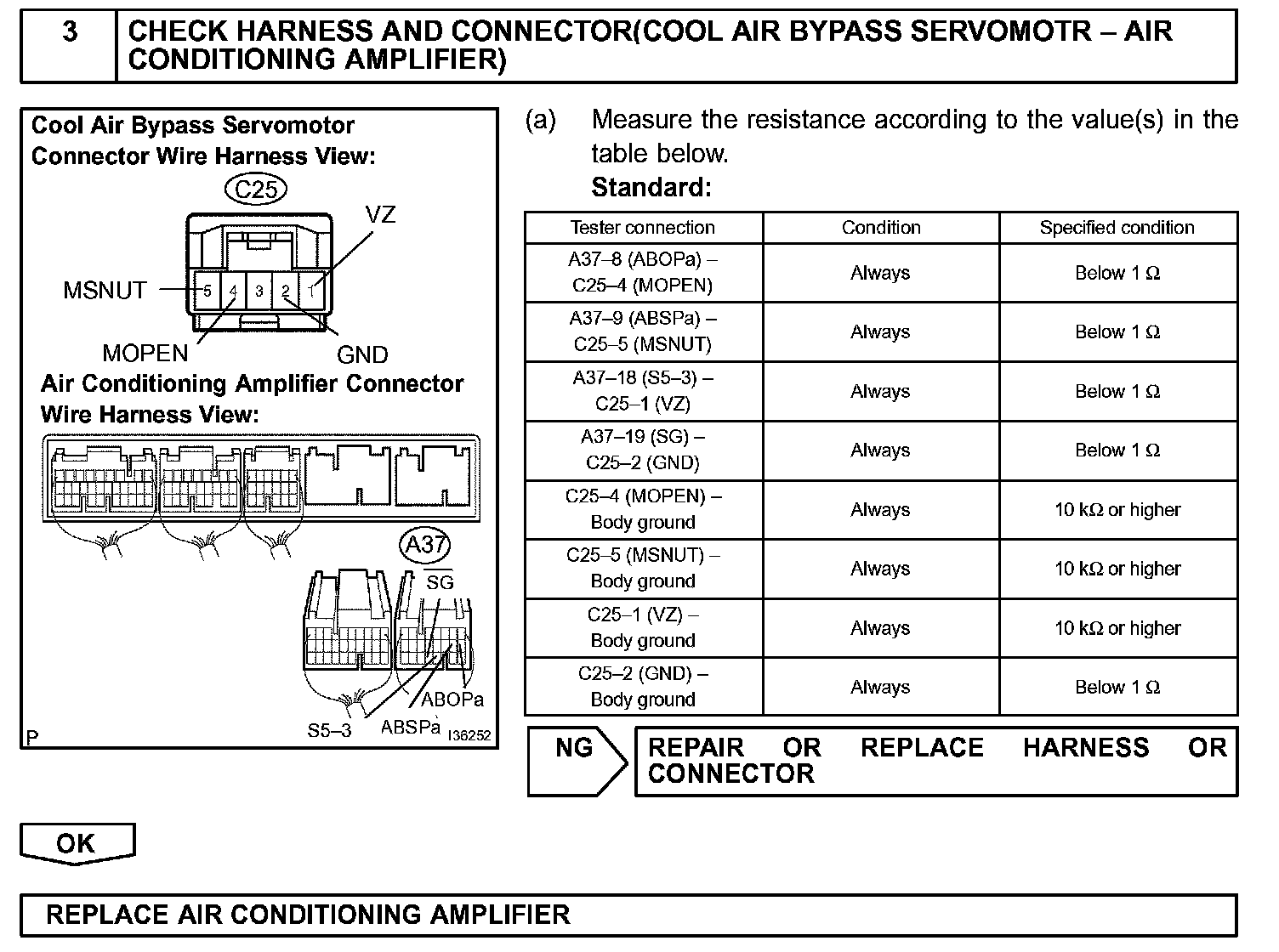

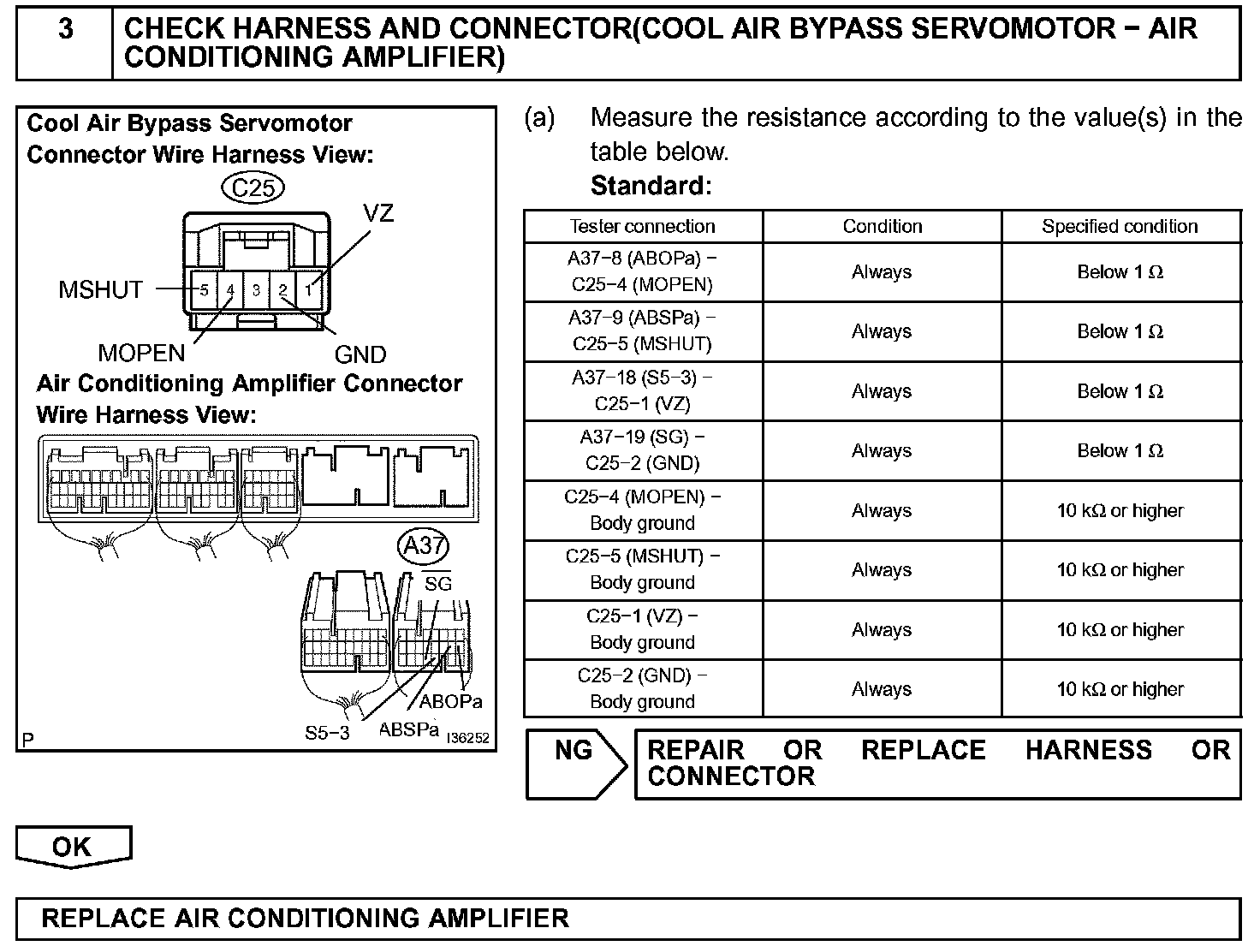

Step 3:
INSPECTION PROCEDURE
