Cool Air Bypass Damper Control Servomotor Circuit (Driver Side)

COOL AIR BYPASS DAMPER CONTROL SERVOMOTOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

The cool air bypass damper control servomotor is controlled by the A/C amplifier and moves the cool air bypass damper to the desired position.

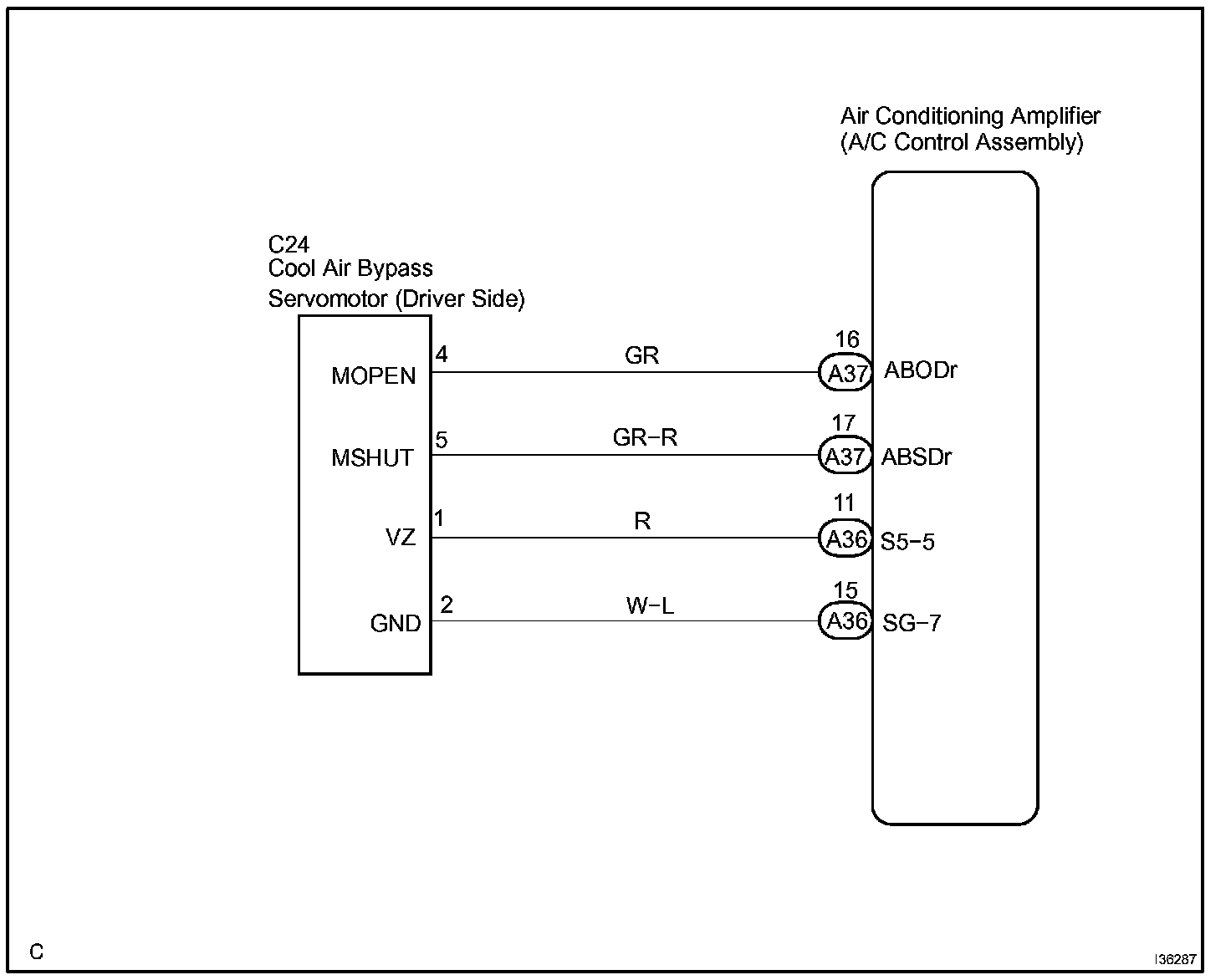

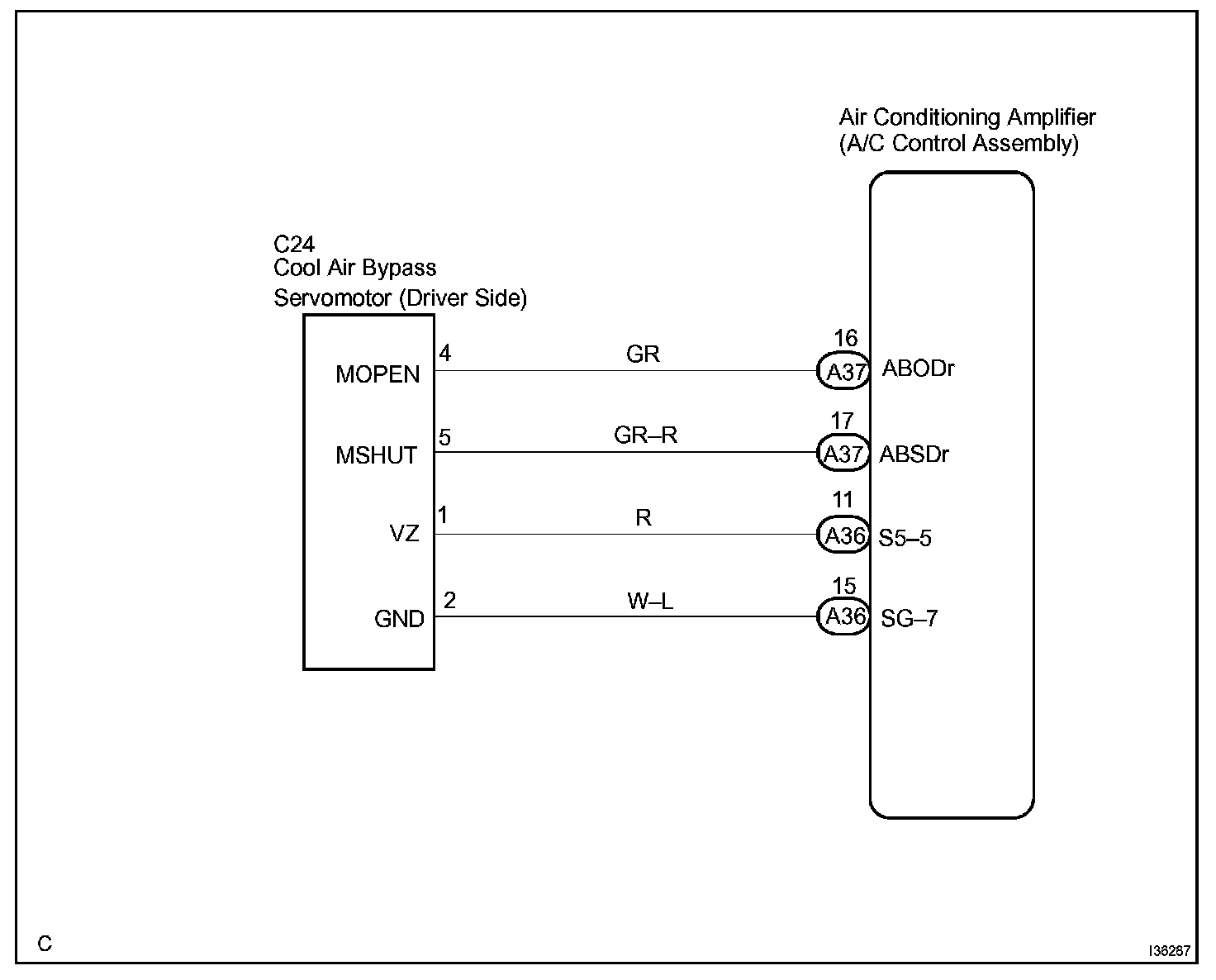

Wiring Diagram:

Step 1 - 2:

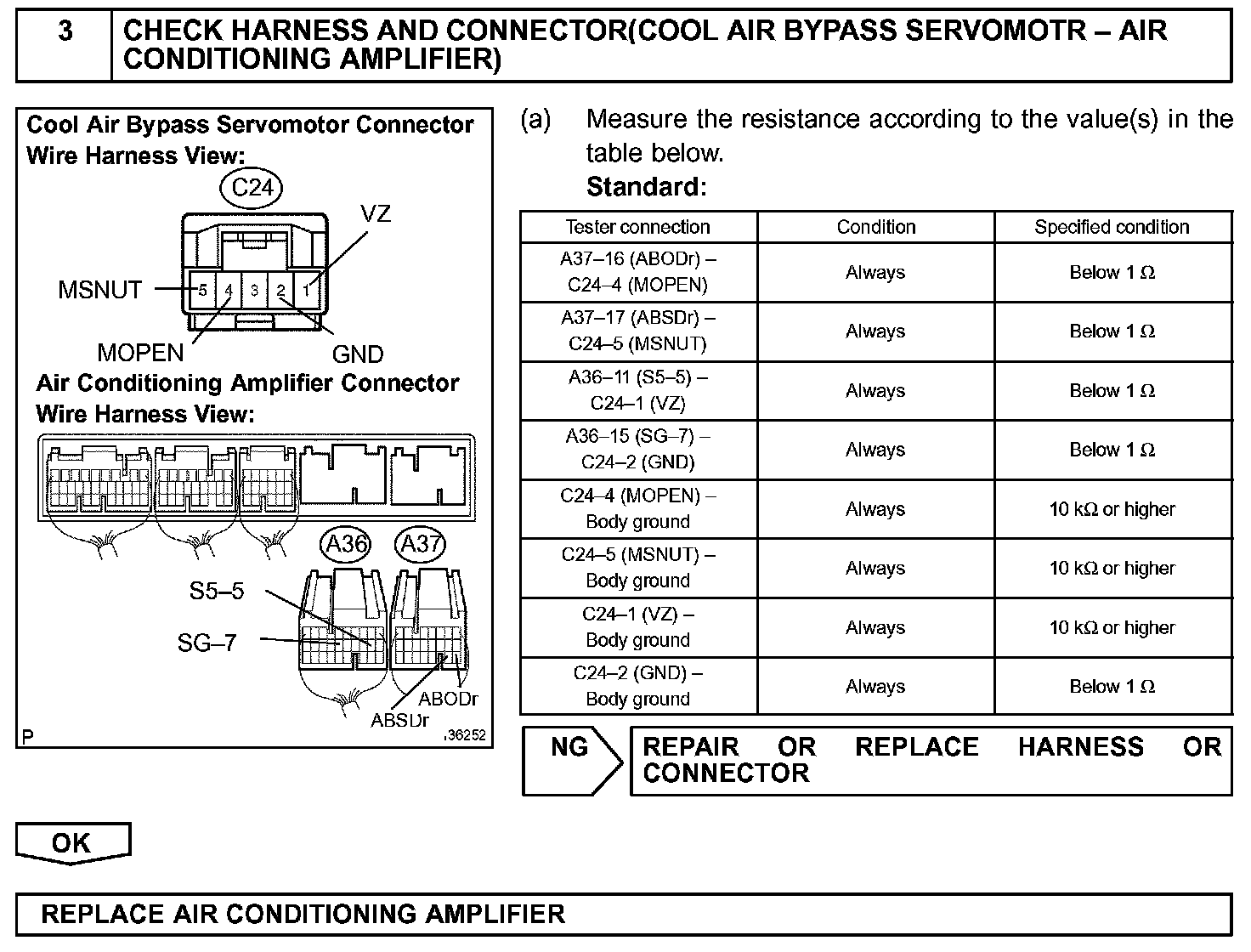

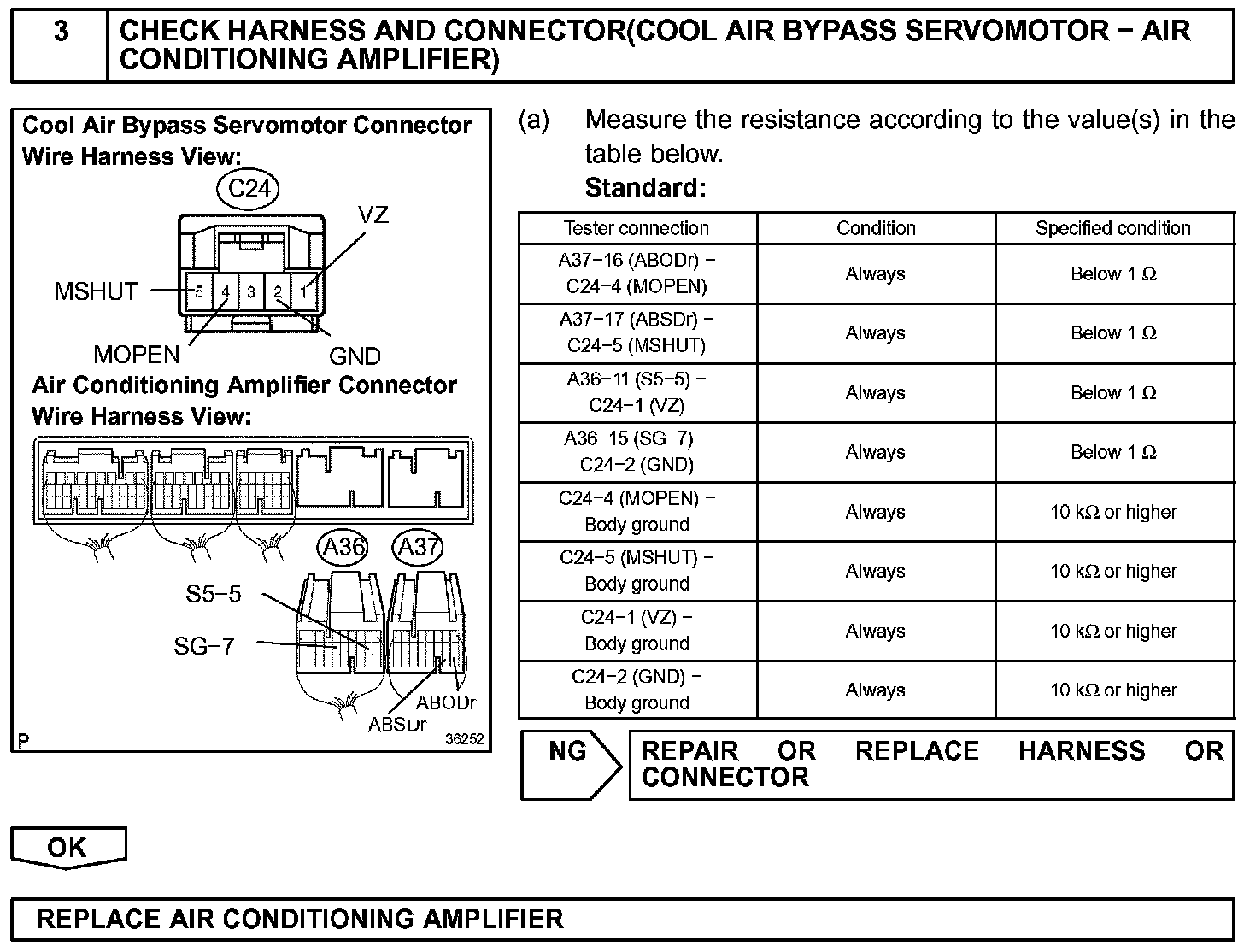

Step 3:

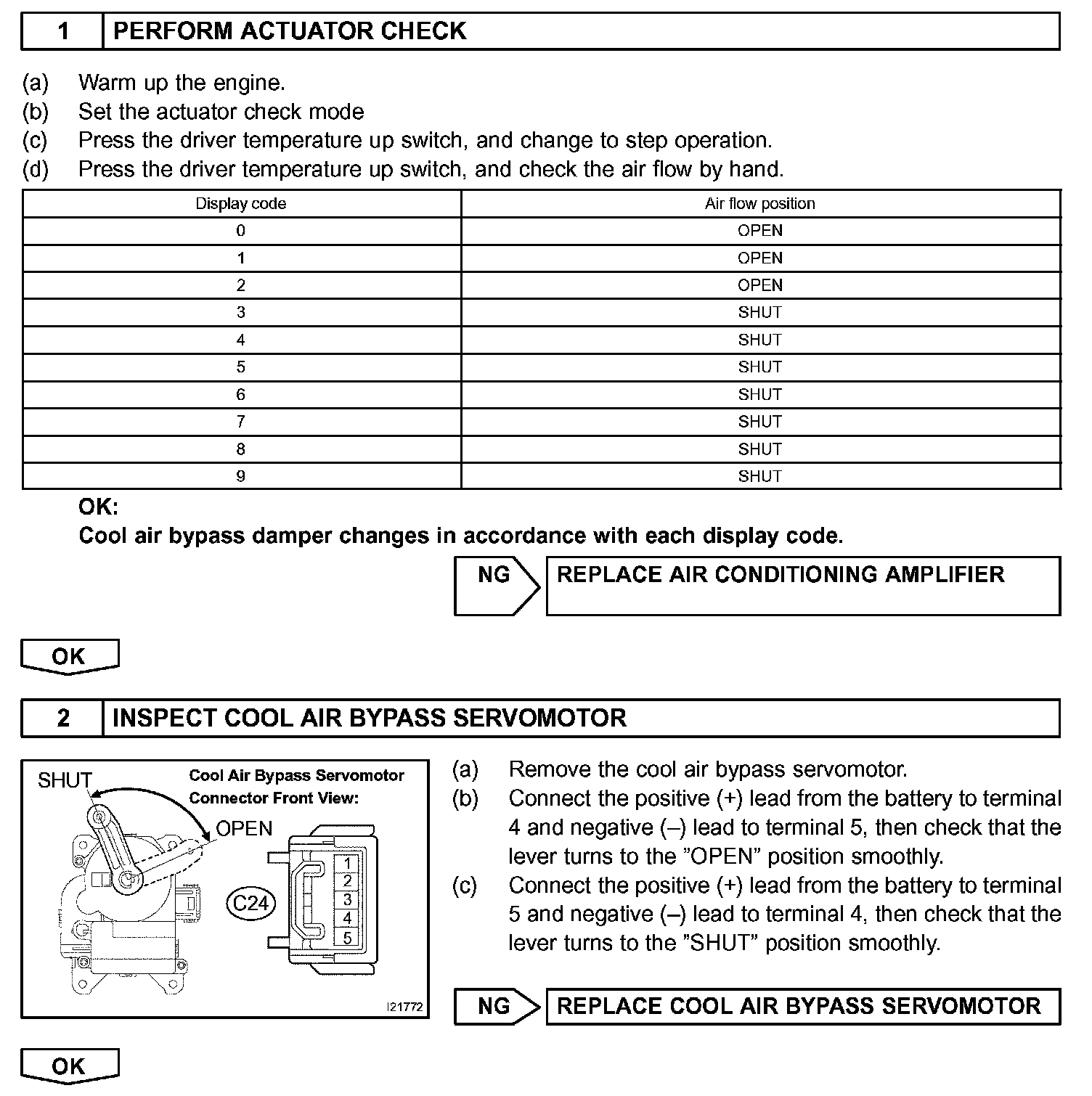

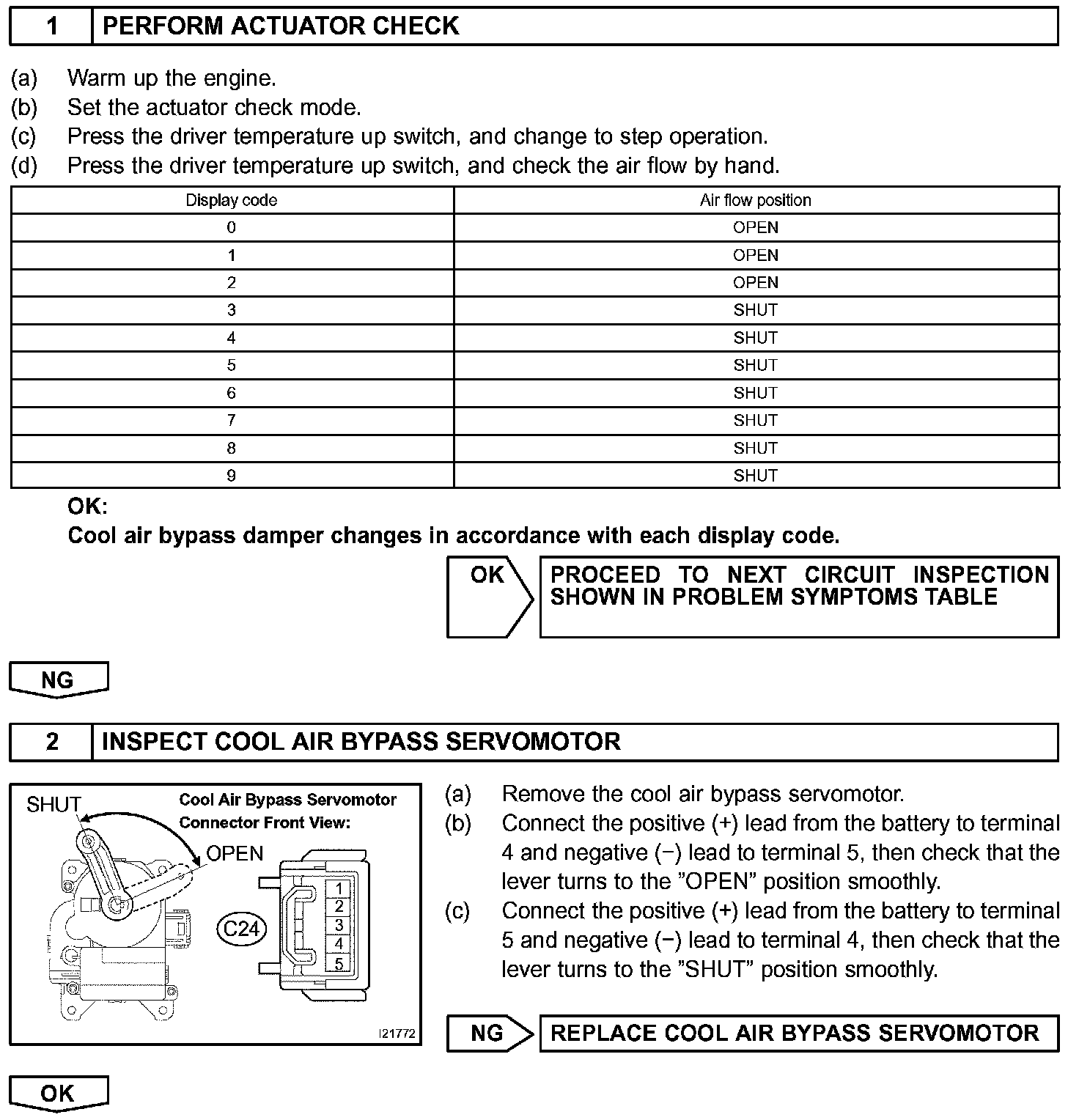

INSPECTION PROCEDURE
