Air Mix Damper Control Servomotor Circuit

AIR MIX DAMPER CONTROL SERVOMOTOR CIRCUIT

CIRCUIT DESCRIPTION

This servomotor is controlled by the A/C amplifier. Air flow temperature changes when moving the air mix damper to the target point. The target point can be detected with the air mix damper position sensor.

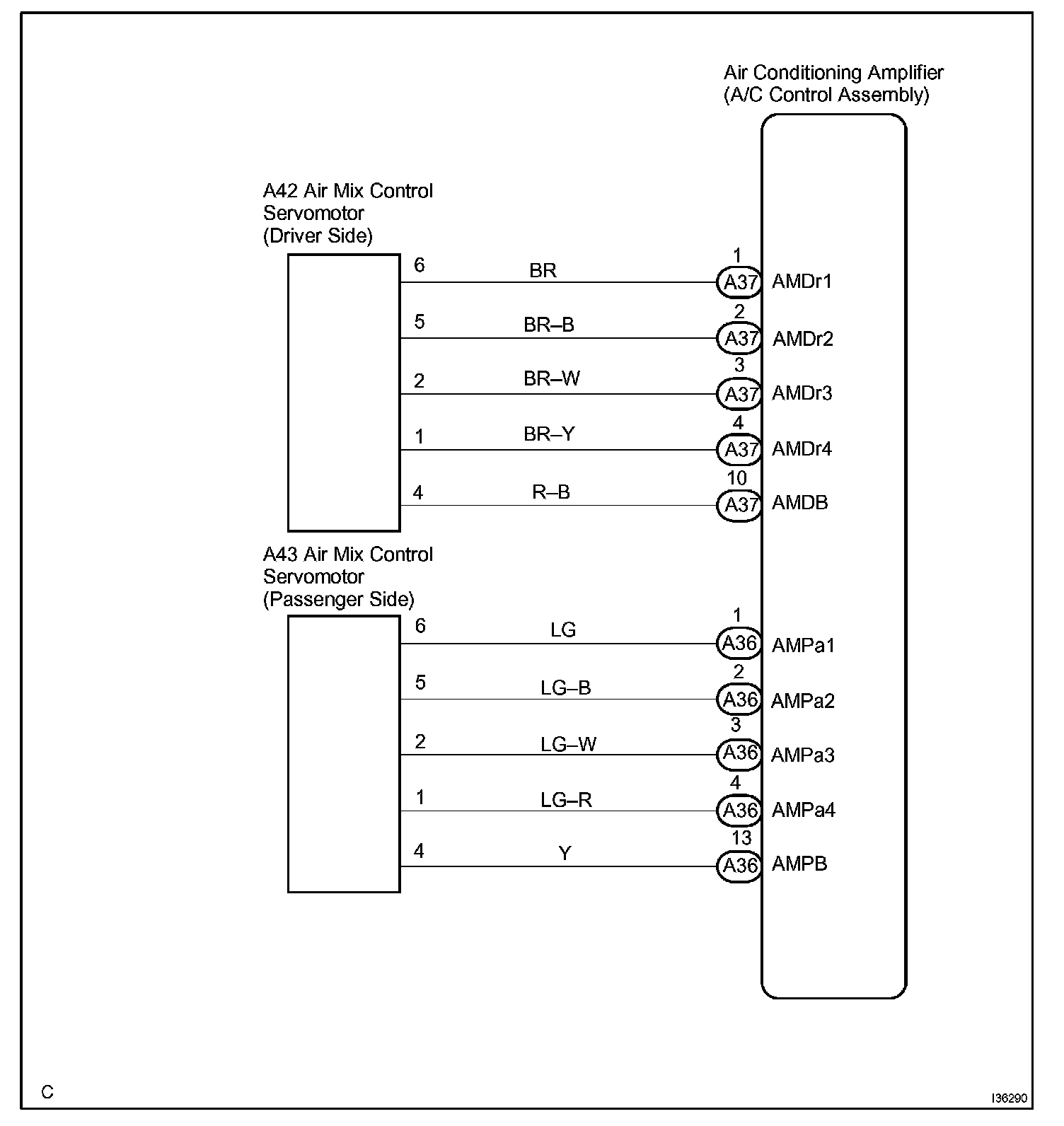

Wiring Diagram:

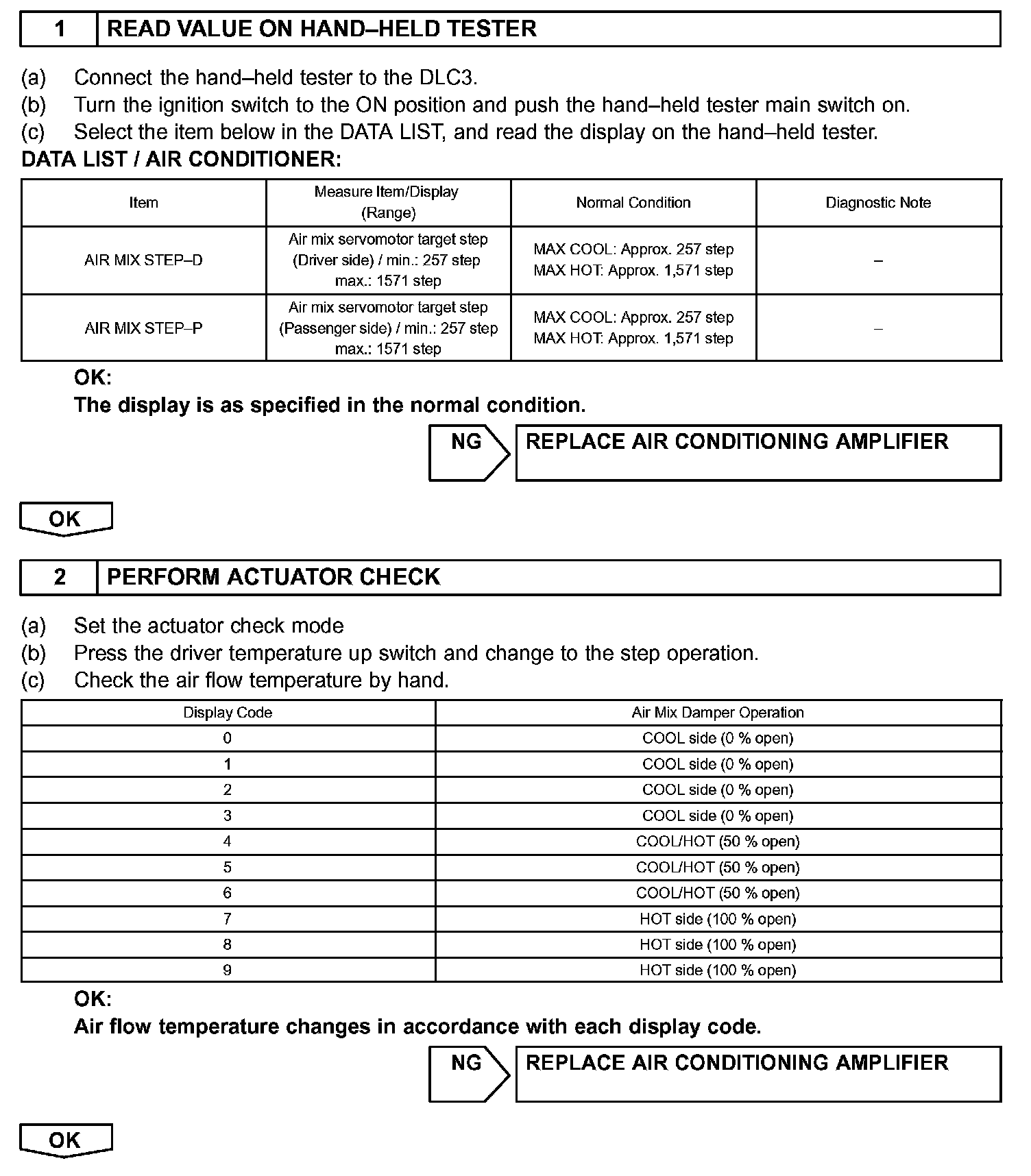

Step 1 - 2:

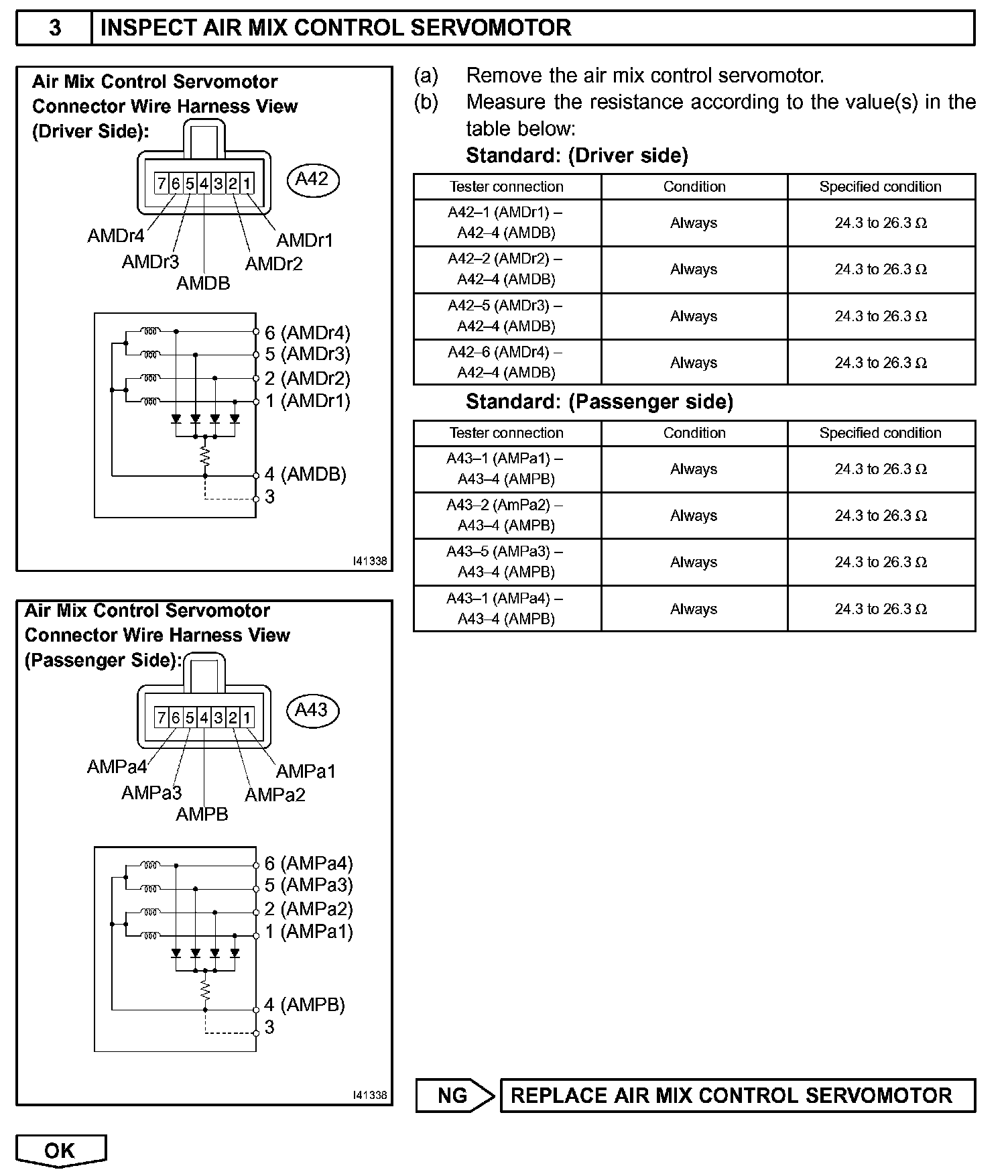

Step 3:

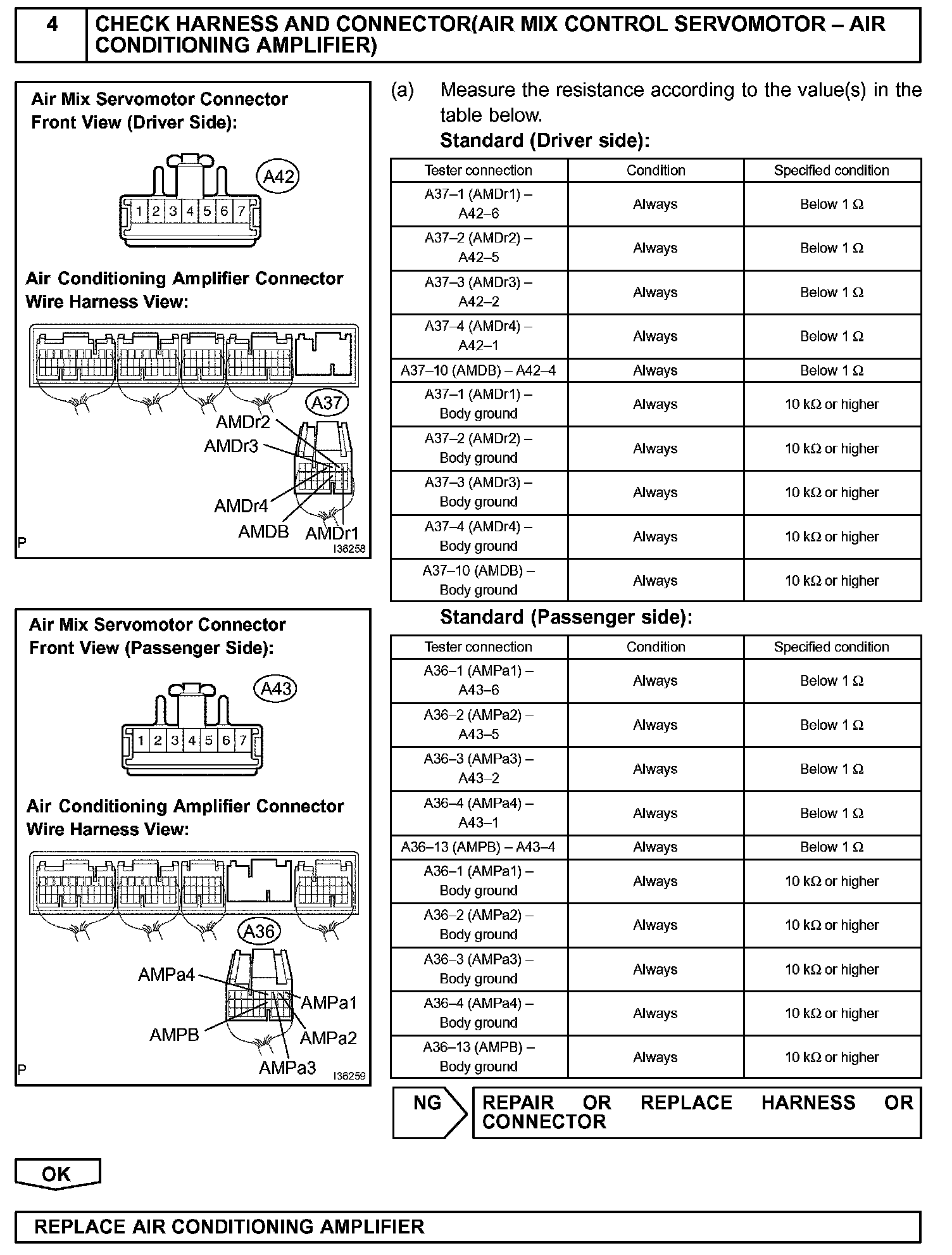

Step 4:

INSPECTION PROCEDURE
