ACC Power Source Circuit

ACC POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This is the power source for the A/C amplifier and servomotors, etc.

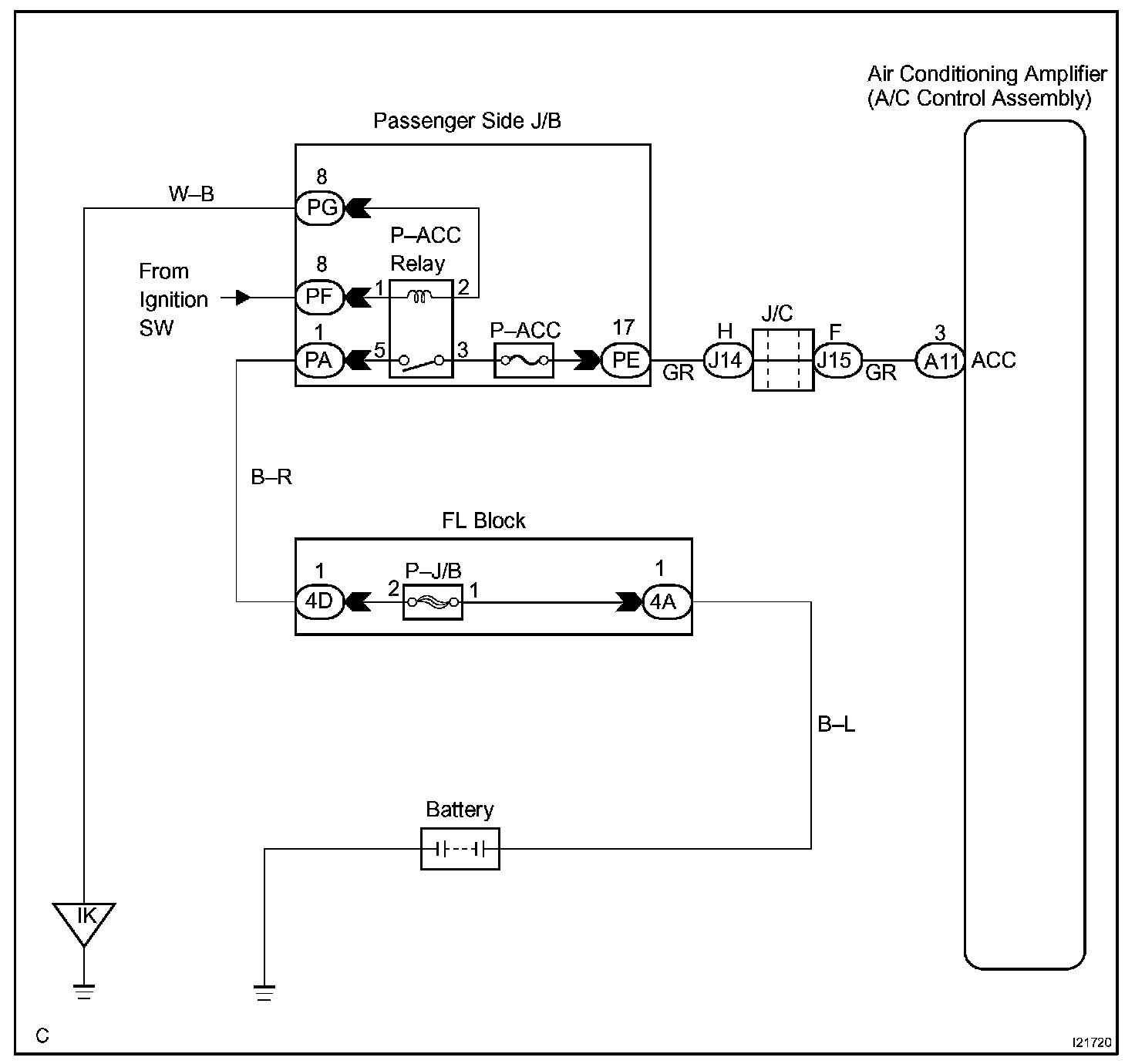

Wiring Diagram:

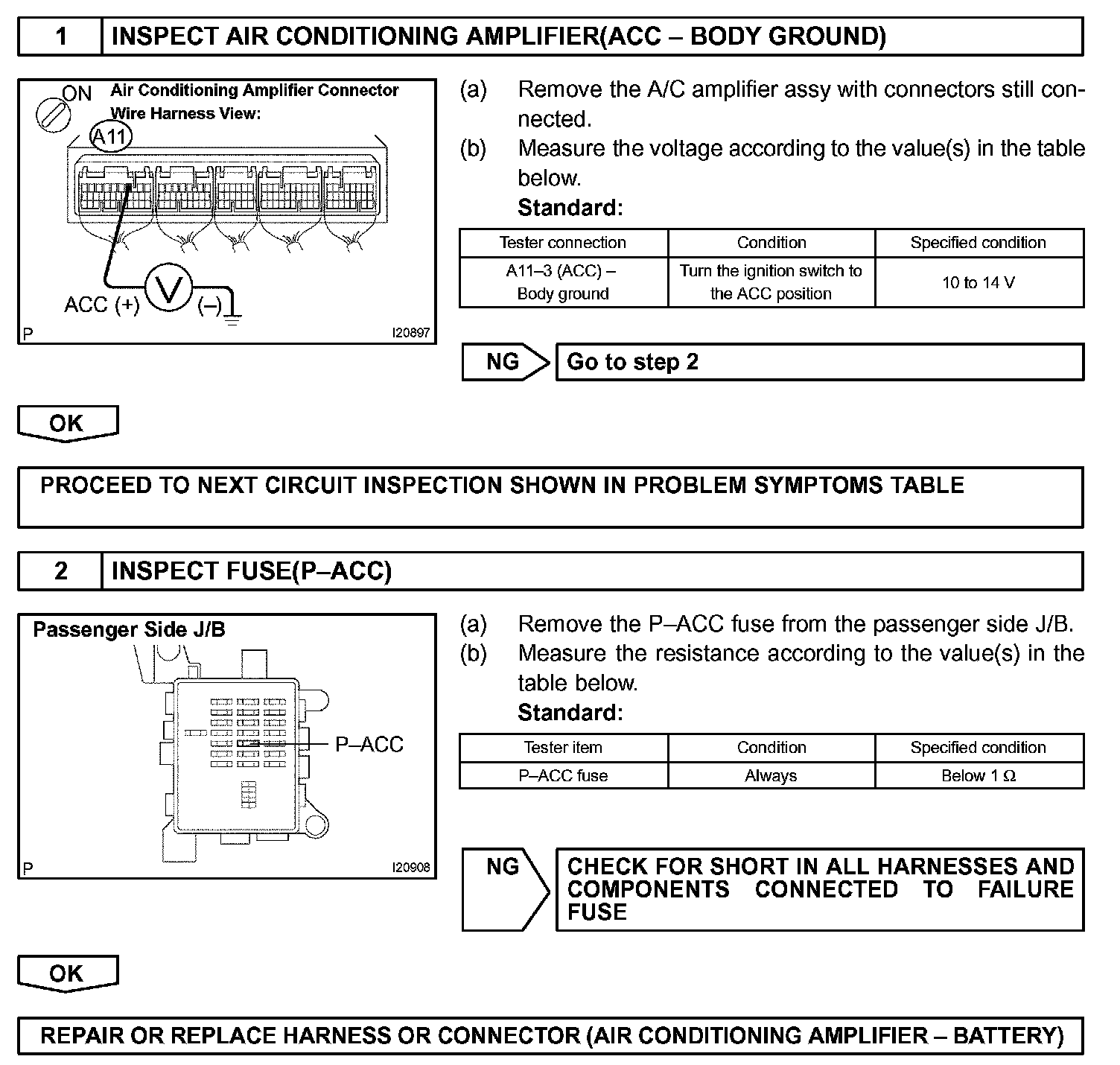

Step 1 - 2:




INSPECTION PROCEDURE
