Dynamic Laser Cruise Control System
TERMINALS OF ECUTerminals Of Control Module / Pinouts:

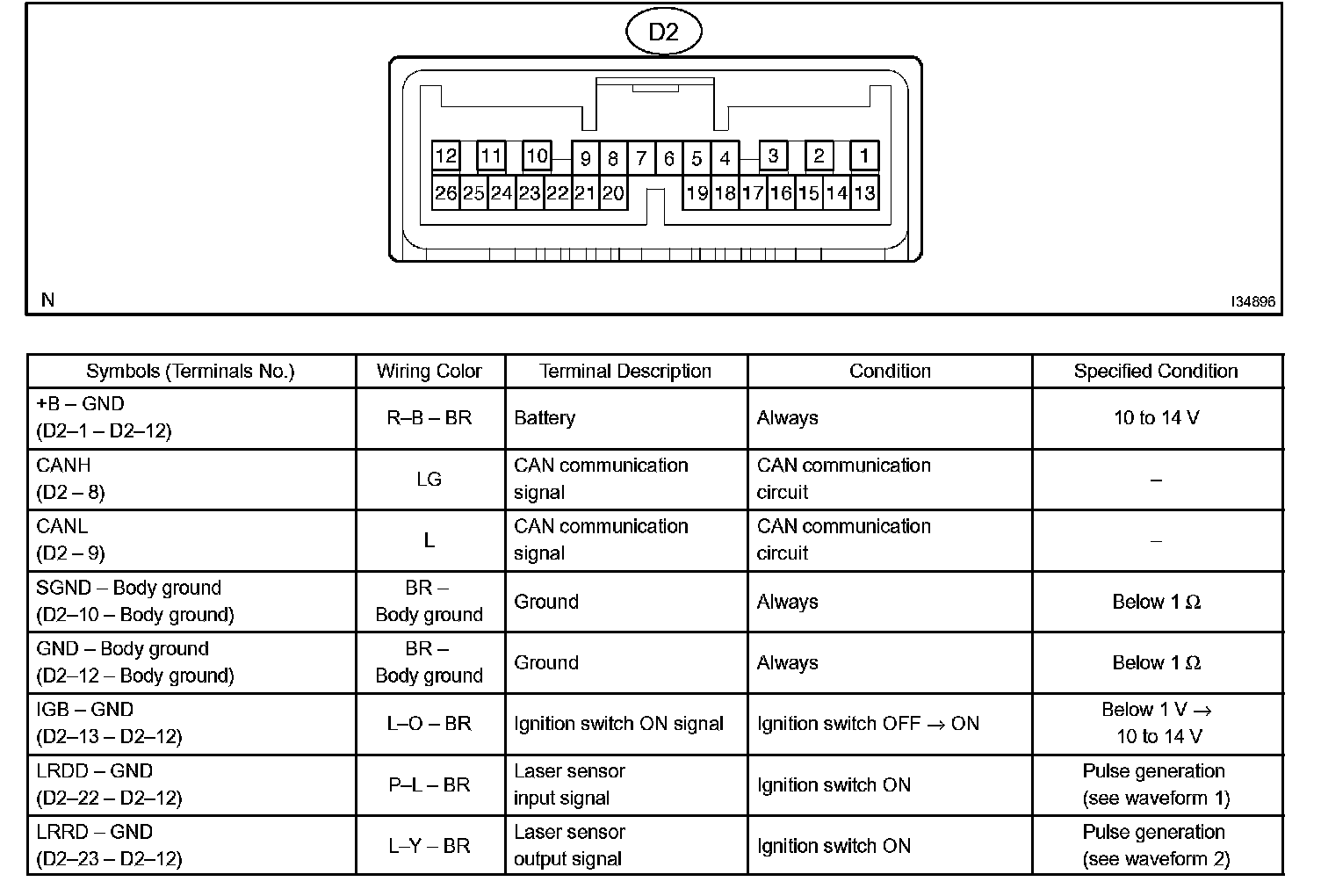

1. DISTANCE CONTROL ECU
Oscilloscope Waveform:
a. Reference: waveform 1
HINT:

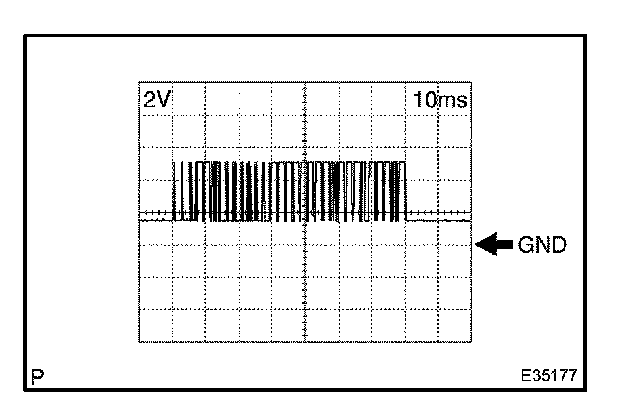

- Terminal: LRDD - GND
- Gauge set: 2 V/DIV, 10 ms/DIV
- Condition: Ignition switch ON
Oscilloscope Waveform:
b. Reference: waveform 2
HINT:

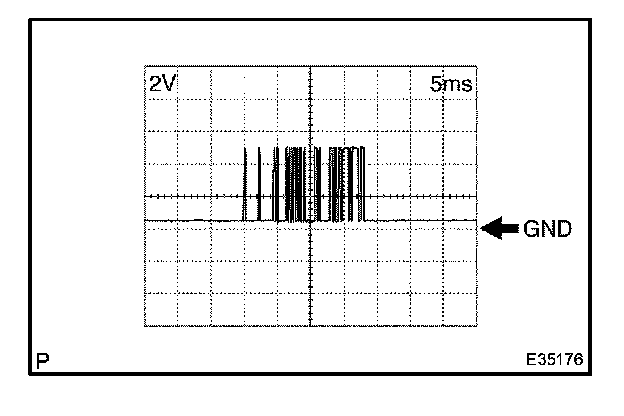

- Terminal: LRRD - GND
- Gauge set: 2 V/DIV, 5 ms/DIV
- Condition: Ignition switch ON
Terminals Of Control Module / Pinouts:

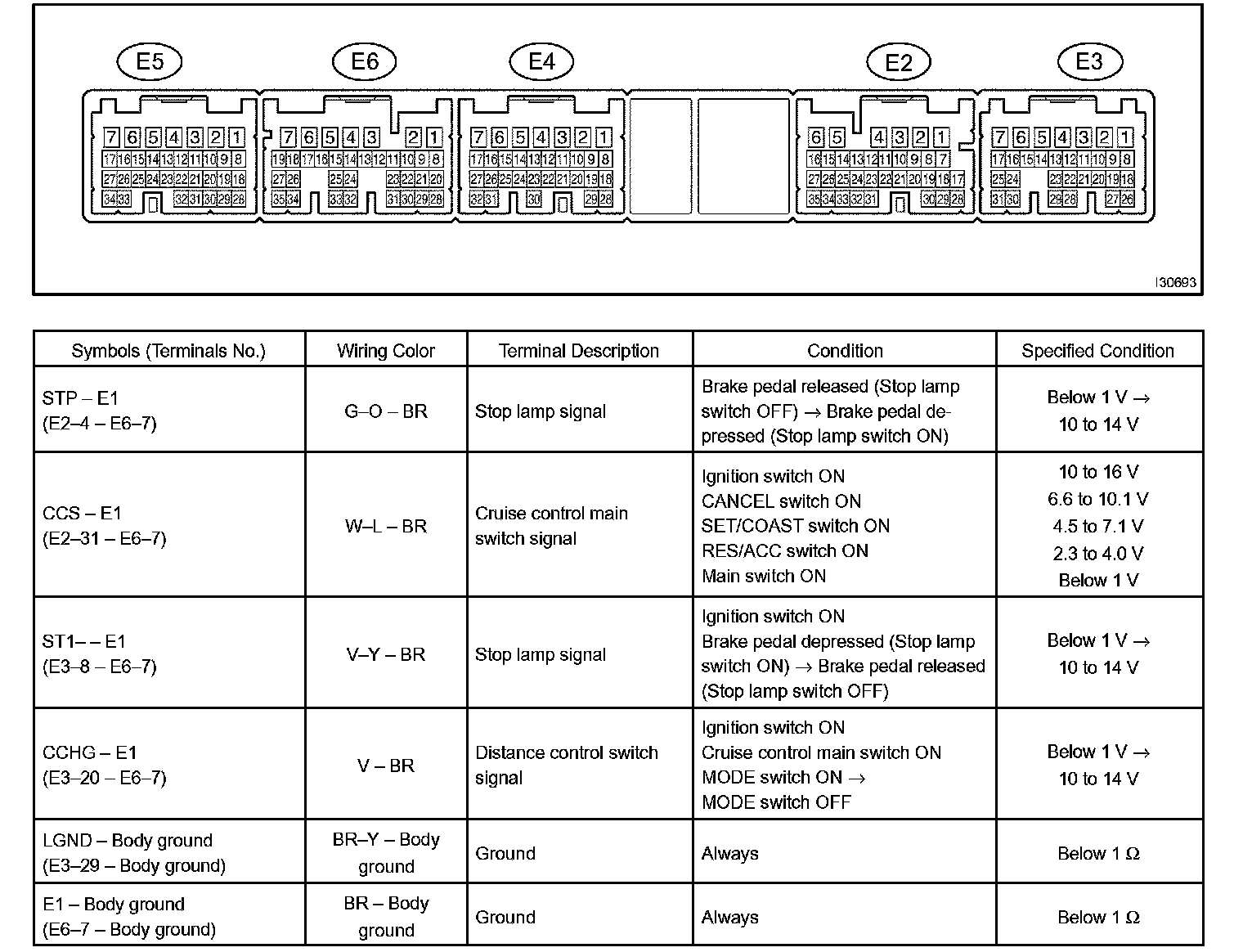

2. ECM
If the value is not within the standard range, some defects on the vehicle are suspected.
Terminals Of Control Module / Pinouts:

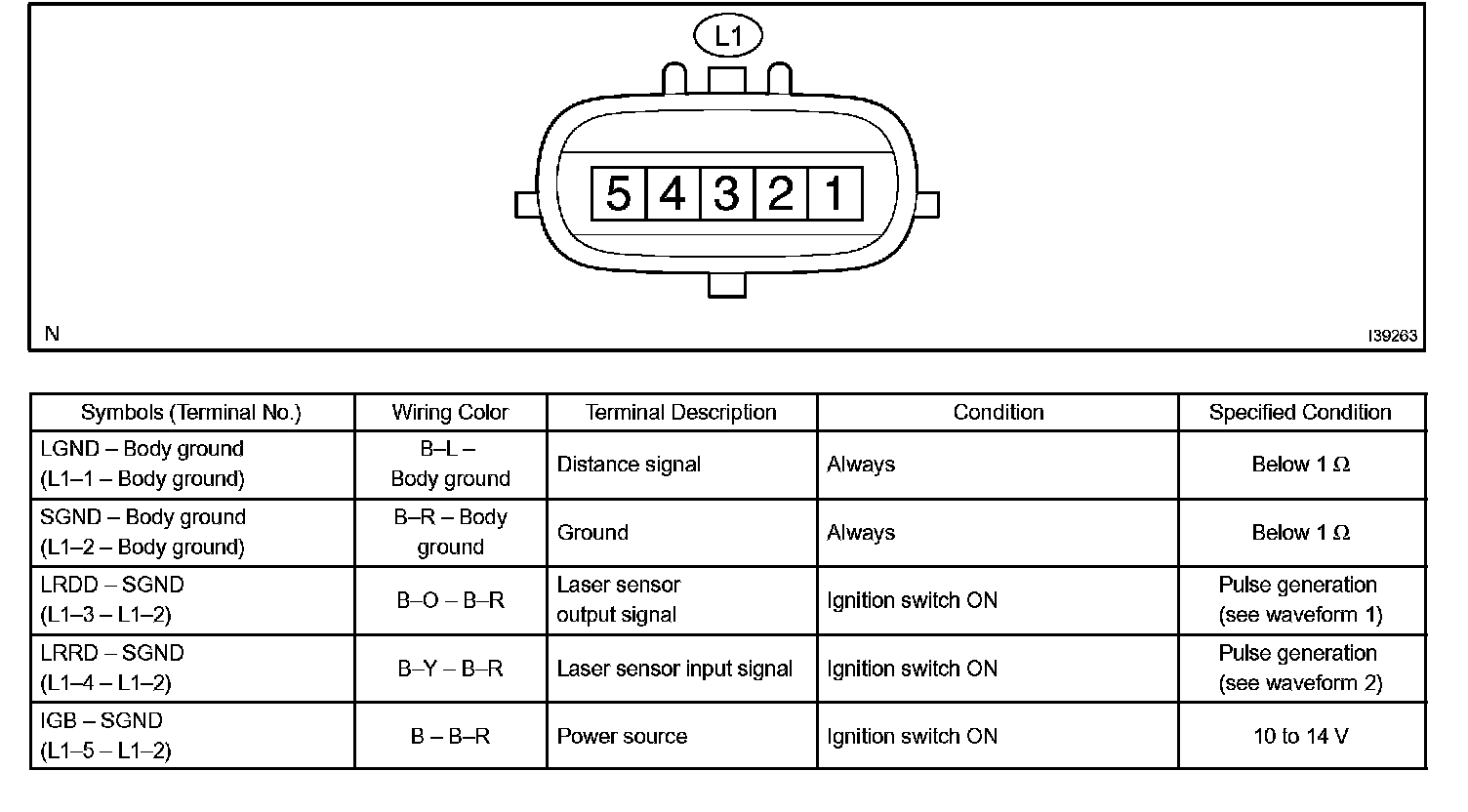

3. LASER SENSOR
Oscilloscope Waveform:
a. Reference: waveform 1
HINT:

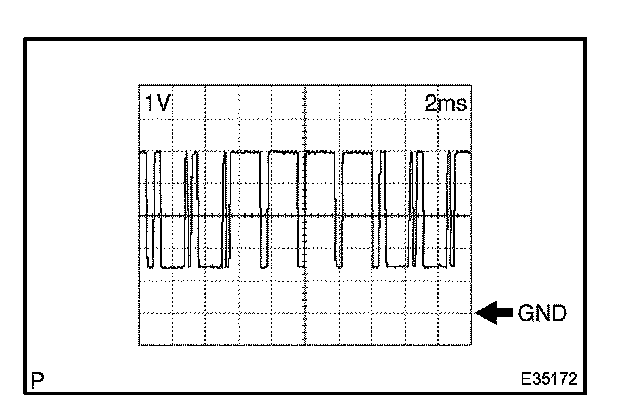

- Terminal: LRDD - SGND
- Gauge set: 1 V/DIV, 2 ms/DIV
- Condition: Ignition switch ON
Oscilloscope Waveform:
b. Reference: waveform 2
HINT:

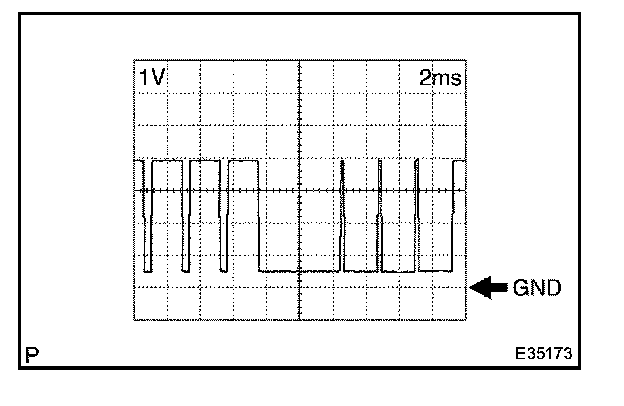

- Terminal: LRRD - SGND
- Gauge set: 1 V/DIV, 2 ms/DIV
- Condition: Ignition switch ON
