System Description

DIAGNOSIS SYSTEM

1. DIAGNOSIS FUNCTION

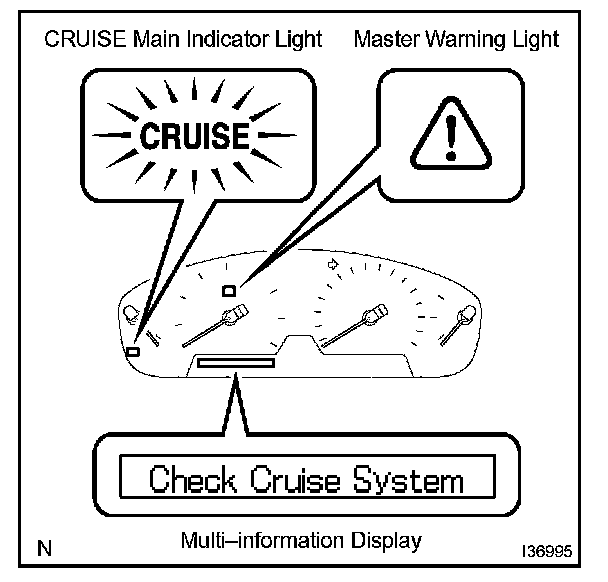

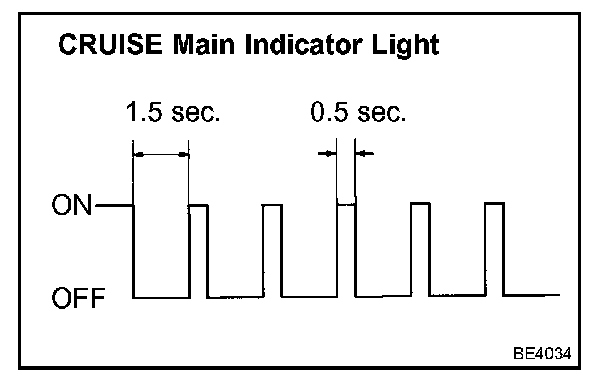

The diagnosis function makes the master warning light and the multi-information display come on, and the CRUISE main indicator light blinks as shown in the illustration. When a malfunction occurs in the dynamic laser cruise control system, the DTCs are stored in the ECM.

NOTE:
- The master warning light goes off if the system returns to normal condition.
- Since the stored data in the ECM is erased by disconnecting the EFI No.1 fuse or the battery terminal, do not disconnect them until the inspection has been completed.

2. DESCRIPTION




The ECM controls the dynamic laser cruise control system of the vehicle. The data and DTCs relating to the dynamic laser cruise control system can be read from the DLC3 of the vehicle. If either DTC or CRUISE OK is not displayed in the multi-information display on the combination meter when checking for DTCs, there may be a problem with the combination meter or the CAN communication and multiplex communication system.

Use the hand-held tester to check and solve the problem.
