Dynamic Radar/Laser Cruise Control System

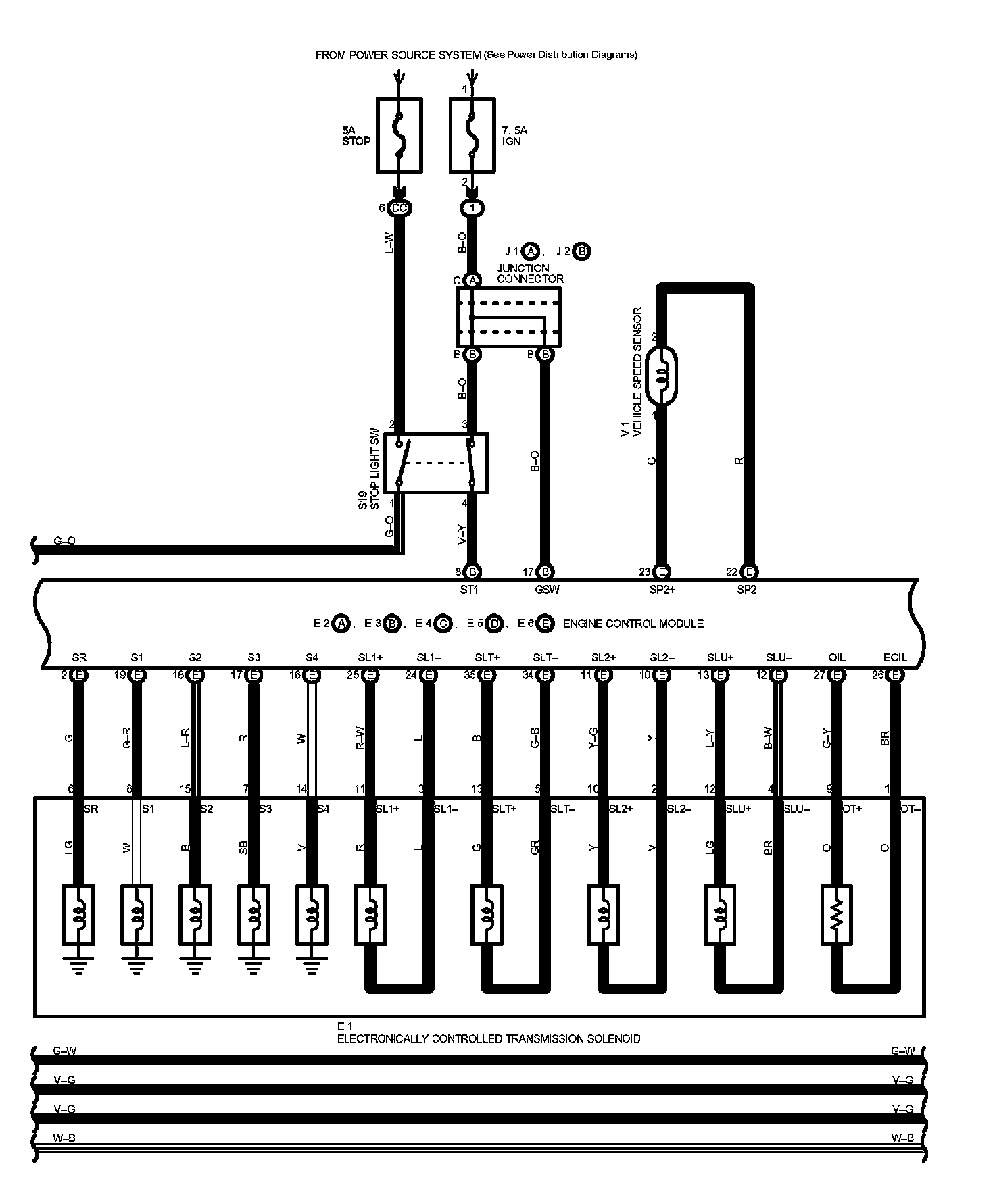

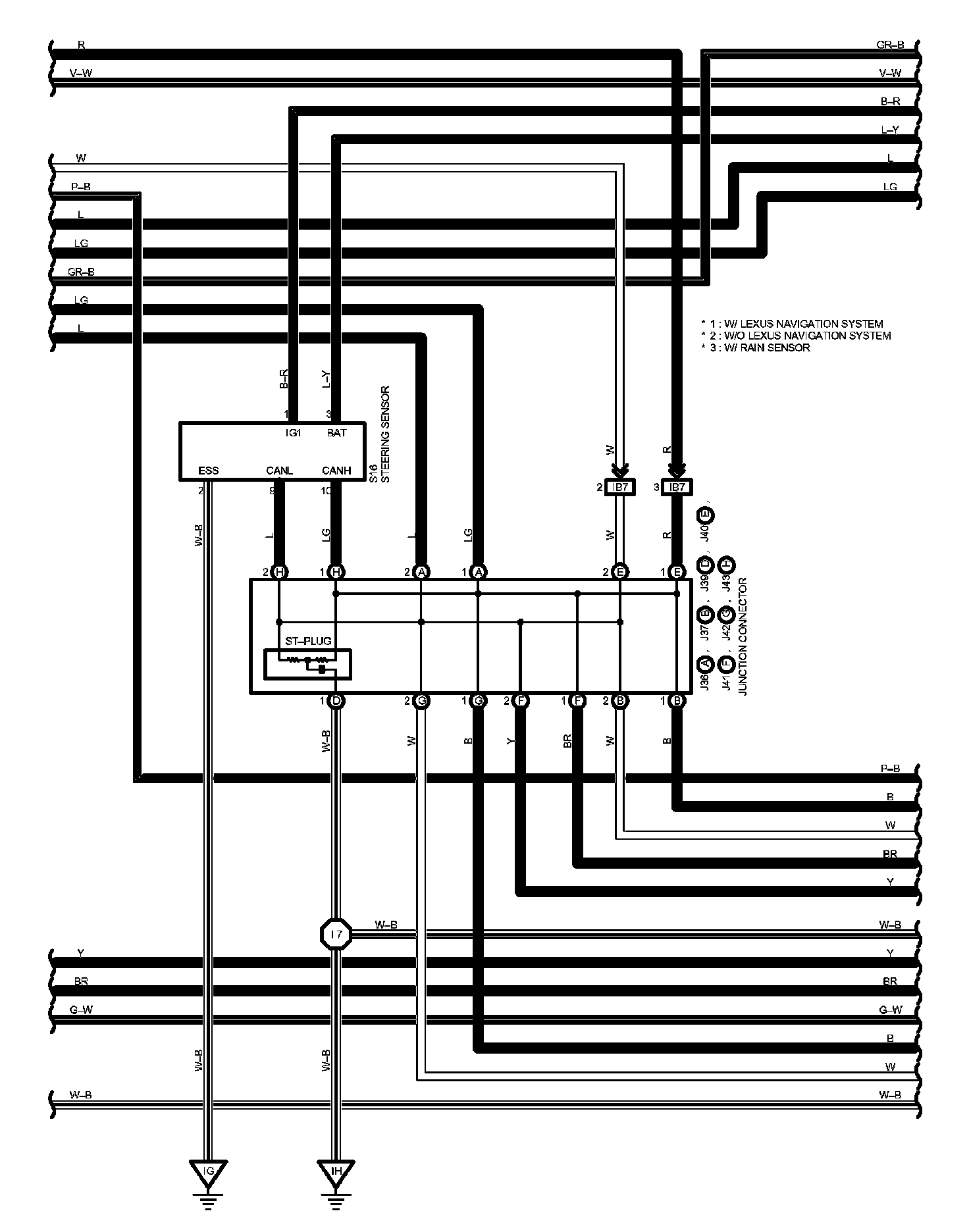

Dynamic Radar/Laser Cruise Control System Part 1:

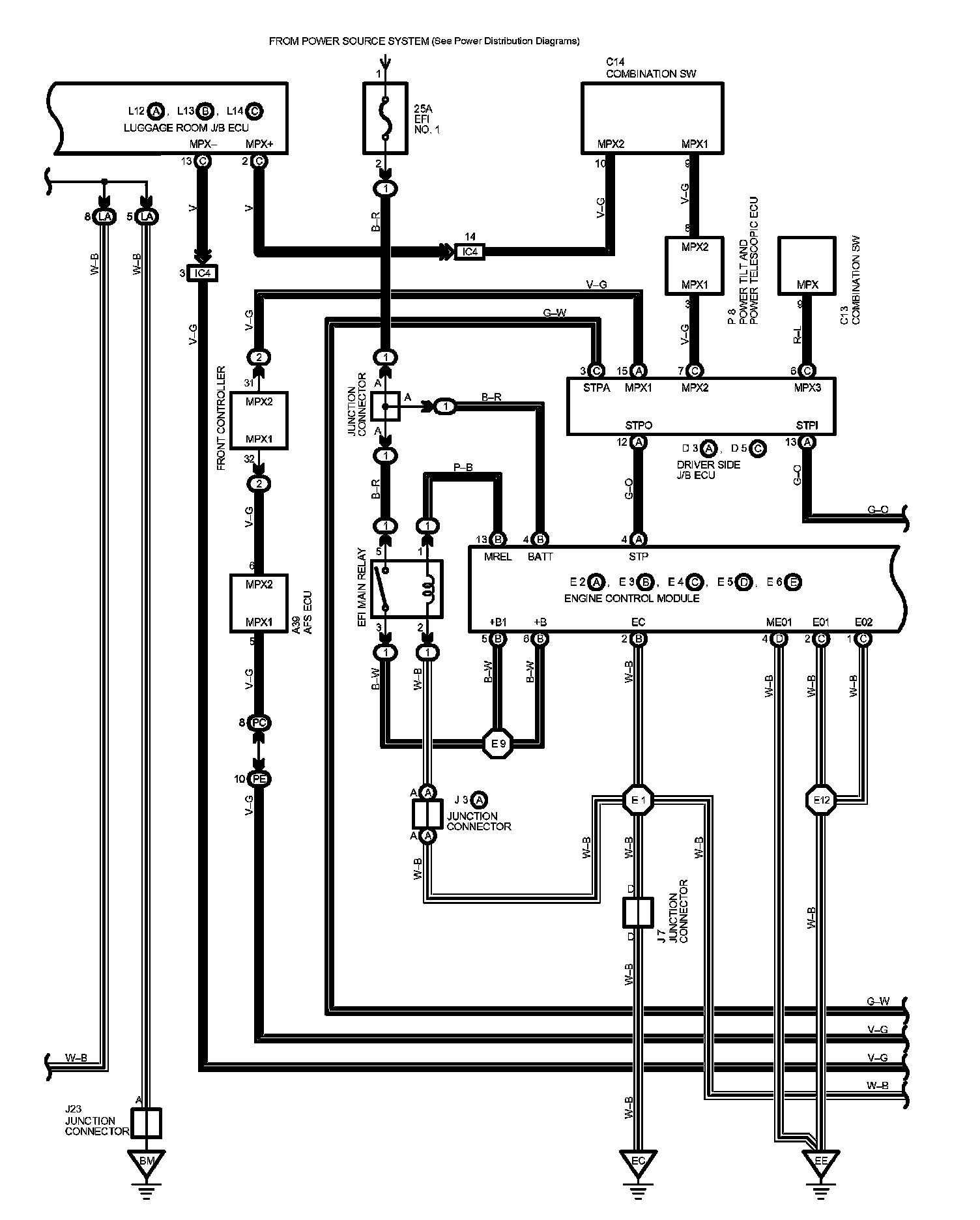

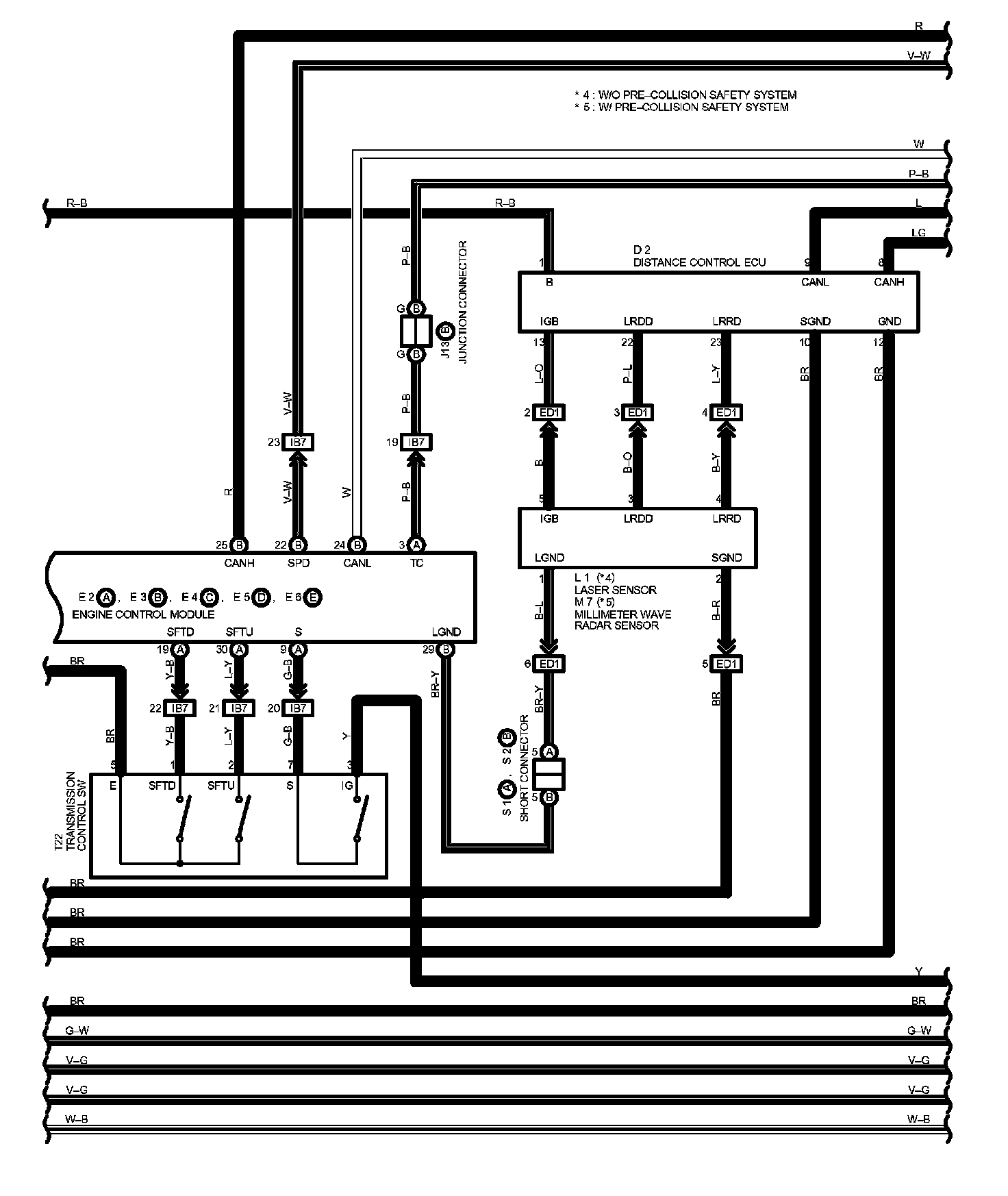

Dynamic Radar/Laser Cruise Control System Part 2:

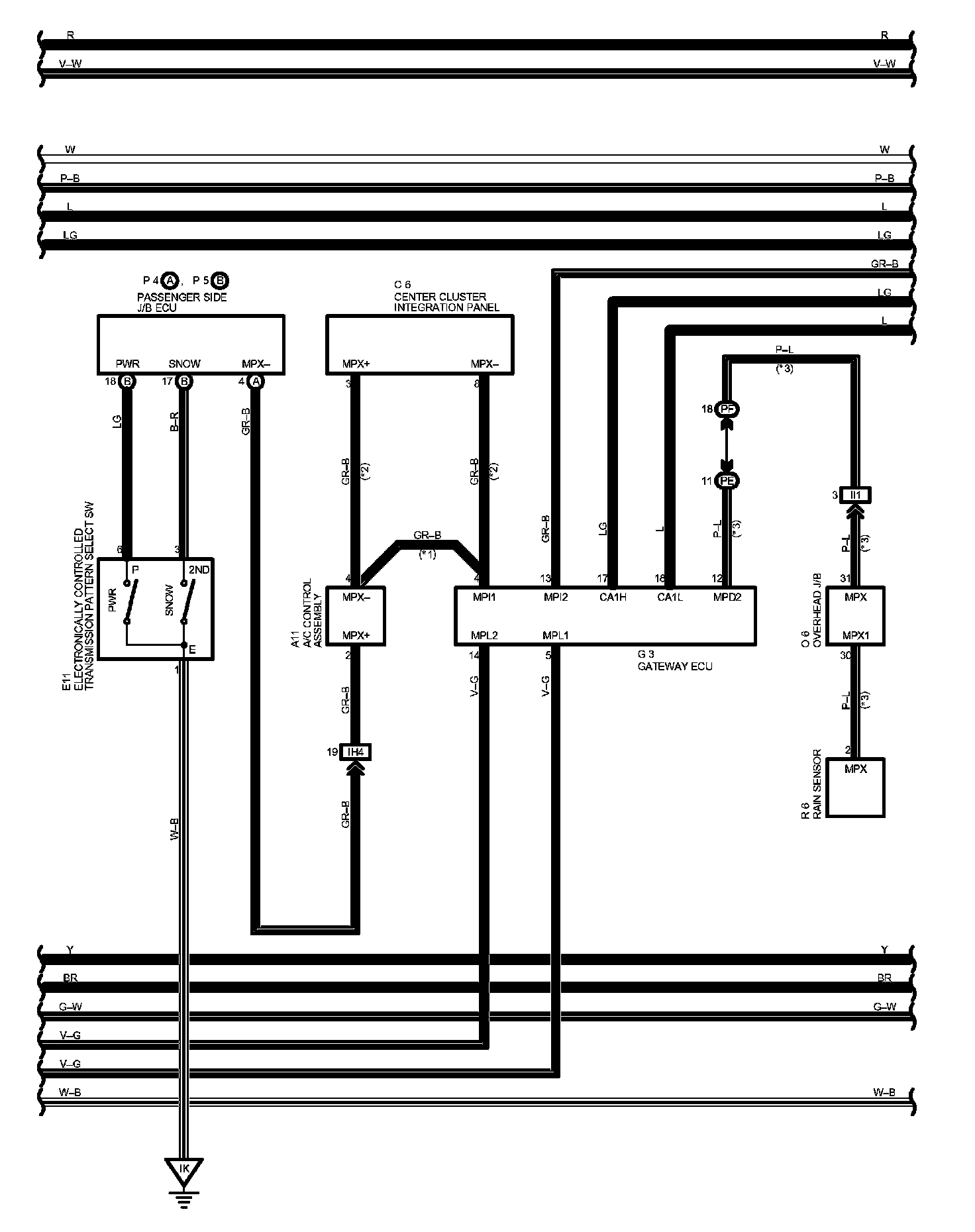

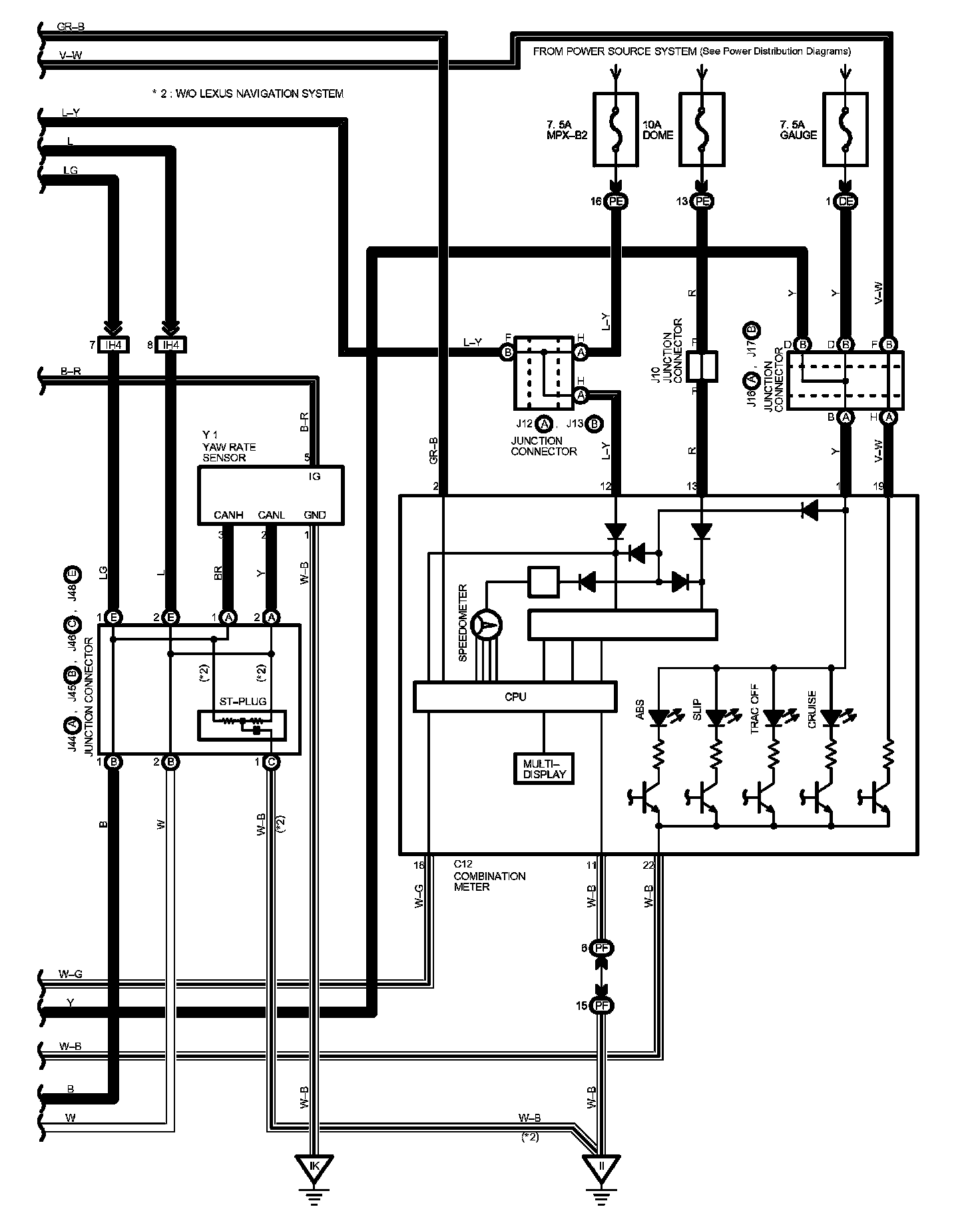

Dynamic Radar/Laser Cruise Control System Part 3:

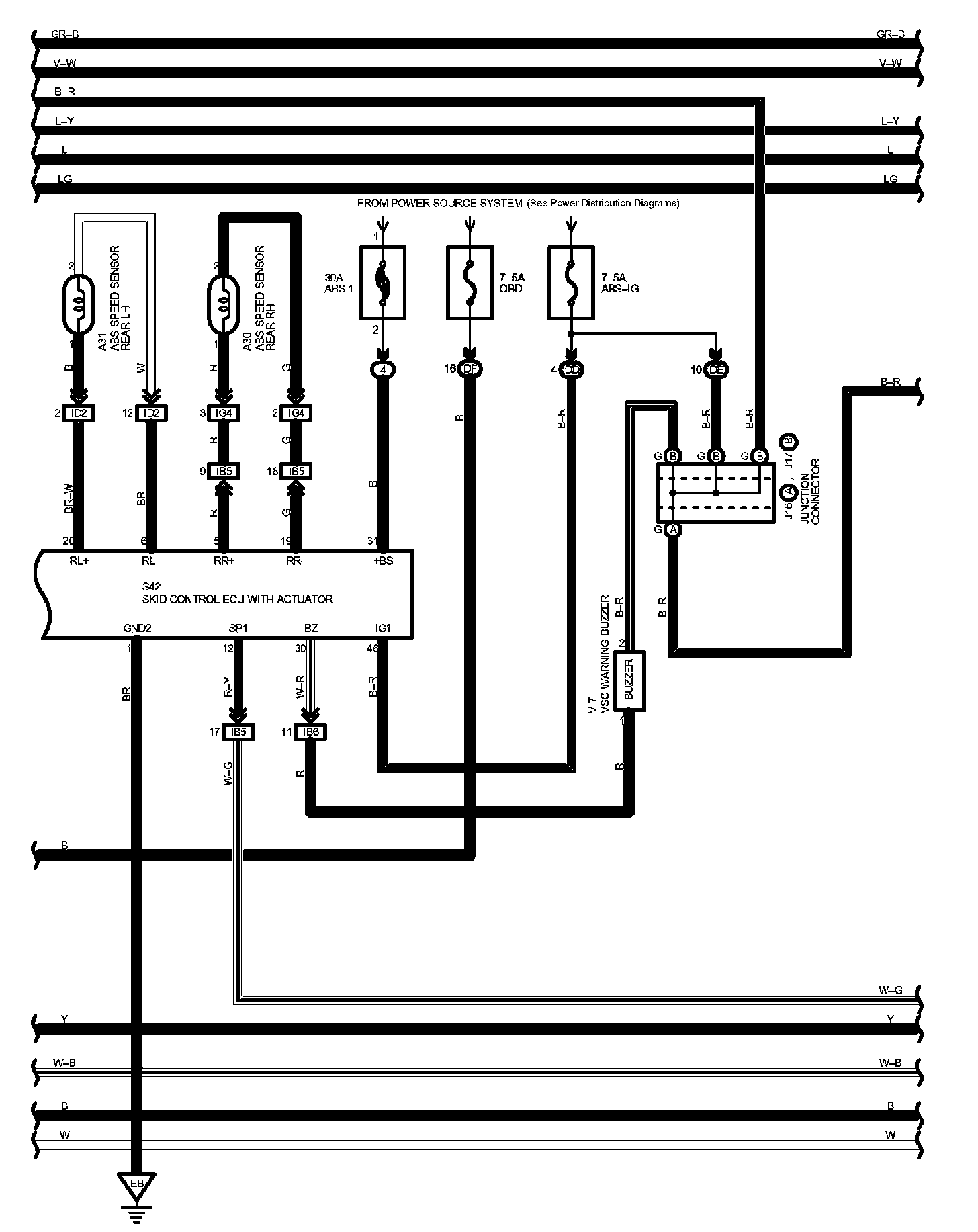

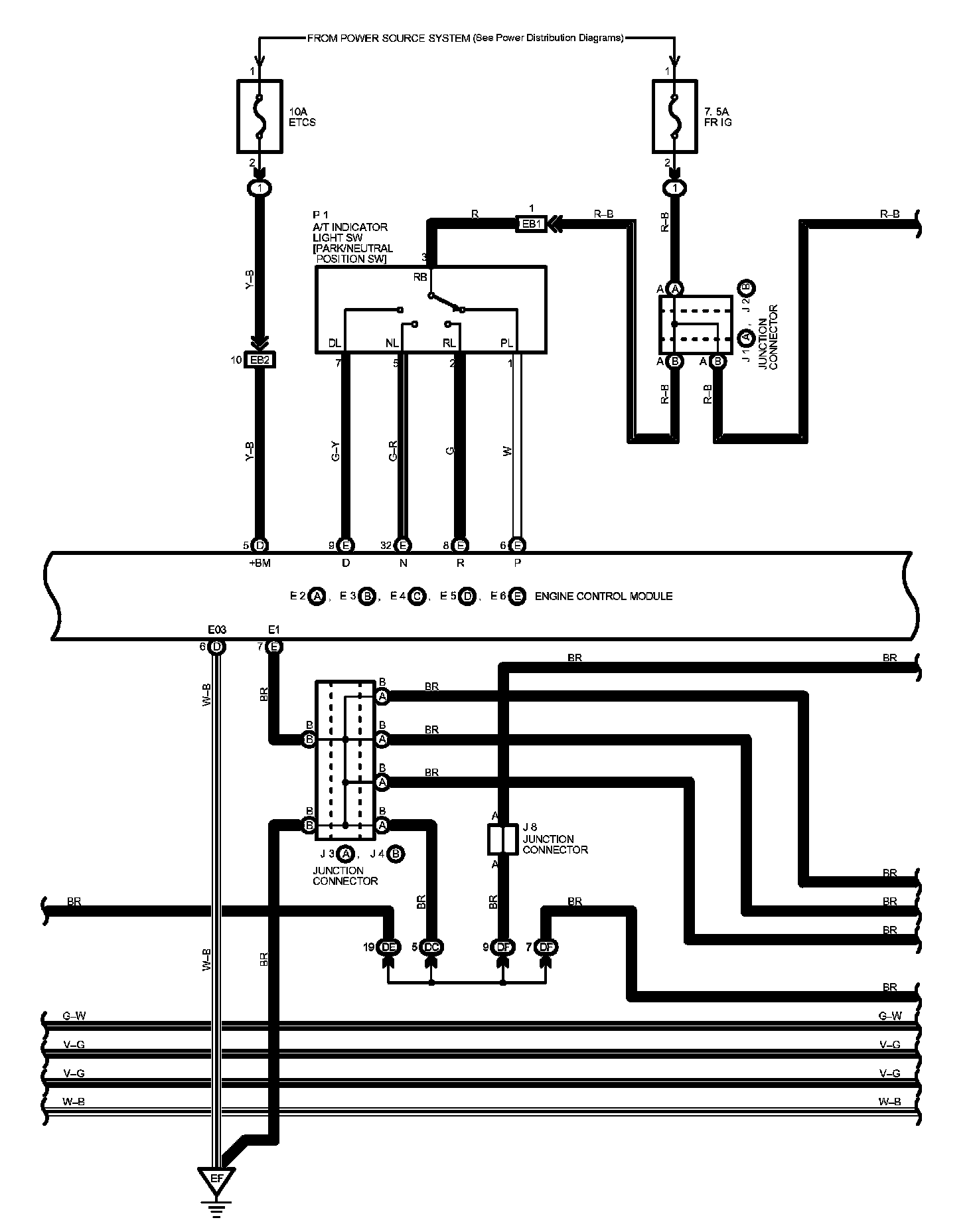

Dynamic Radar/Laser Cruise Control System Part 4:

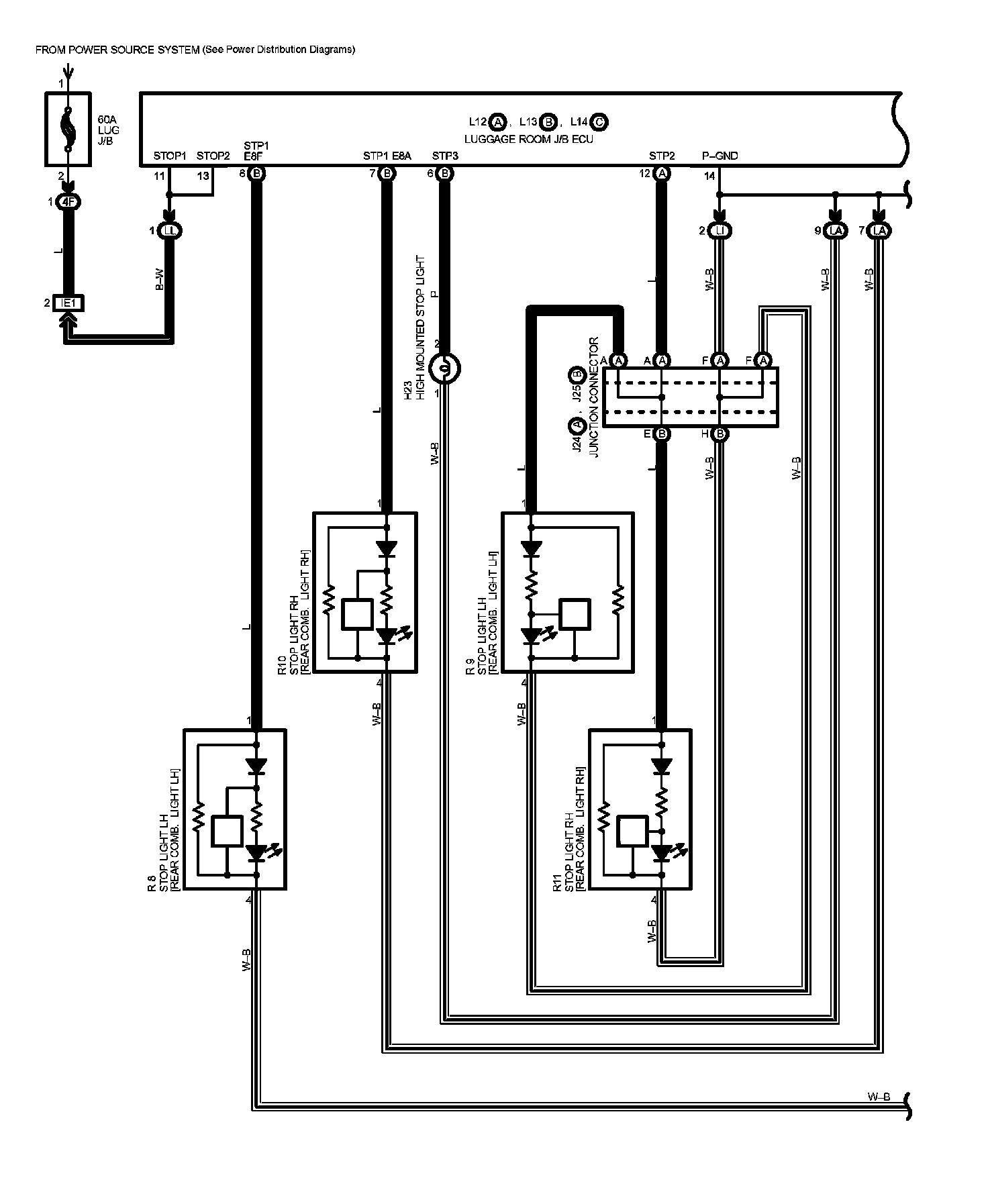

Dynamic Radar/Laser Cruise Control System Part 5:

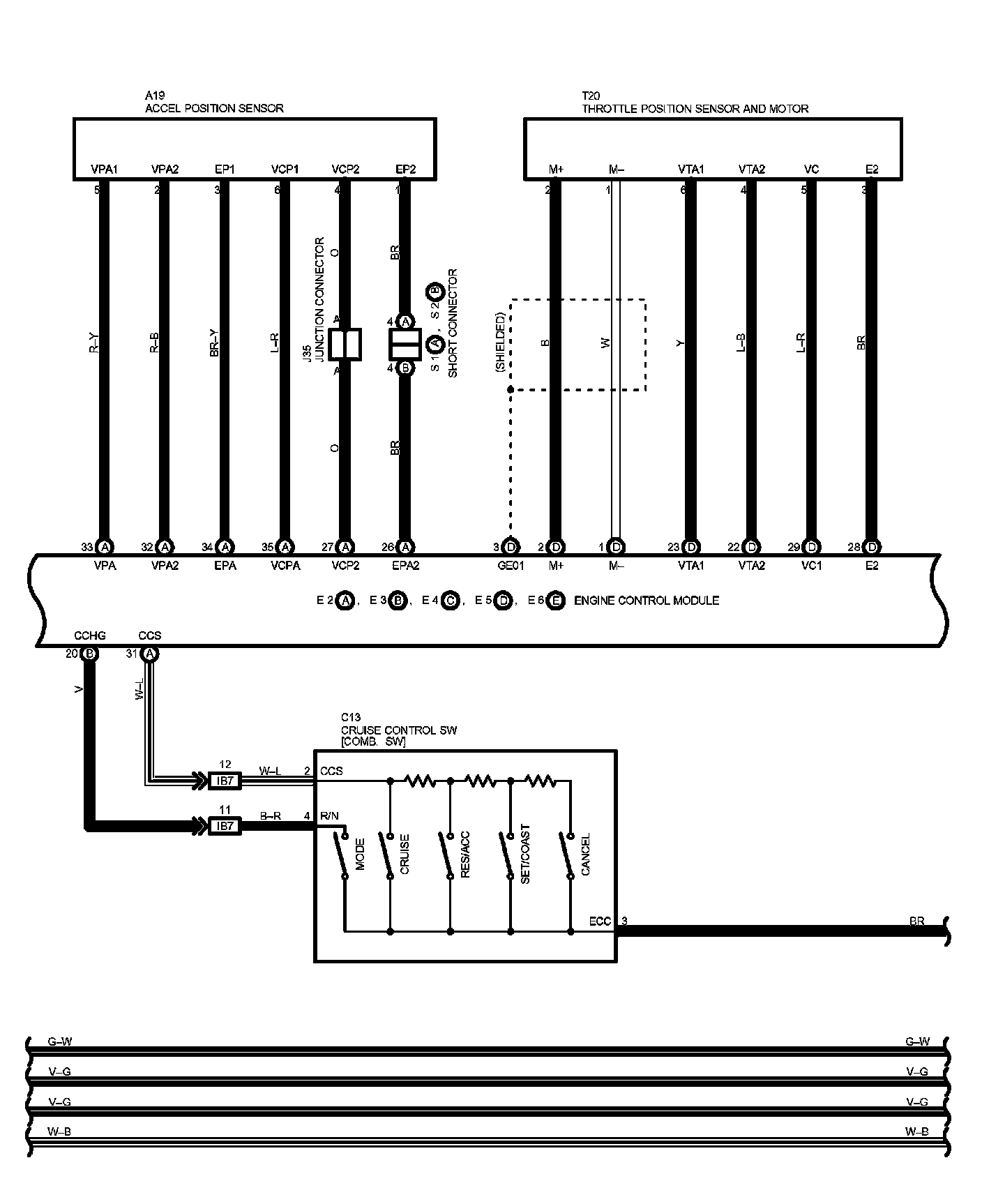

Dynamic Radar/Laser Cruise Control System Part 6:

Dynamic Radar/Laser Cruise Control System Part 7:

Dynamic Radar/Laser Cruise Control System Part 8:

Dynamic Radar/Laser Cruise Control System Part 9:

Dynamic Radar/Laser Cruise Control System Part 10:

Dynamic Radar/Laser Cruise Control System Part 11:

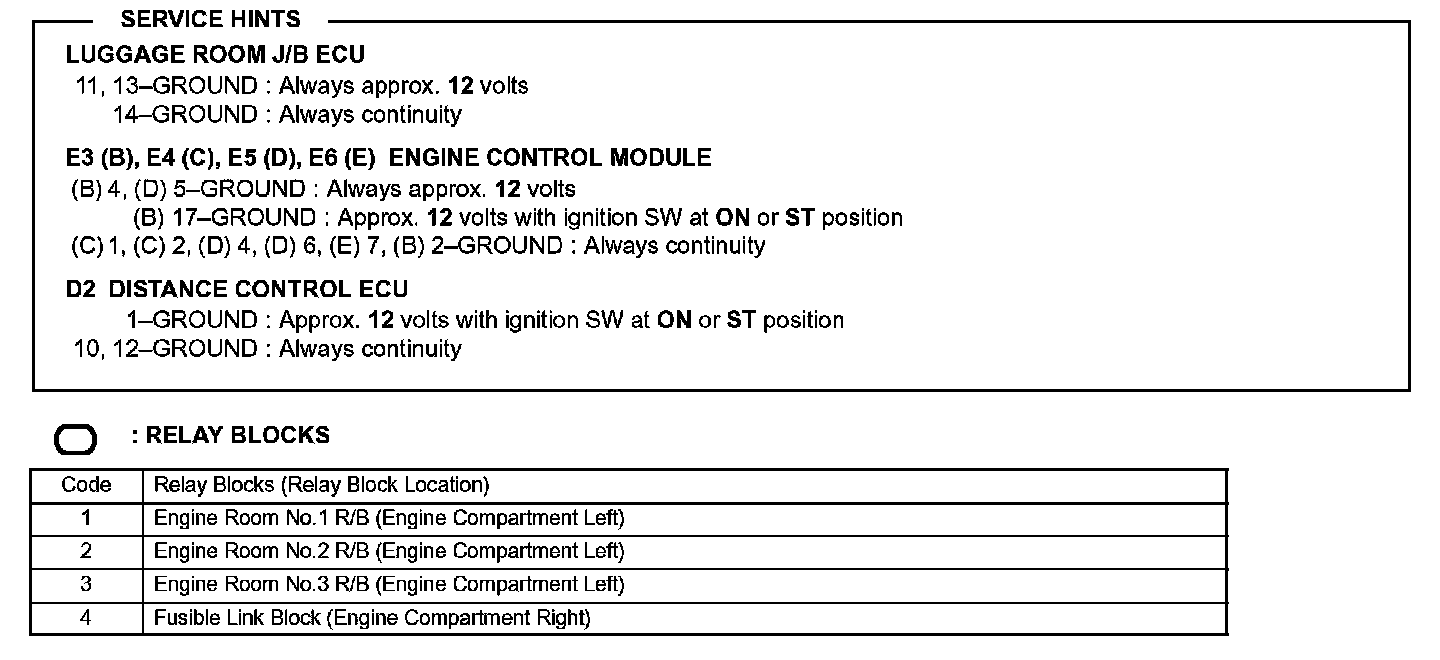

Diagram Legend Part 1:

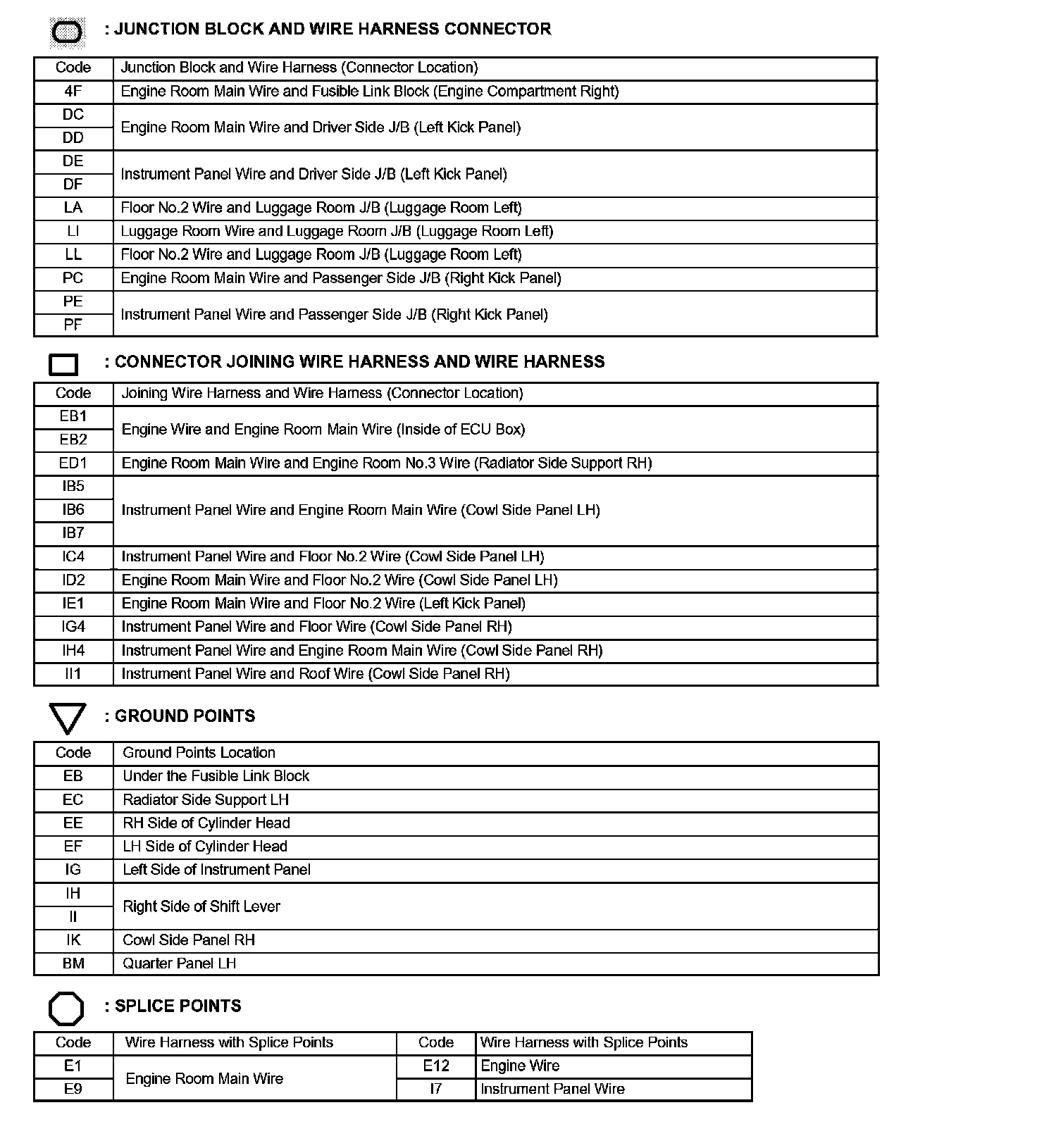

Diagram Legend Part 2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
