Without Scan Tool

CLEAR DTC (USING SST CHECK WIRE)

Clear the DTCs using the SST check wire.

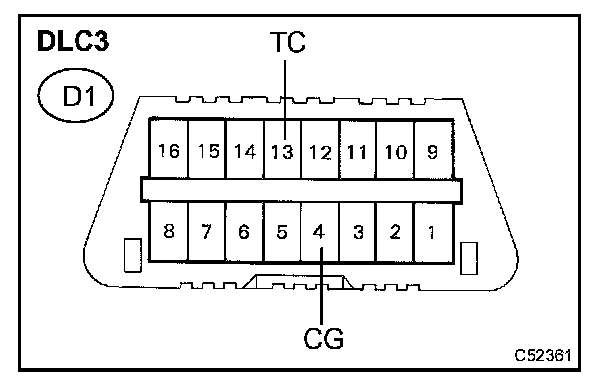

1. Using SST, connect terminals TC and CG of the DLC3.
2. Turn the ignition switch to the ON position.

SST 09843-18040




3. Clear the DTCs stored in the ECU by depressing the brake pedal 8 times or more within 5 seconds.
4. Check that the ABS warning light indicates a normal system code.
5. Remove the SST.

HINT: Clearing the DTCs cannot be performed by removing the battery cable or the ECU-IG fuse.
